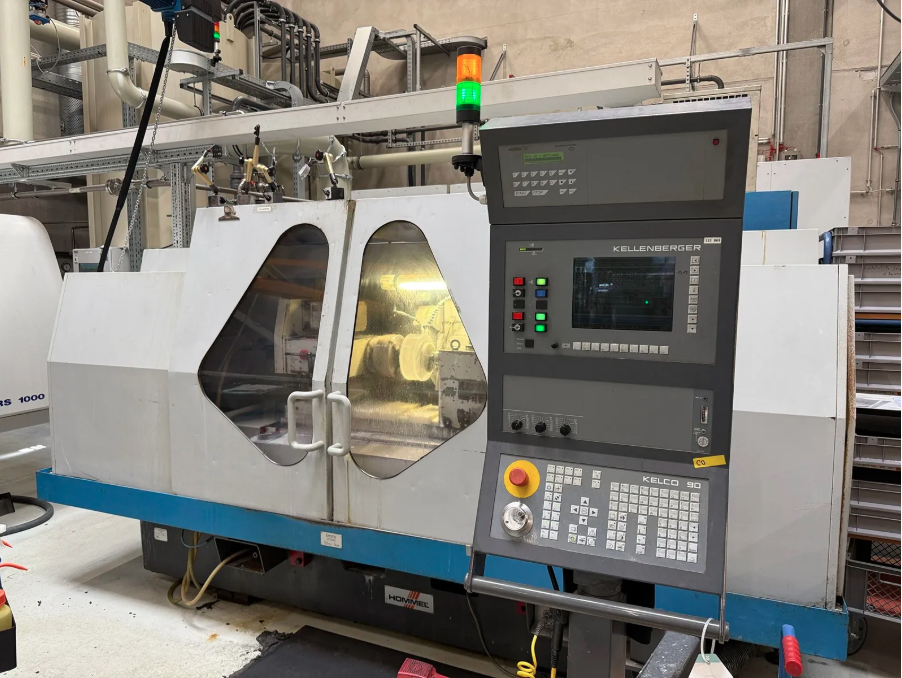

Cylindrical Grinding Machine KELLENBERGER KEL VARIA UR 250/1000 CNC #4630
Cylindrical Grinding Machine KELLENBERGER KEL VARIA UR 250/1000 CNC #4630
Location:Badajoz, Spain
or
Call +34 924 500 336
Specifications
| Manufacturer | KELLENBERGER |
| Model | KEL VARIA UR 250/1000 CNC |
| Condition | Used |
| Stock Number | 4630 |
| Distance between points | 1000 mm |
| Height of points | 250 mm |
| Axis B | Accuracy 0.1 " |
| CNC brand | Kelco |
| CNC model | 90 |
| Left grinding wheel dimensions (OD x ID x W) | Ø400 x Ø127 x 63 mm |
| Right grinding wheel dimensions (OD x ID x W) | Ø400 x Ø127 x 50 mm |
| Rotation of the workpiece head | -30º +120º |
| Workpiece holder head cone | MK 5 |
| Max. workpiece weight between points | 150 Kg |
| tailstock cone | MK 4 |
| Counterpoint reed route | 50 mm |
| Max tangential speed | 32 m/s |
| High-frequency internal grinding spindle | Ø120 mm |
| High-frequency internal grinding spindle brand | WARNER model K 3.000 |
| Main engine power | 7.5 Kw |
| Total power | 26.5 Kw |
| Max travel Z axis | 1.150 mm |
| Max speed Z axis | 15 m / min |
| Work table rotation | 0º to 9º |
| Max travel X axis | 320 mm |
| Max speed X axis | 7.5m/min |
| Long | 3600 mm |
| Width | 2000 mm |
| Weight approx. | 5.000 Kg |
