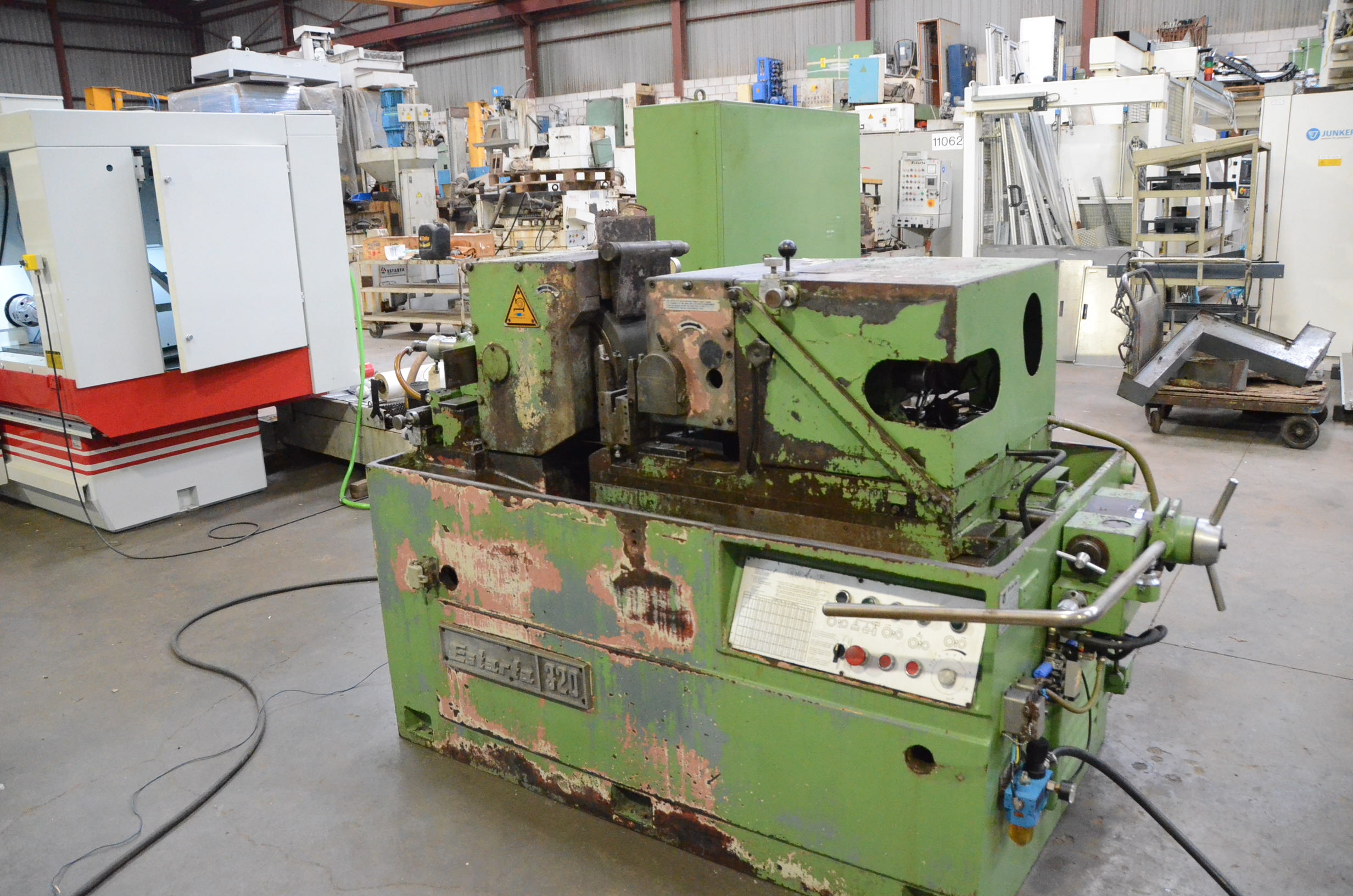

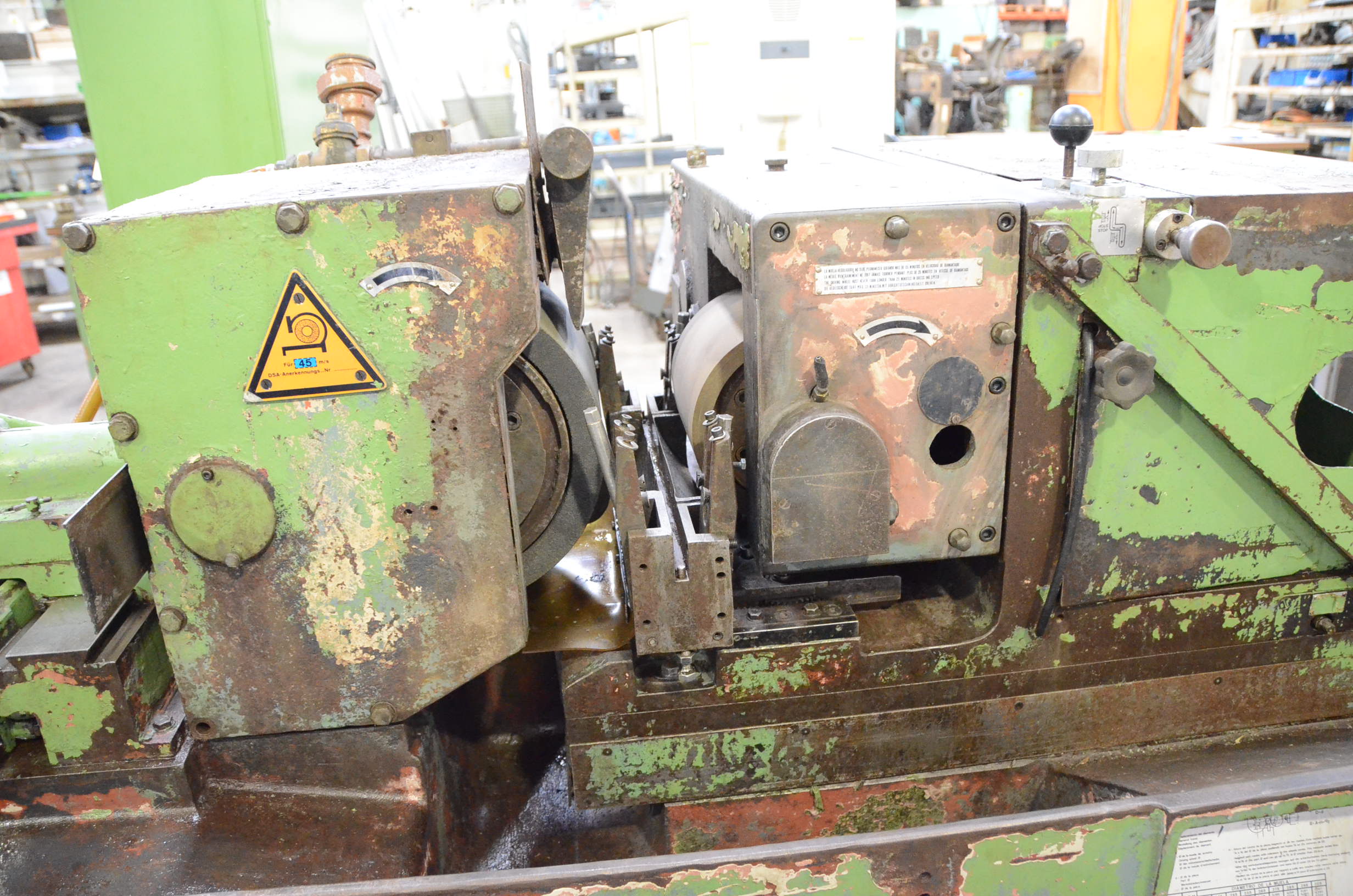

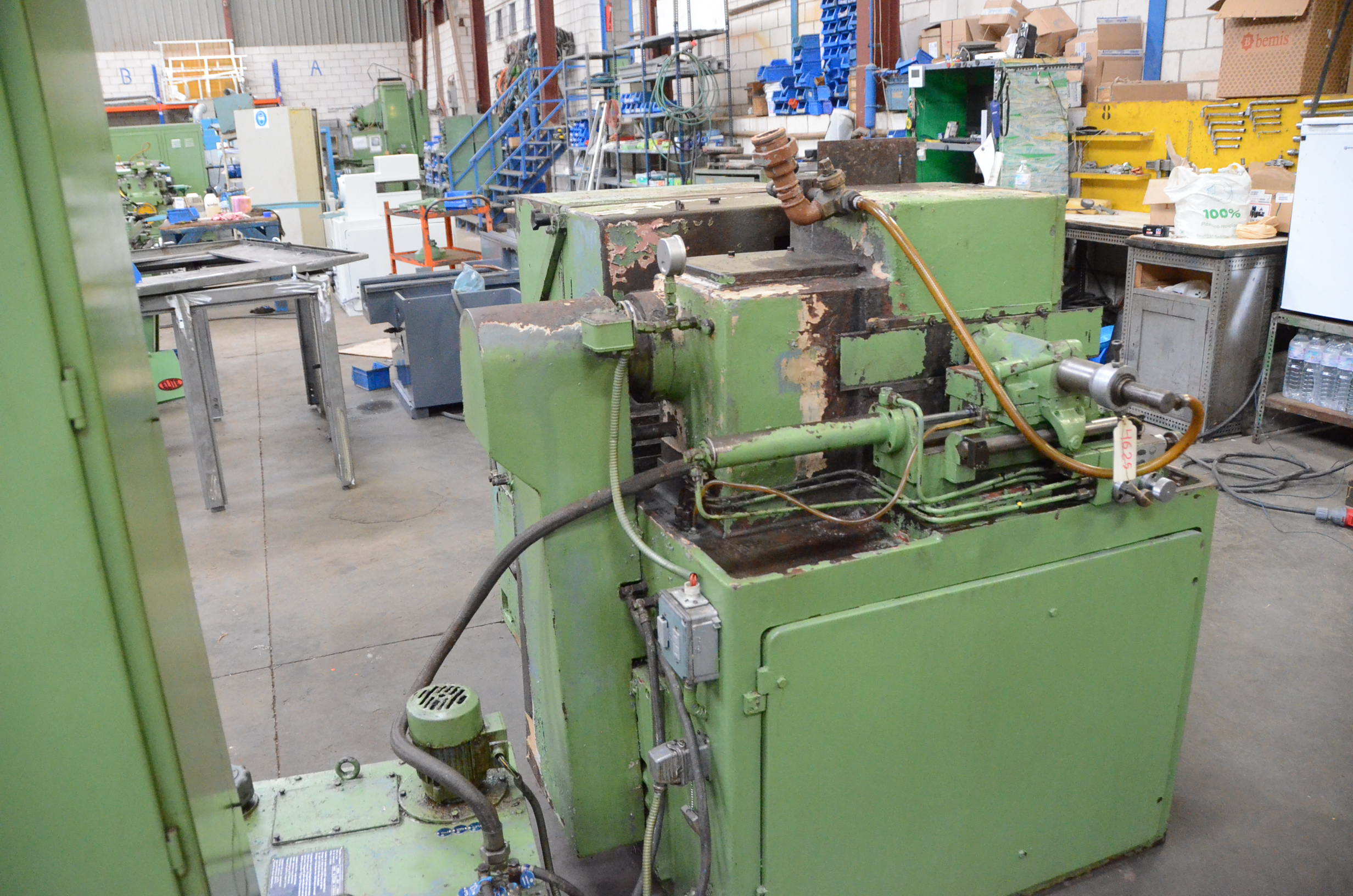

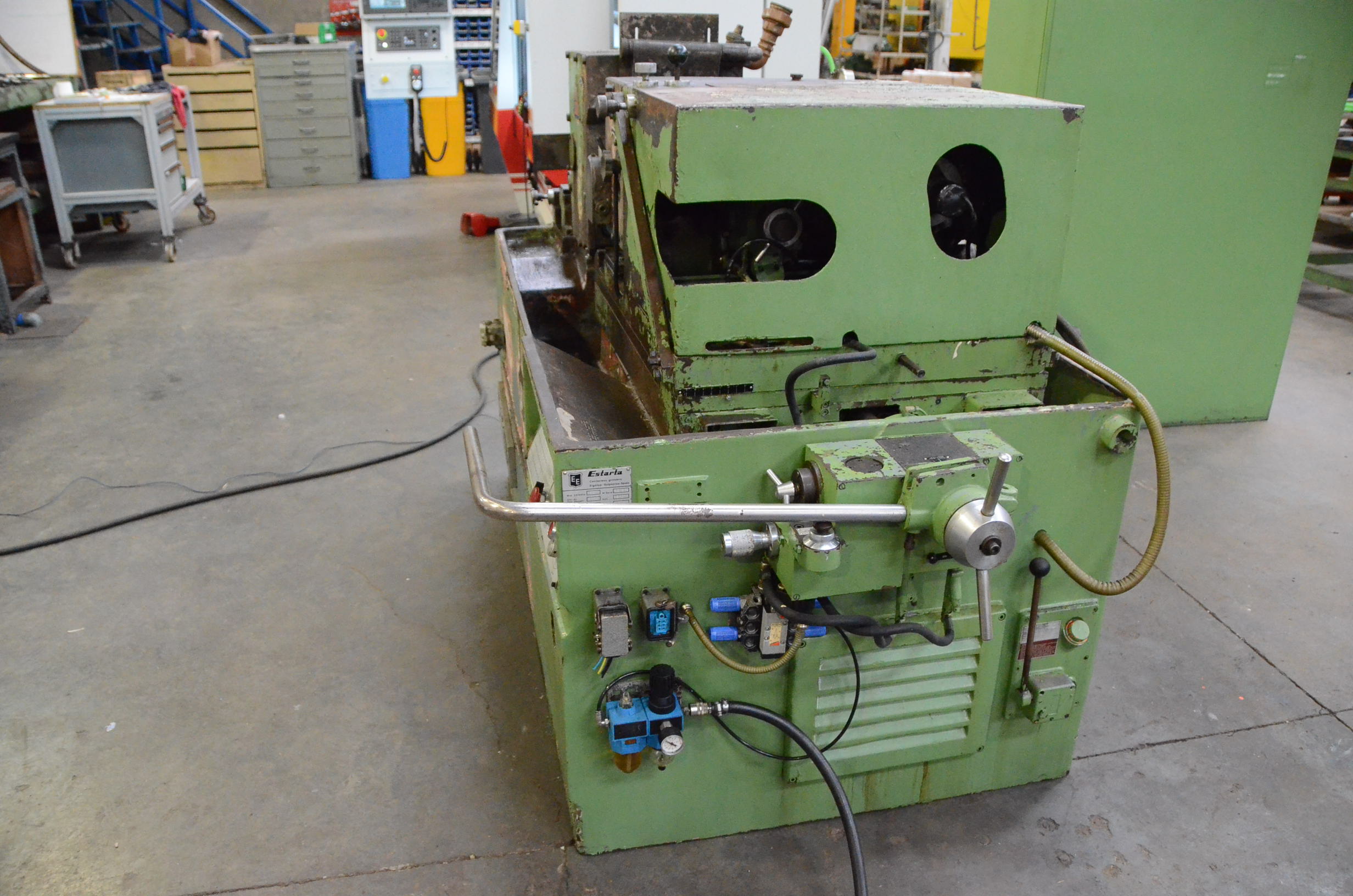

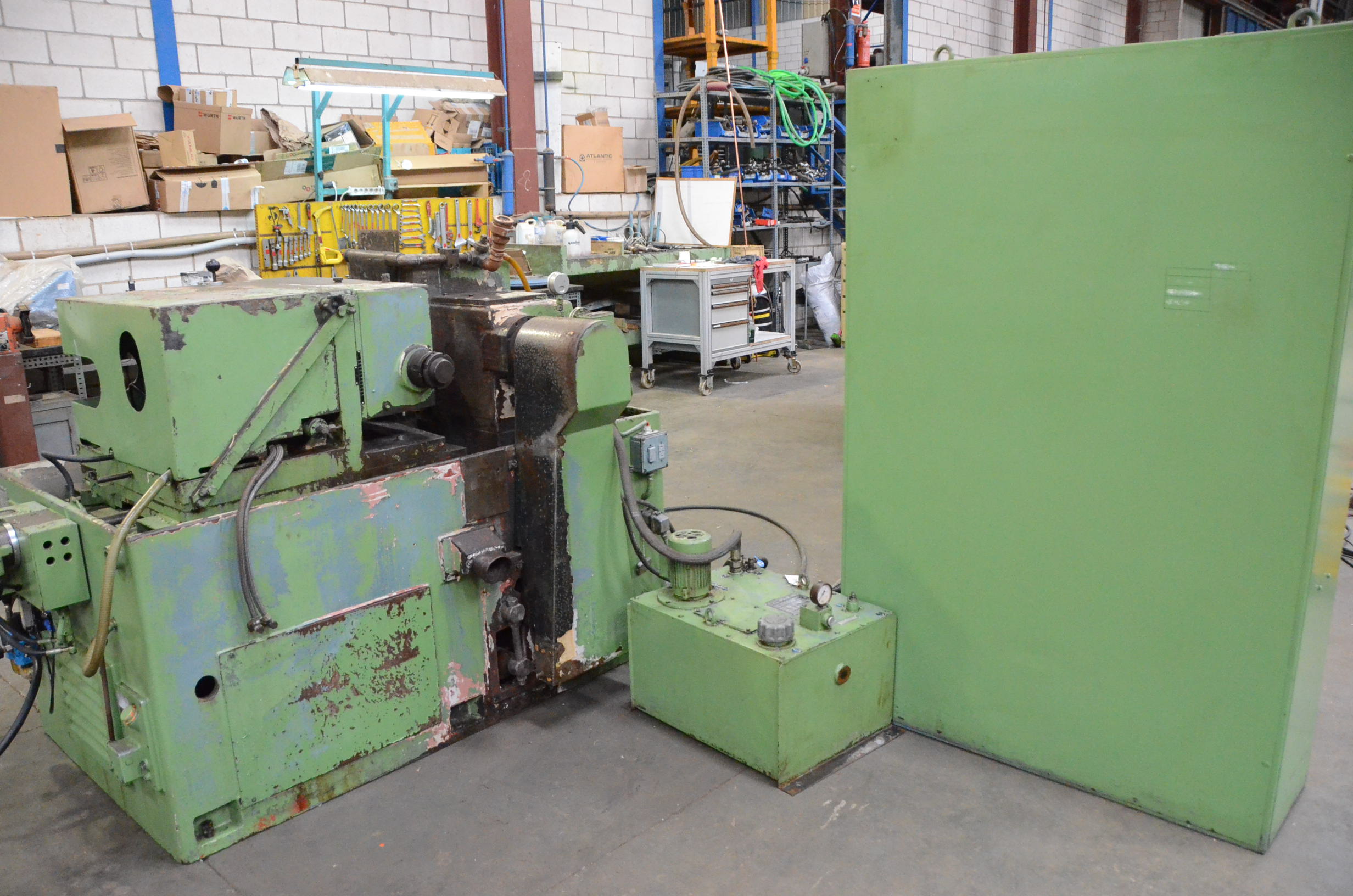

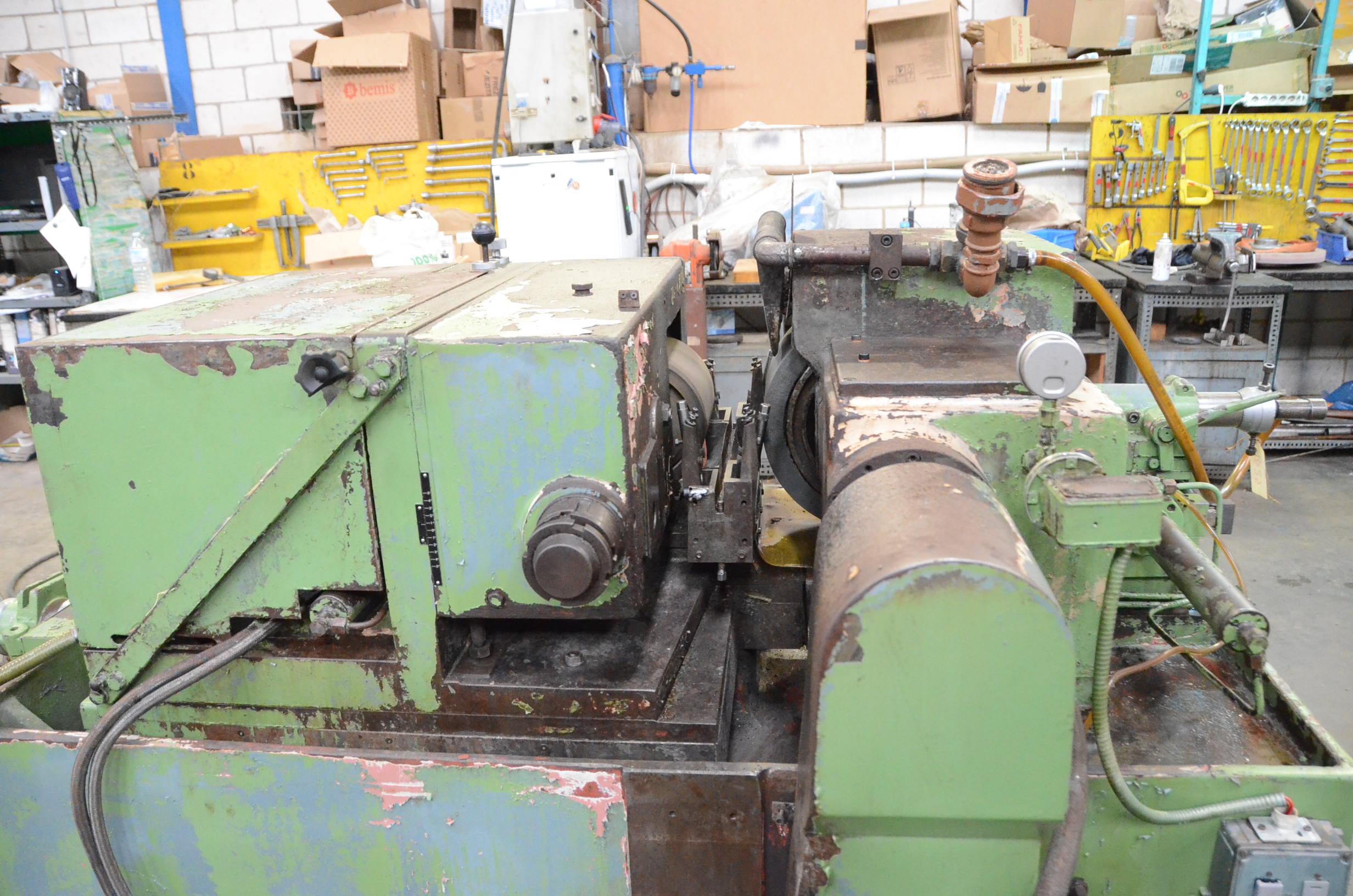

Centerless grinding machine ESTARTA 320 #4625
Centerless grinding machine ESTARTA 320 #4625
Location:Badajoz, Spain
or
Call +34 924 500 336
Specifications
| Manufacturer | ESTARTA |
| Model | 320 |
| Condition | Used |
| Stock Number | 4625 |
| Ø grinding wheel dimensions (od x id x width) | Ø 406 x Ø 203 x 200 mm |
| Grinding wheel dimensions (od x id x width) | Ø 406 x Ø 203 x 200 mm |
| Ø min/max to be rectified | 1.5 / 100 mm |
| Ø min / max to grinding | 1.5 / 100 mm |
| Min/max speed of regulating wheel (r.p.m.) | 10 / 250 rpm |
| Regulating wheel width | 200 mm |
| Dimensions of the regulating wheel (OD x ID x W) | Ø 270 x Ø 140 x 200 mm |
| Min / max regulating wheel speed (r.p.m.) | 10/250 rpm |
| Maximum length to be rectified in plongeé | 200 mm |
| Regulating wheel dimensions (od x id x width) | Ø 270 x Ø 140 x 200 mm |
| Grinding wheel head motor power | 15 kW |
| Grinding wheel width | 200 mm |
| Maximum infeed grinding length | 200 mm |
| Tall | 1420 mm |
| Motor power grinding wheelhead | 15 kW |
| Long | 2020 mm |
| Width | 1300 mm |
| High | 1420 mm |
| Weight | 4200 kg |
