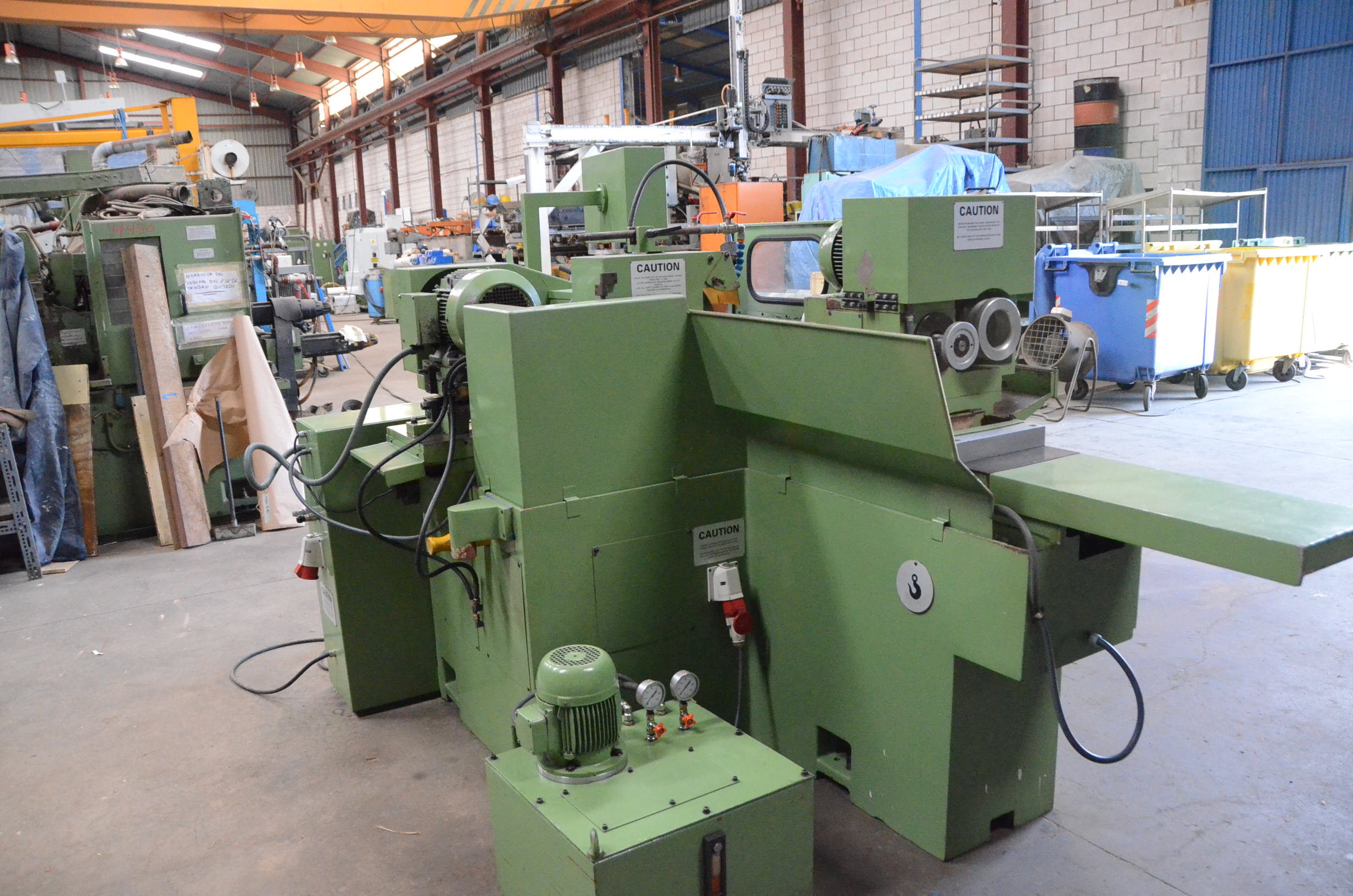

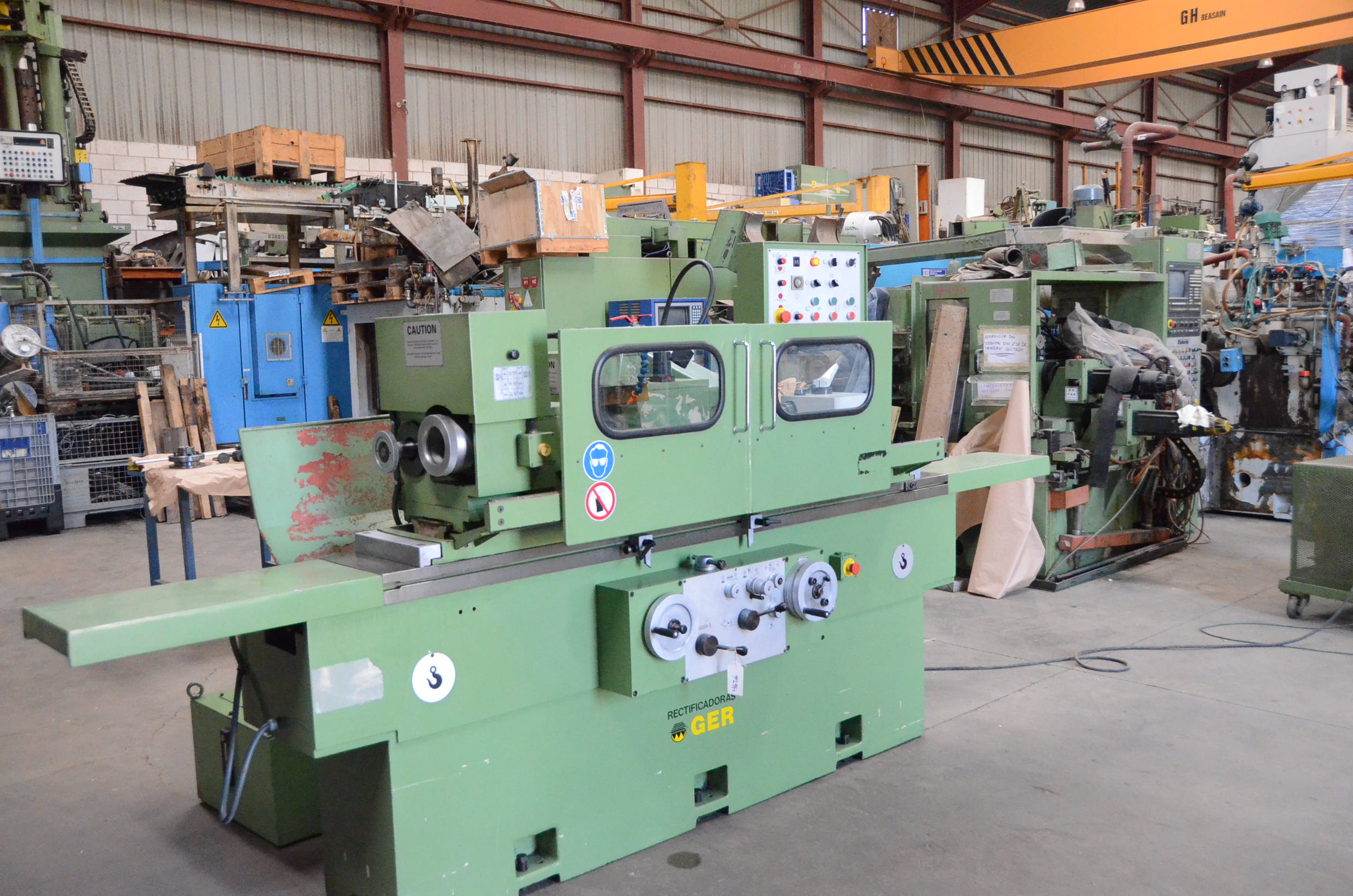

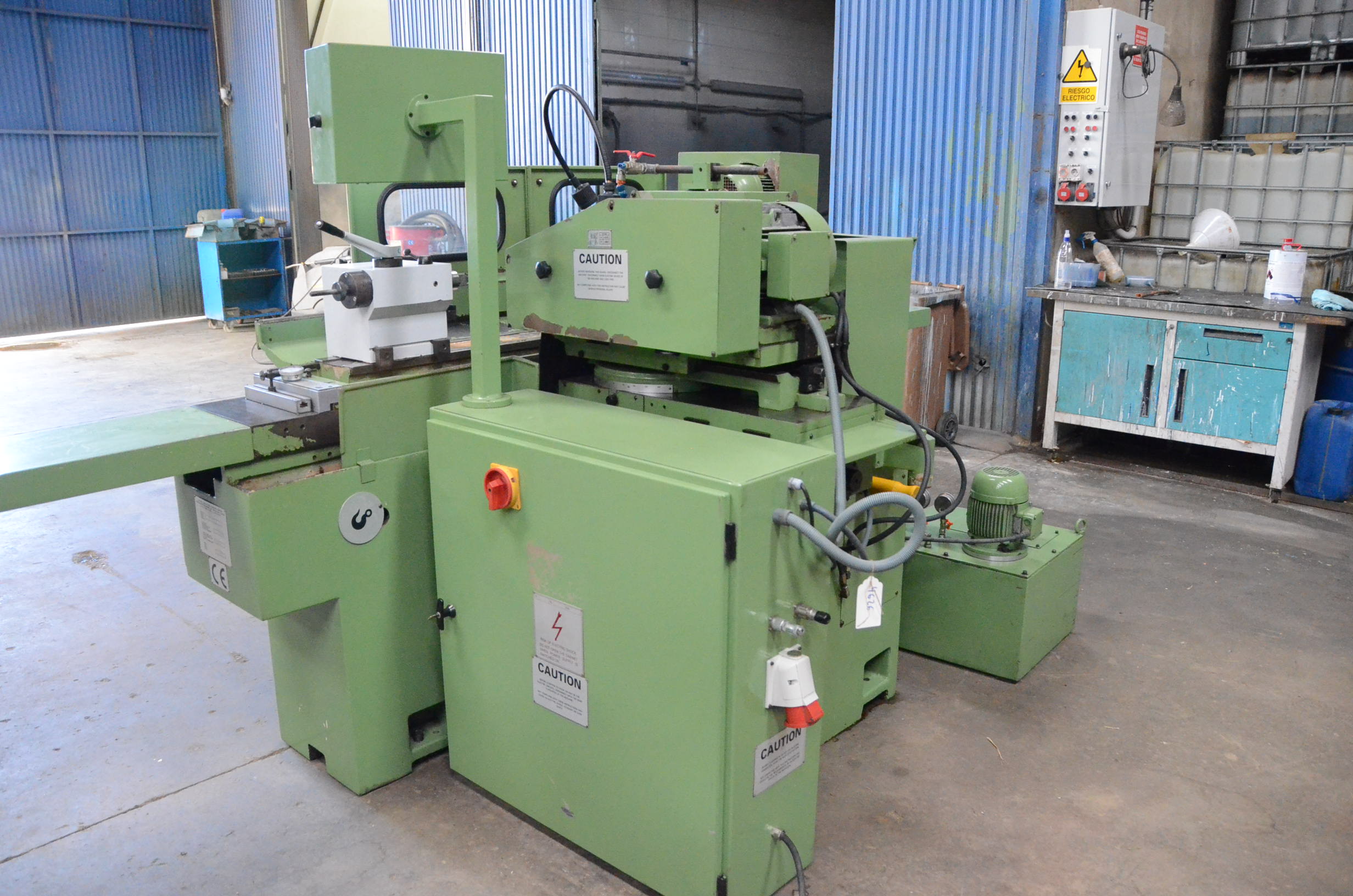

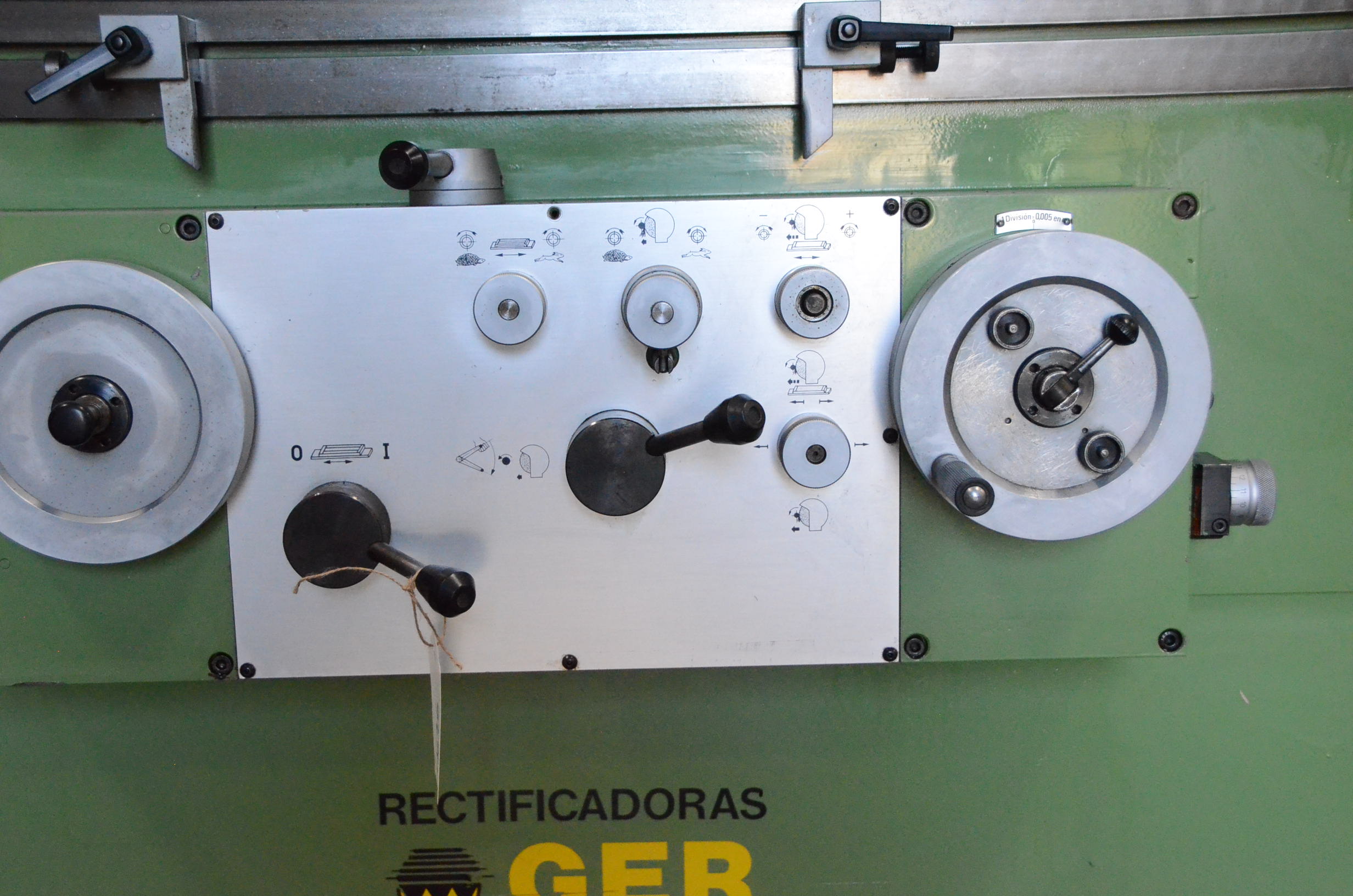

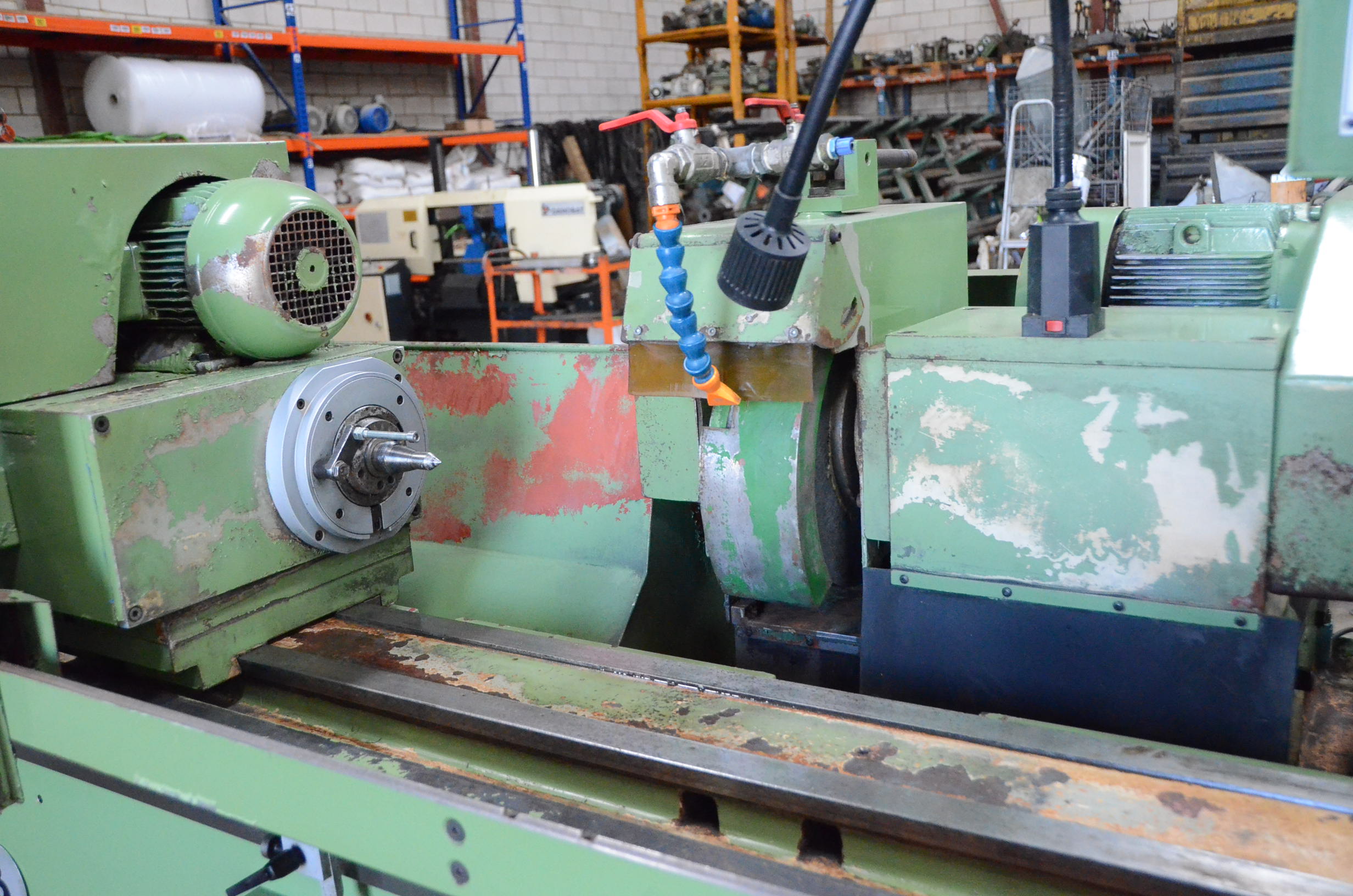

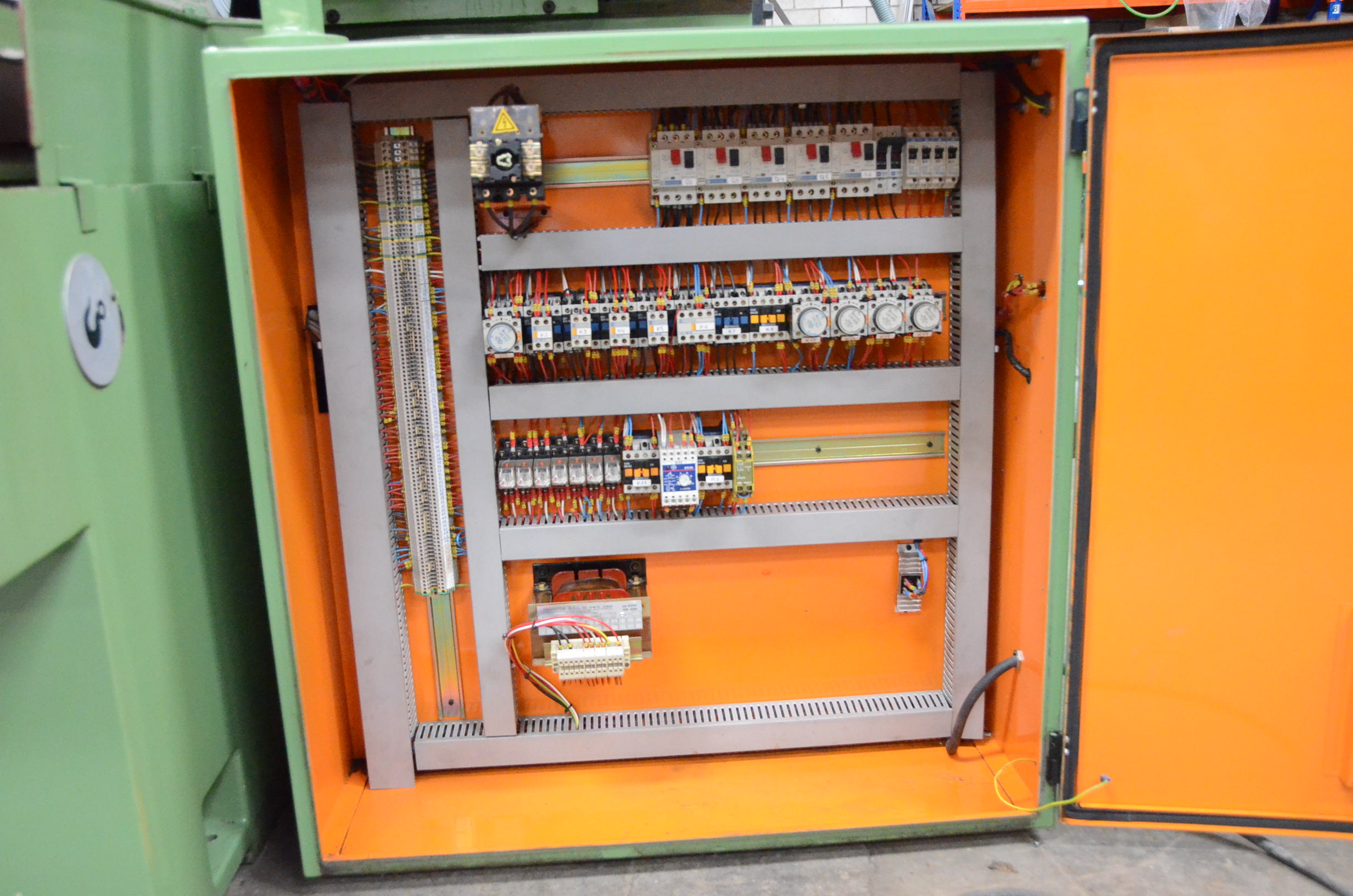

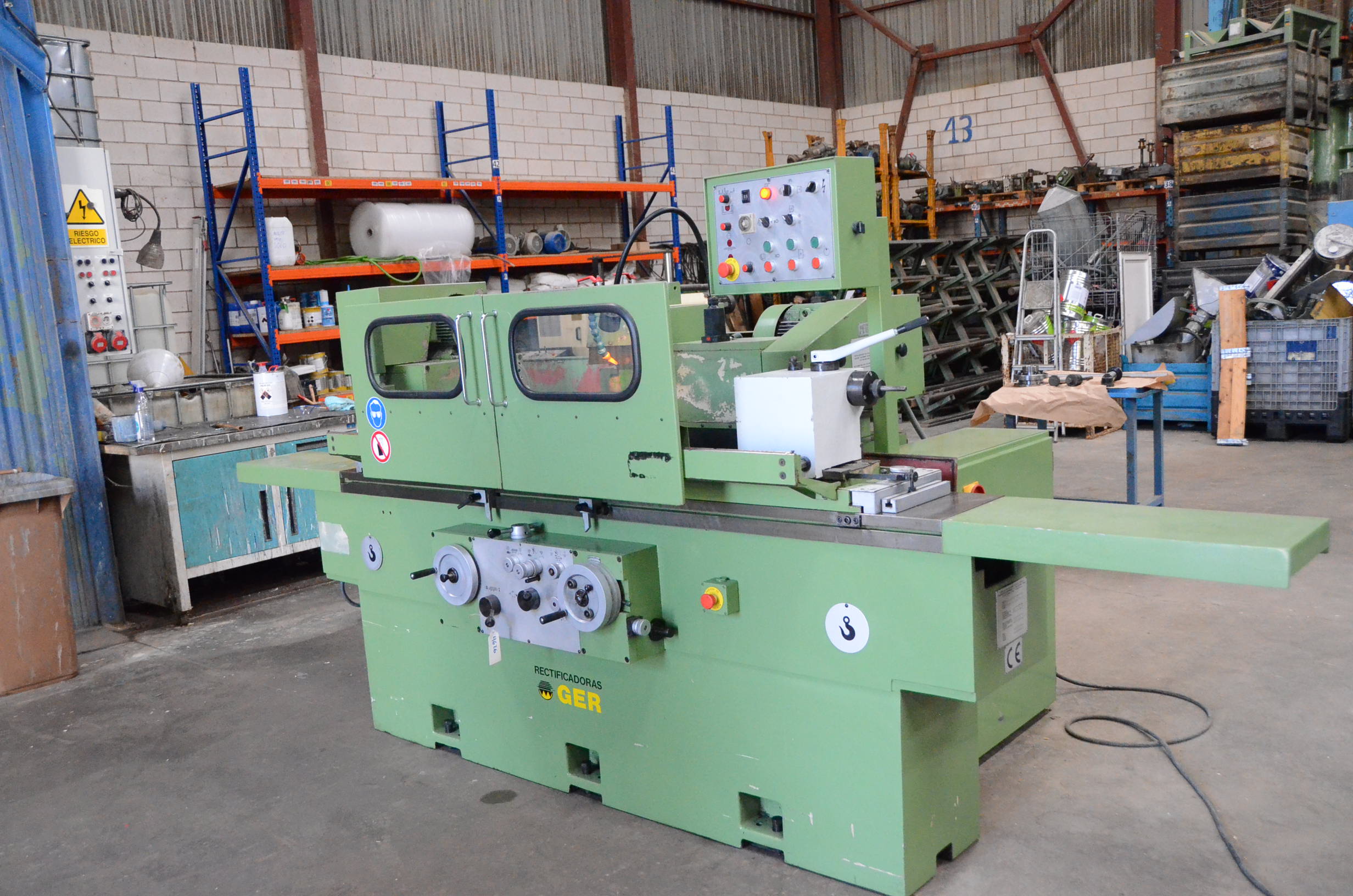

Cylindrical Grinding Machine GER C 1000 #4626
Cylindrical Grinding Machine GER C 1000 #4626
Location:Badajoz, Spain
or
Call +34 924 500 336
Specifications
| Manufacturer | GER |
| Model | C 1000 |
| Condition | Used |
| Stock Number | 4626 |
| Distance between points | 1000 mm |
| Height of points | 180 mm |
| Max. diameter to be rectified | 355 mm |
| Max. piece weight between points | 300 Kg |
| Max. weight with plate | 125 Kg |
| Transverse travel of the carriage (X axis) | 350 mm |
| X-axis speed | 0.01 / 6.000 mm/min |
| X-axis Resolution | 0.0001 mm |
| X-axis measurement system | Digital ruler |
| Longitudinal travel of the carriage (Z axis) | 1.300 mm |
| Z-axis speed | 0.01 / 15,000 mm/min |
| Z-axis resolution | 0.0001 mm |
| Z-axis measurement system | Digital ruler |
| Working wheel dimensions (od x id x width) | Ø500 x Ø203 x 80 mm |
| Main engine power | 7,5 Kw |

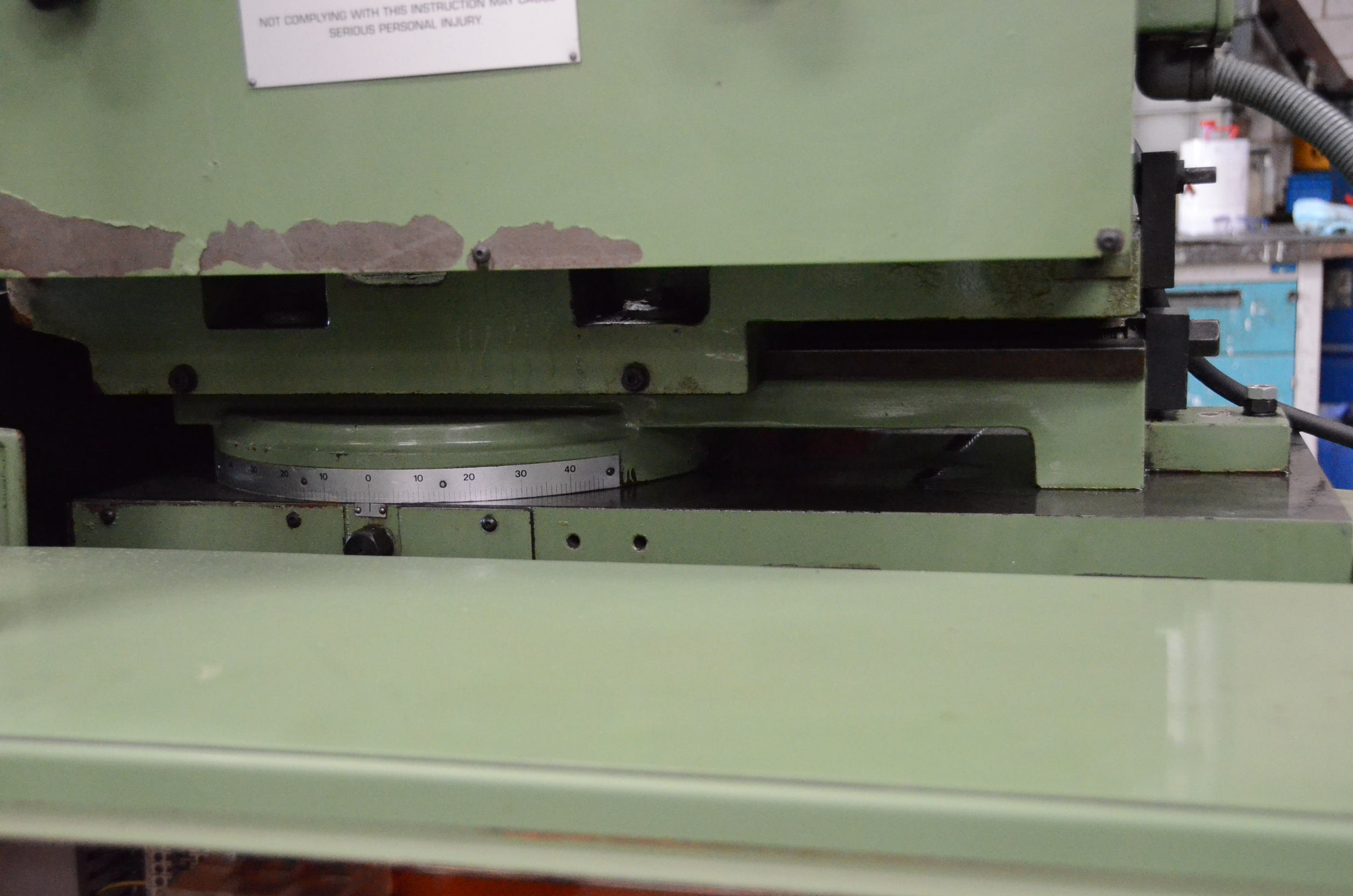

| Angle of rotation of the grinding head | -30º / +210º |

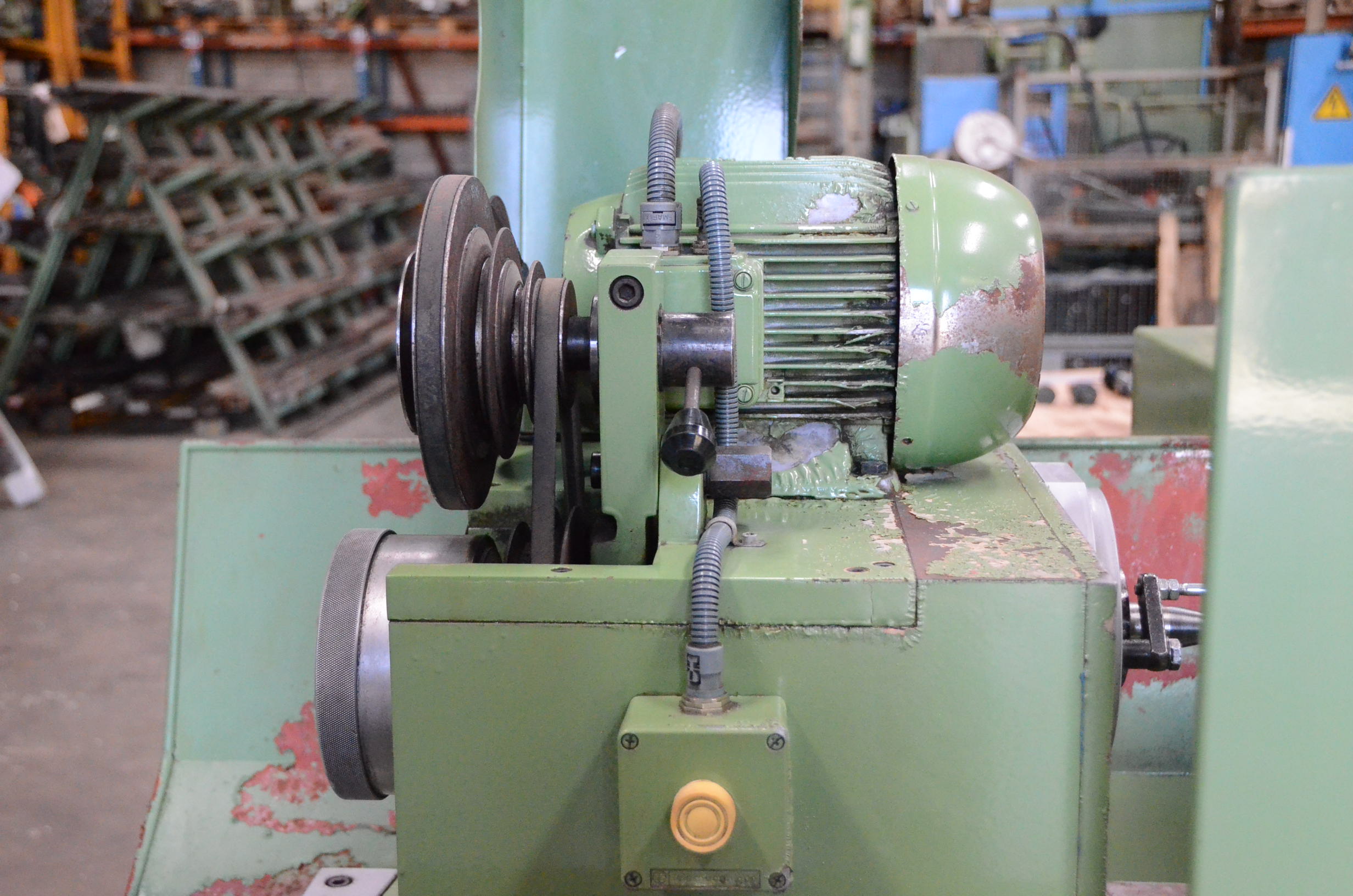

| Workhead rotation speed | 10 / 800 rpm |
| Workpiece holder head cone | MORSE 5 |
| tailstock cone | MORSE 4 |
| Ø of the tailstock shank | 60 mm |
| Course of the counterpoint reed | 40 mm |
| Dimensions | 4600 mm Length x 2400 mm Width x 2050 mm Height |
| Weight approx. | 6.500 Kg |
