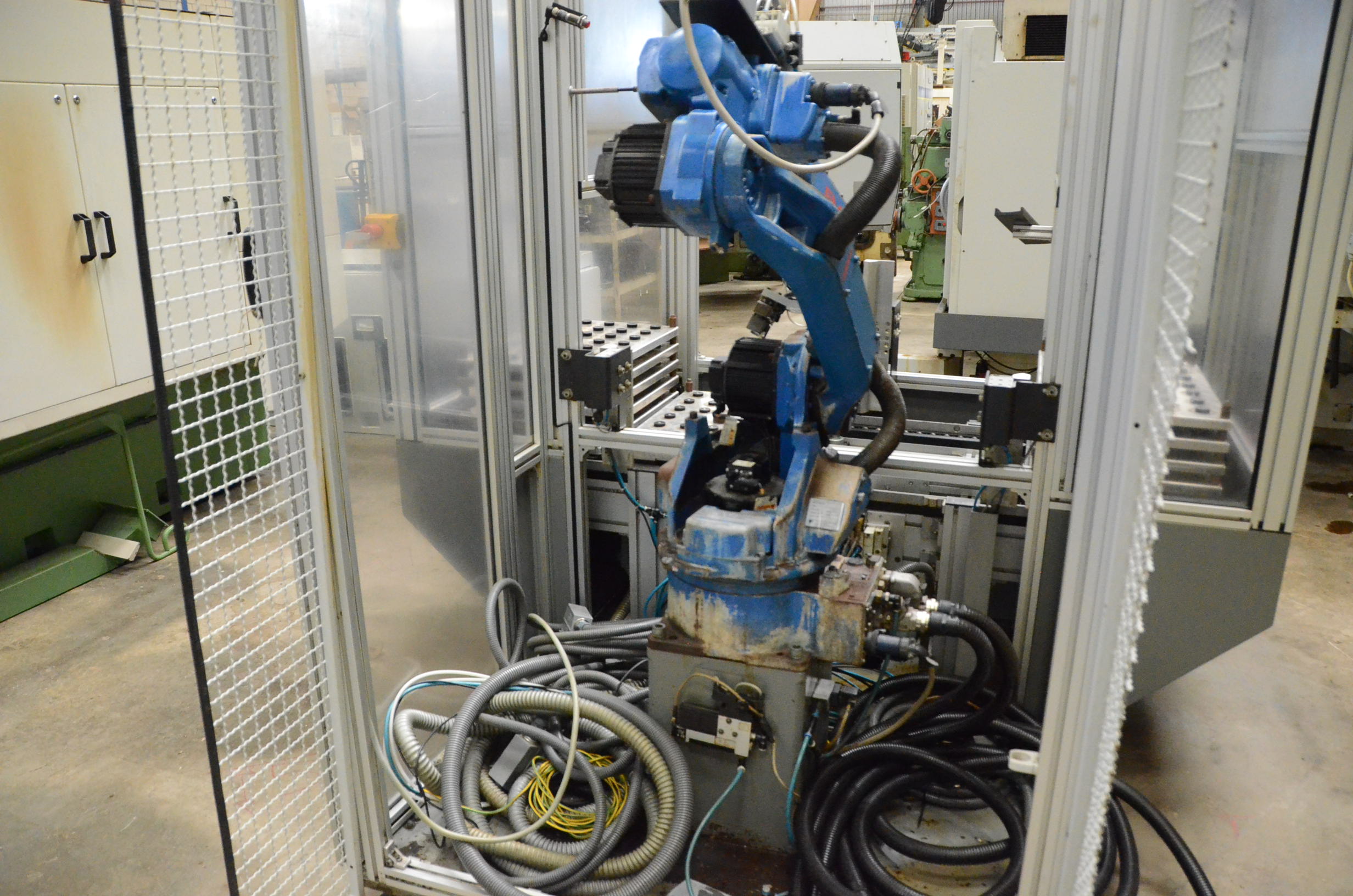

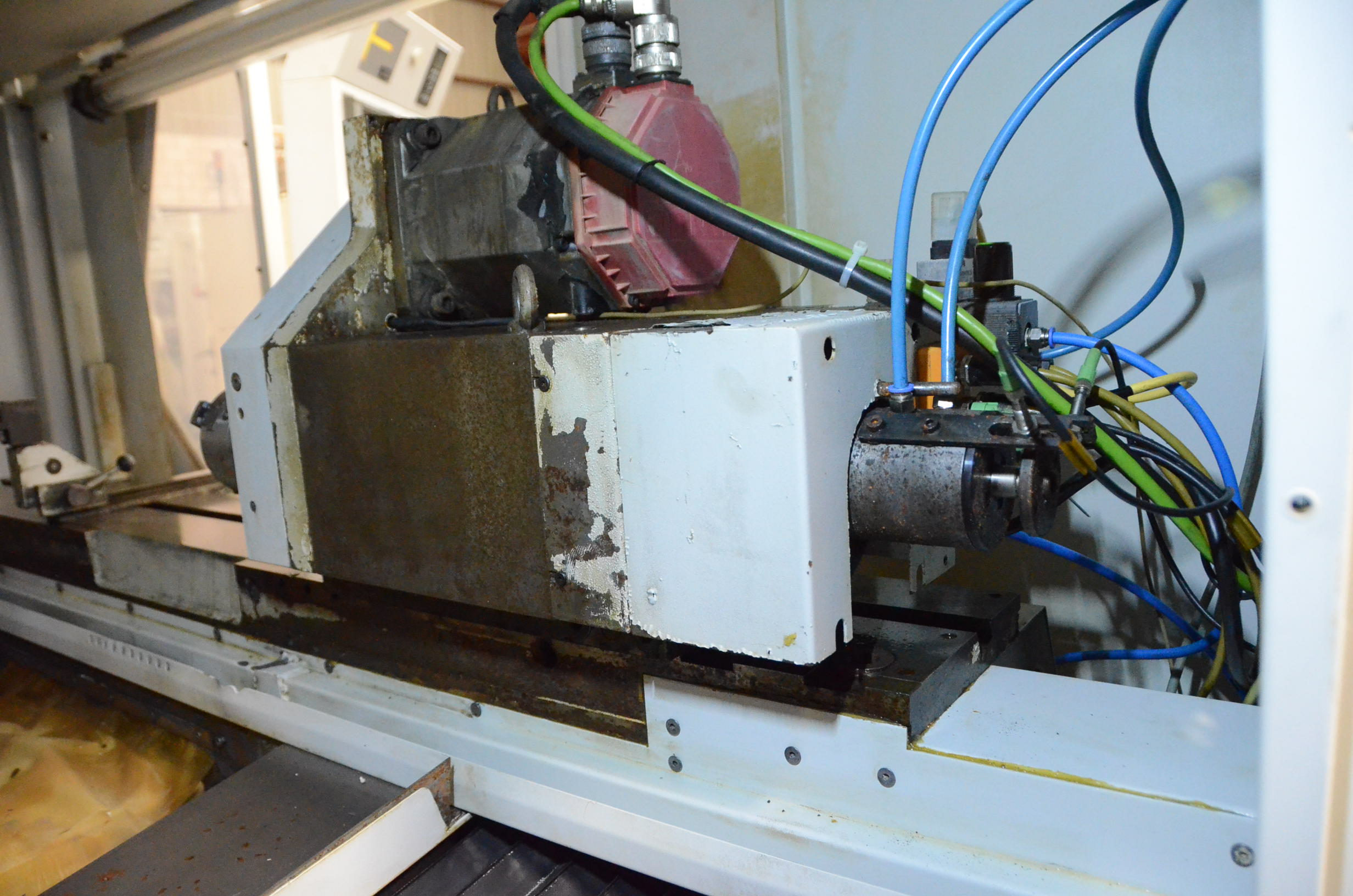

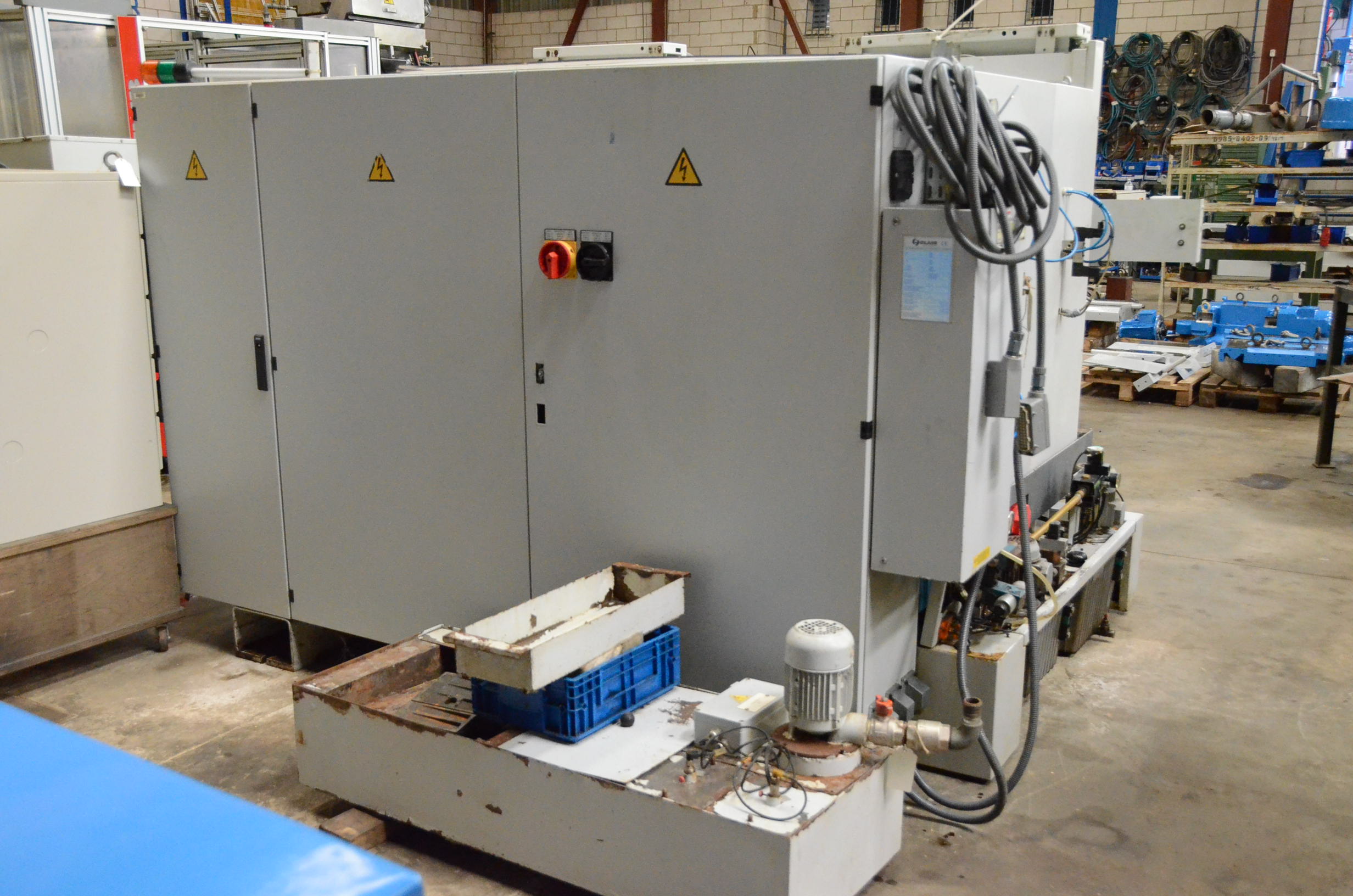

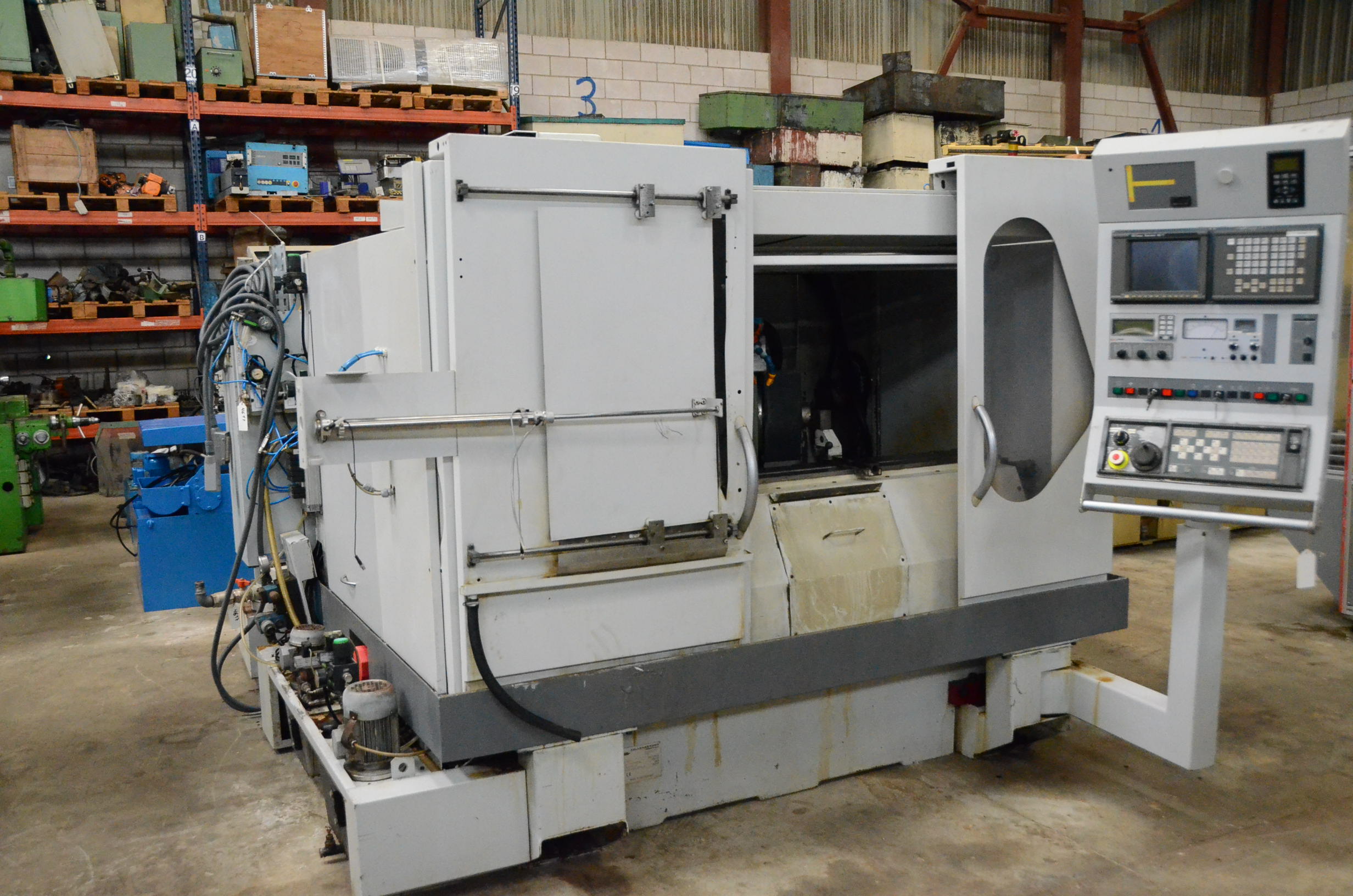

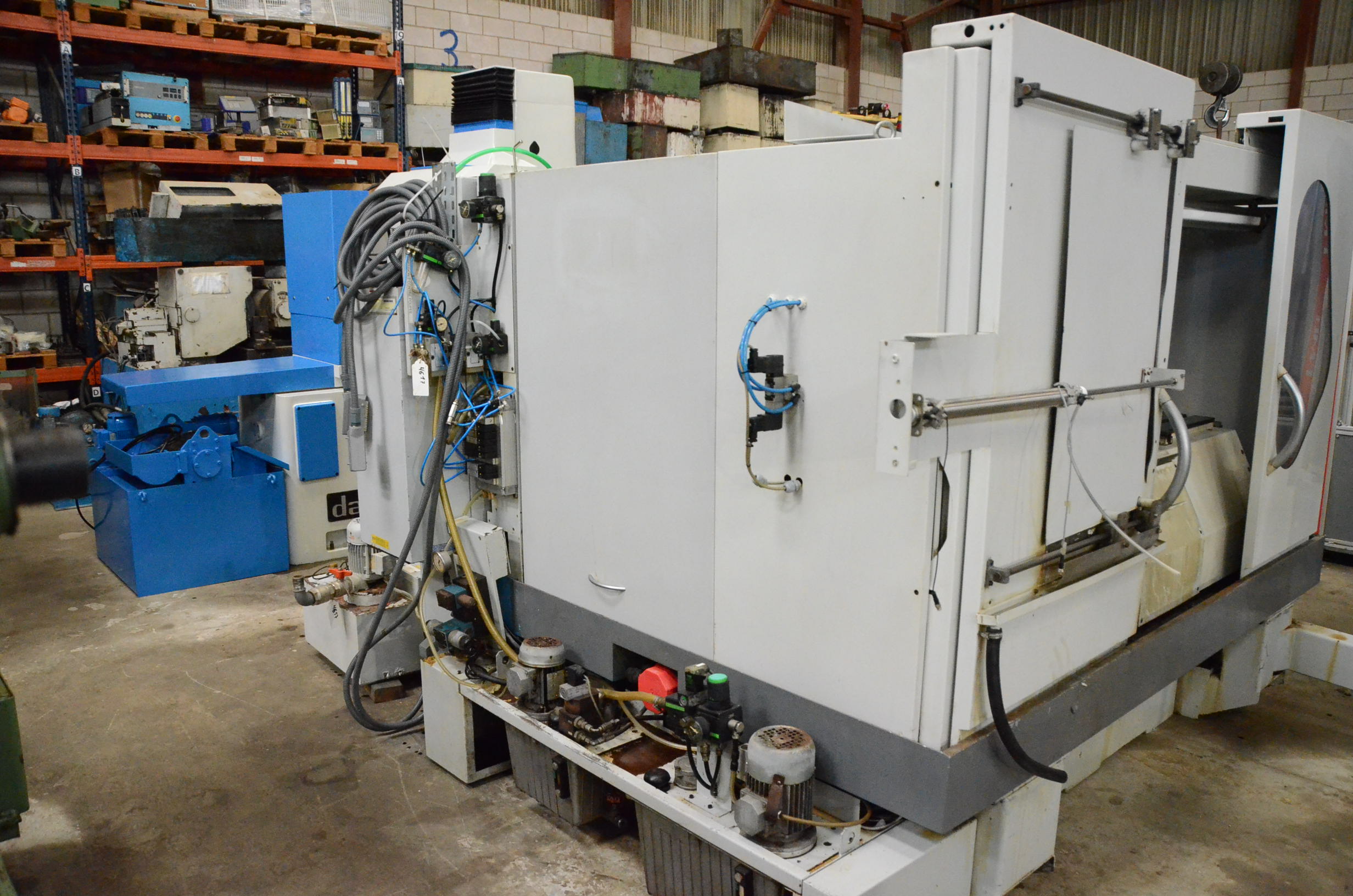

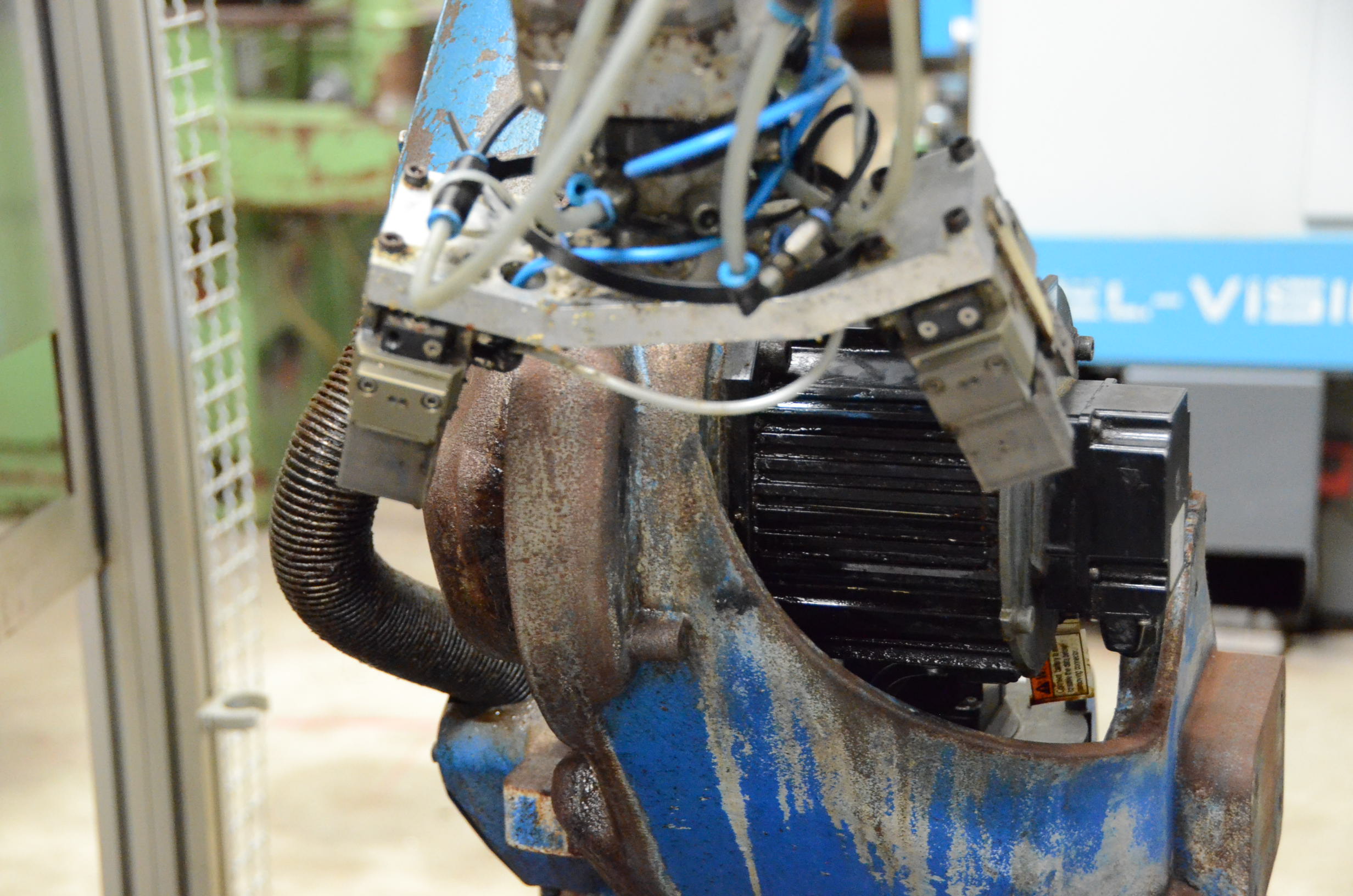

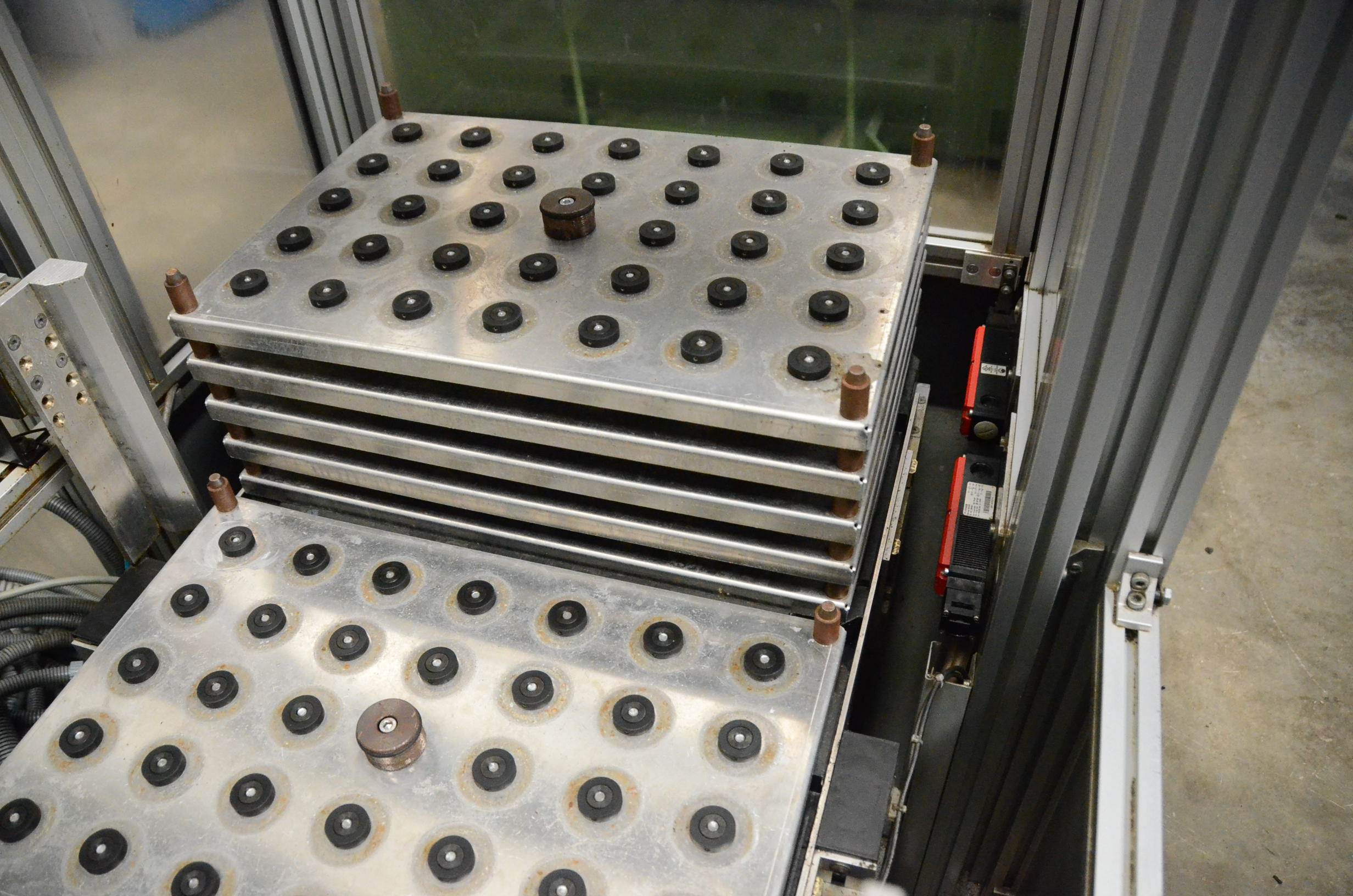

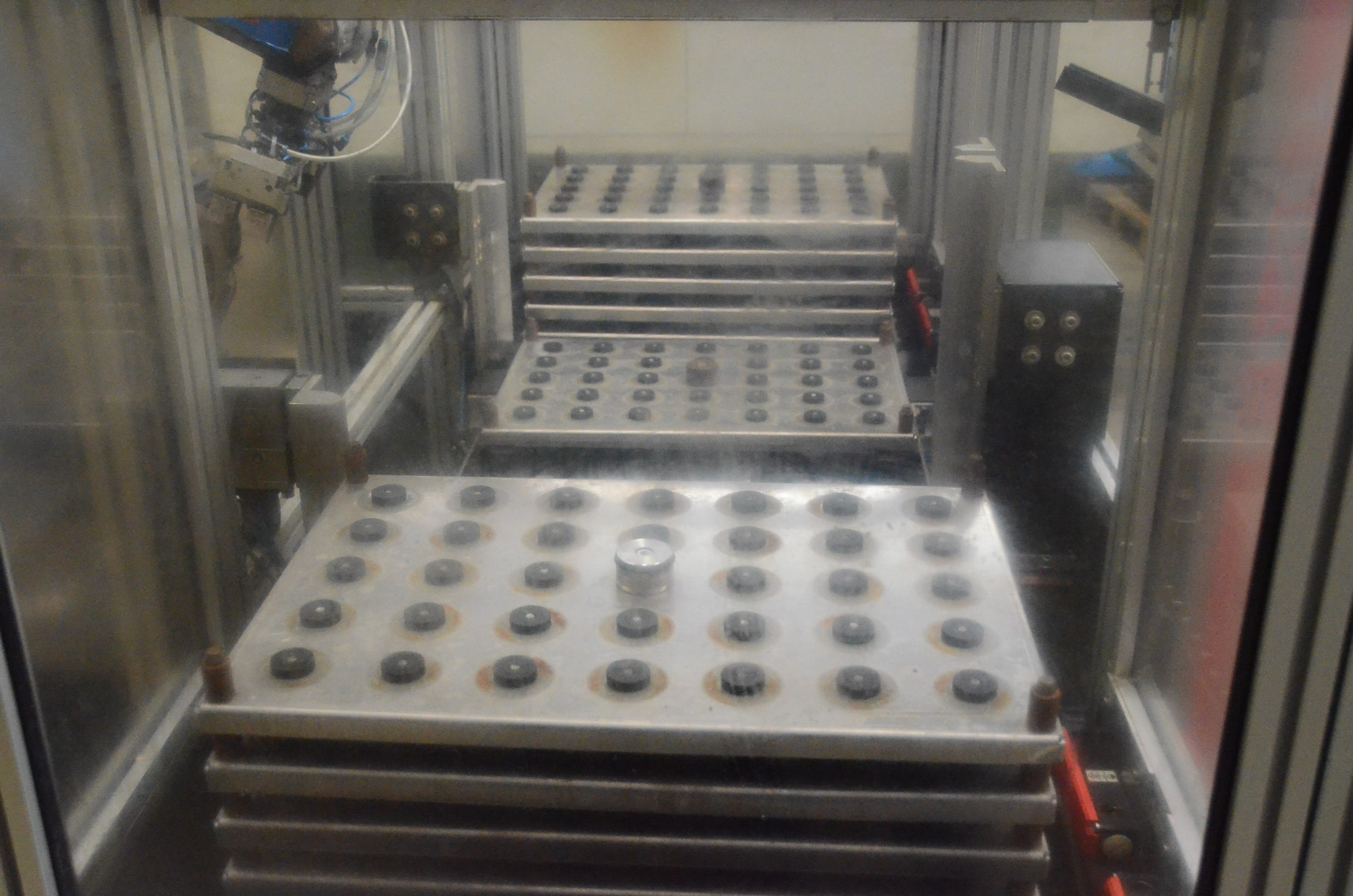

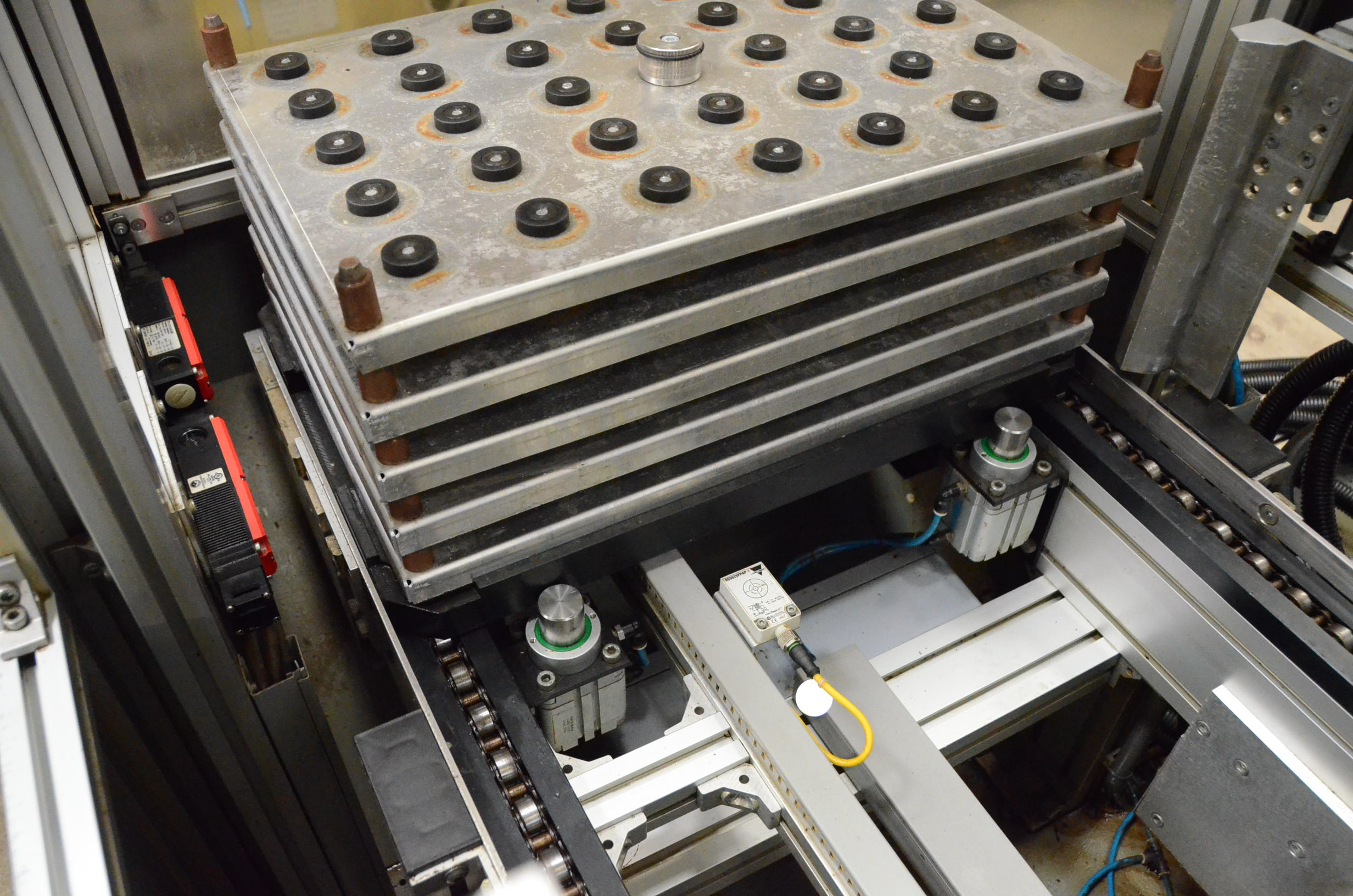

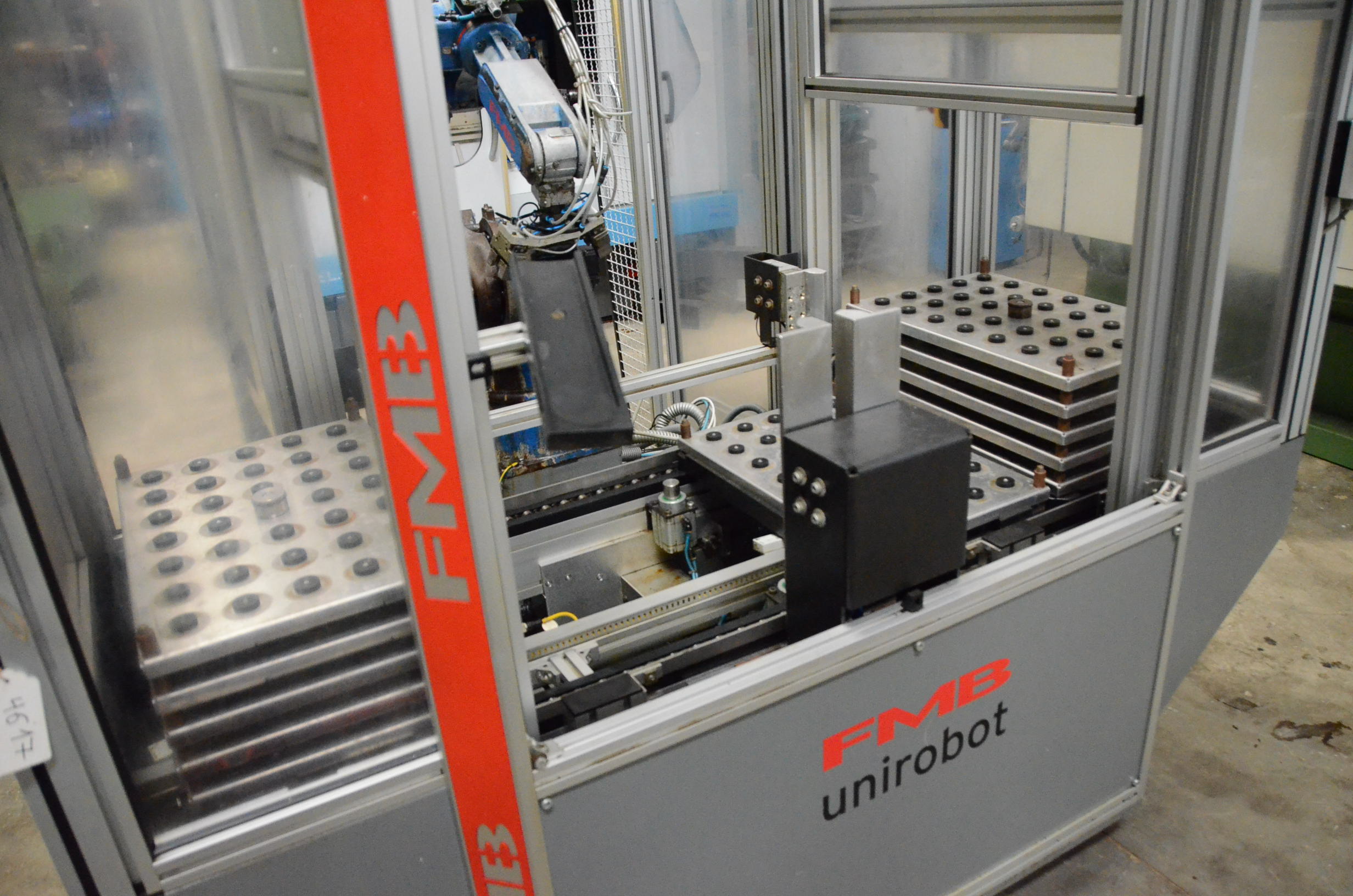

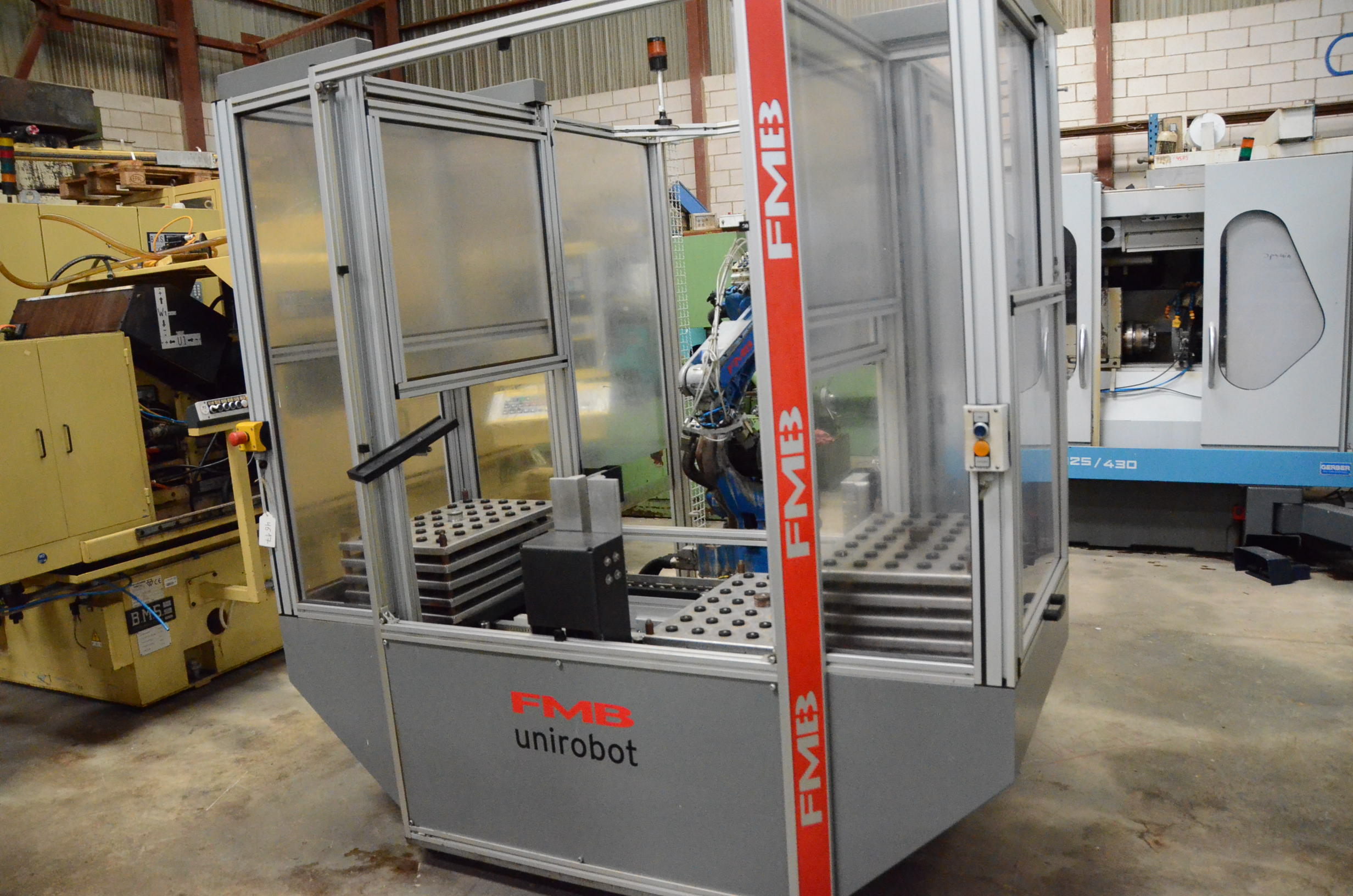

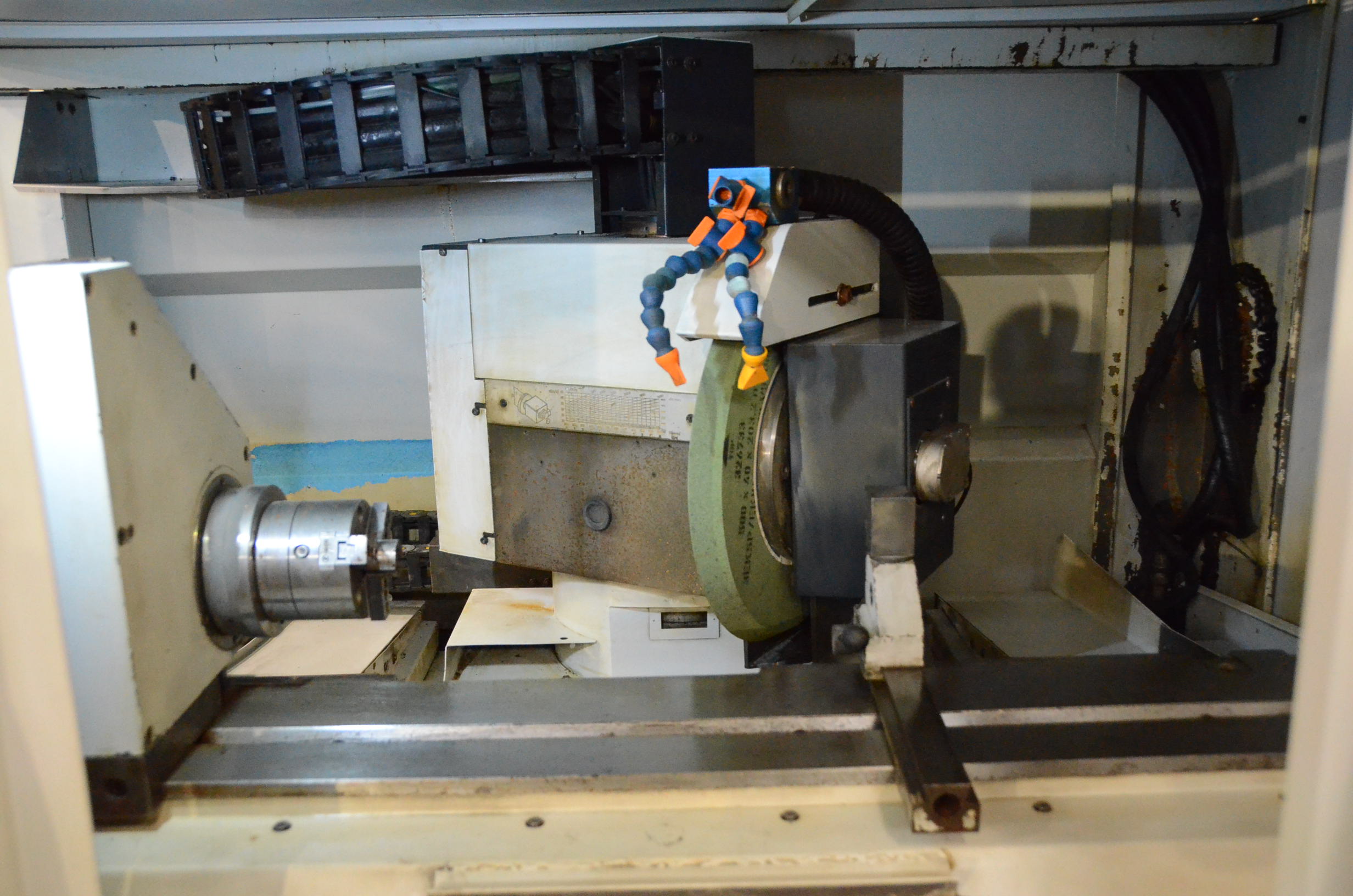

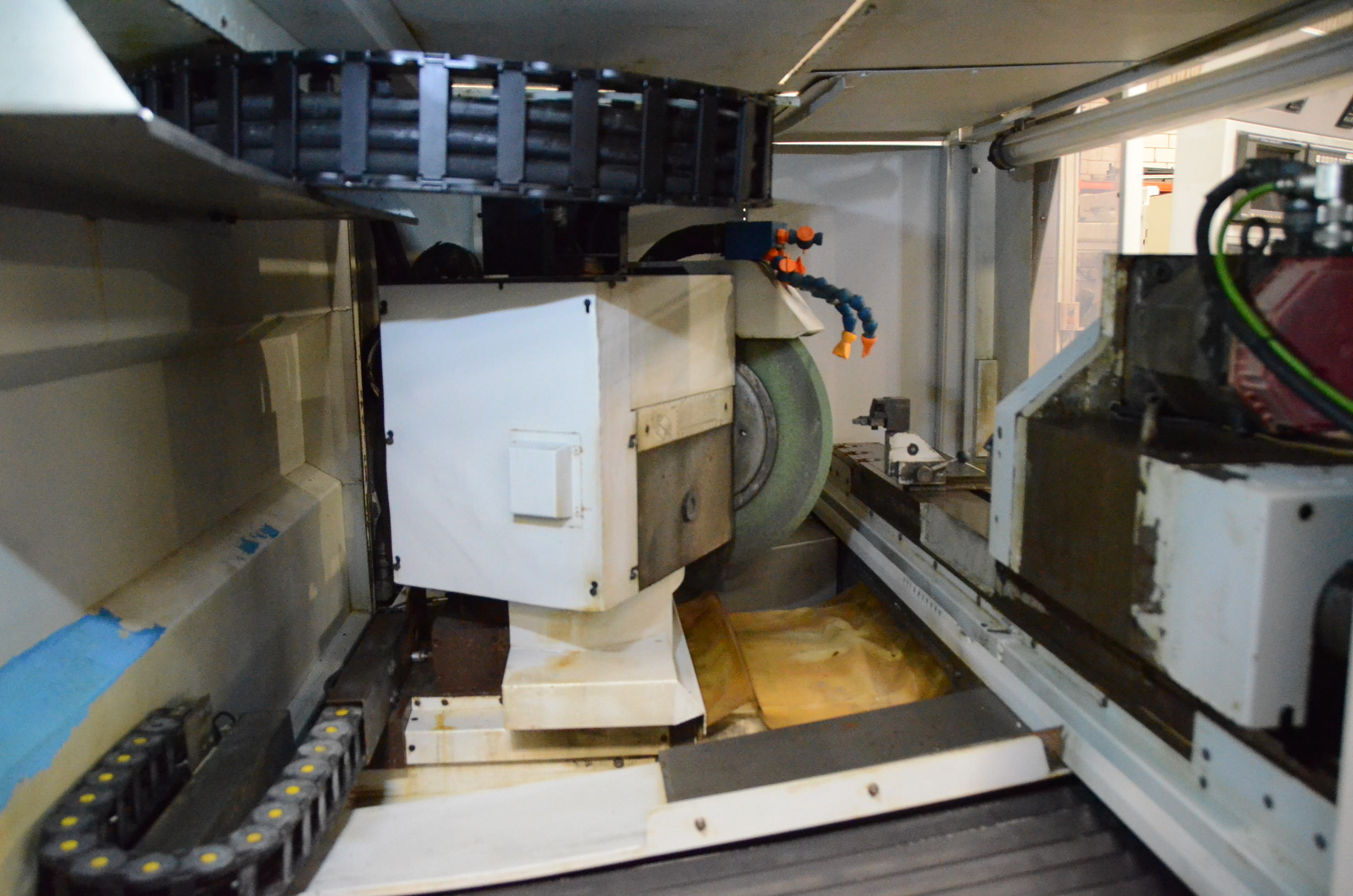

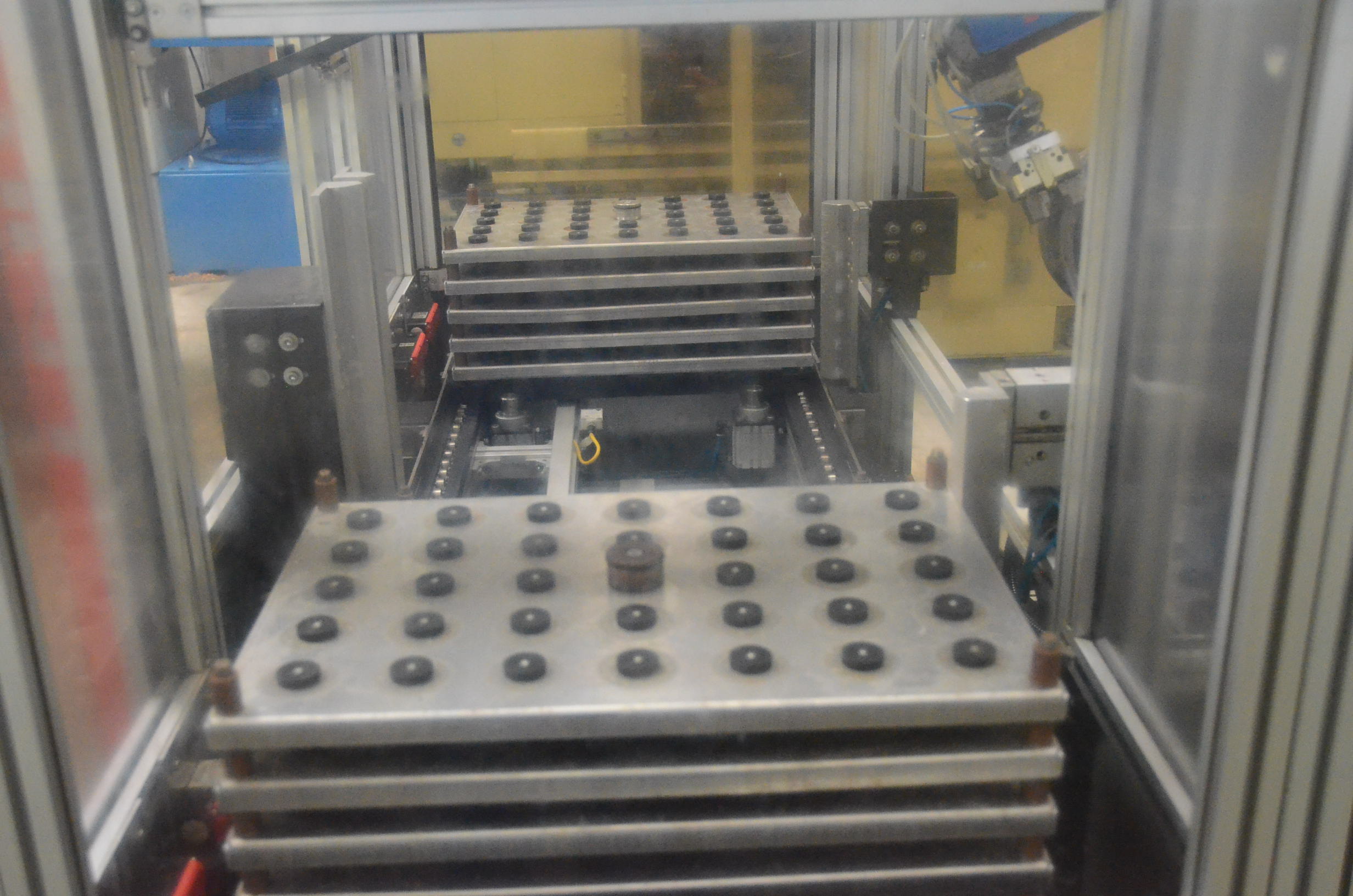

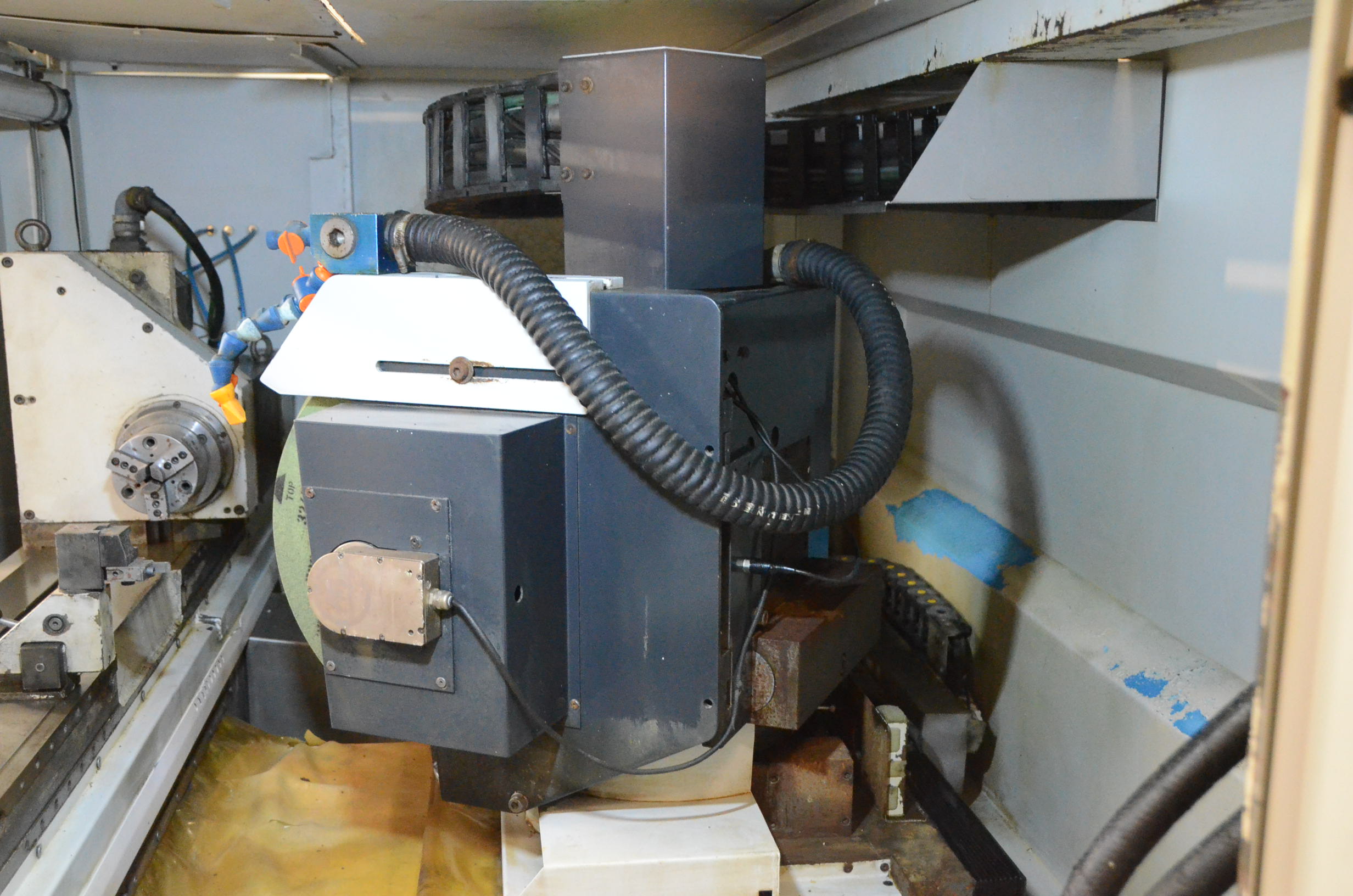

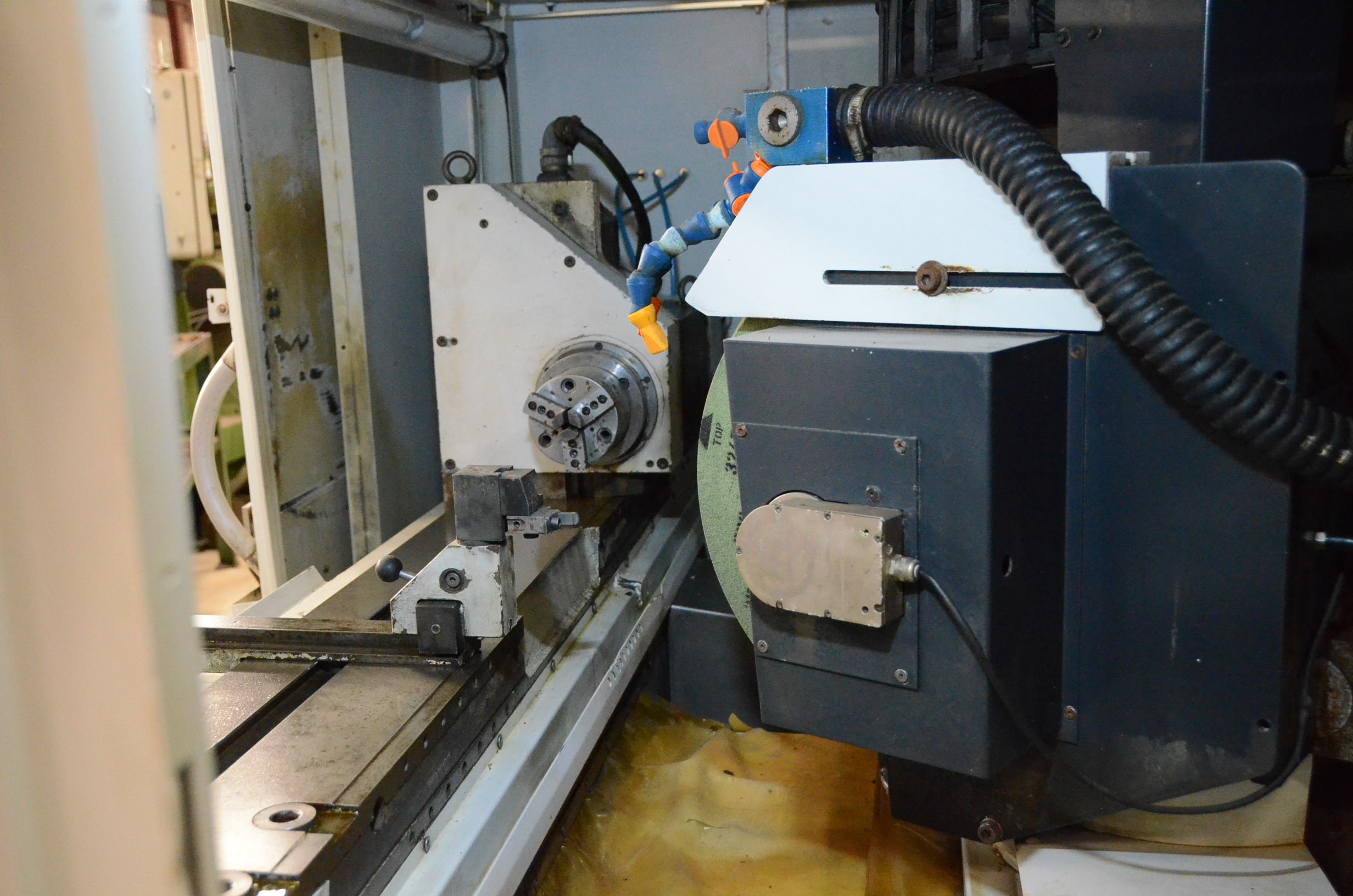

Cylindrical Grinding Machine KELLENBERGER KEL-VISION RS 125/430 + ROBOT #4617
Cylindrical Grinding Machine KELLENBERGER KEL-VISION RS 125/430 + ROBOT #4617
Location:Badajoz, Spain
or
Call +34 924 500 336
Specifications
| Manufacturer | KELLENBERGER |

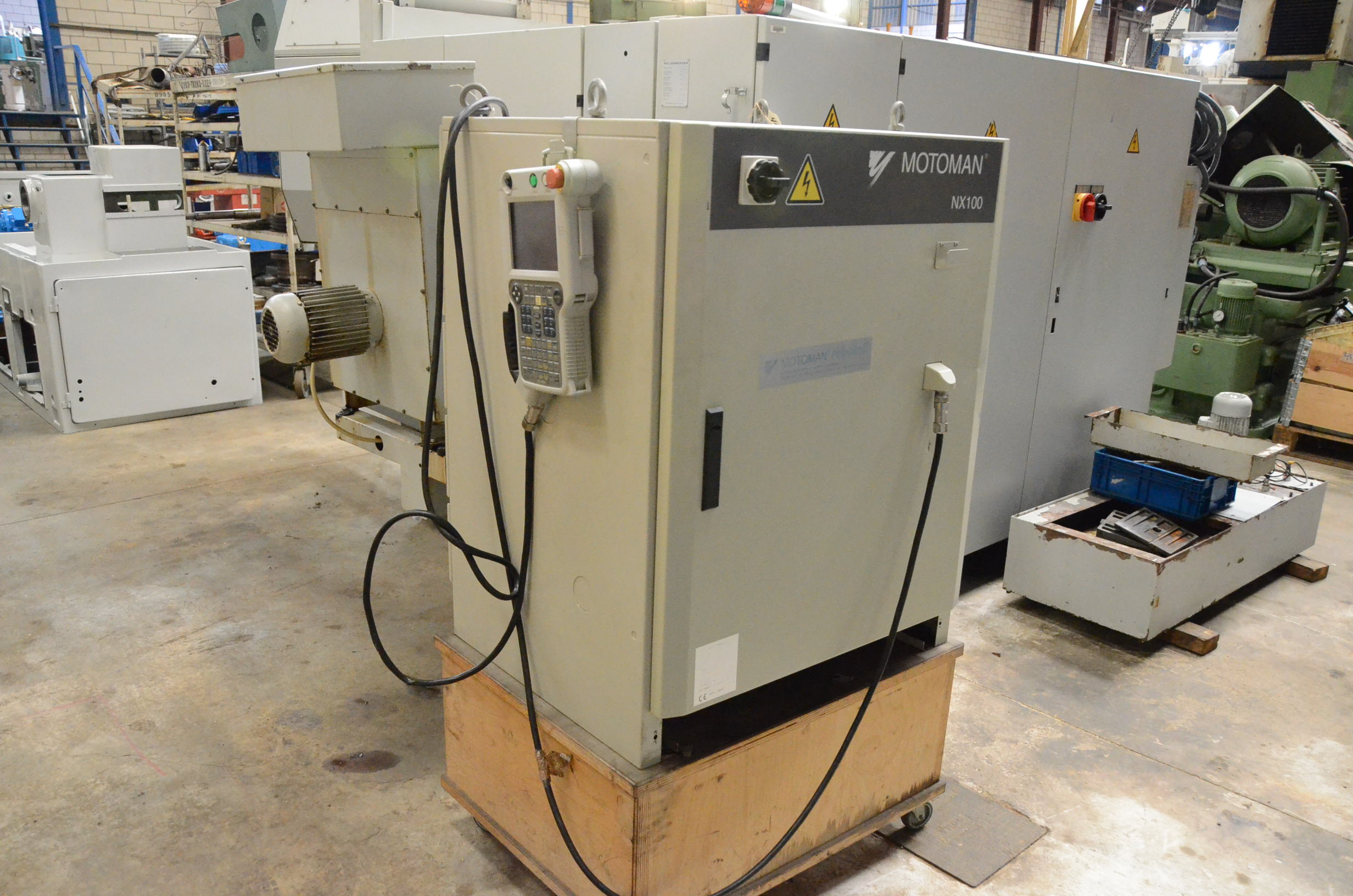

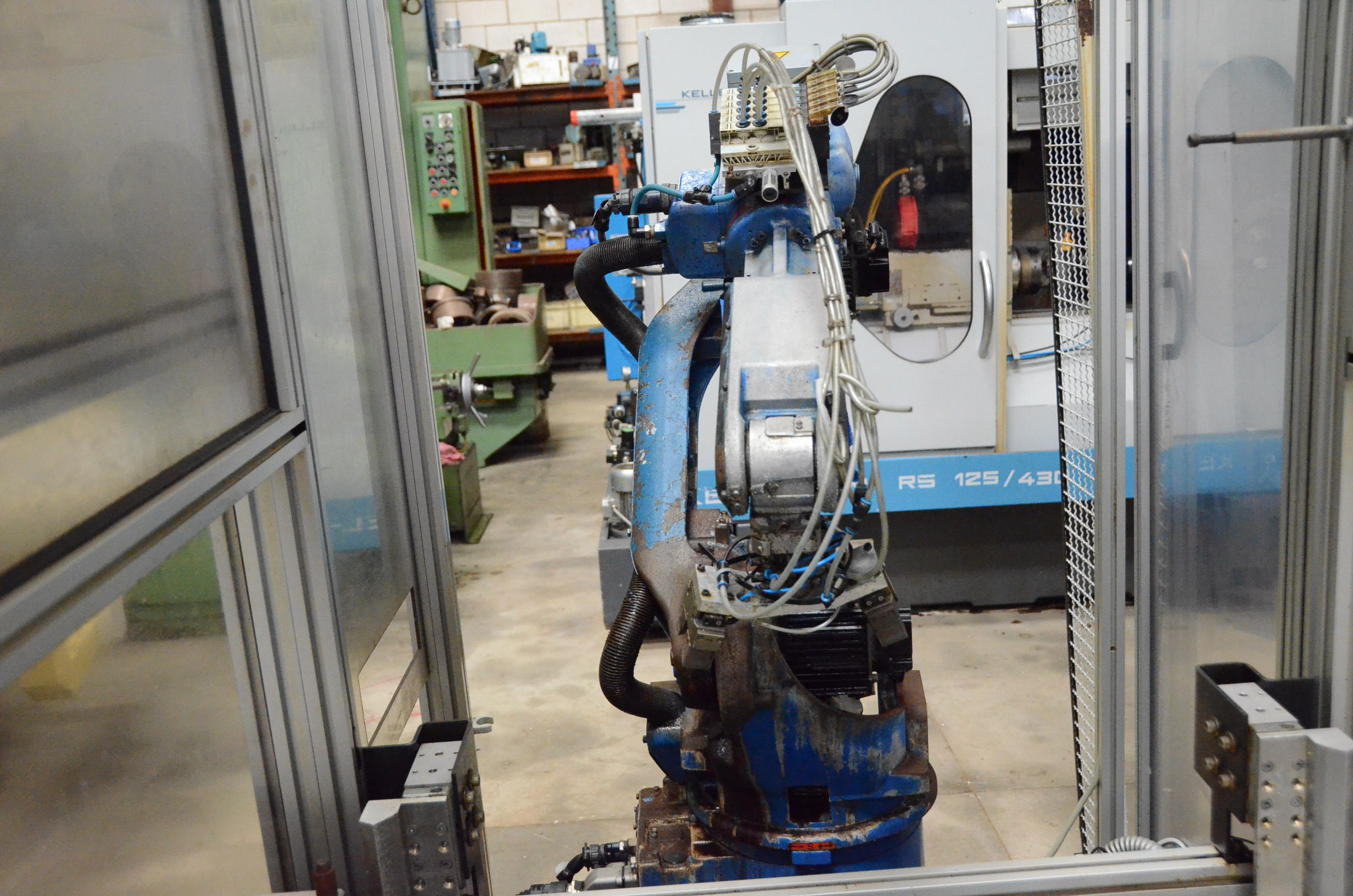

| Model | KEL-VISION RS 125/430 + ROBOT |
| Condition | Used |
| Stock Number | 4617 |
| Distance between points | 760 mm |
| Max travel Z axis | 650 mm |
| Maximum length to be rectified | 430 mm |
| Max. diameter to be rectified | 250 mm |
| Height of points | 125 mm |
| Working wheel dimensions (od x id x width) | Ø 406 x Ø127 x 50 mm |
| Max. grinding wheel diameter | 500 mm |
| Max travel X axis | 320 mm |

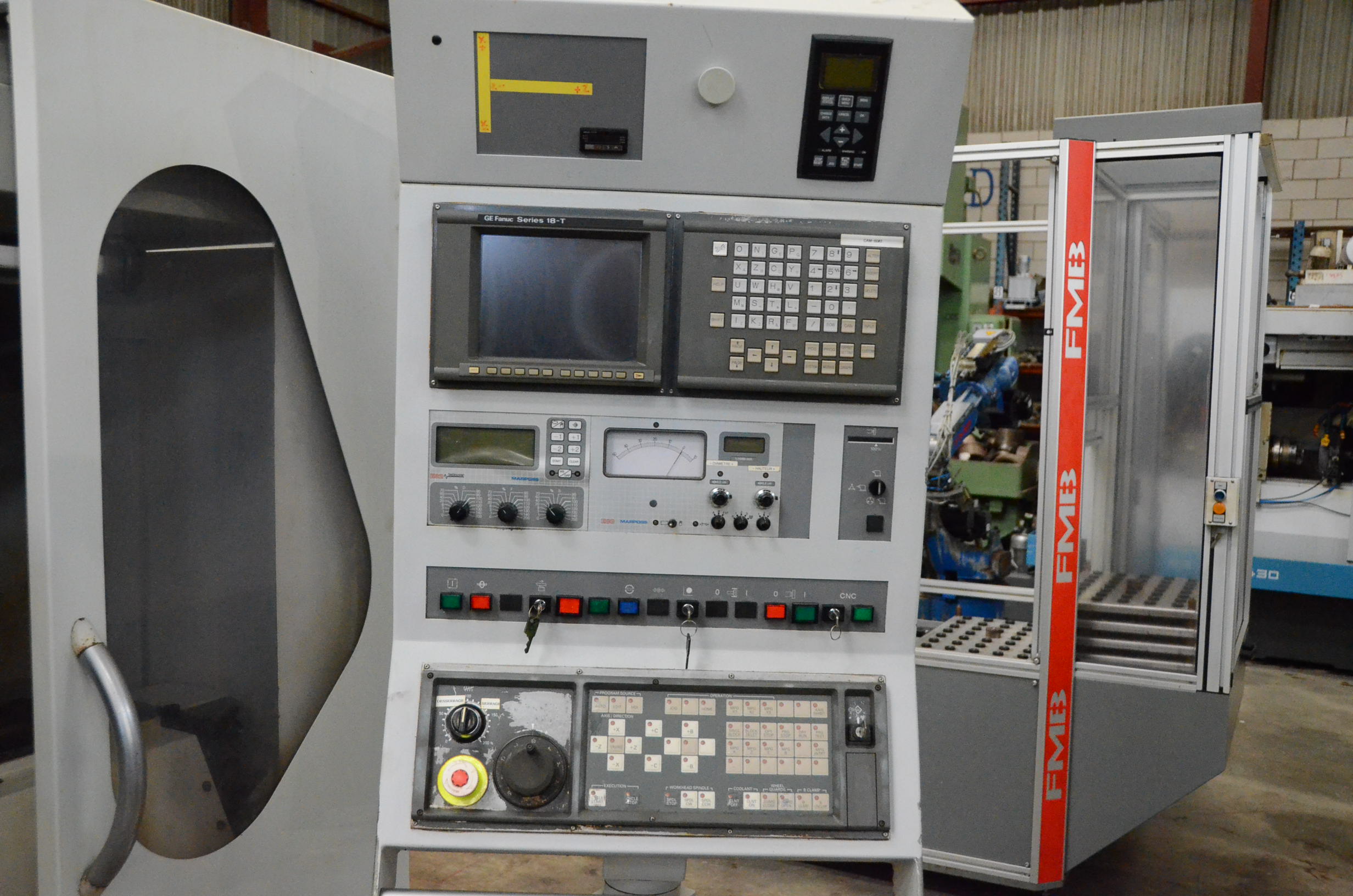

| CNC brand | FANUC |
| CNC model | 18TB |
| Main engine power | 7.5 Kw |
| Z and X axis resolution | 0.1 µmm |
| Workpiece holder head cone | MORSE 5 |
| Ø of the hole in the workpiece holder head | 38 mm |
| tailstock cone | MORSE 4 |
| Rotation speed of the workhead | 8 to 800 rpm |
| Dimensions (length x width) | 2500x2000 mm |
| Weight | 4700 Kg |
