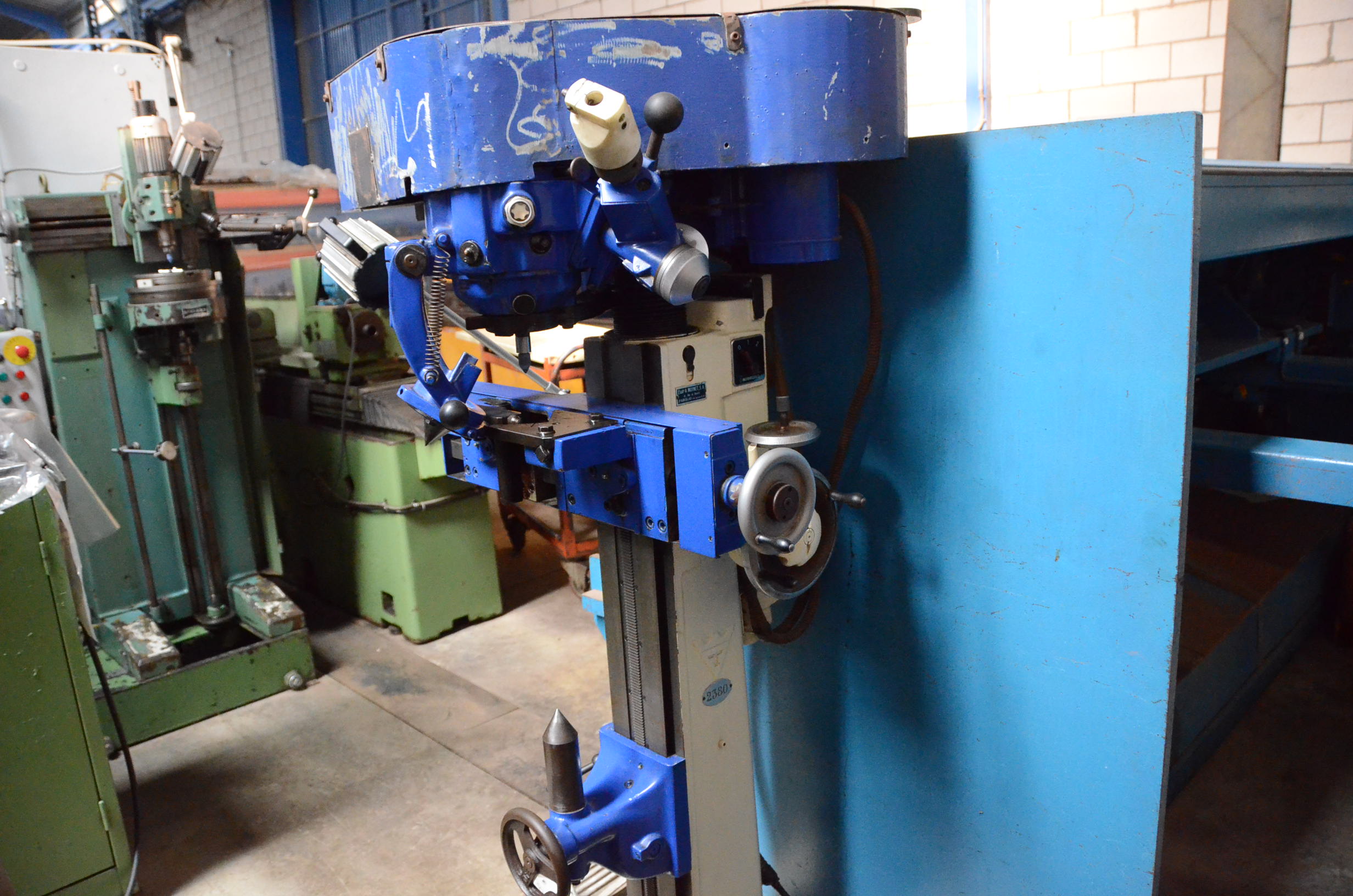

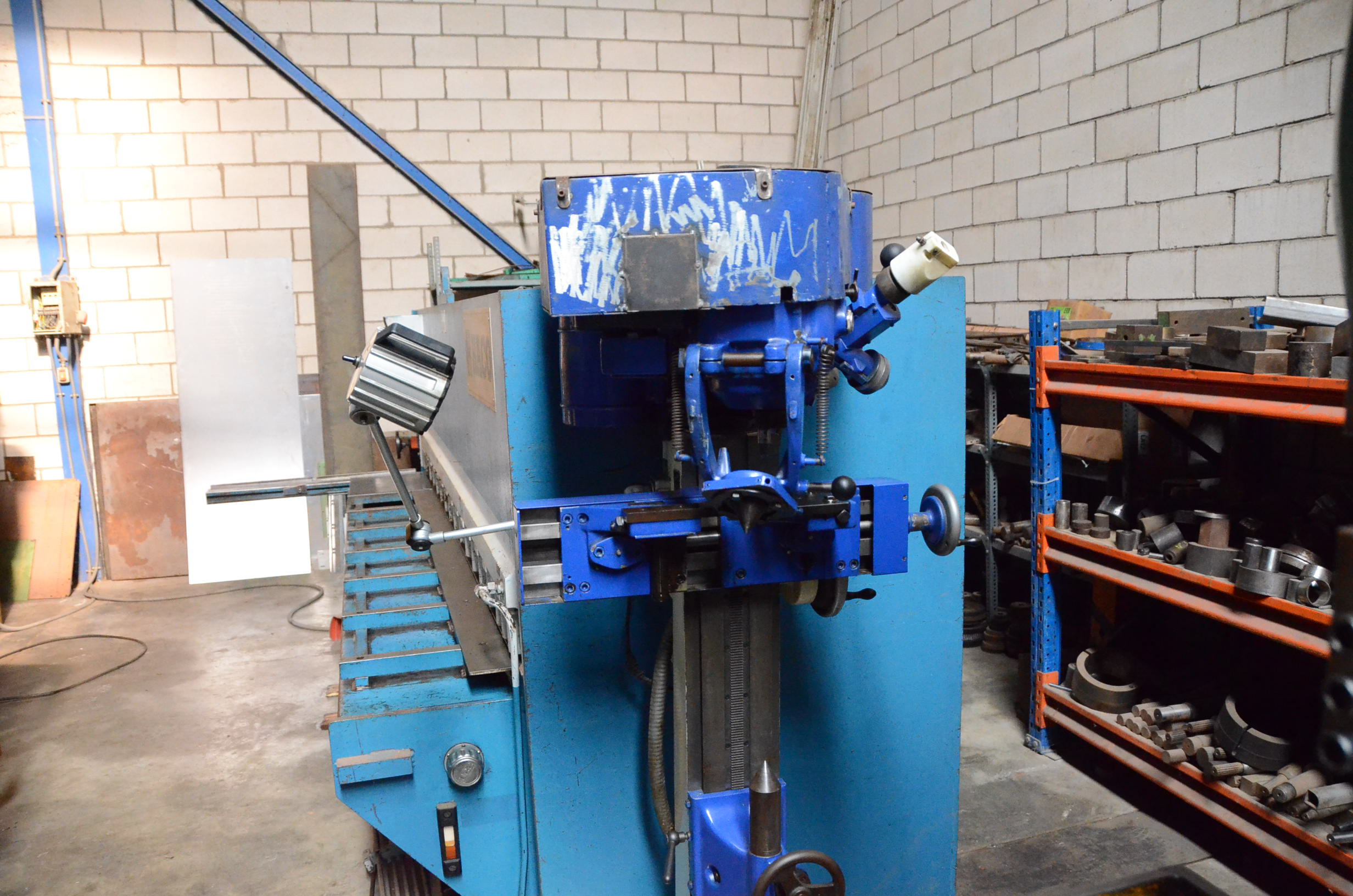

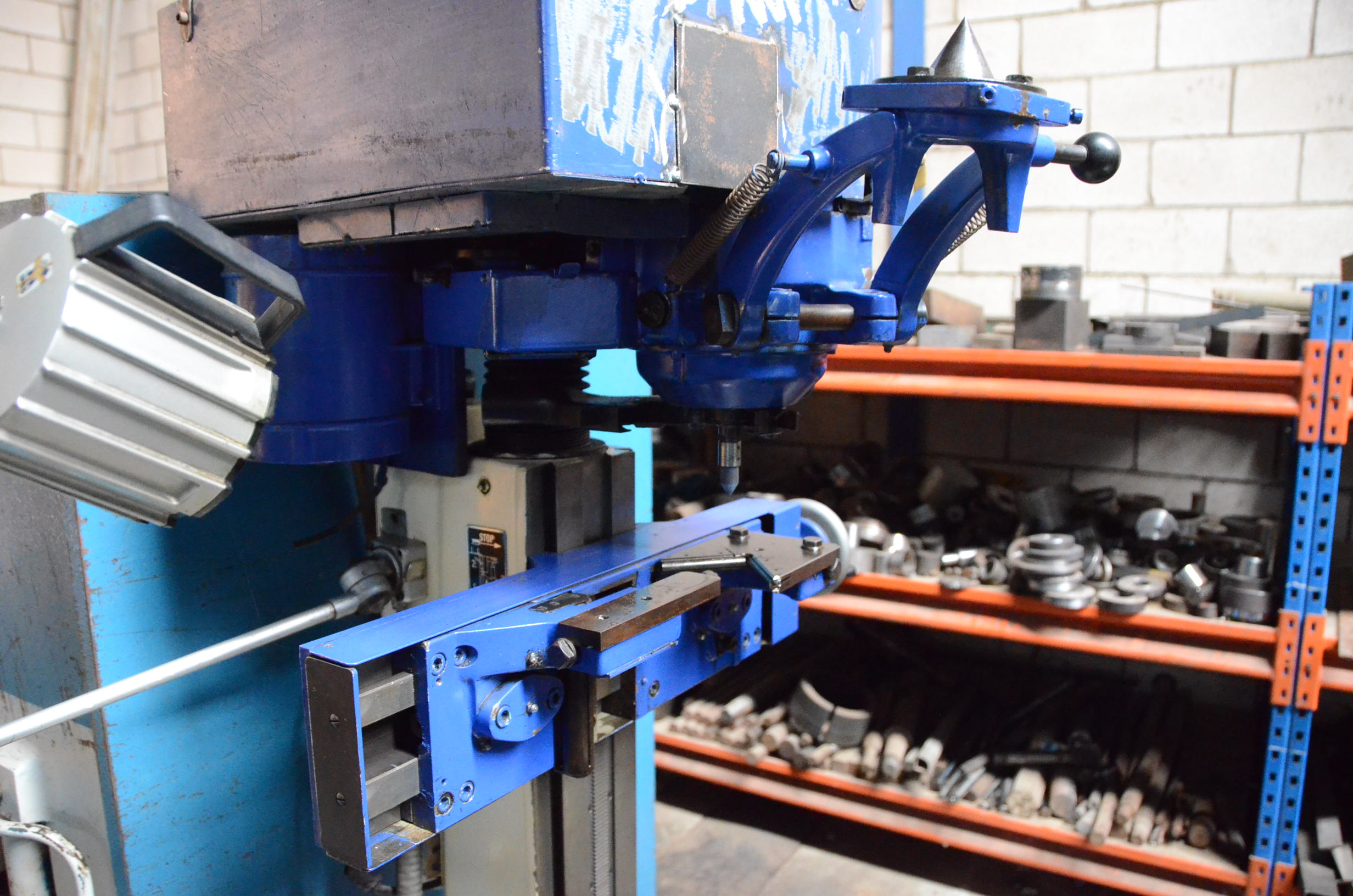

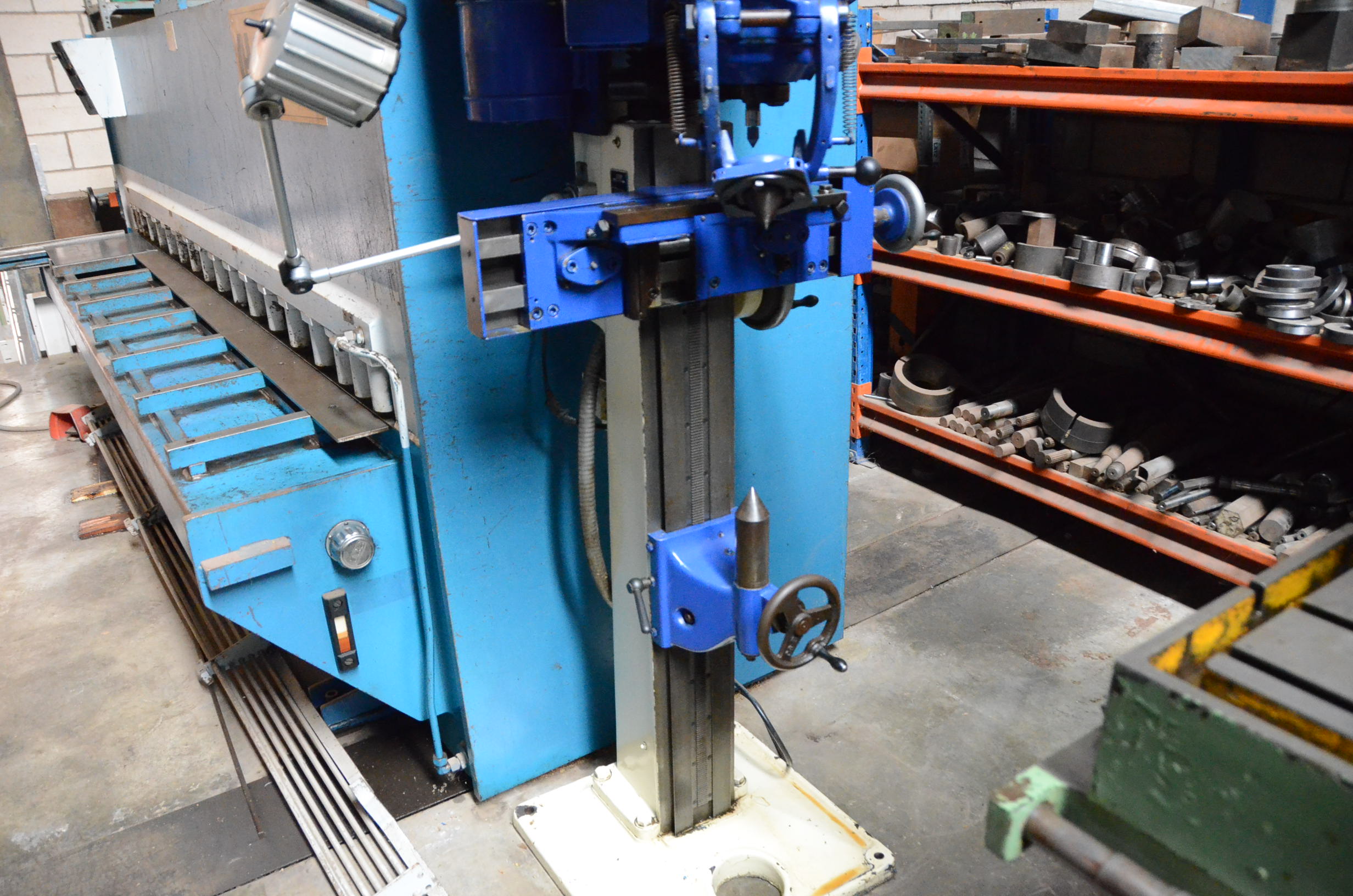

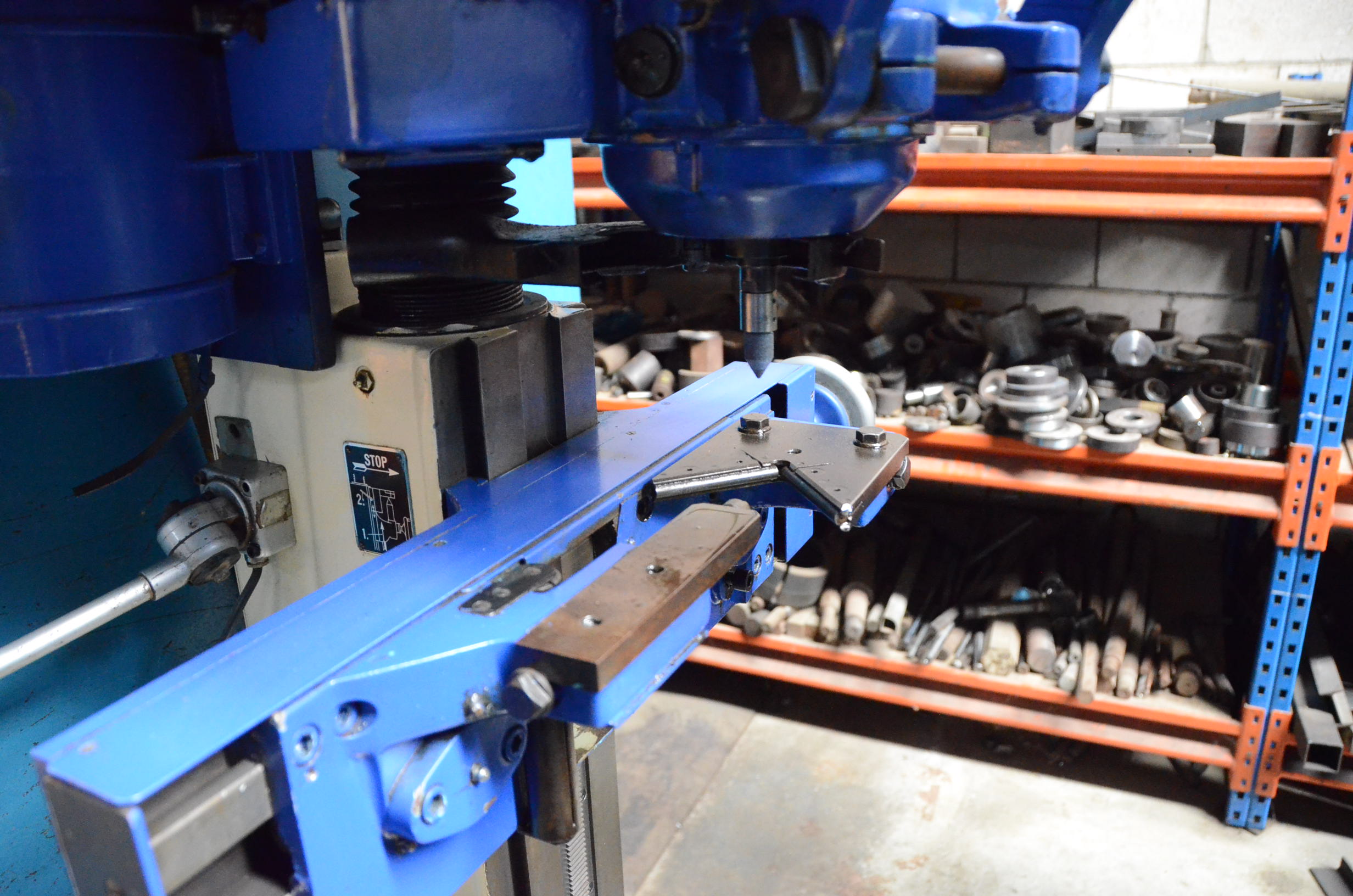

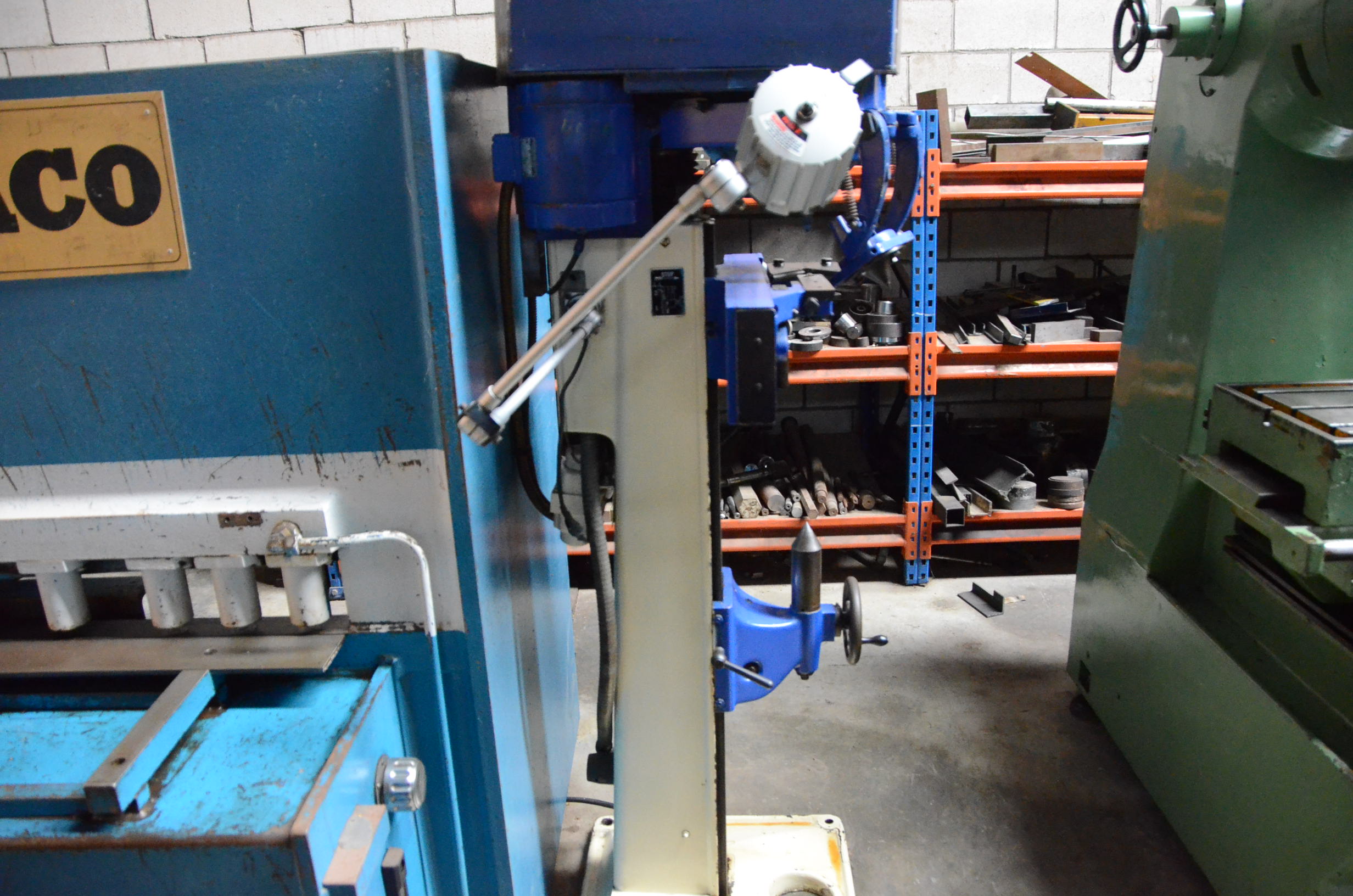

Center grinding machine TECHNICA ZSM 5100 #4560
Center grinding machine TECHNICA ZSM 5100 #4560
Location:Badajoz, Spain
or
Call +34 924 500 336
Specifications
| Manufacturer | TECHNICA |
| Model | ZSM 5100 |
| Condition | Used |
| Stock Number | 4560 |
| Maximum length of the piece | 1100 mm |
| Minimum length of the piece | 50 mm |
| Maximum diameter of the piece | 125 mm |
| Minimum diameter of the piece | 8 mm |
| Center height of tailstock above guide | 145 mm |
| Center height of tailstock above carriage | 65 mm |
| Centering hole taper angle | 60° |
| Larger diameter of centering hole cone | 50 mm |
| Diameter of smallest centering hole | 2 mm |
| Grinding spindle speeds | 45000 / 22 500 / 13 000 rpm |
| Hollow screw speed | 400 rpm |
| Stroke of the grinding wheel along the grinding surface | 0.75 - 5 mm |
| Diameter of grinding wheels | 15, 27, 48 mm |
| Weight approx. | 460 kg |
| Dimensions (length x width x height) | 850 x 750 x 1850 mm |
