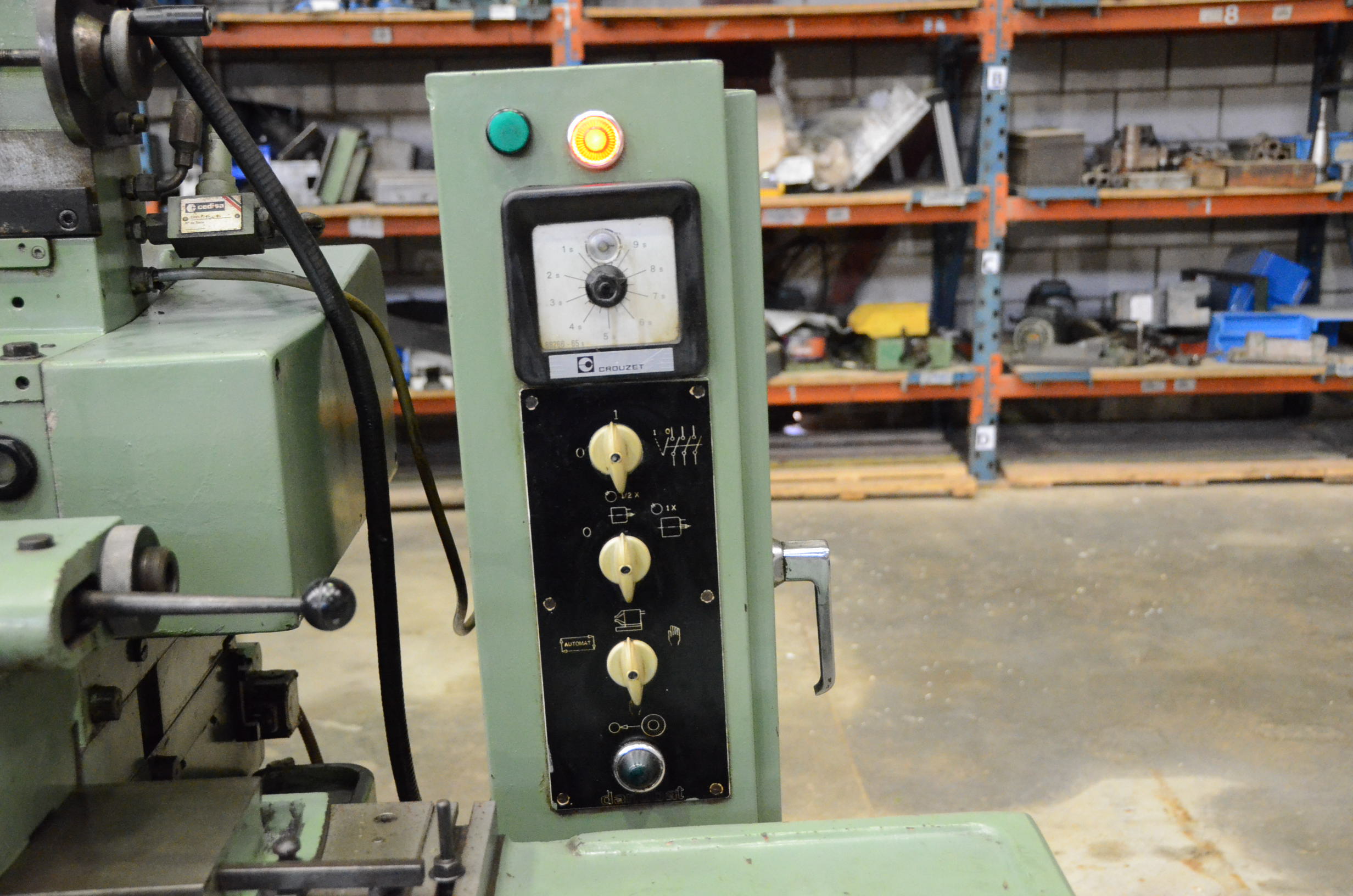

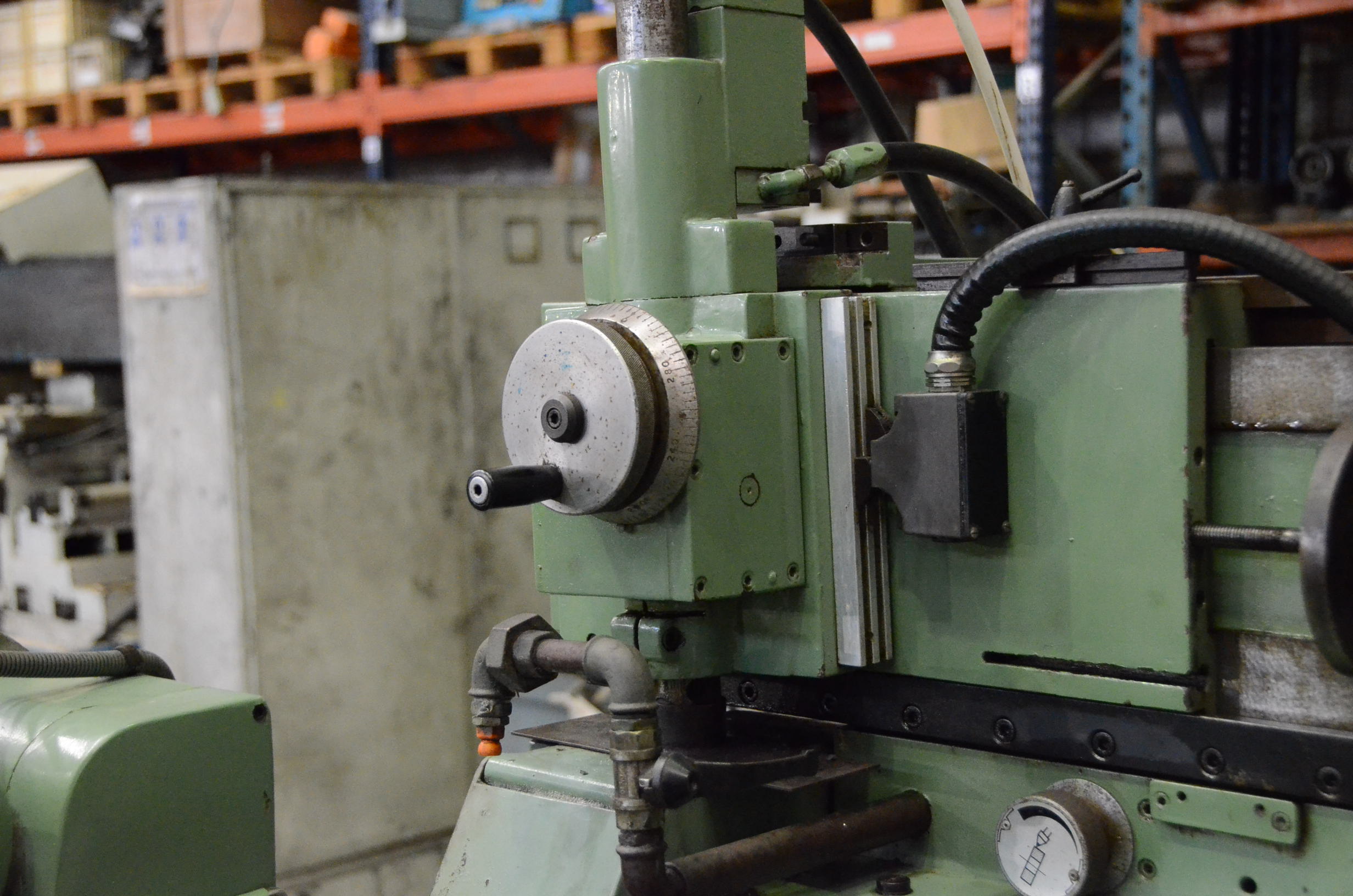

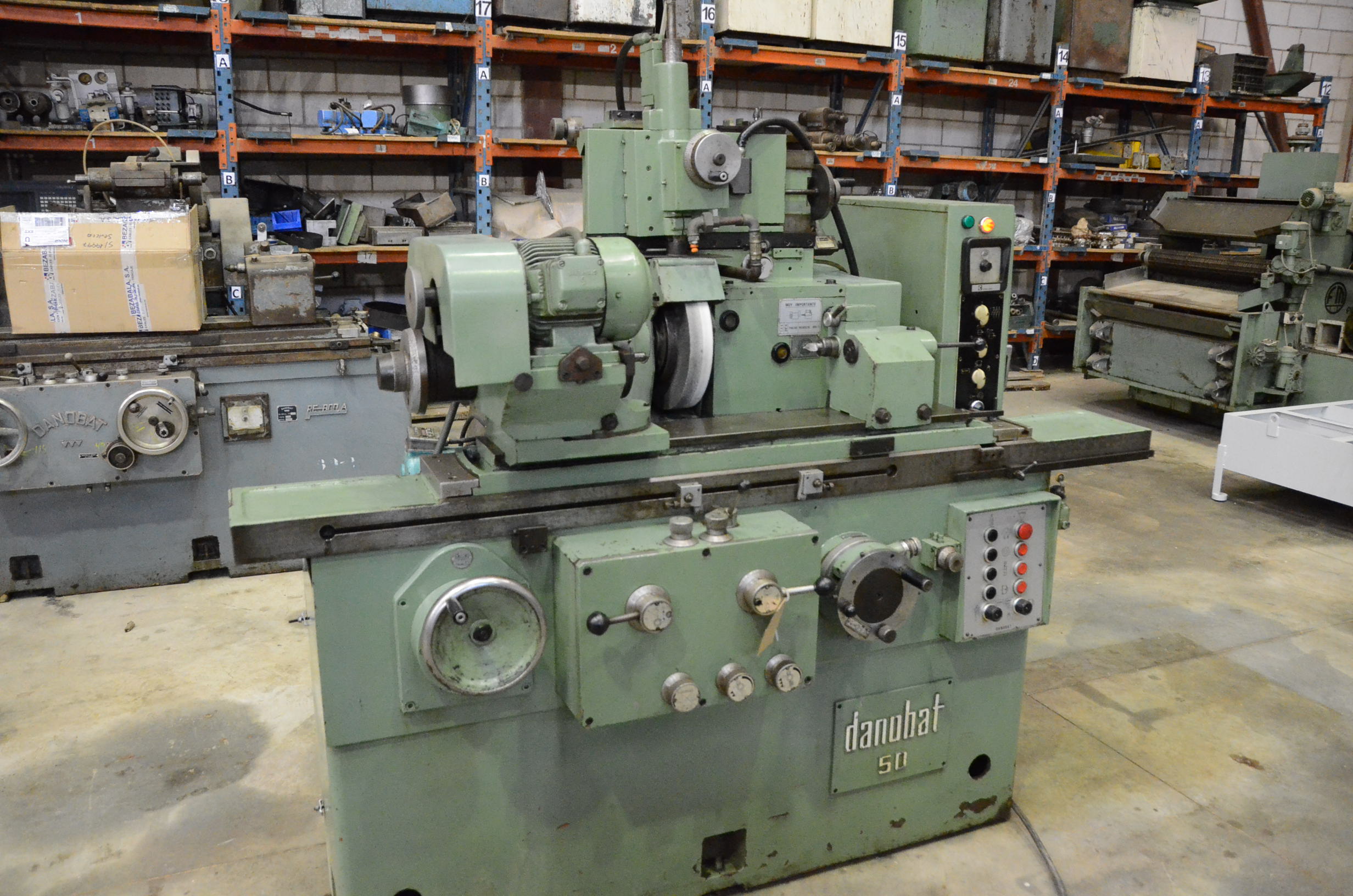

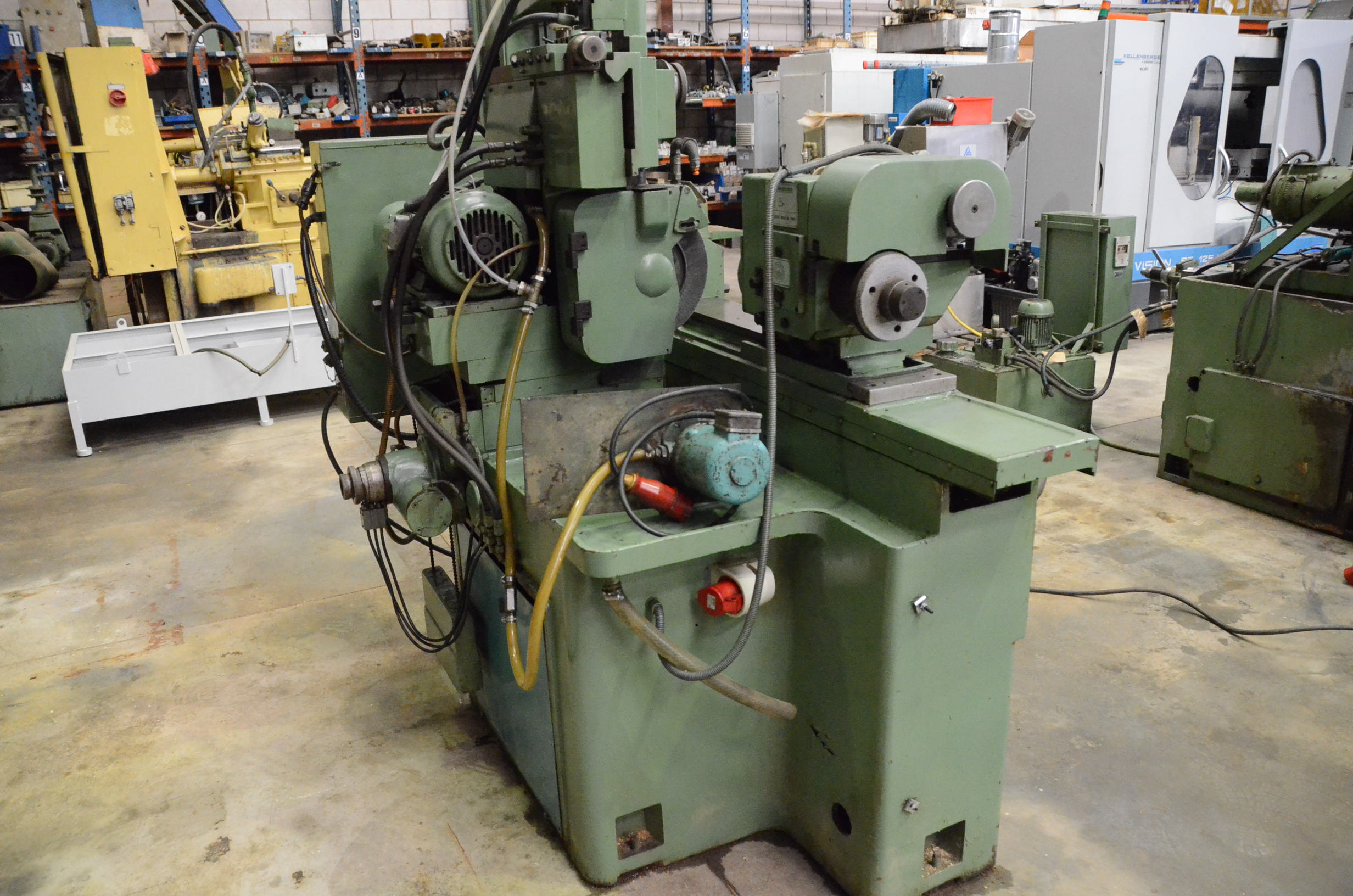

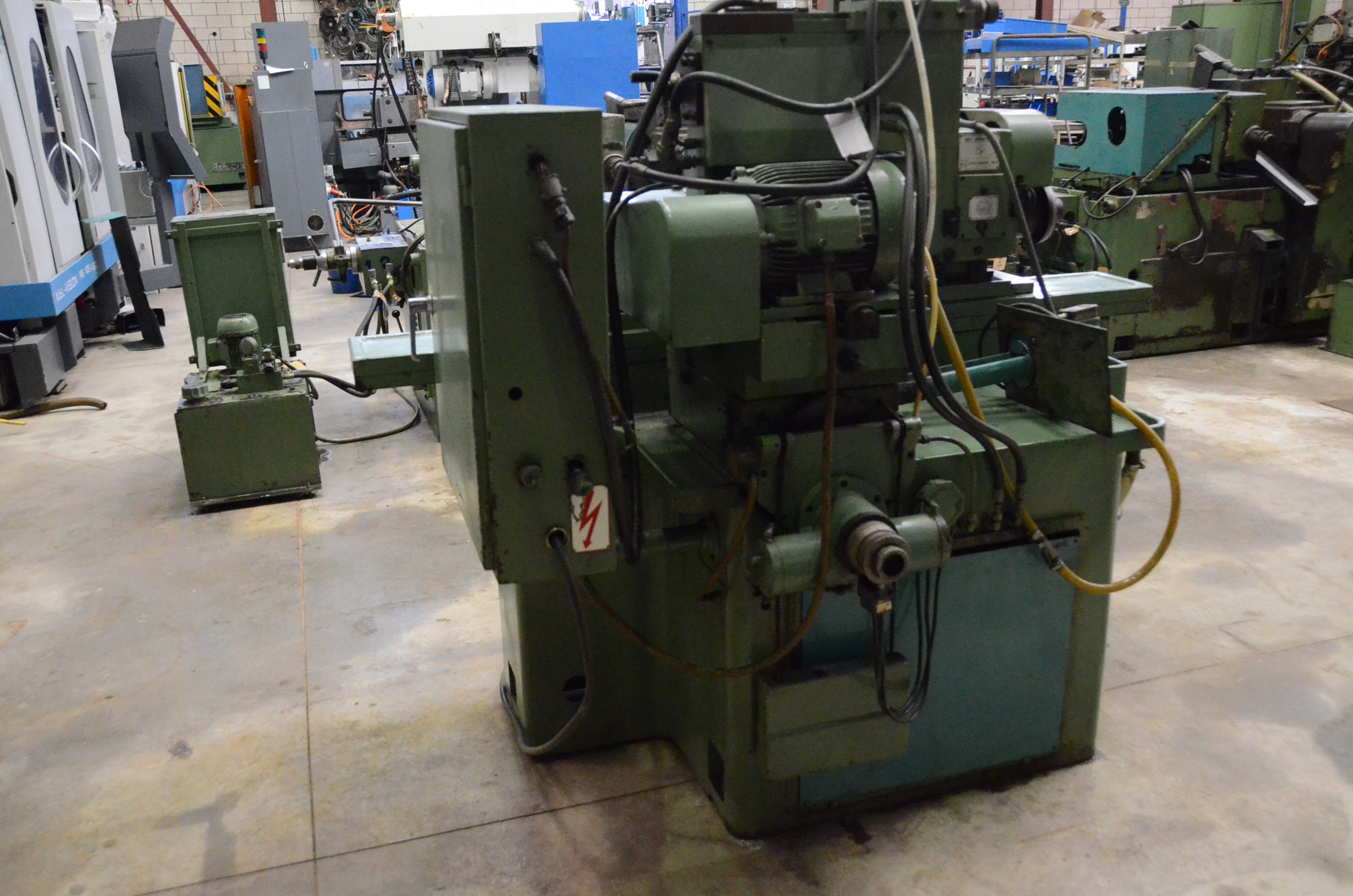

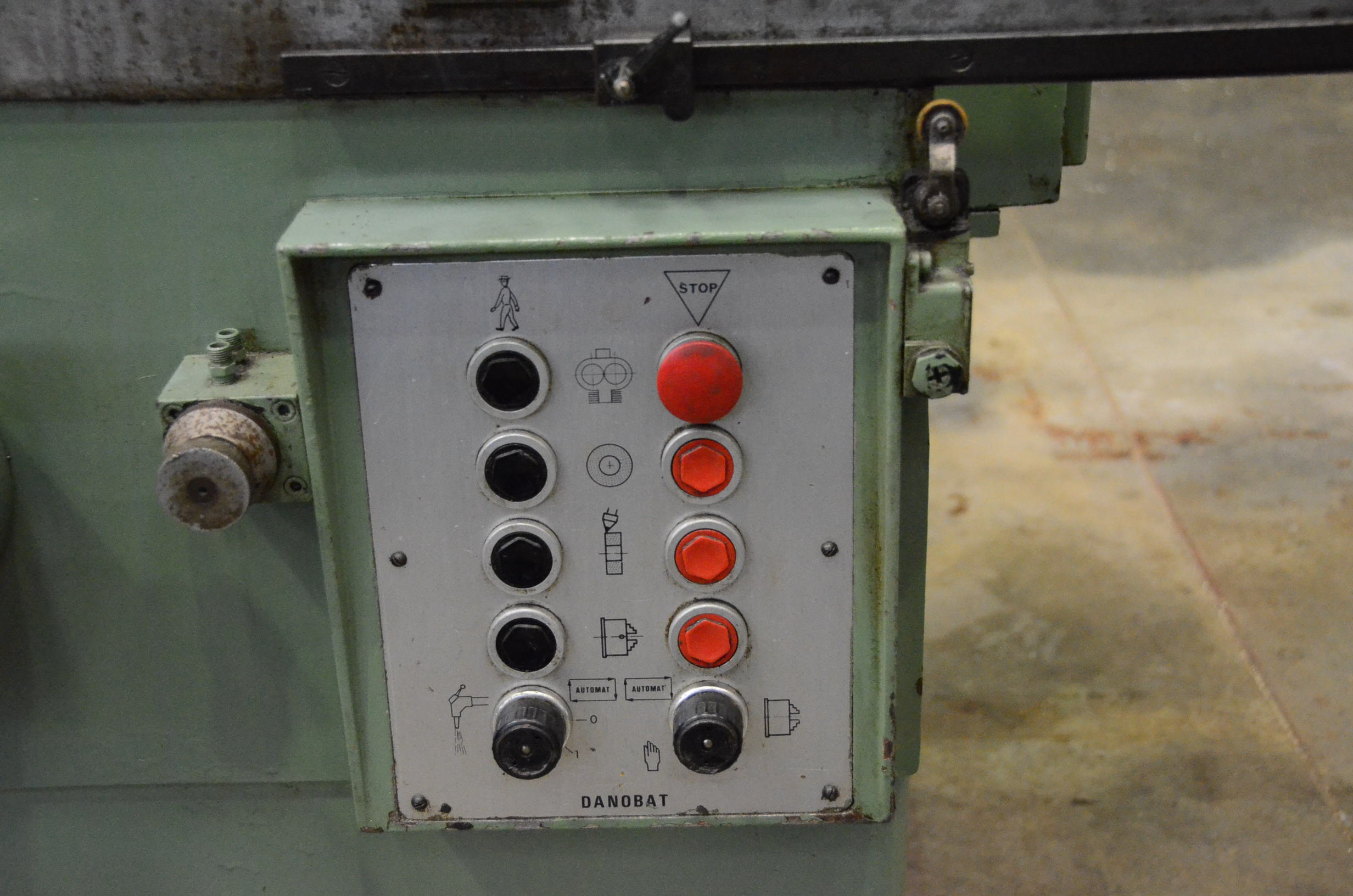

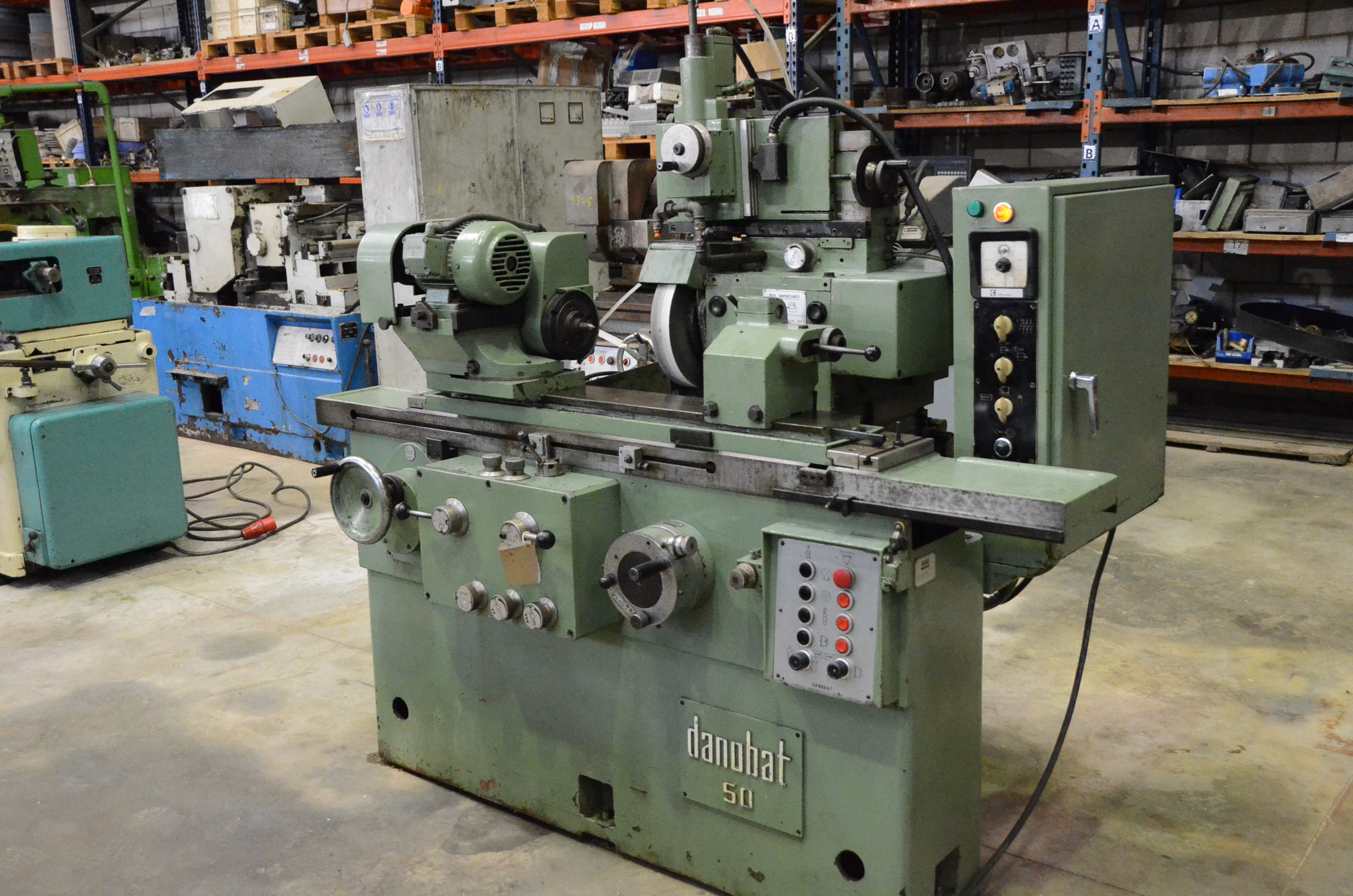

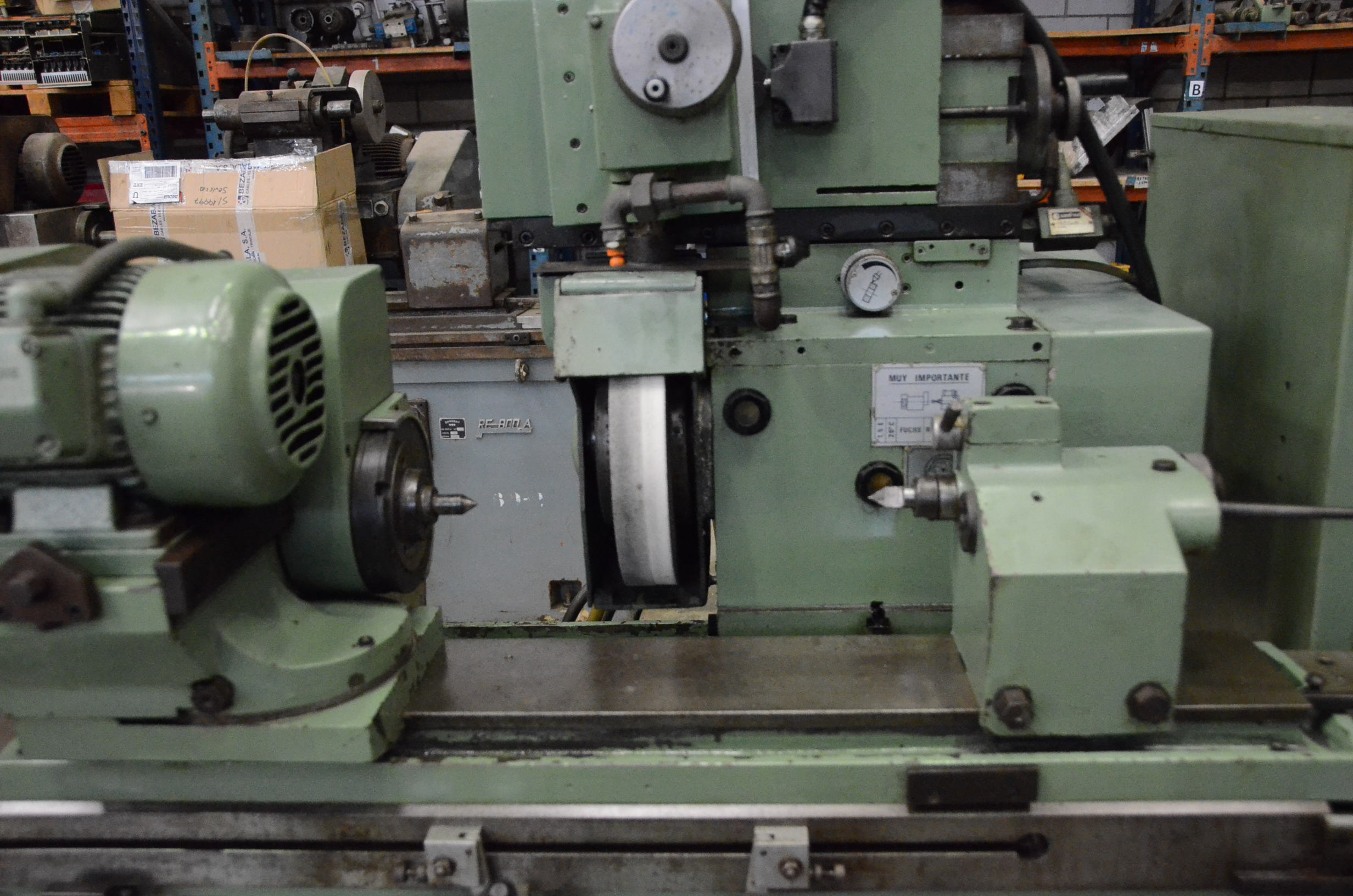

Universal Cylindrical Grinding Machine DANOBAT M50 #4612
Universal Cylindrical Grinding Machine DANOBAT M50 #4612
Location:Badajoz, Spain
or
Call +34 924 500 336
Specifications
| Manufacturer | DANOBAT |
| Model | M50 |
| Condition | Used |
| Stock Number | 4612 |
| Distance between points | 500 mm |
| Height of points | 100 mm |
| Ø of the grinding wheel | 300 mm |
| Normal grinding wheel width | 25 mm |
| Maximum usable width of the grinding wheel | 50 mm |
| Grinding wheel hole | 127 mm |
| Workpiece holder head | 75-110-150-220-275-375-550-750 rpm |
| Tilt table in degrees | 8º |
| Hydraulic table speed | 0.10/6 m/min |
| Automatic fast forward | 20 mm |
| Advance in depth | 0.10 to 1 mm |
| Plongee feed rate | 0.10-5 mm/min |
| Fine-tuning time regulation in seconds | 60s |
| Workpiece holder head motor: 2 speeds | 0.38/0.55 HP |
| Motor head for grinding wheels | 3 CV |
| Hydraulic pump motor | 0.5 HP |
| Cooling pump motor | 0.10 HP |
| Internal grinding apparatus | 0.75 HP |
| Points | Morse 4 and 3 |
| Weight approx. | 1600 Kg |
