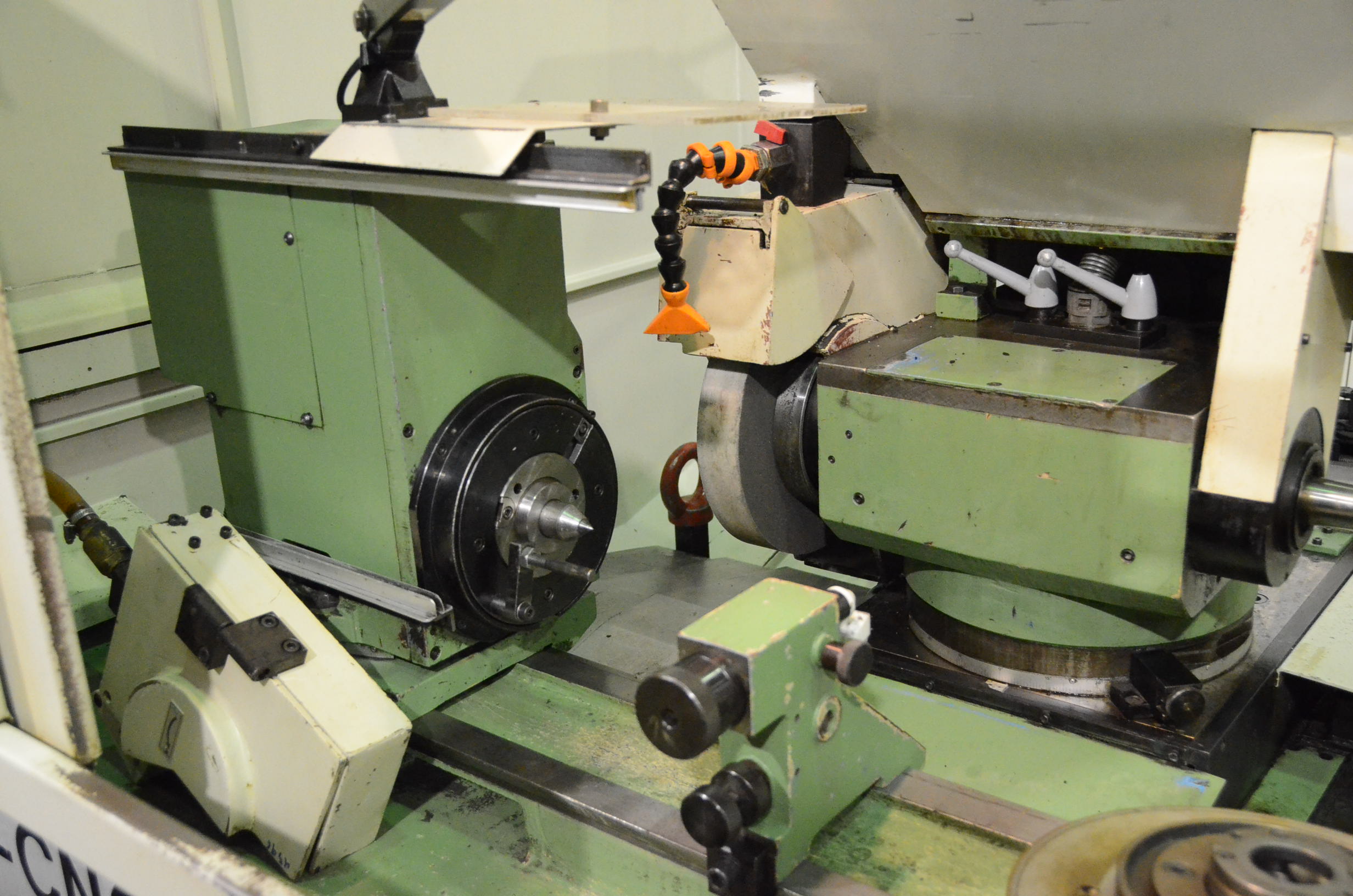

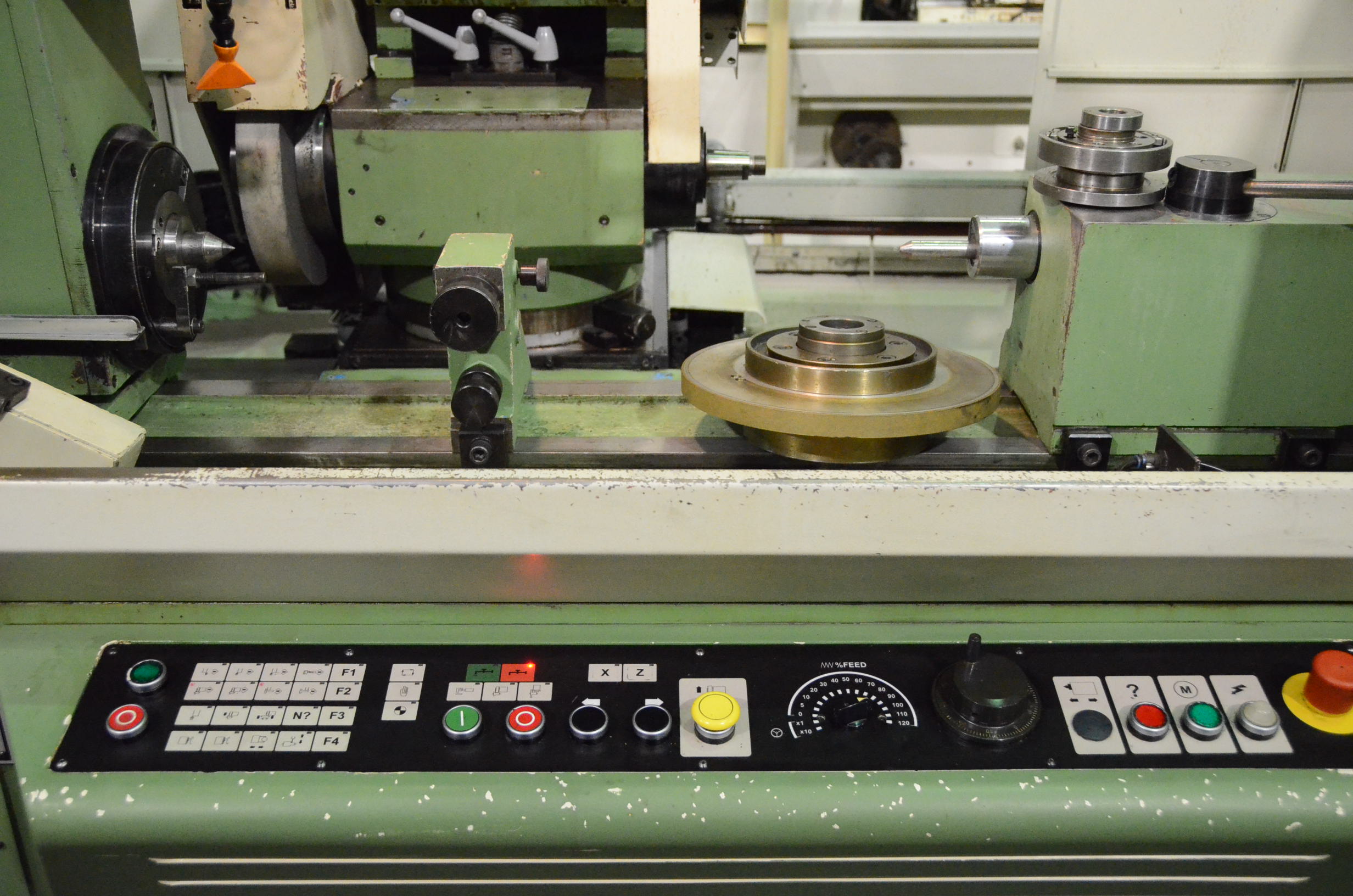

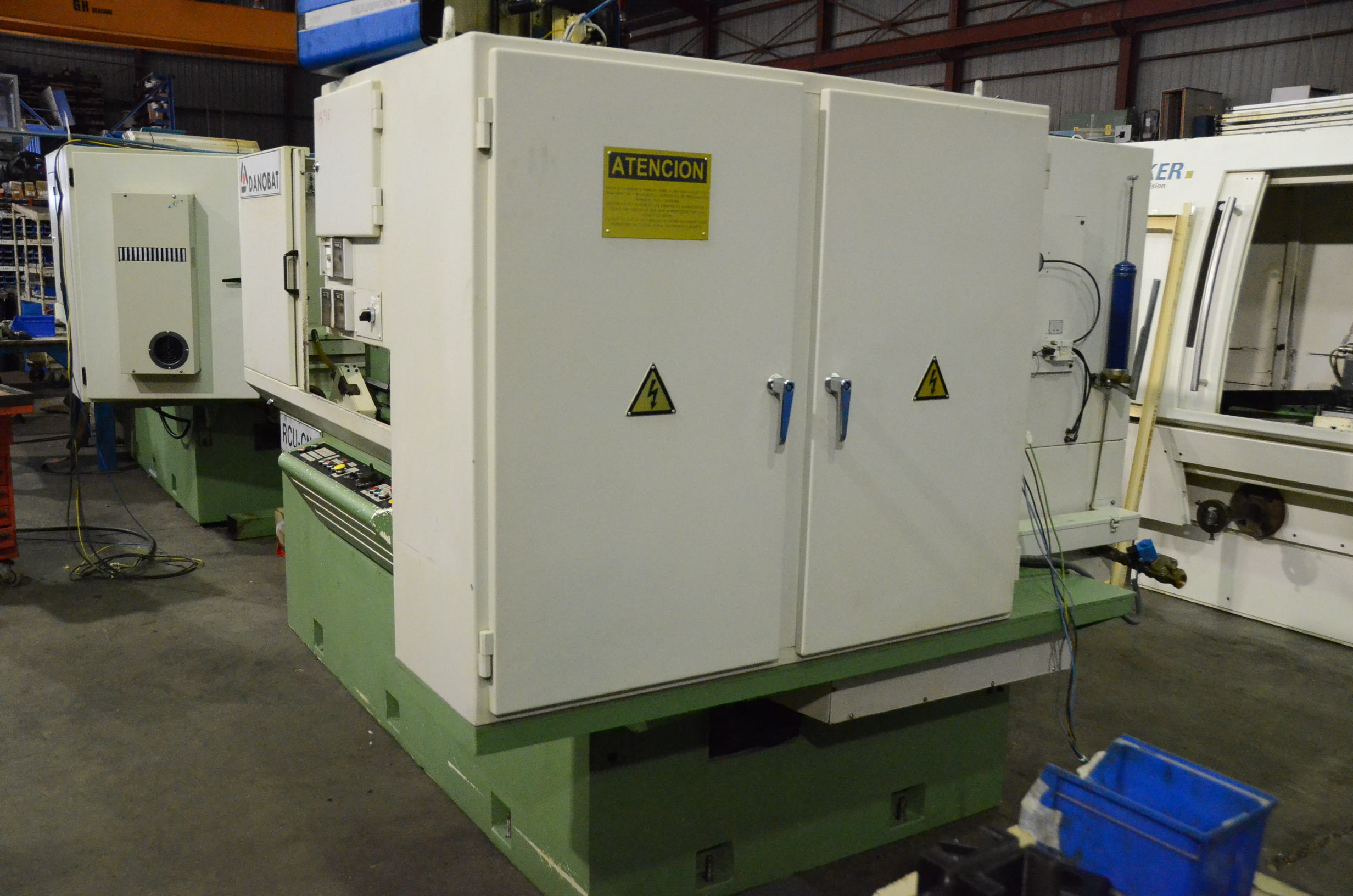

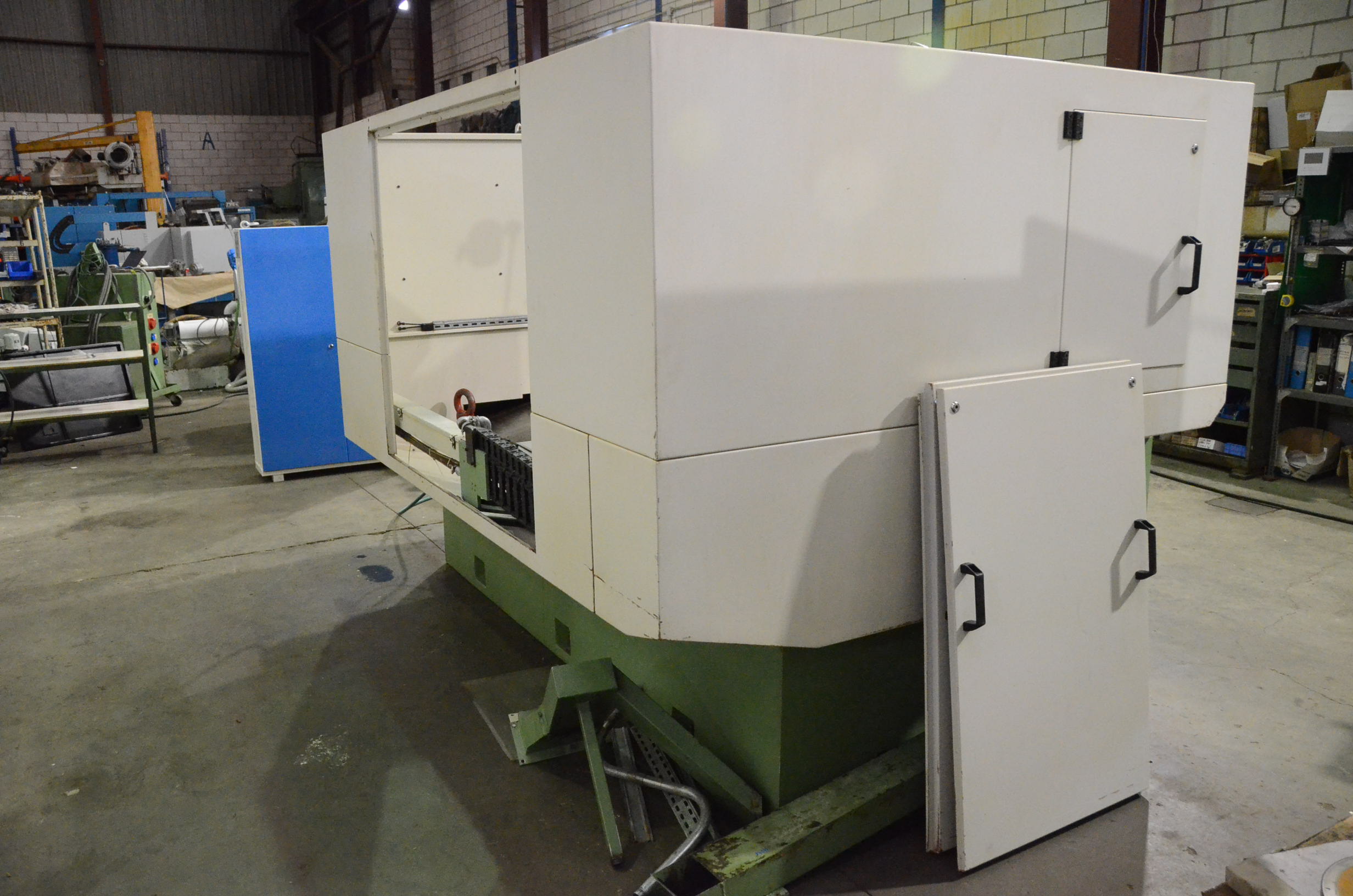

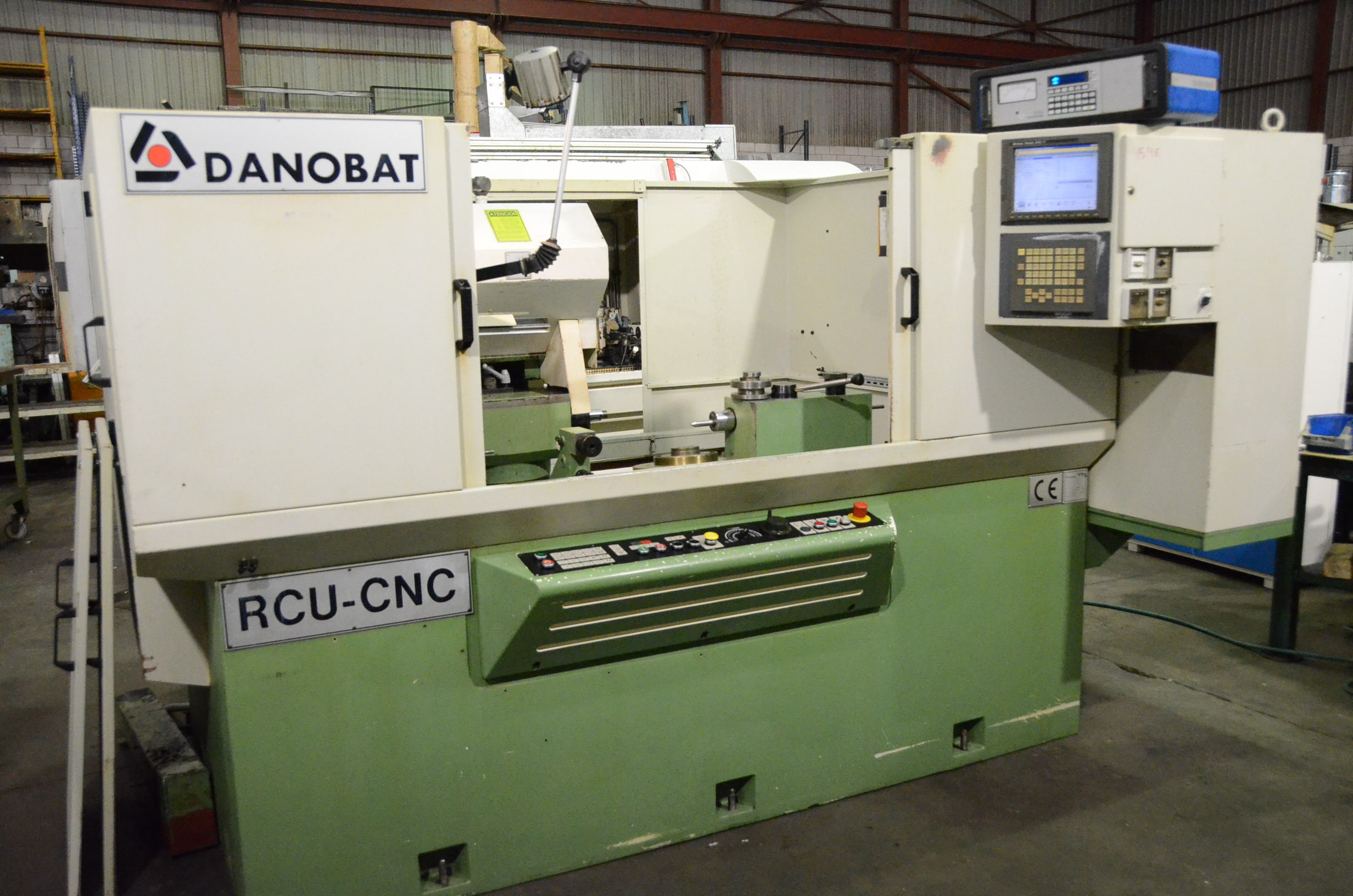

Universal Cylindrical Grinding Machine DANOBAT RCU CNC #4596
Sold
Universal Cylindrical Grinding Machine DANOBAT RCU CNC #4596
Location:Badajoz, Spain
Specifications
| Manufacturer | DANOBAT |
| Model | RCU CNC |
| Condition | Used |
| Stock Number | 4596 |
| Height of points | 150mm |
| Distance between points | 1200 mm |
| Grinding wheel dimensions (od x id x width) | Ø400xØ127x50 mm |

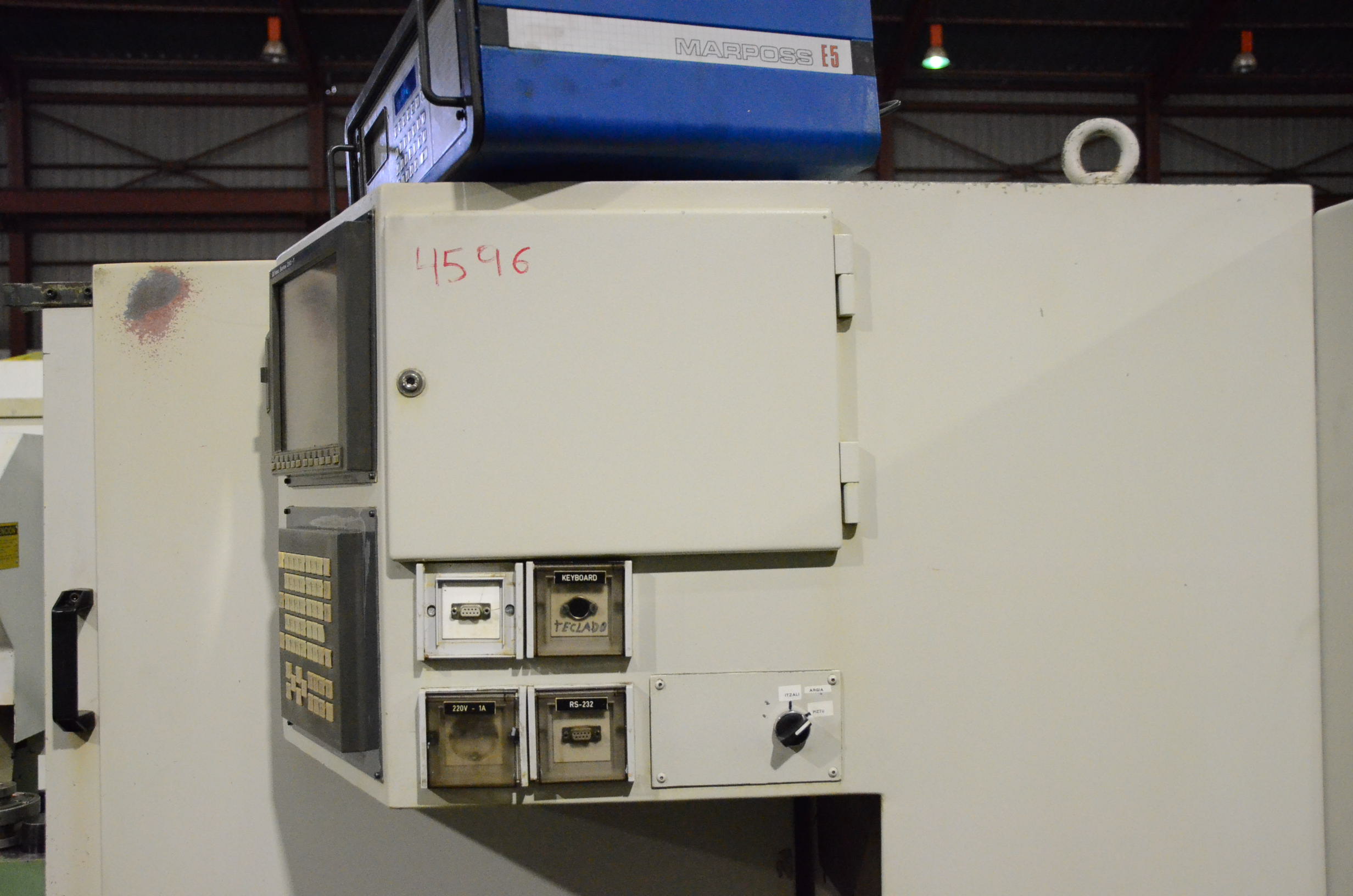

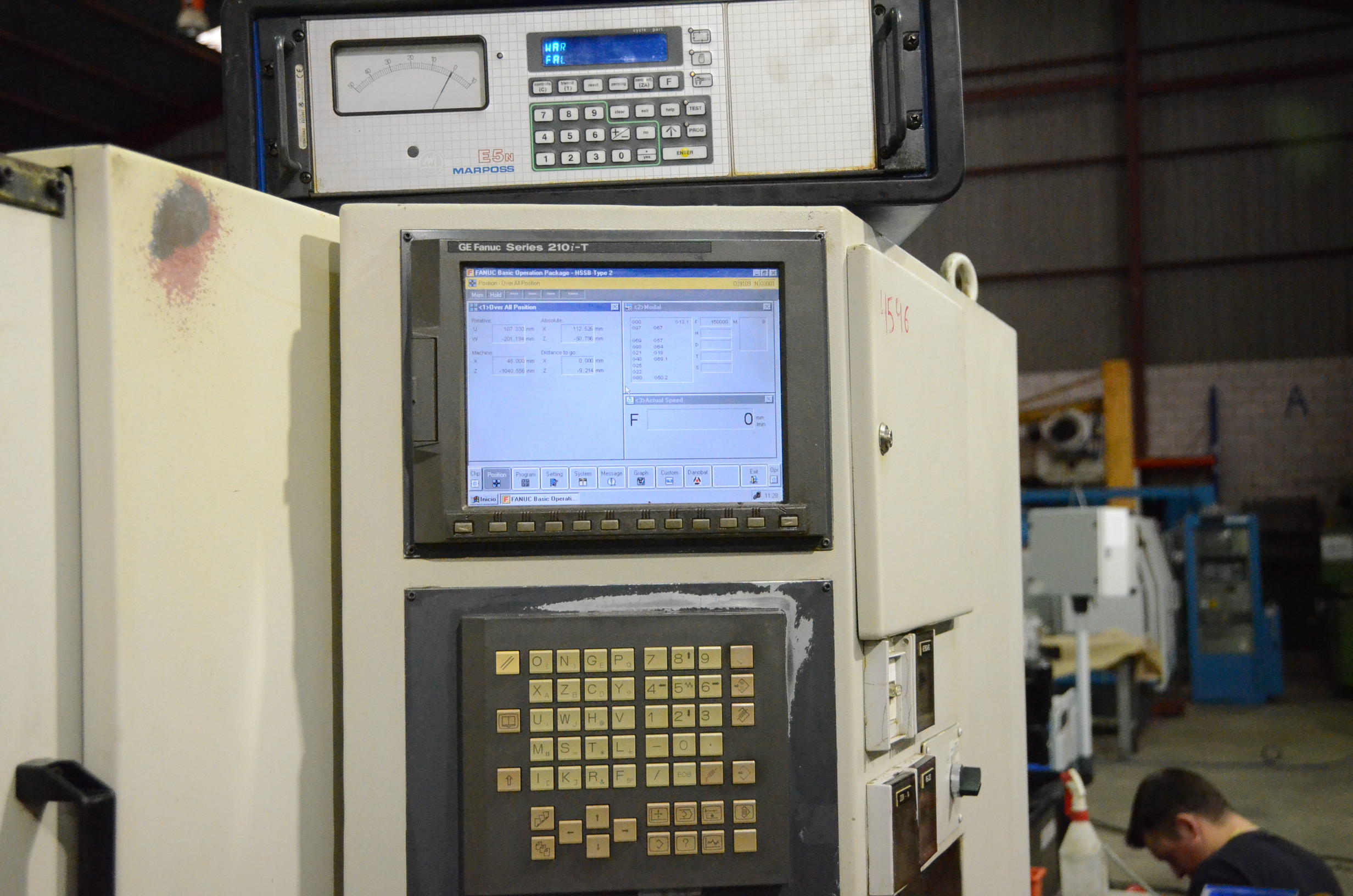

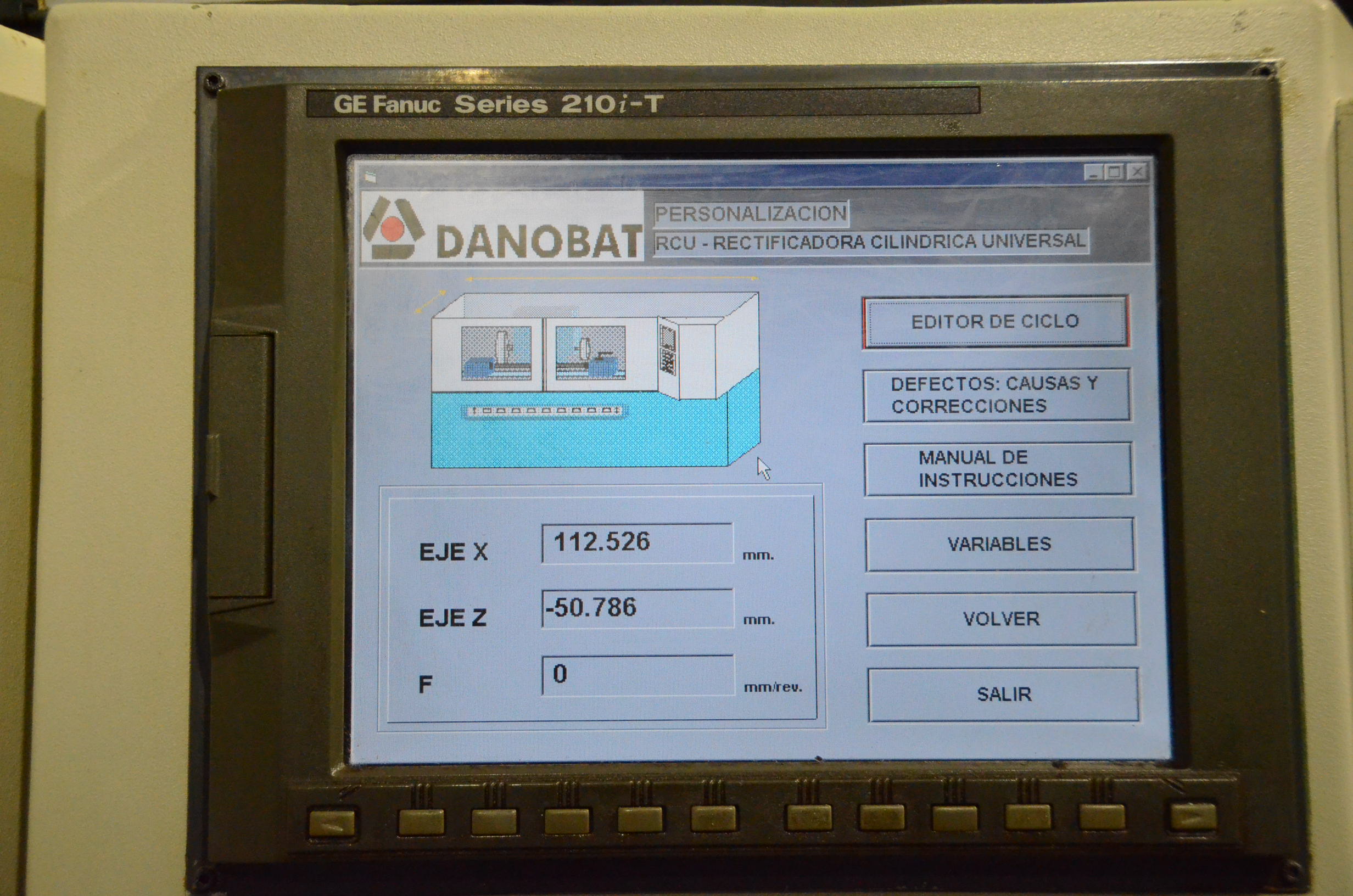

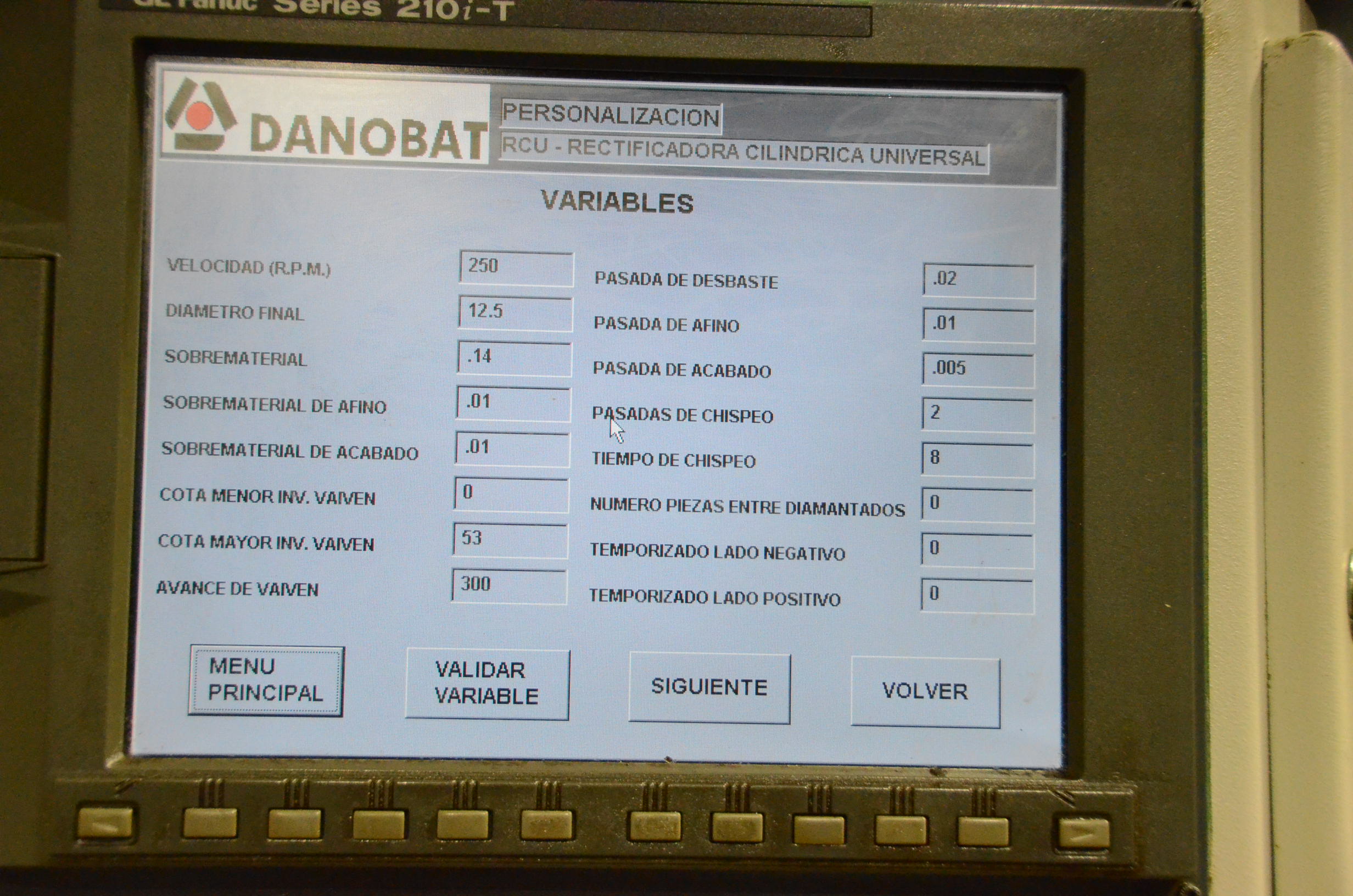

| Numerical Control | FANUC 21 Oi |
| Max. piece weight | 110 Kg |
| X-axis travel (transverse) | 215 mm |
| X axis speed | 15 m / min |
| X axis resolution | 0.0005 mm |
| Z-axis travel (longitudinal) | 1380 mm |
| Z axis speed | 15 m / min |
| Z axis resolution | 0,001 mm |
| Manual rotation of the grinding head (right/left) | +180º/-30º |
| main motor power | 7.5 HP |
| Workpiece head speed range | from 34 to 700 rpm |
| Rotation range of the workpiece head | +30º-10º |
| Cone of the point of the workpiece head | MORSE 4 |

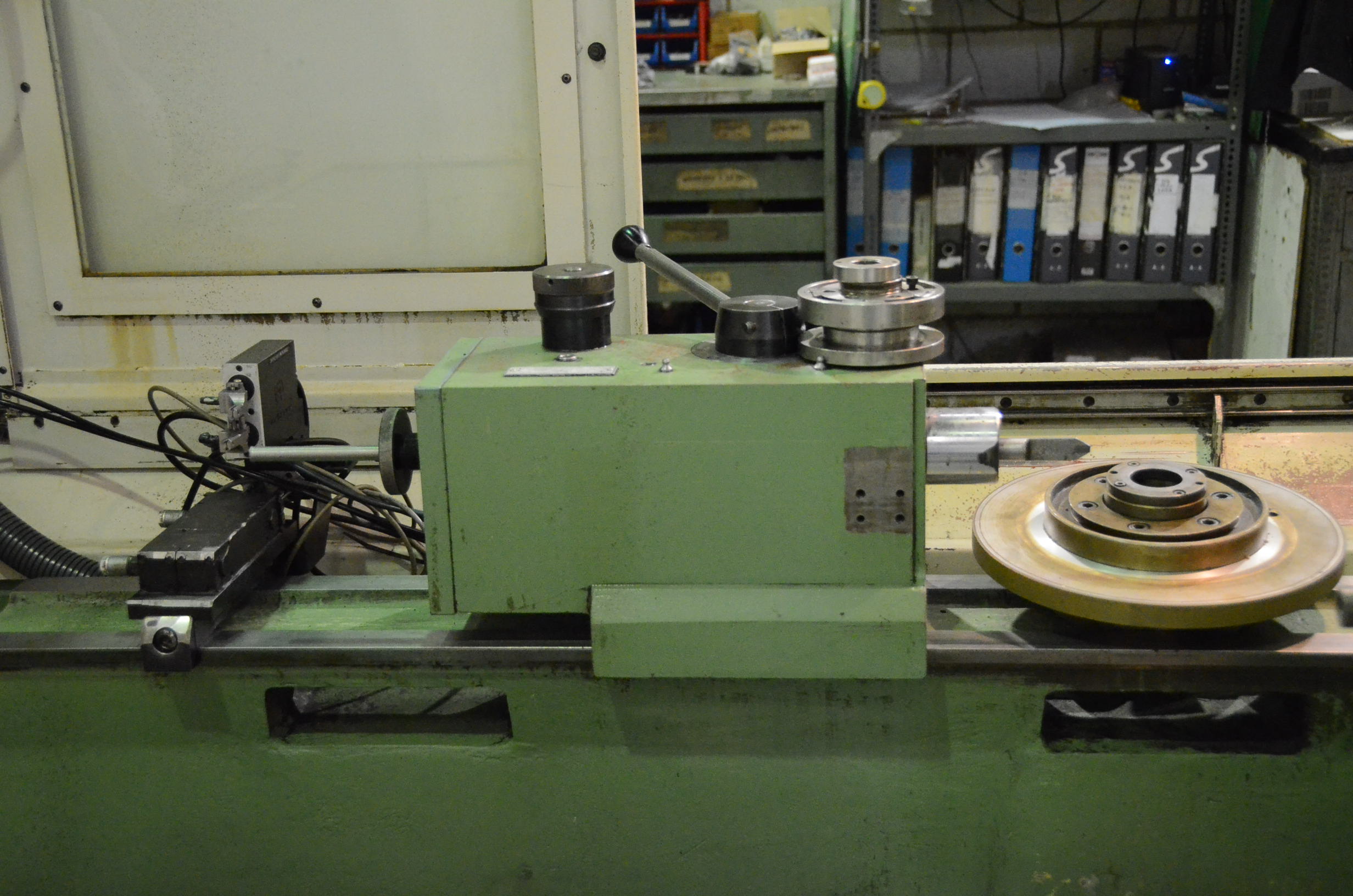

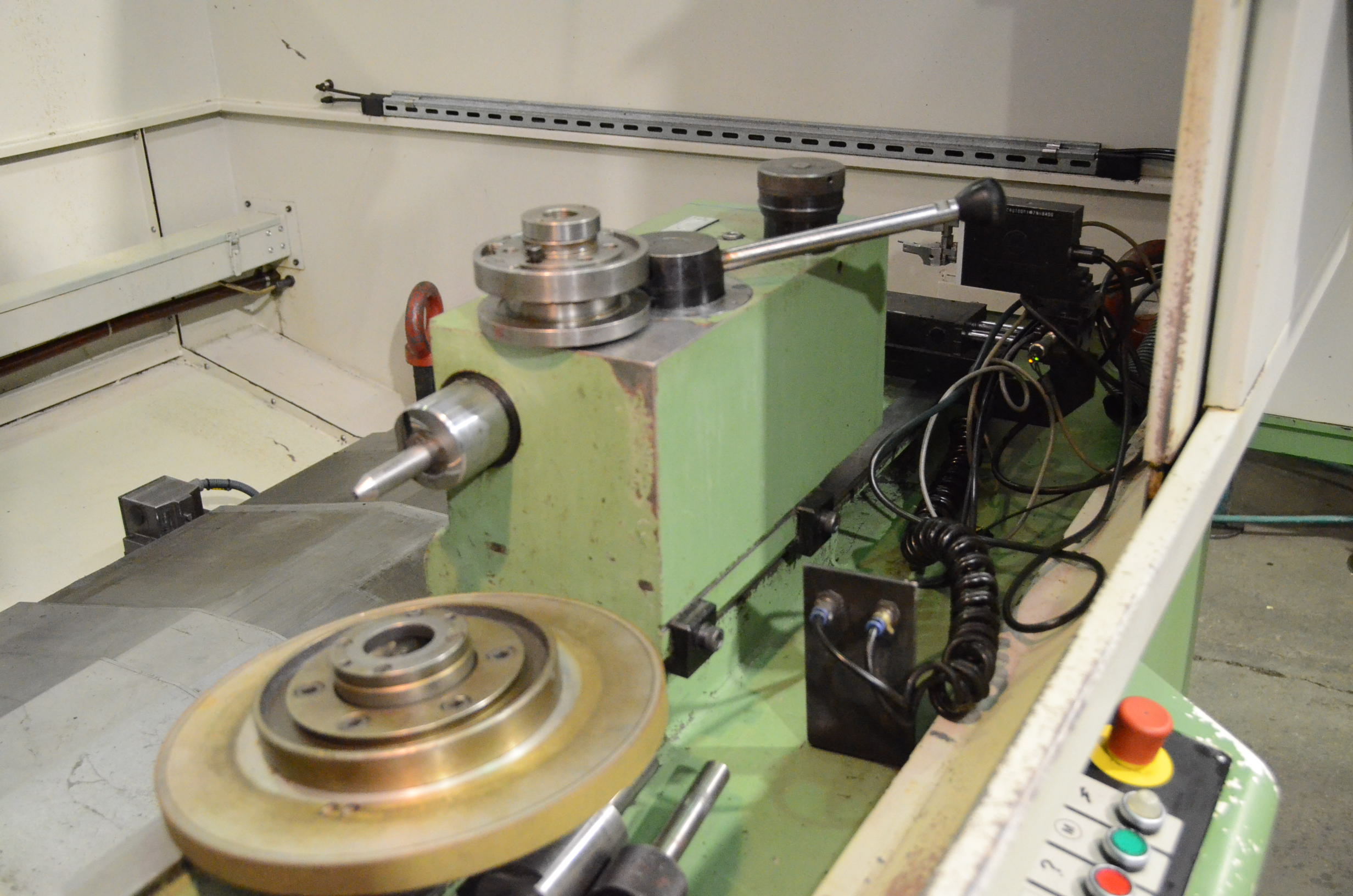

| Tailstock stroke | 40 mm |
| Tailstock cone | MORSE 4 |
| Dimensions (length x width x height) | 3200x1760x1850 mm |
| Weight | 4500 Kg |
