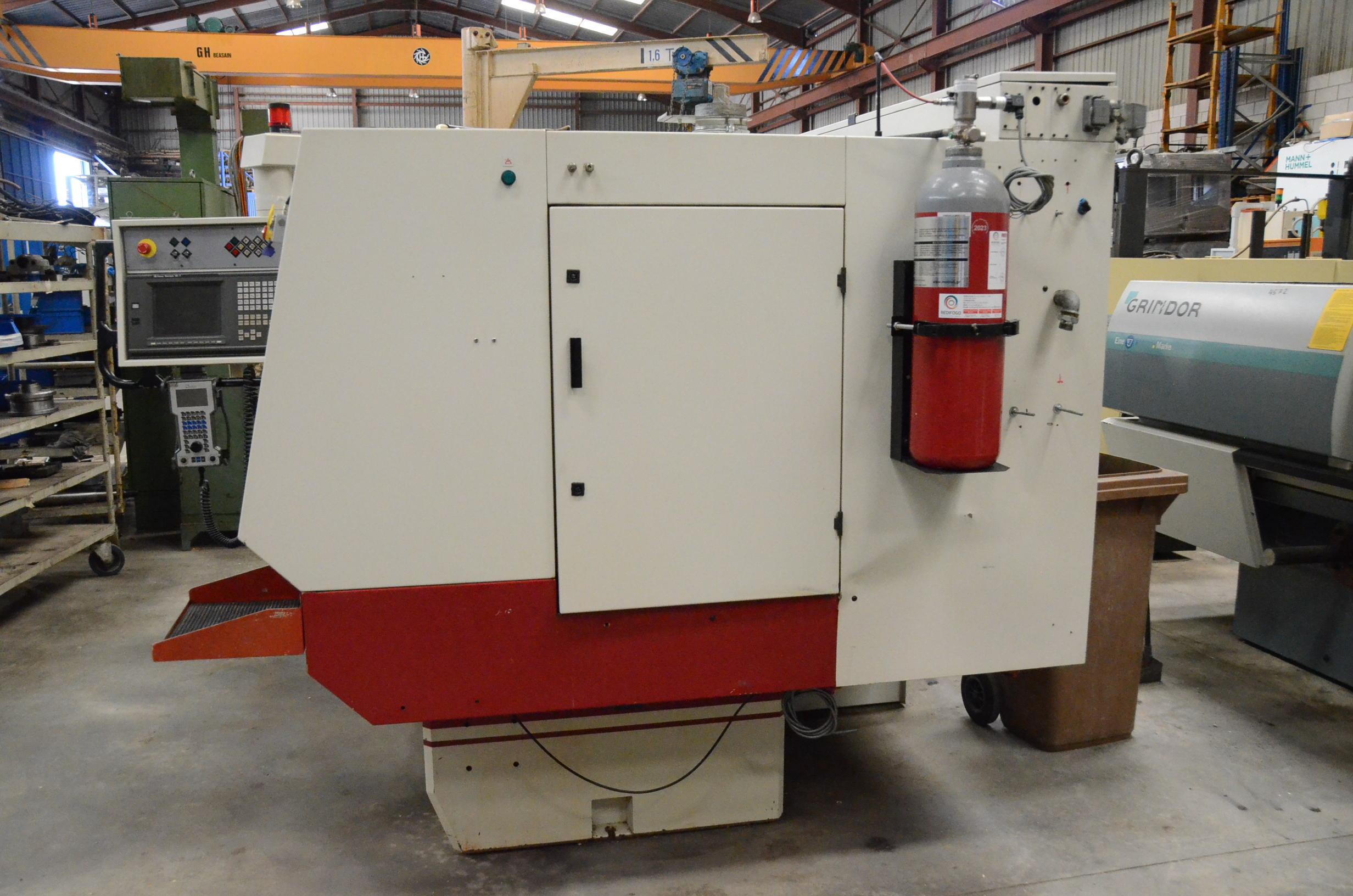

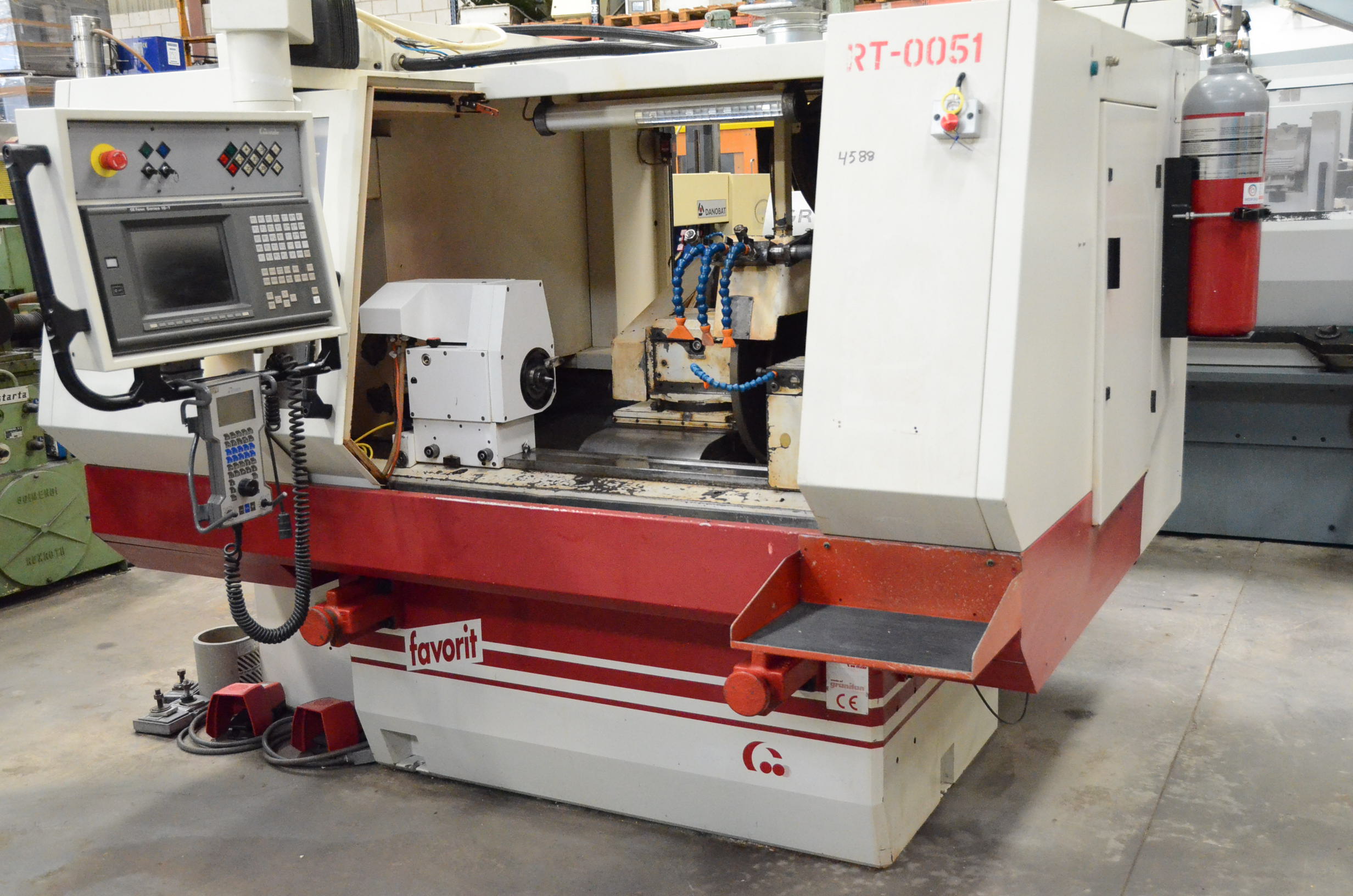

Cylindrical Grinding Machine STUDER S36 FAVORIT #4588
Cylindrical Grinding Machine STUDER S36 FAVORIT #4588
Location:Badajoz, Spain
or
Call +34 924 500 336
Specifications
| Manufacturer | STUDER |
| Model | S36 FAVORIT |
| Condition | Used |
| Stock Number | 4588 |
| Distance between points | 1000 mm |
| Height of the points | 175 mm |
| Point height | 175 mm |
| Grinding length | 500 mm |
| grinding length | 500 mm |
| Max. diameter to be rectified | 300 mm |
| Working wheel dimensions (od x id x width) | Ø500 x Ø203 x 80/100 mm |
| Ø max to be rectified | 300 mm |
| Inner cone | Morse 5 |
| inner cone | Morse 5 |
| Working wheel motor power | 7.5 Kw |
| Total power | 17 Kw |
| Longitudinal travel of the carriage (X axis) | 267 mm |
| Transverse travel of the carriage (Z axis) | 650 mm |

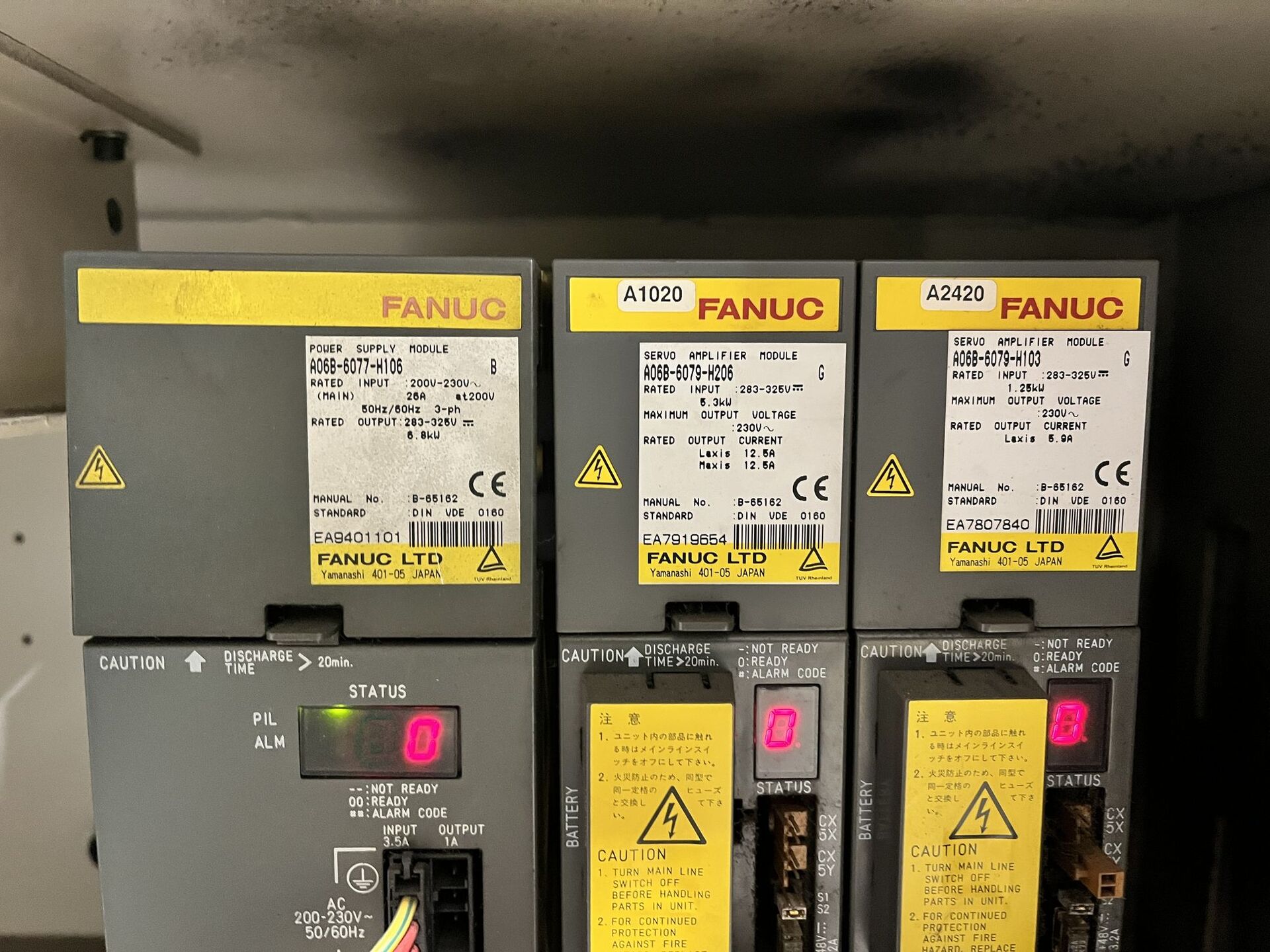

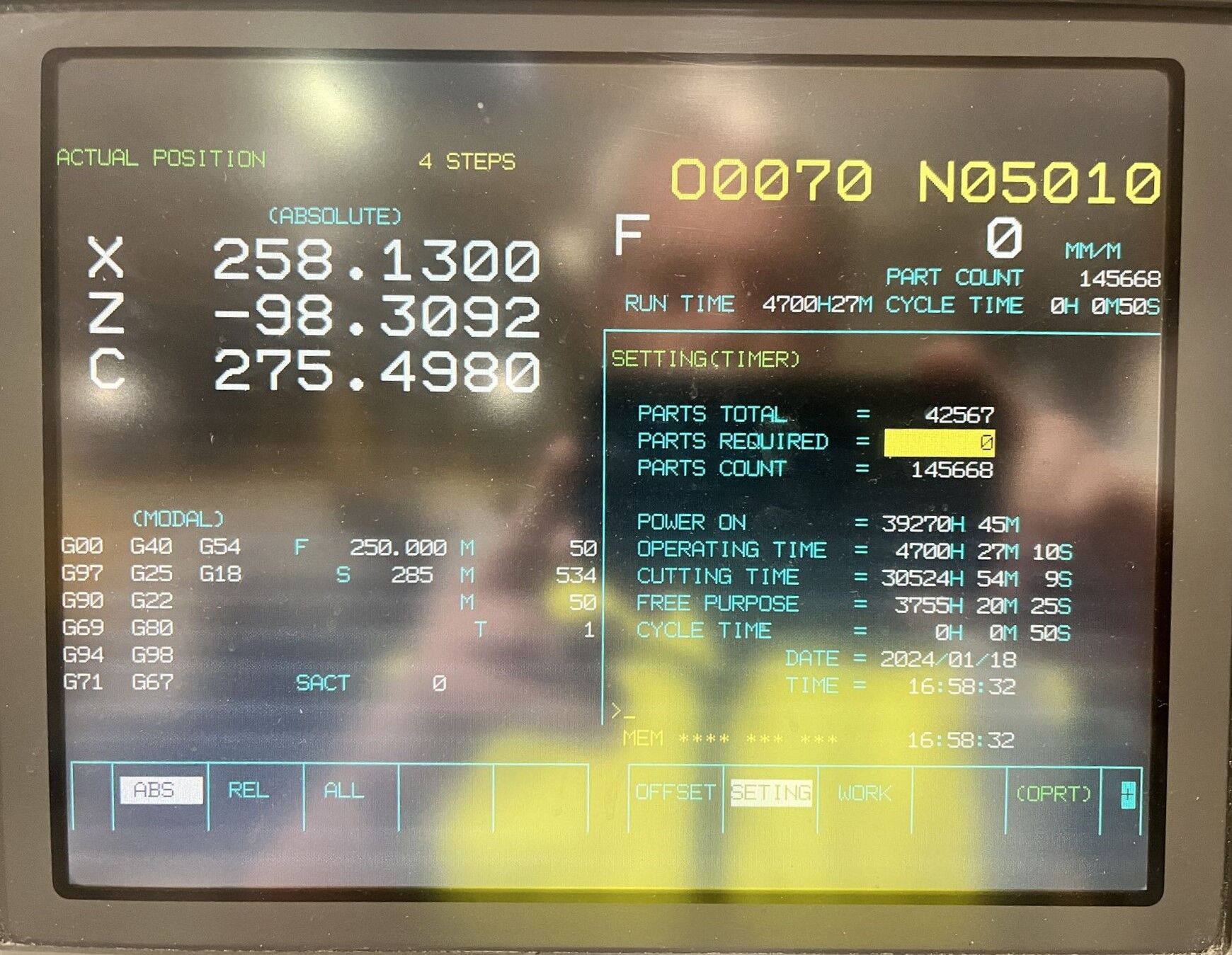

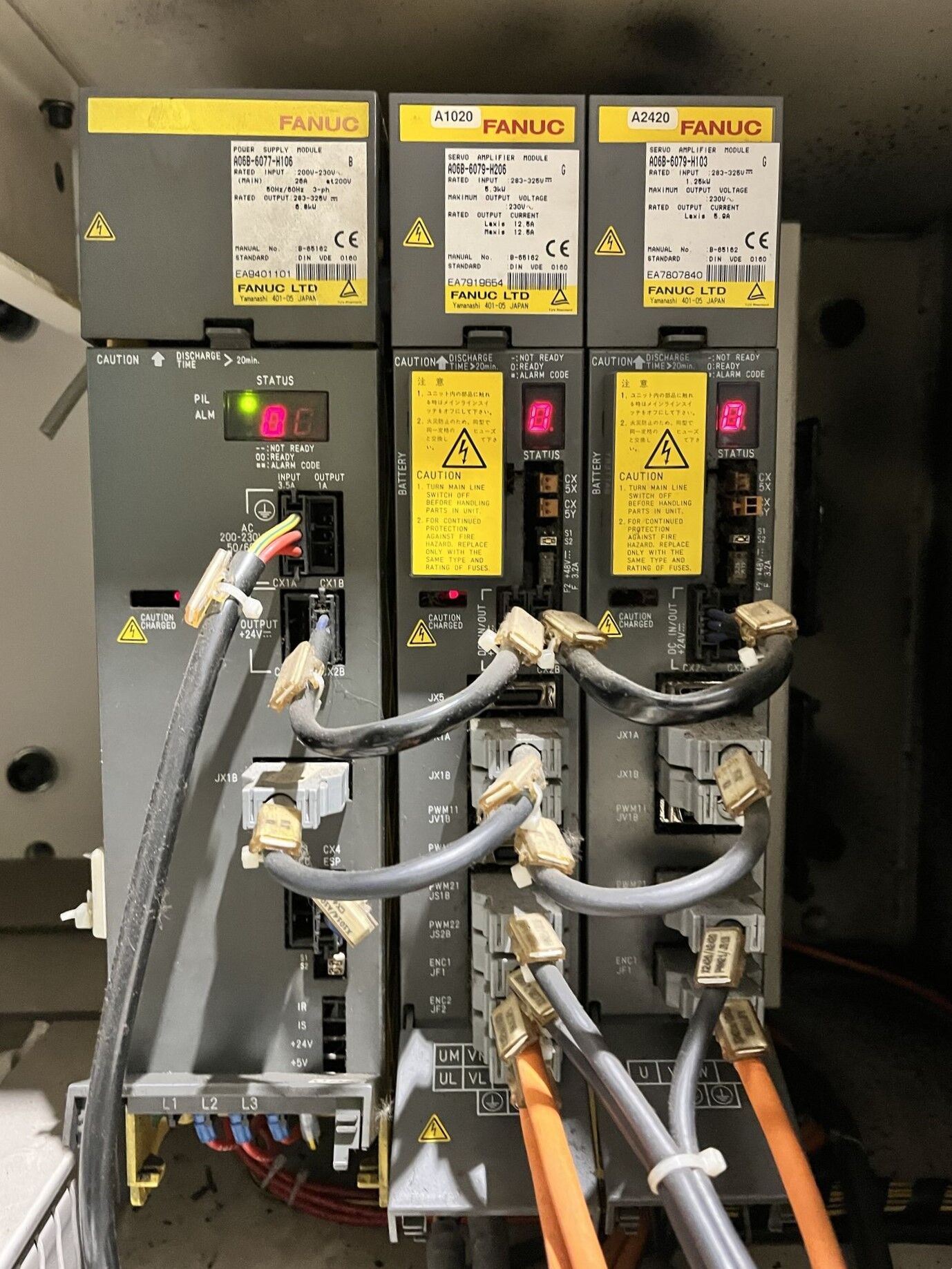

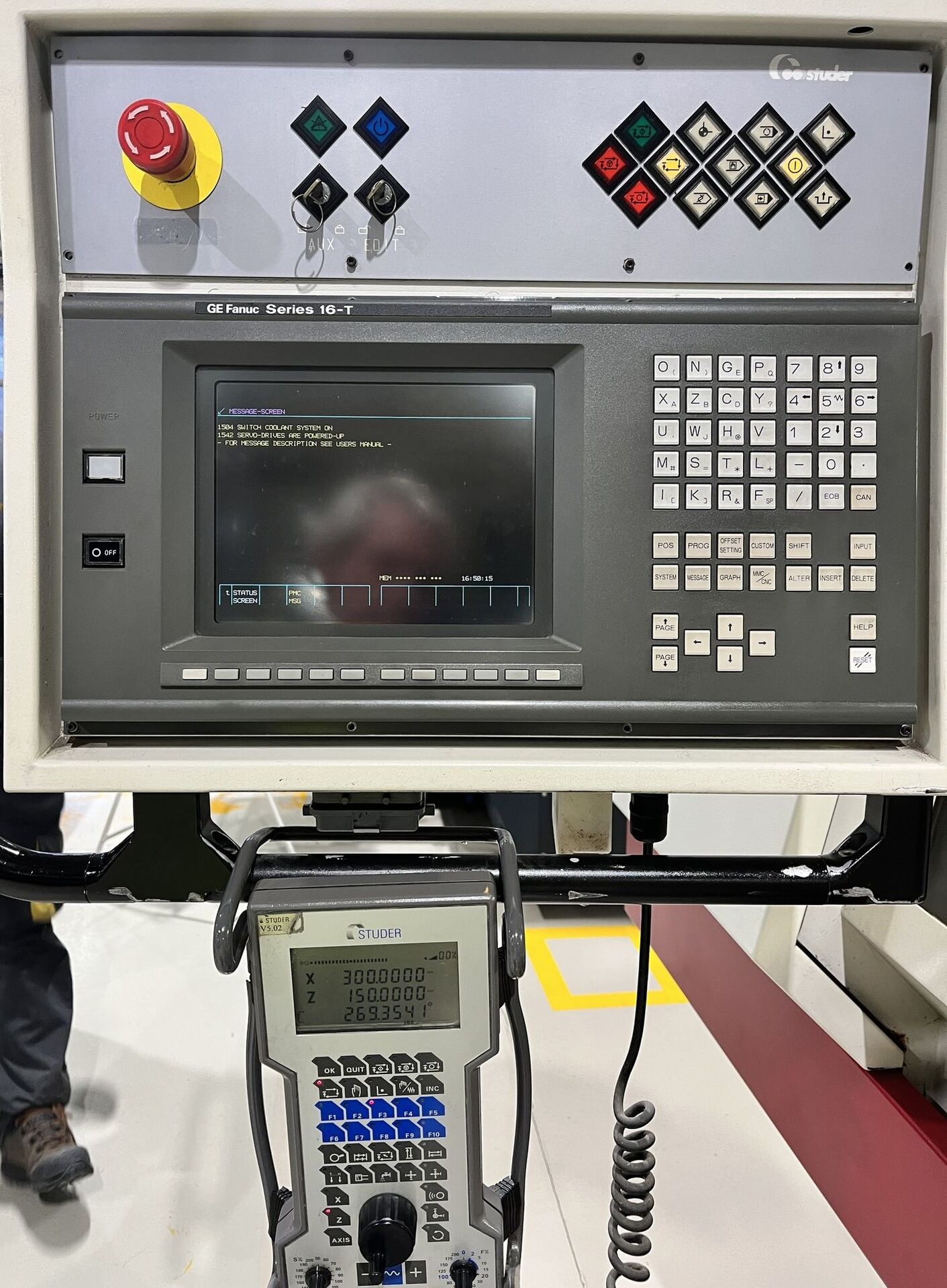

| CNC brand | FANUC |
| cnc brand | FANUC |
| CNC model | 16-T |
| cnc model | 16-T |
| Grinding wheel speed | 0-1670 rpm |
| Turning range | +/- 8.5º |
| Dimensions | 2600 mm x 2300 mm x 2100 mm |
| Weight approx. | 4200 Kg |
