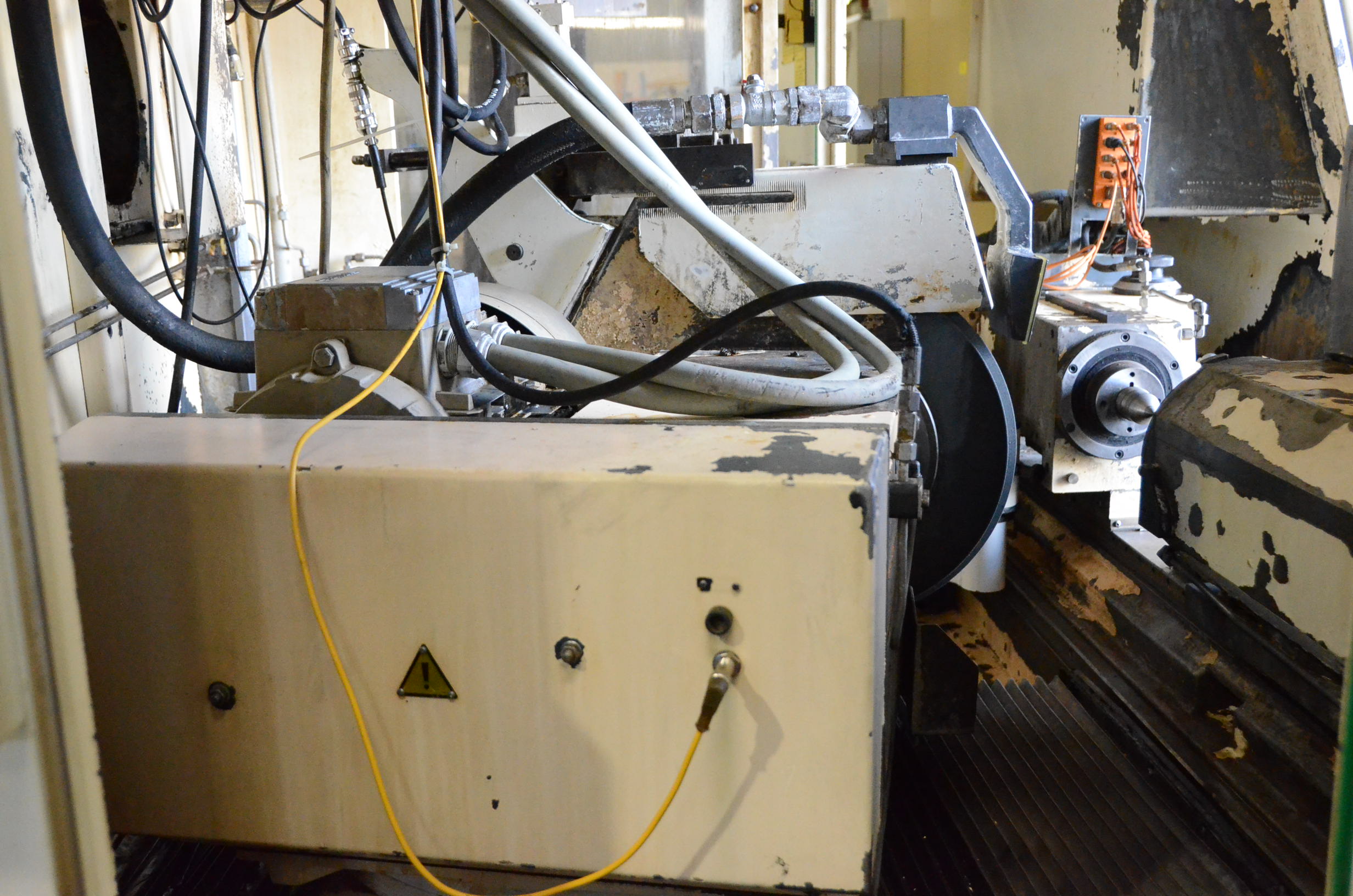

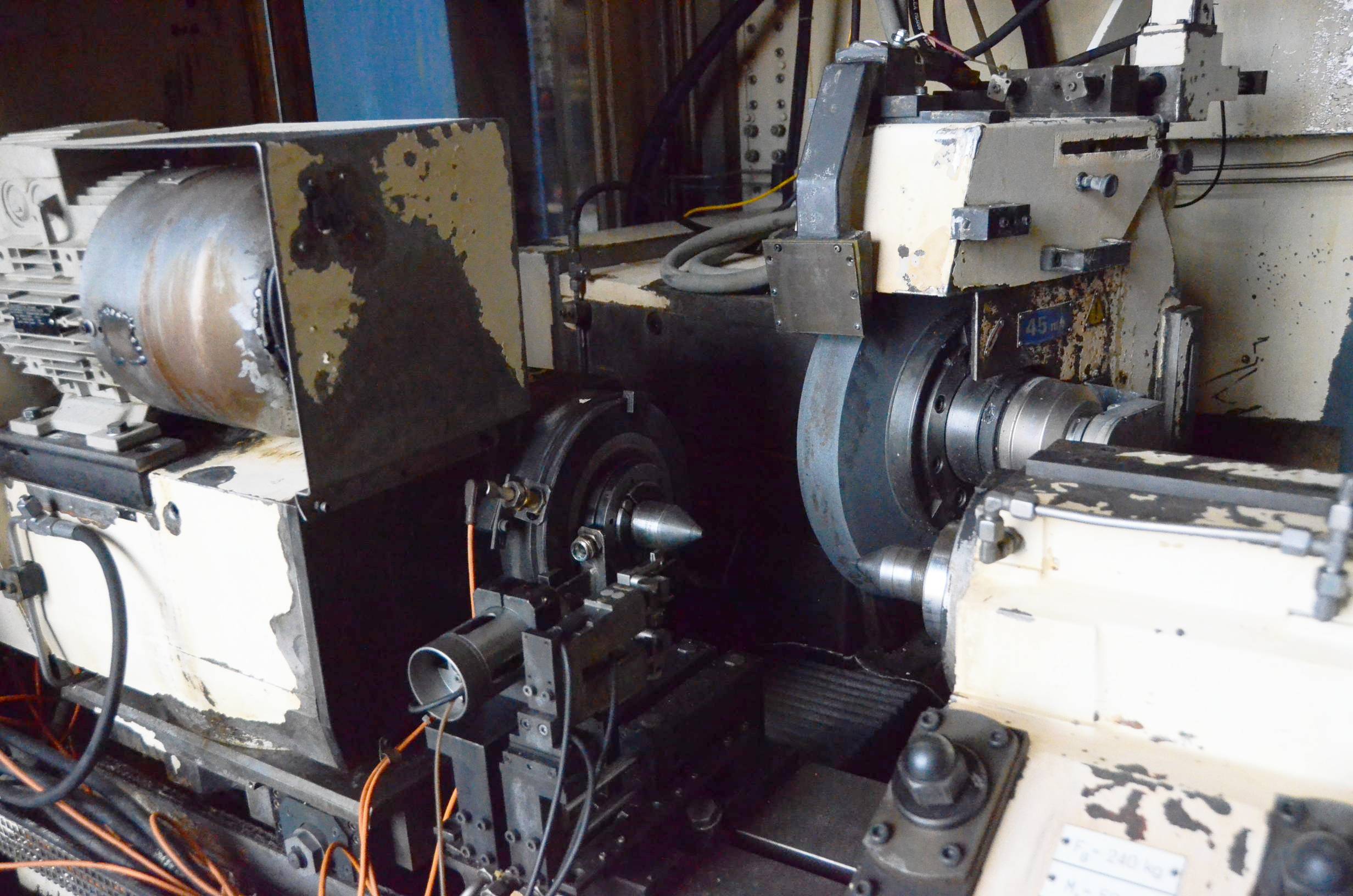

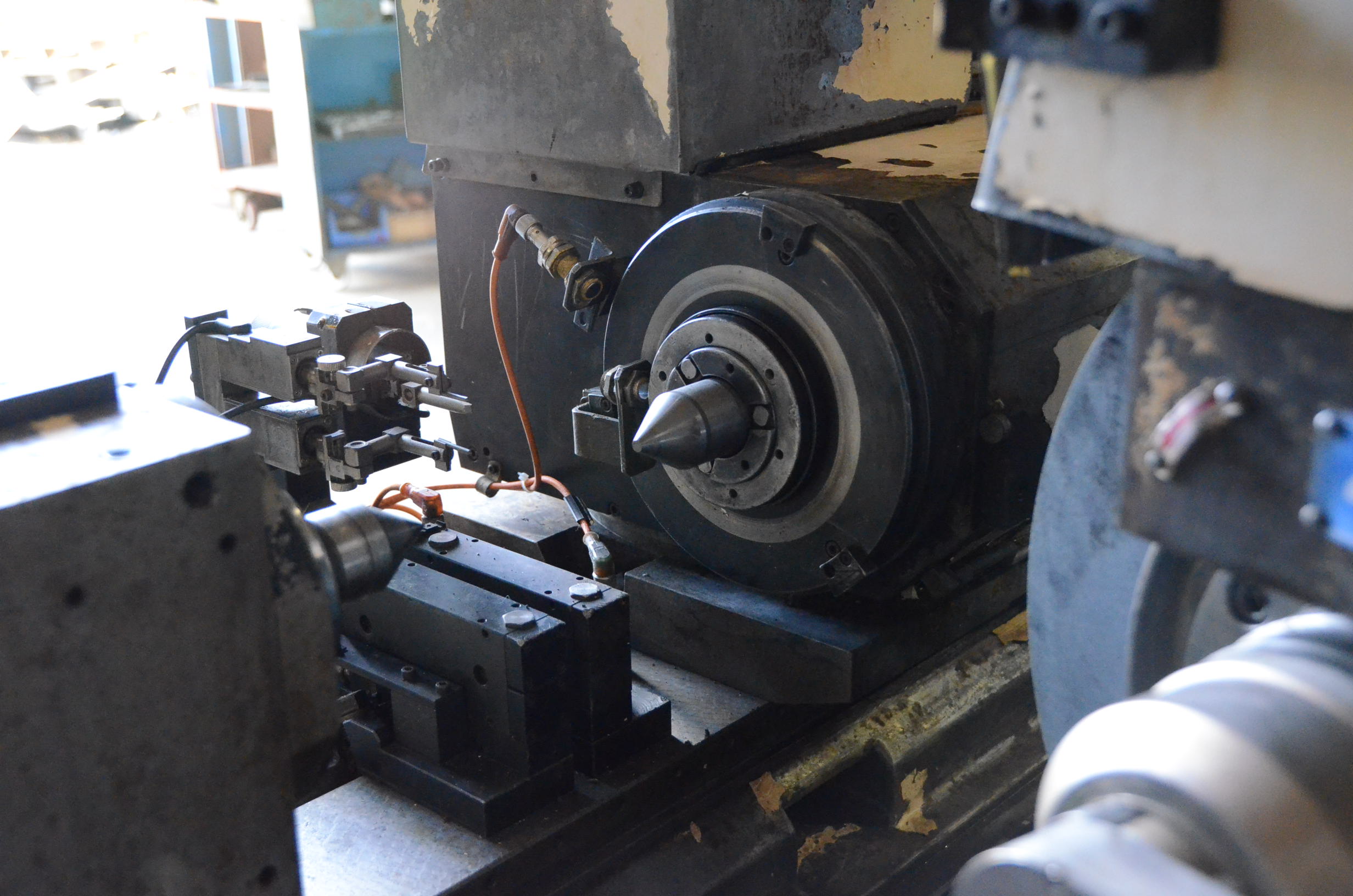

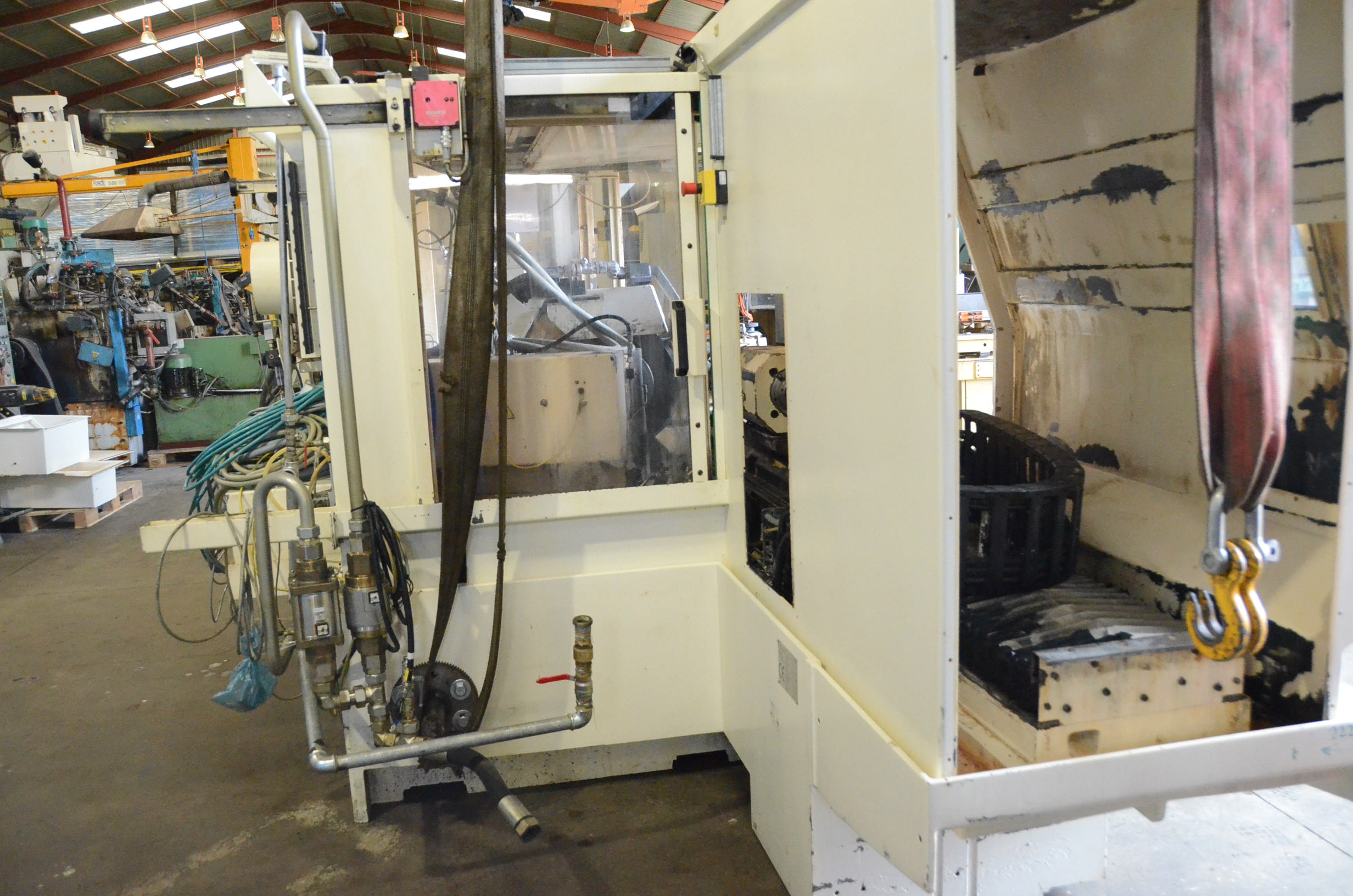

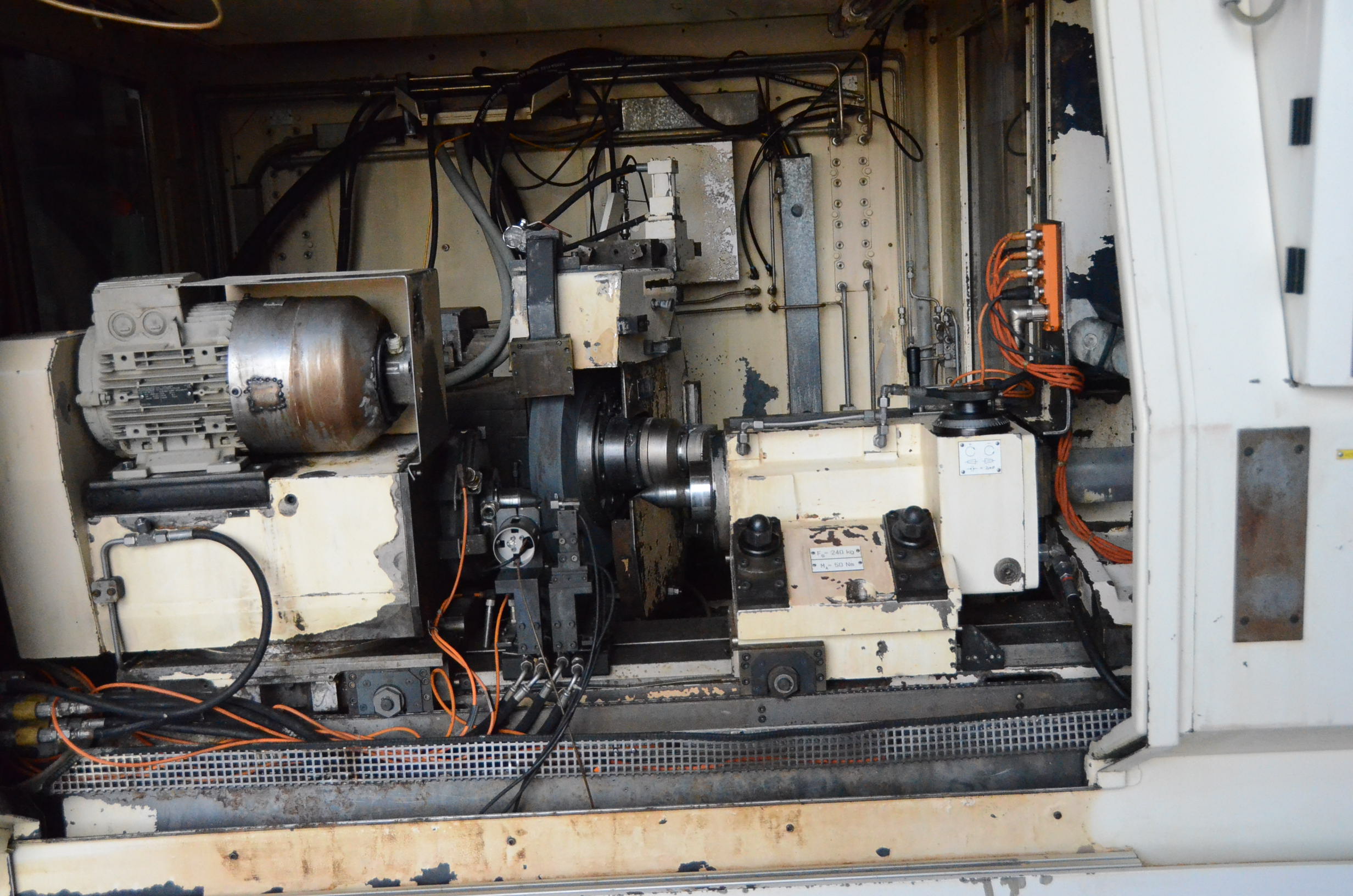

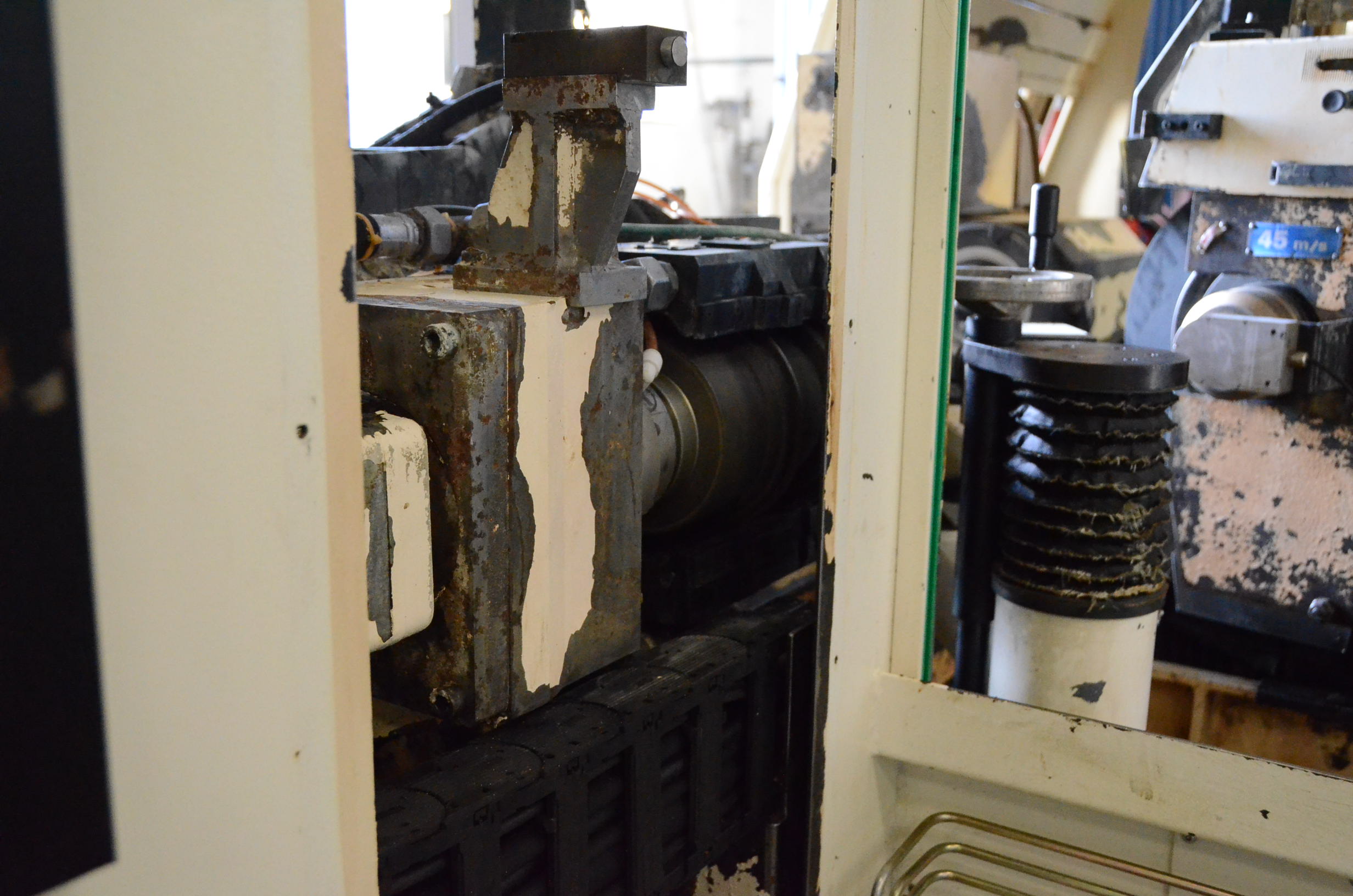

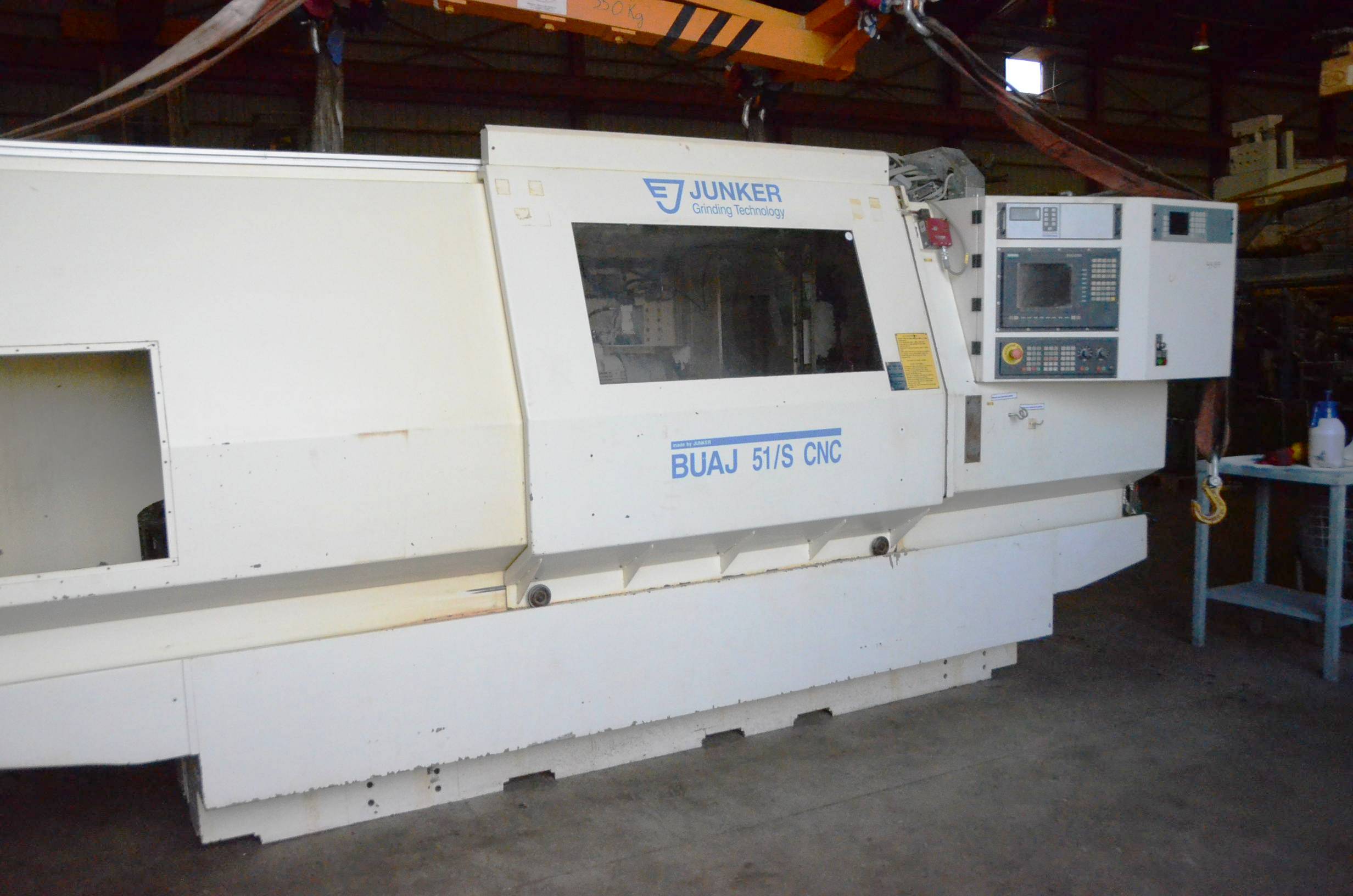

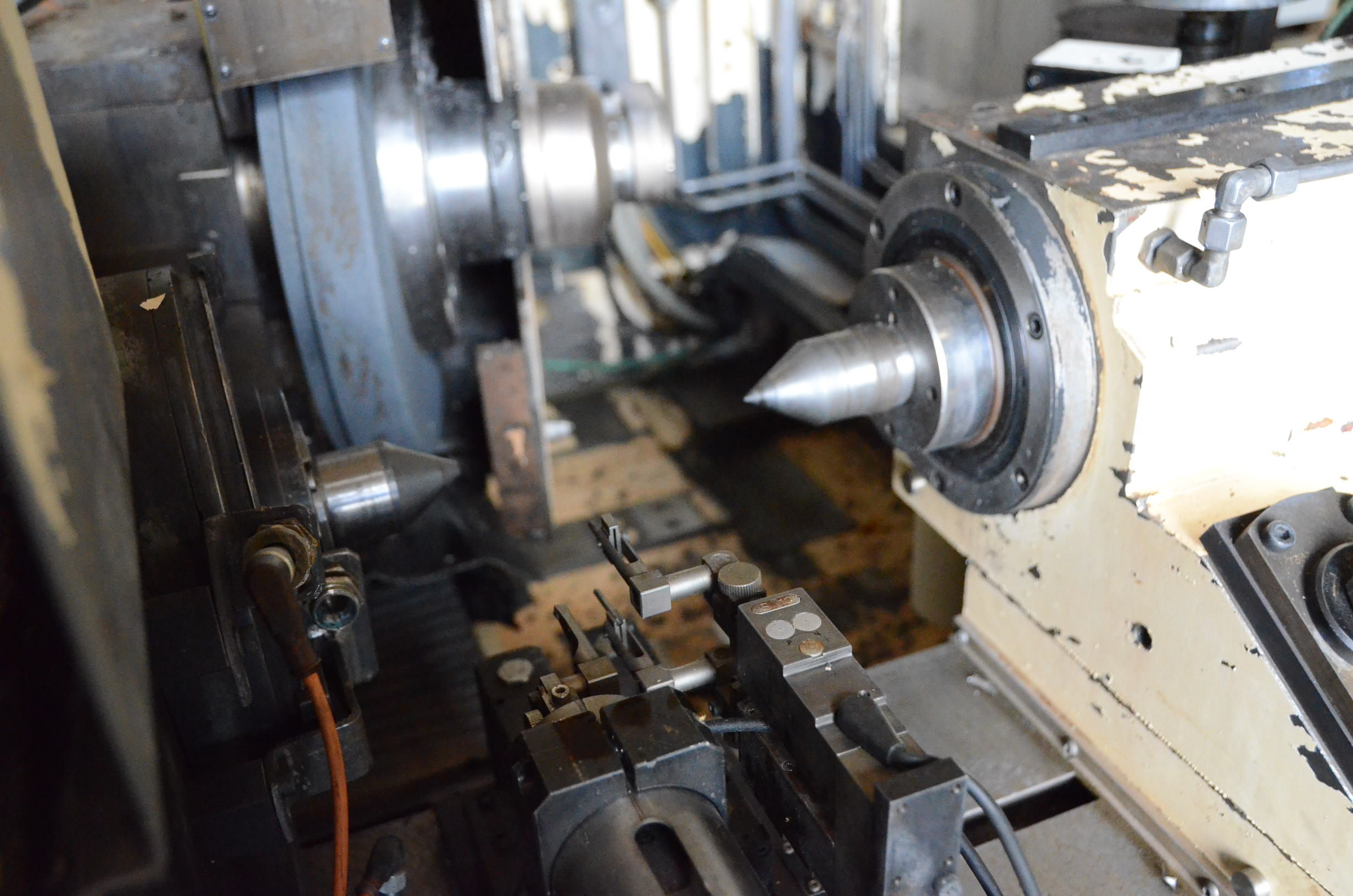

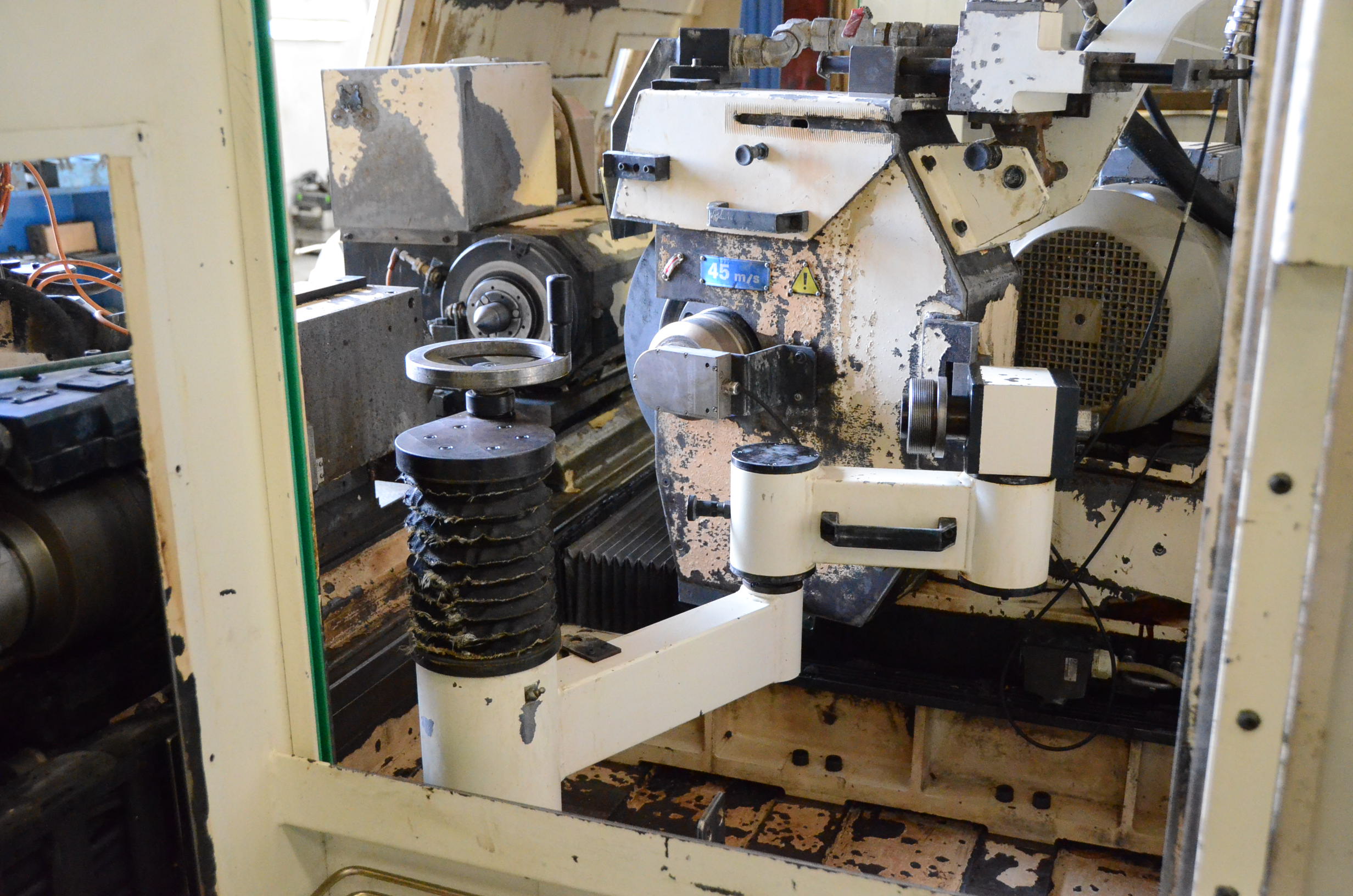

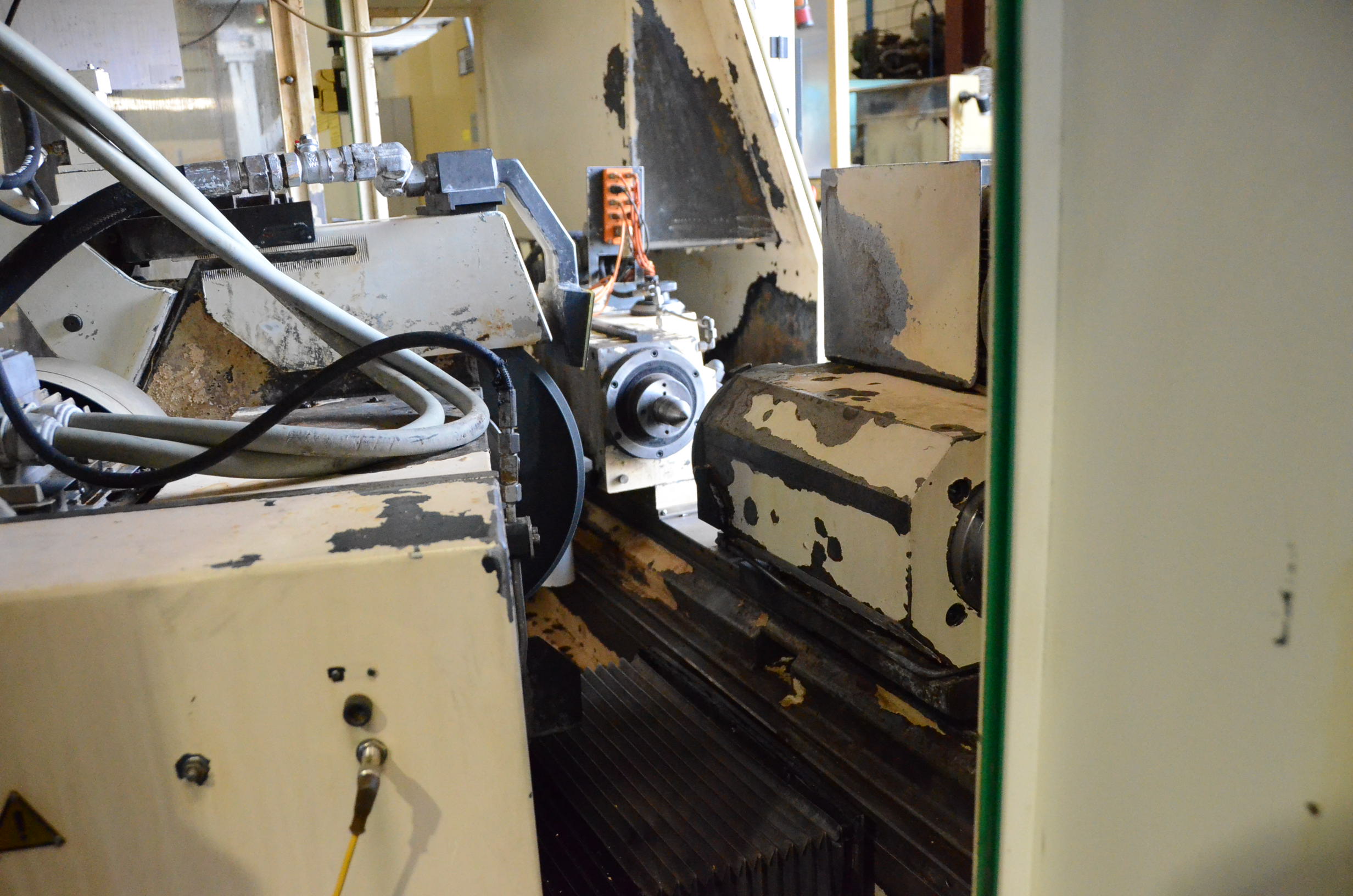

JUNKER BUAJ 51/S CNC Cylindrical Grinding Machine #4587

JUNKER BUAJ 51/S CNC Cylindrical Grinding Machine #4587

Location:Badajoz, Spain

or
Call +34 924 500 336

Specifications

ManufacturerJUNKER
ModelBUAJ 51/S CNC
Year2000
ConditionUsed
Stock Number4587
Distance between points1000 mm
Ø max to be rectified400 mm
Maximum length to be rectified600 mm
Max travel Z axis1300 mm
Max travel X axis378 mm
Height of points205 mm
Ø of the grinding wheel600 mm
Grinding wheel width63 mm
Maximum width of grinding wheel125 mm
Grinding wheel hole Ø203 mm

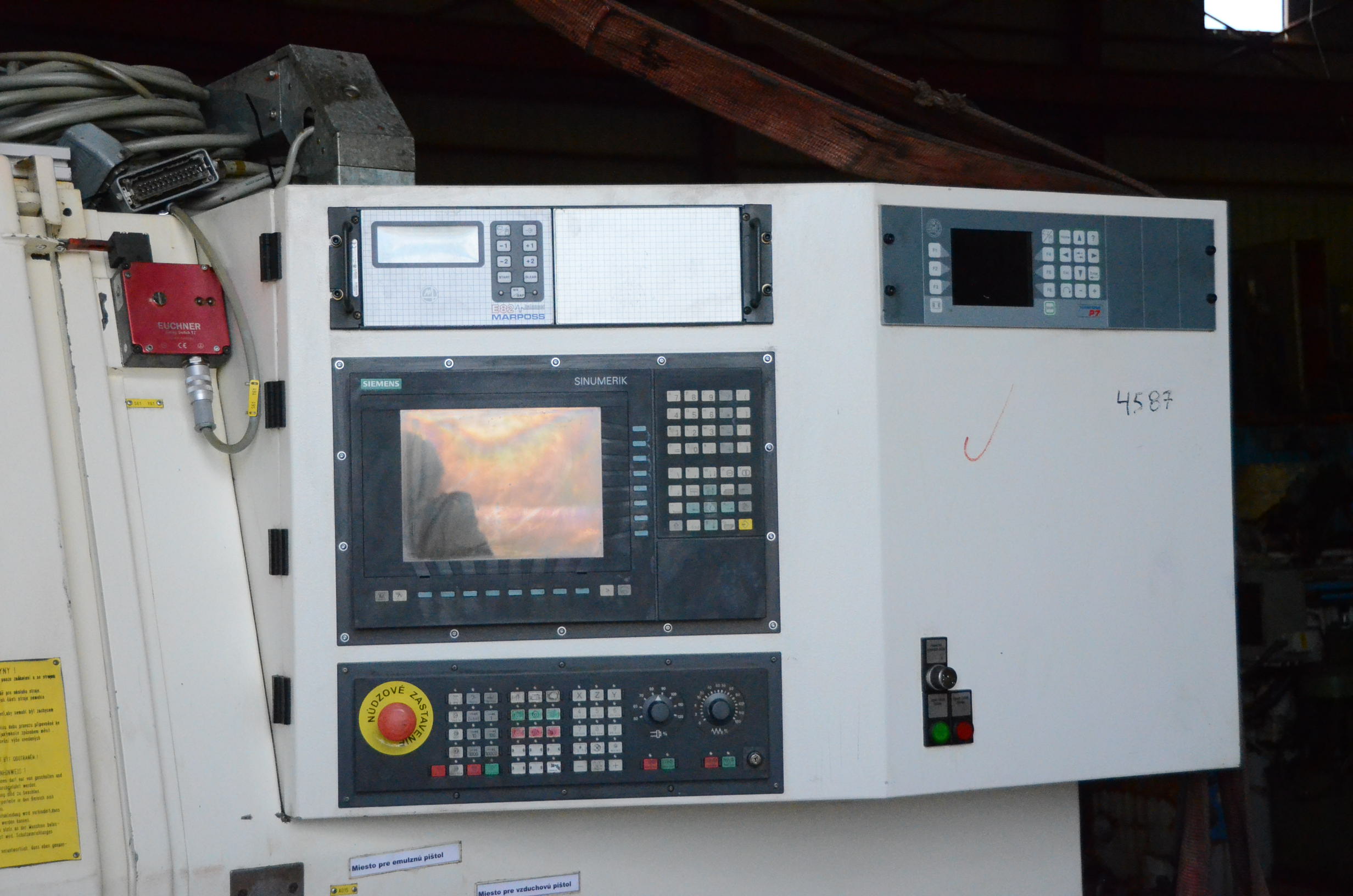

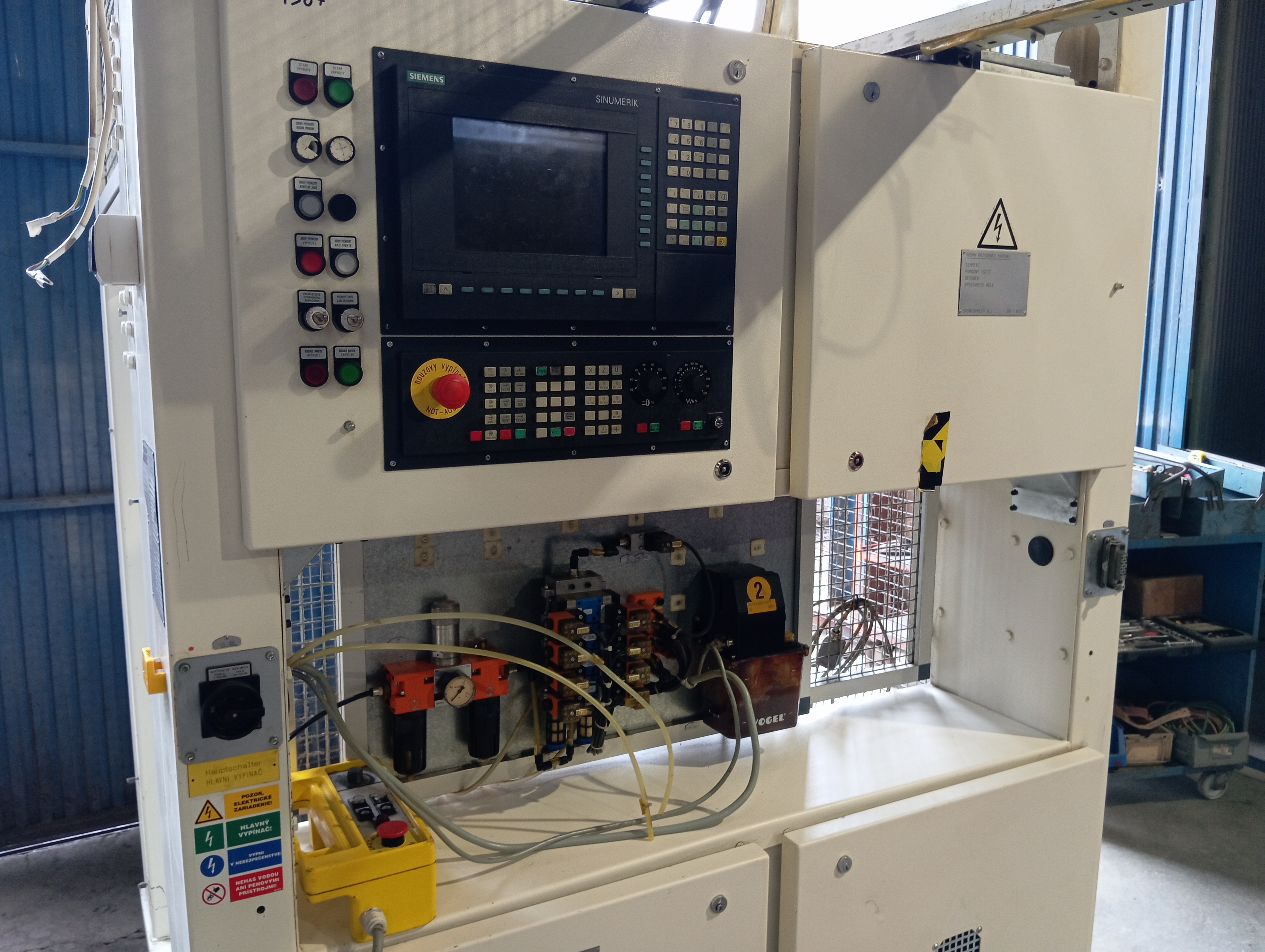

cnc brandSIEMENS
cnc model840D
Main engine power22 Kw
Grinding wheel speed45 m/s
tailstock conemk5
Counterpoint tour100 mm
Workpiece head conemk5
Workpiece head rotation90º
Maximum piece weight300 Kg
Working accuracy of the machineIT4 ISO
Fine taper adjustment +/-O, 1 mm/a
speed of the working feed of the tablefrom 0 to 7.5 m/min
Plan dimensions4500x3000x2500 mm
Weight approx.8000 Kg
