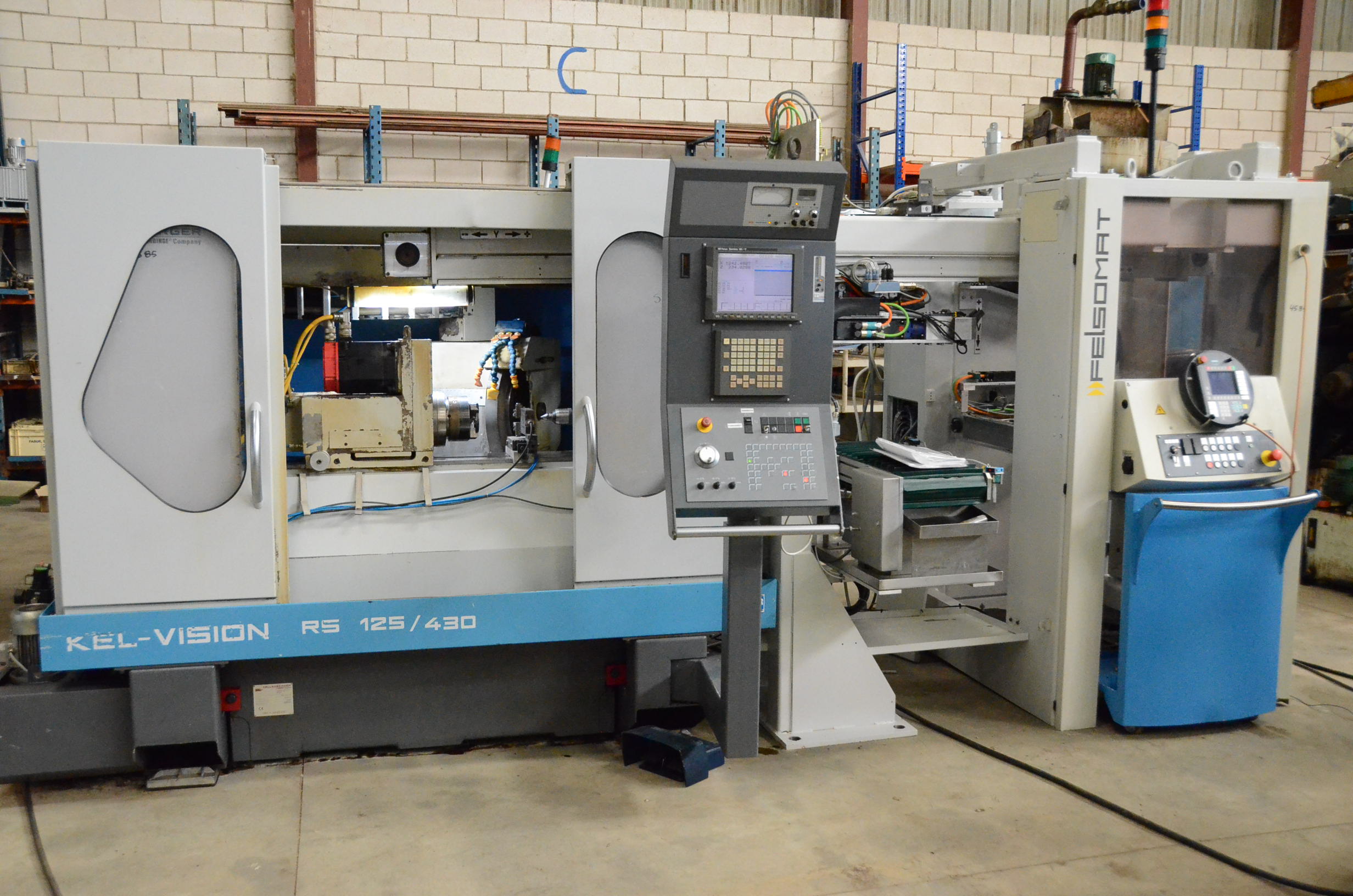

Cylindrical Grinding Machine KELLENBERGER KEL-VISION RS 125/430 #4585
Cylindrical Grinding Machine KELLENBERGER KEL-VISION RS 125/430 #4585
Location:Badajoz, Spain
or
Call +34 924 500 336
Specifications
| Manufacturer | KELLENBERGER |
| Model | KEL-VISION RS 125/430 |
| Condition | Used |
| Stock Number | 4585 |
| Distance between points | 760 mm |
| Max travel Z axis | 650 mm |
| Maximum length to be rectified | 430 mm |
| Working wheel dimensions (od x id x width) | Ø406 x Ø127 x 50 mm |
| Max. diameter to be rectified | 250 mm |
| Ø max to be rectified | 250 mm |
| Height of points | 125 mm |
| Max. grinding wheel diameter | 500 mm |
| Ø max. molar | 500 mm |
| Max travel X axis | 320 mm |

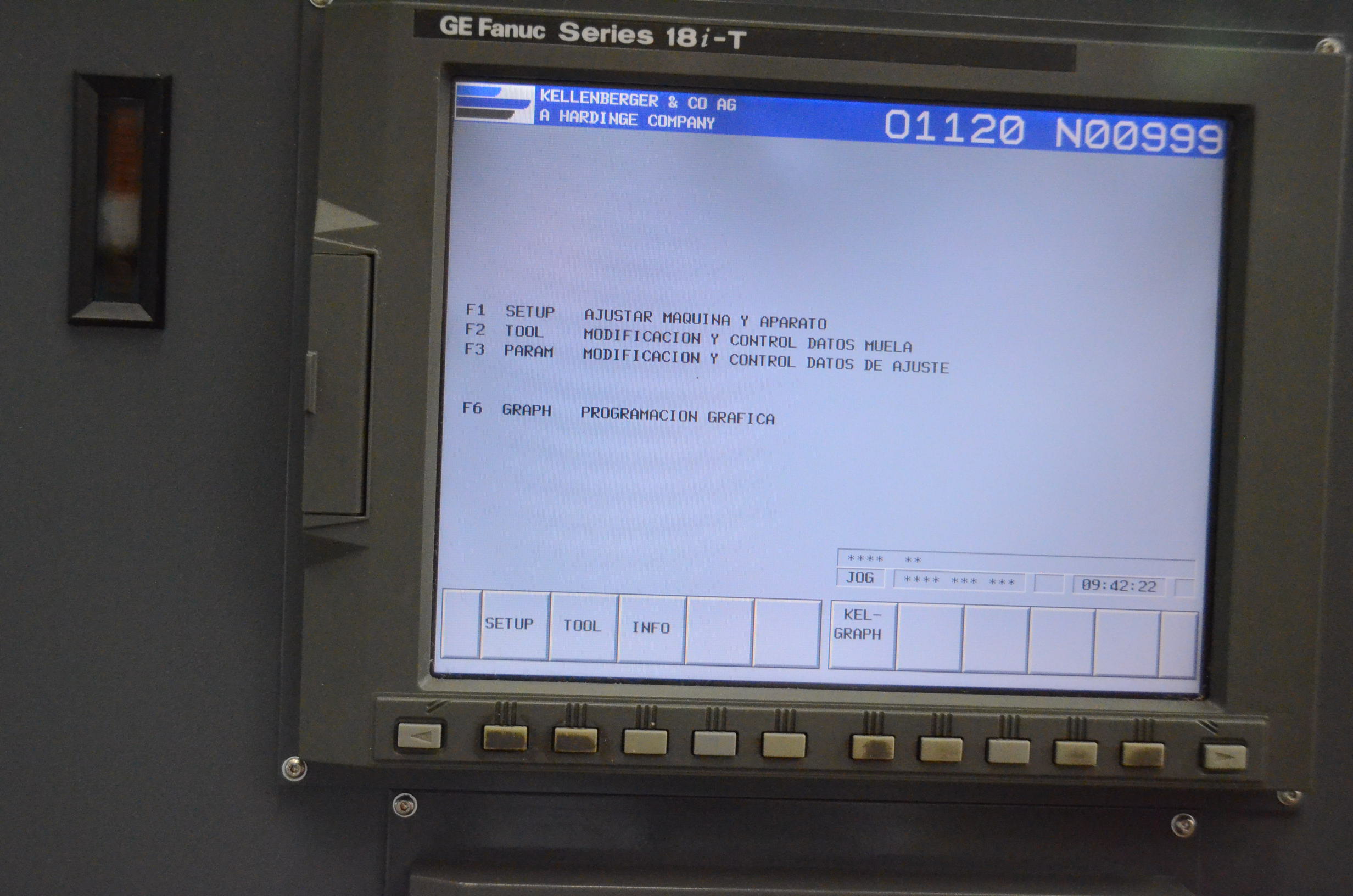

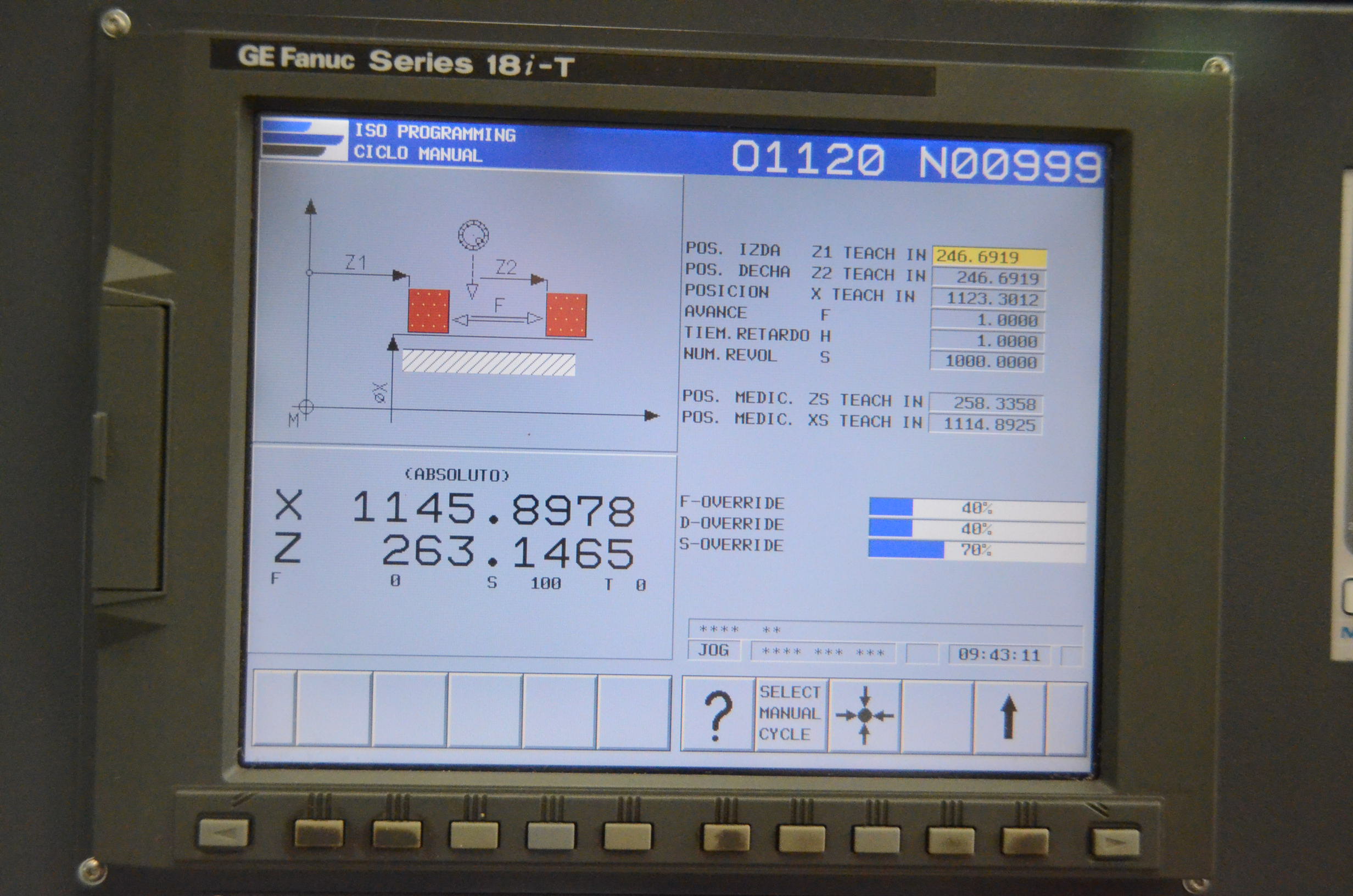

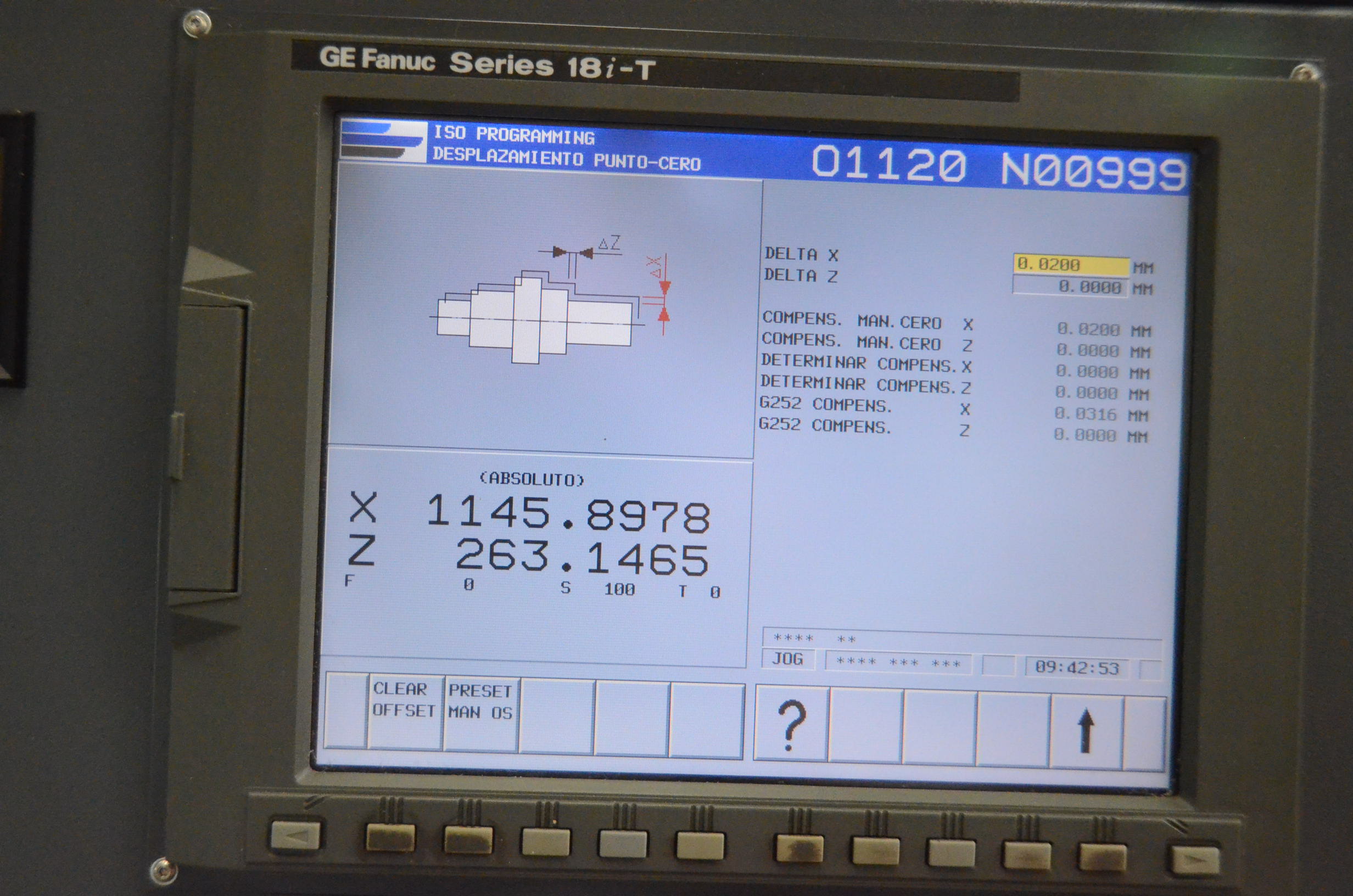

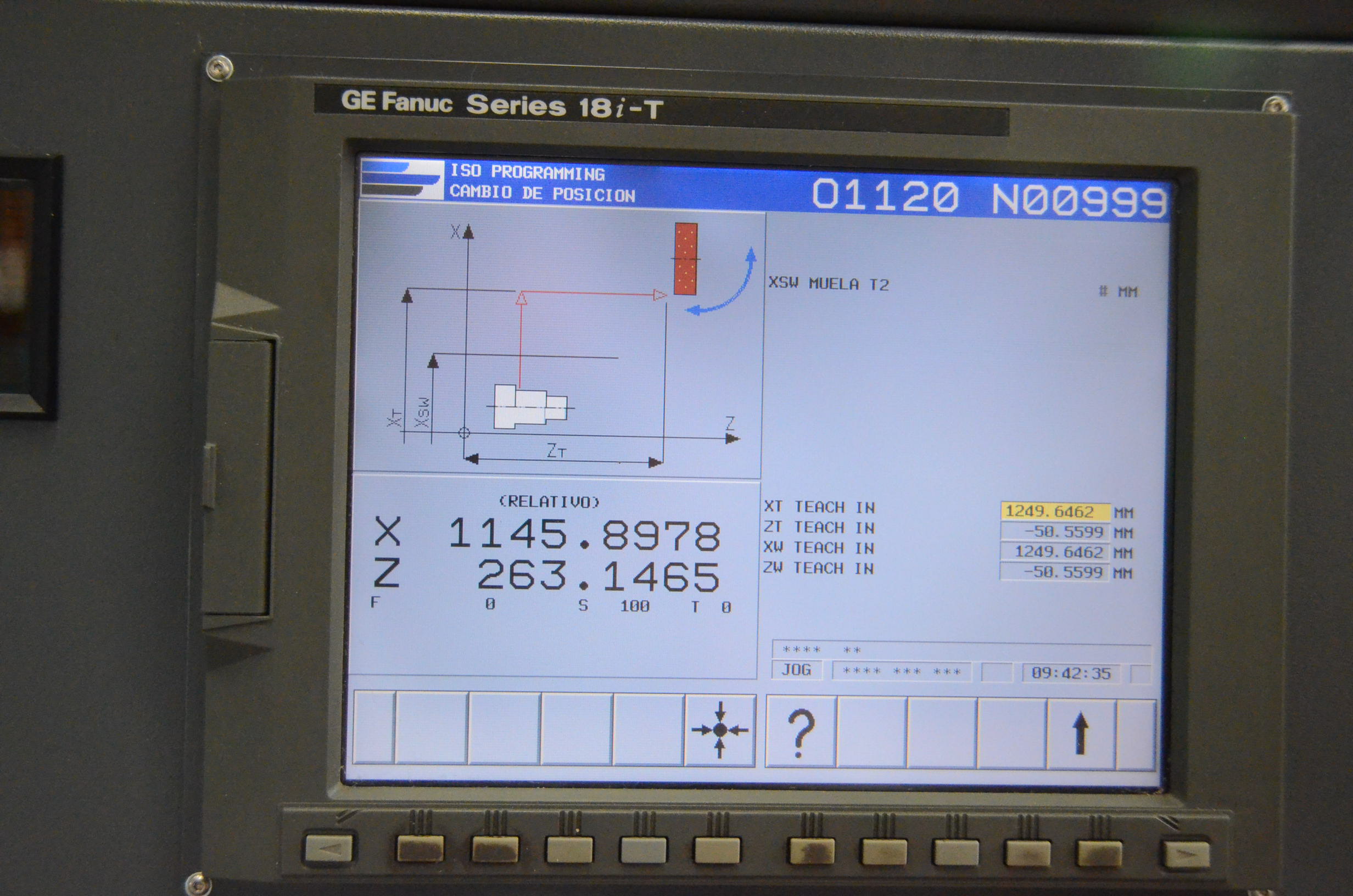

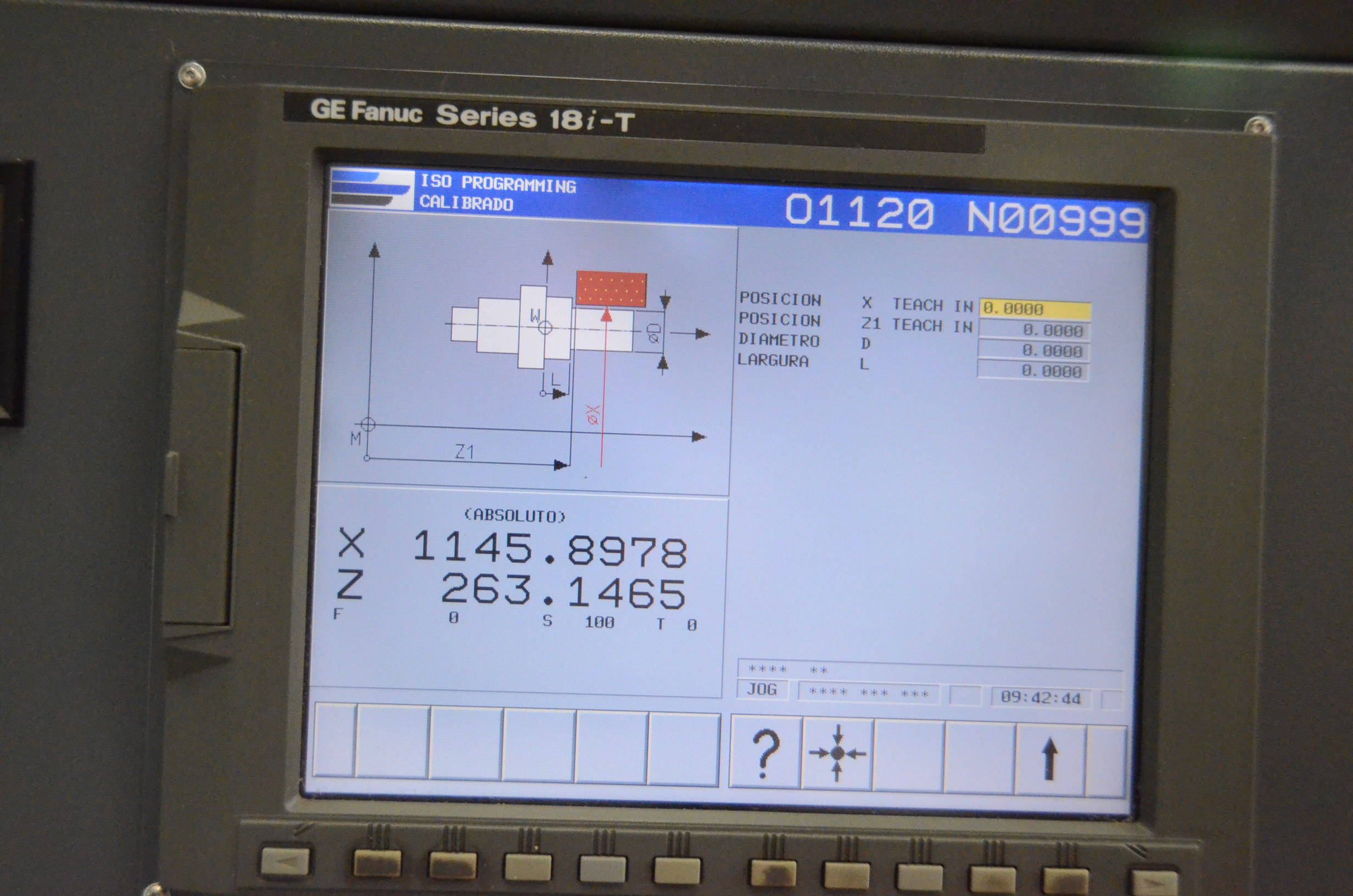

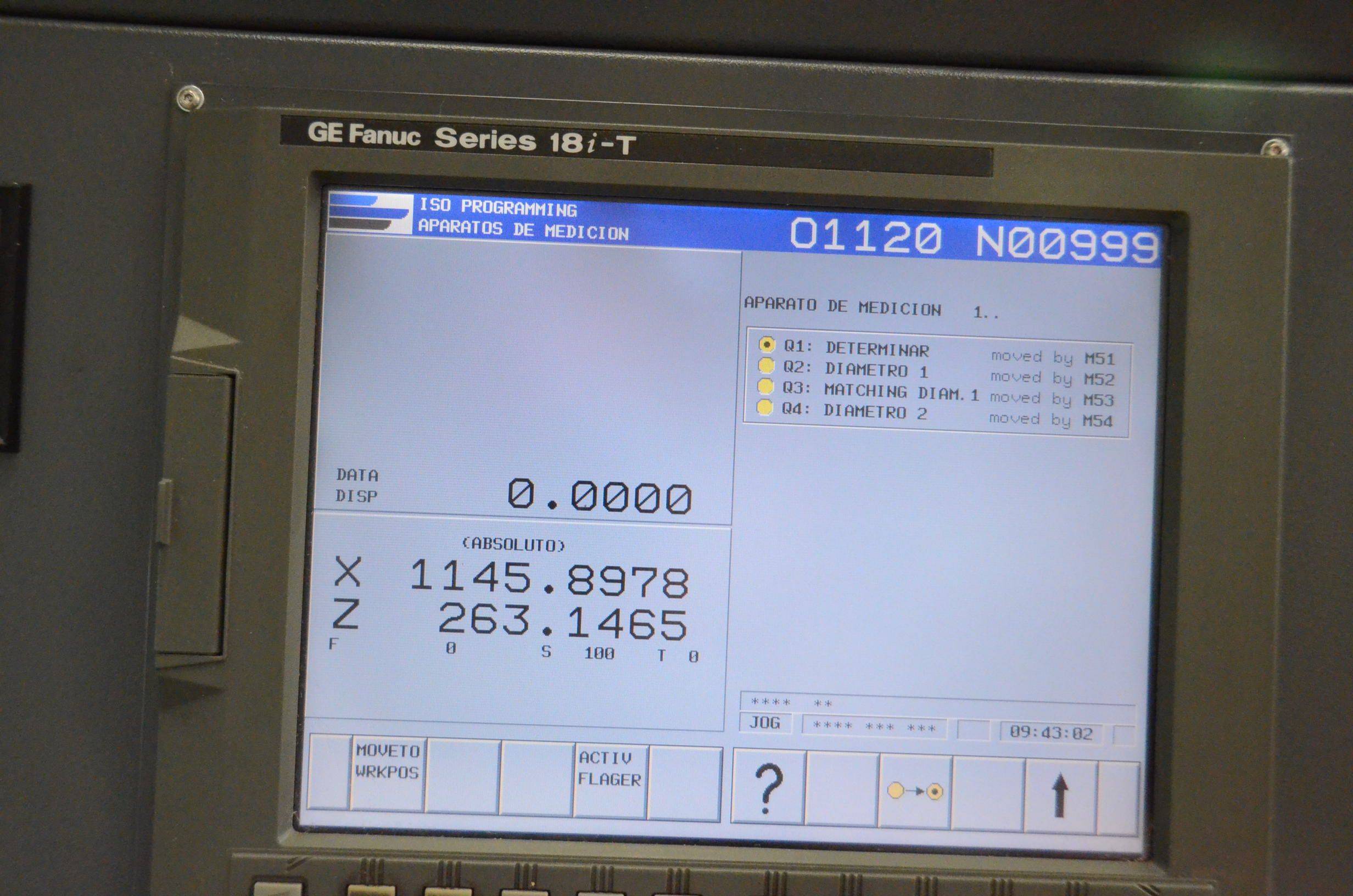

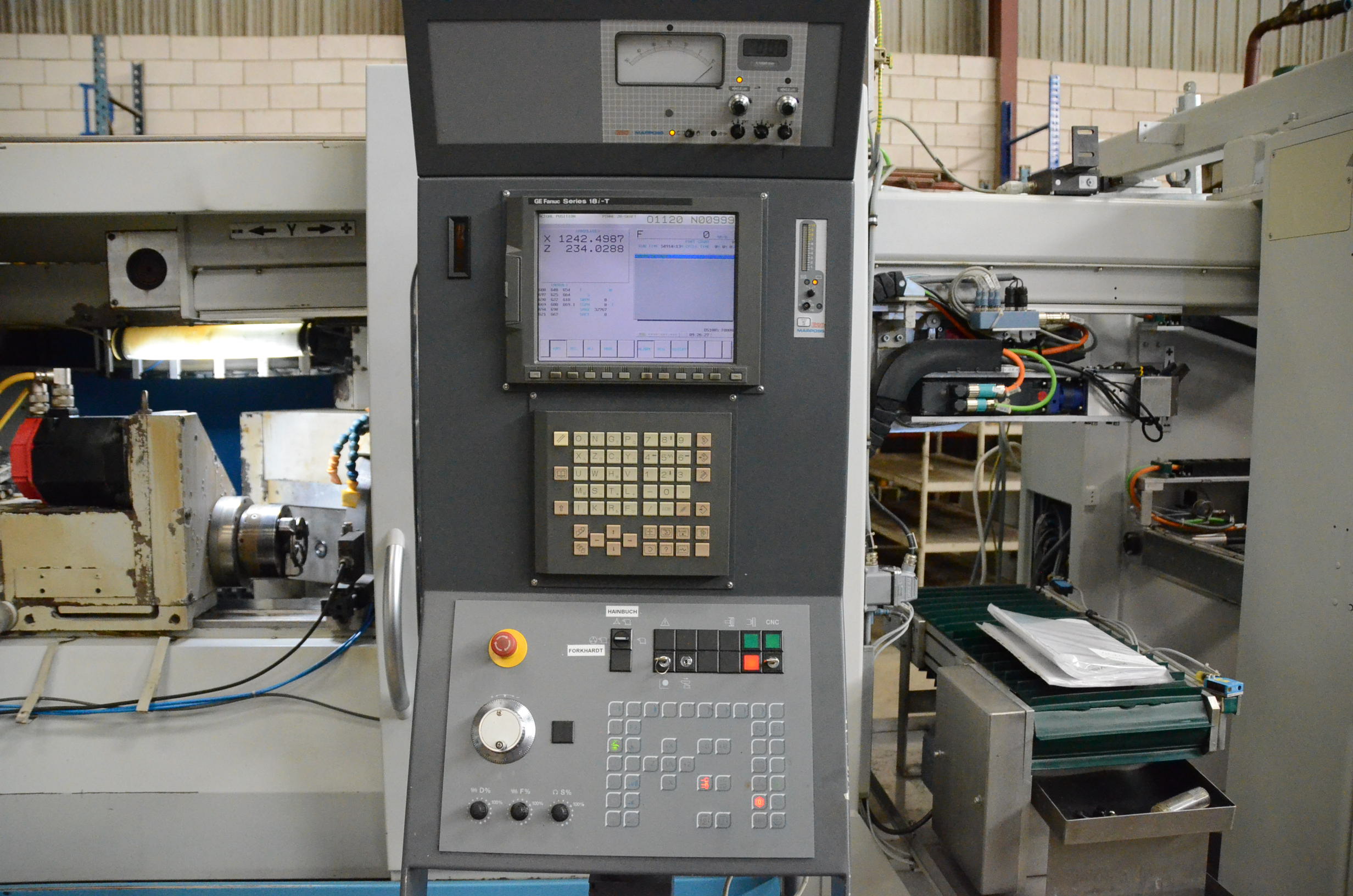

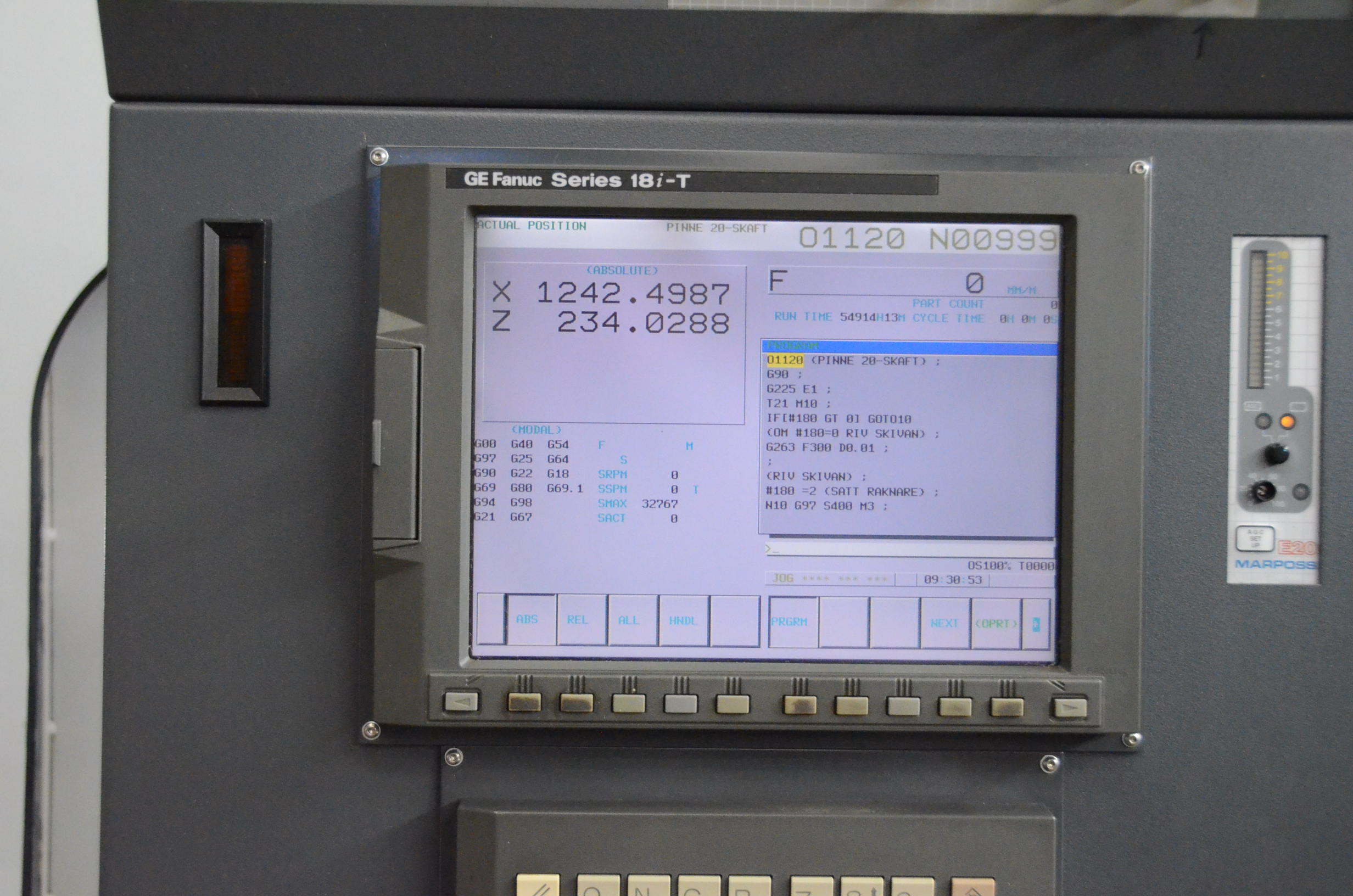

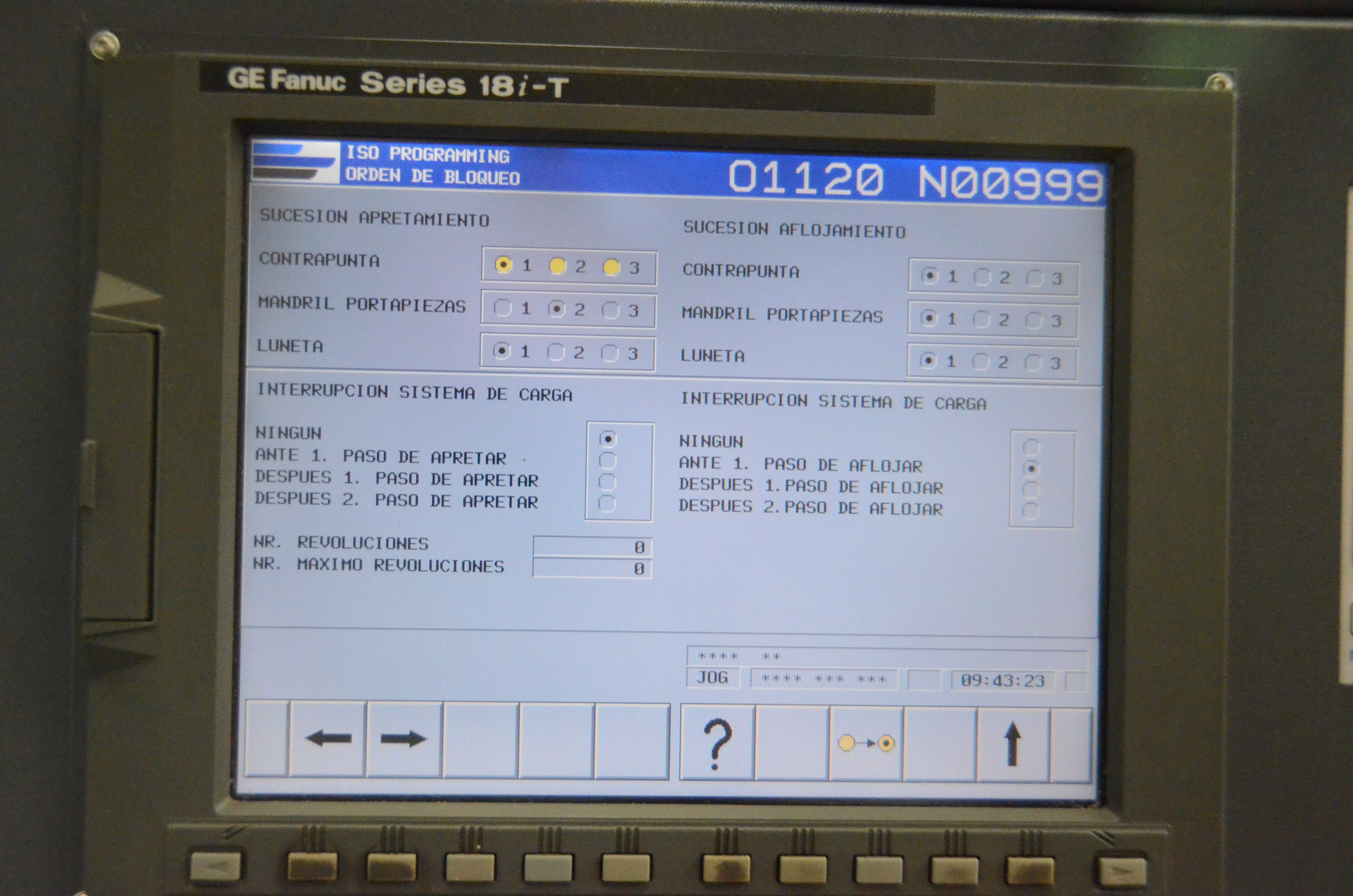

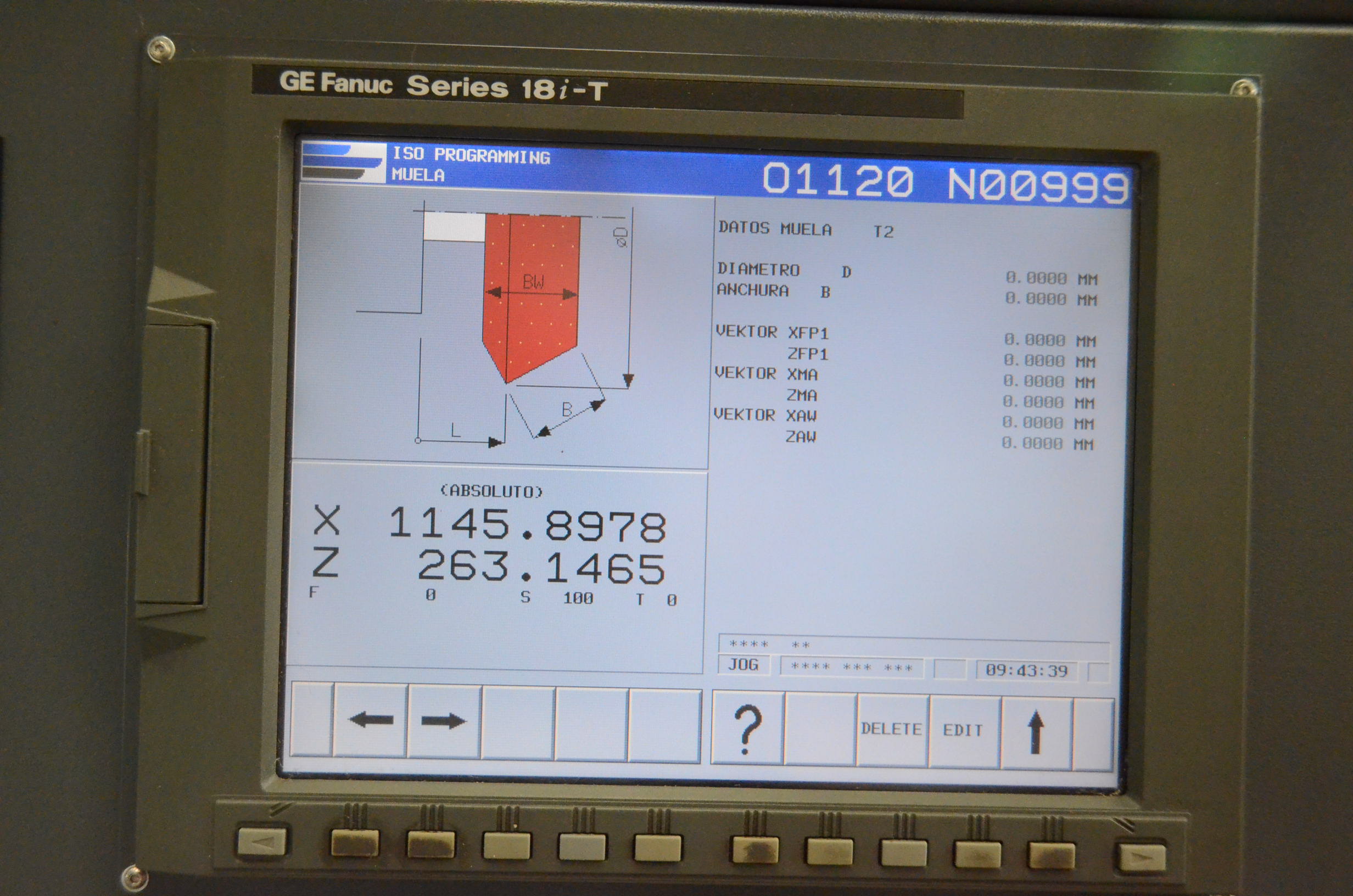

| CNC brand | FANUC |
| cnc brand | FANUC |
| CNC model | 18i-T |
| cnc model | 18i-T |
| Main engine power | 7.5 Kw |
| Ø max. wheel | 400 mm |
| Z and X axis resolution | 0.1 µmm |
| main motor power | 7.5 Kw |
| Workpiece holder head cone | MORSE 5 |
| Ø of the hole in the workpiece holder head | 38 mm |
| Distance between centers | 430 mm |
| Workpiece head cone | MORSE 5 |

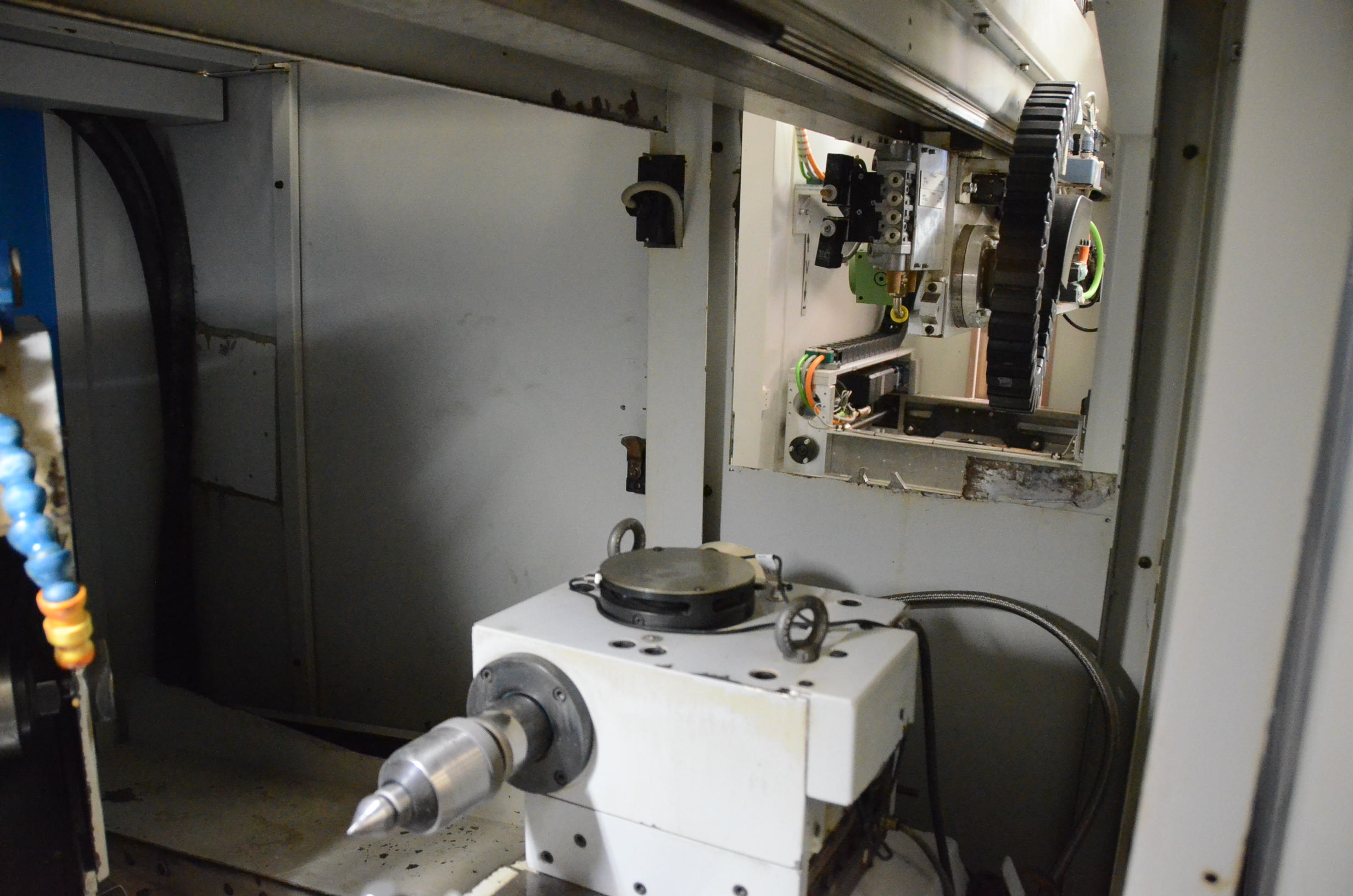

| tailstock cone | MORSE 4 |
| Ø of the workpiece head hole | 38 mm |
| Rotation speed of the workhead | 8 to 800 rpm |

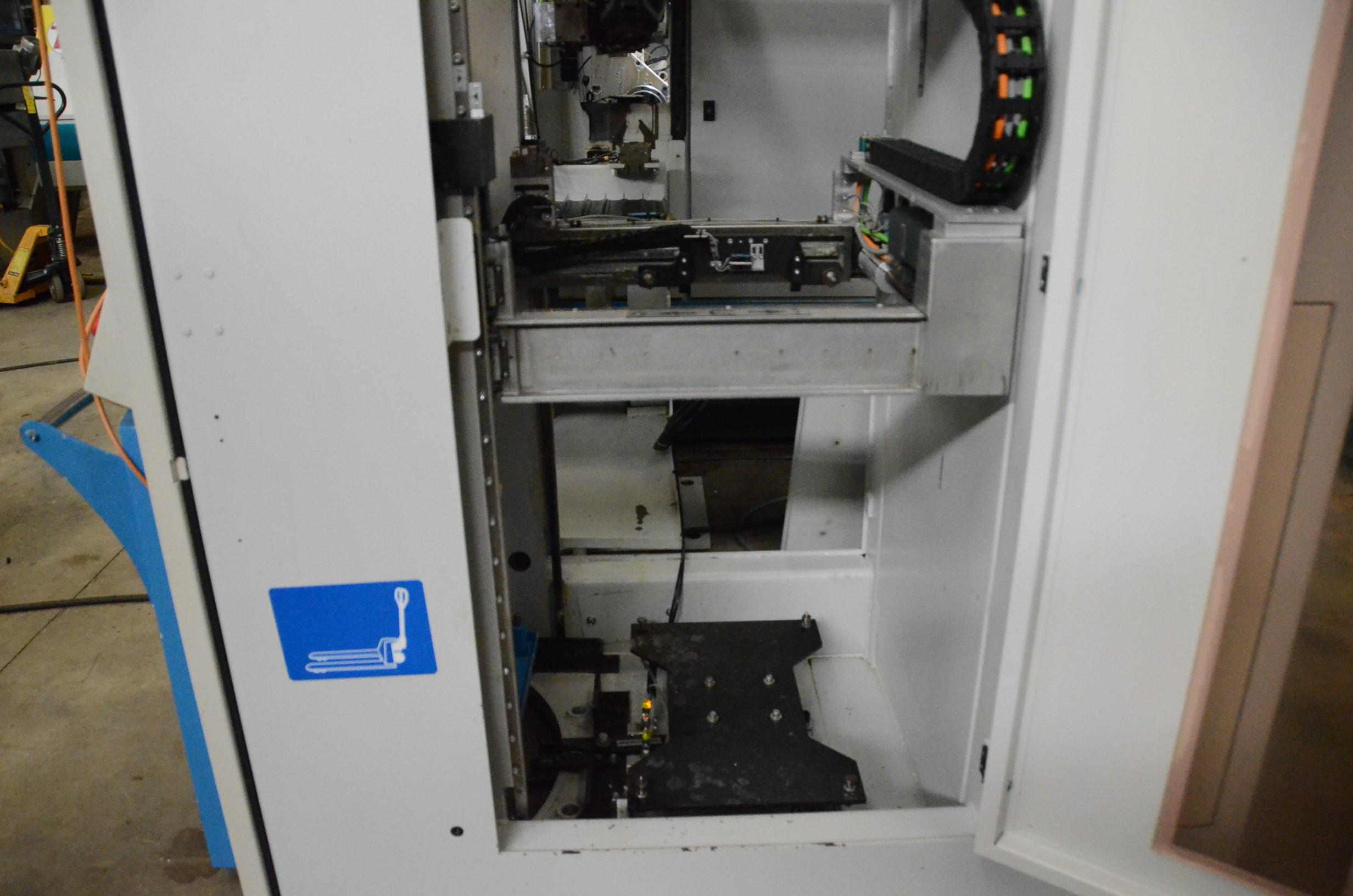

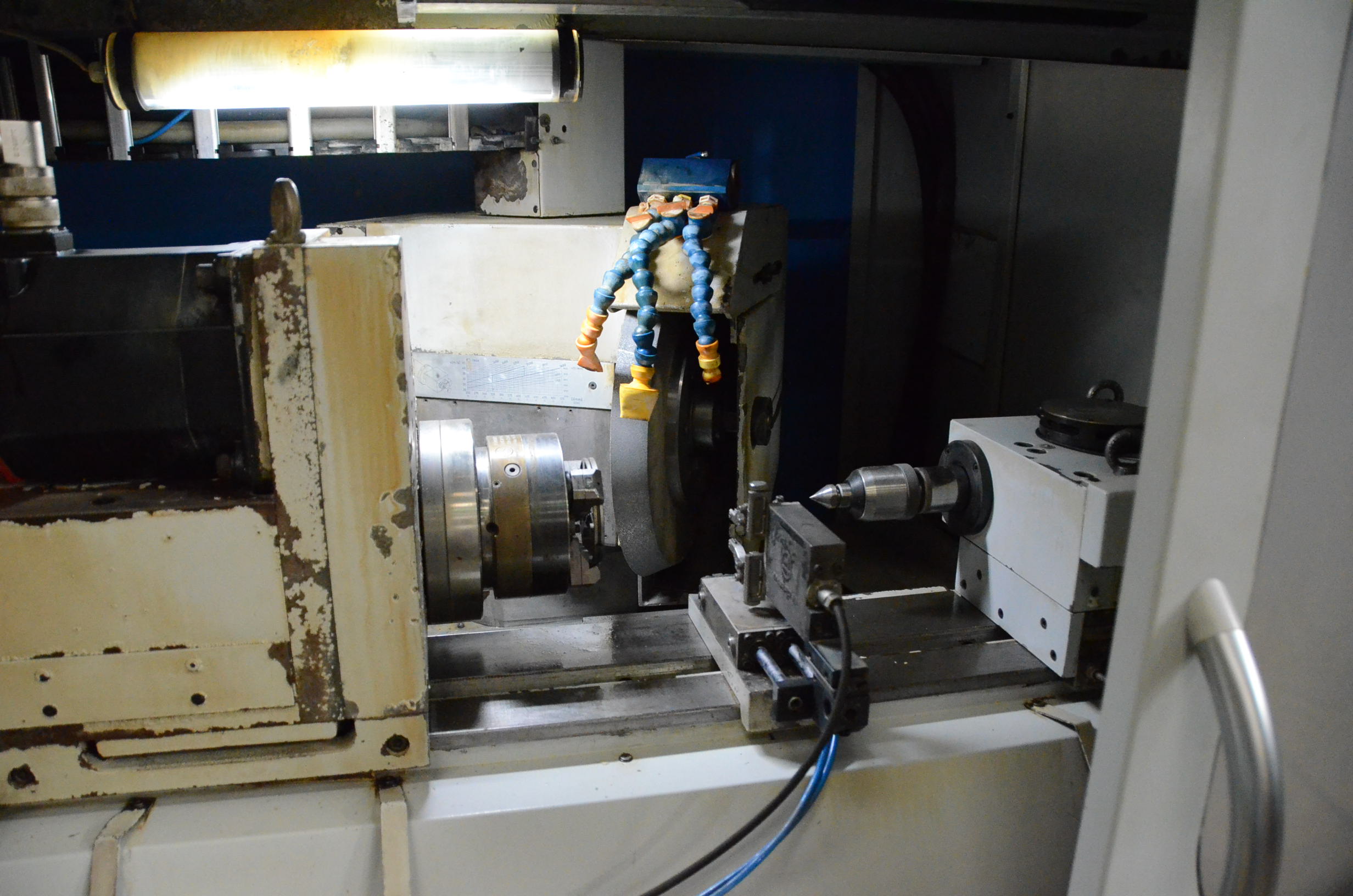

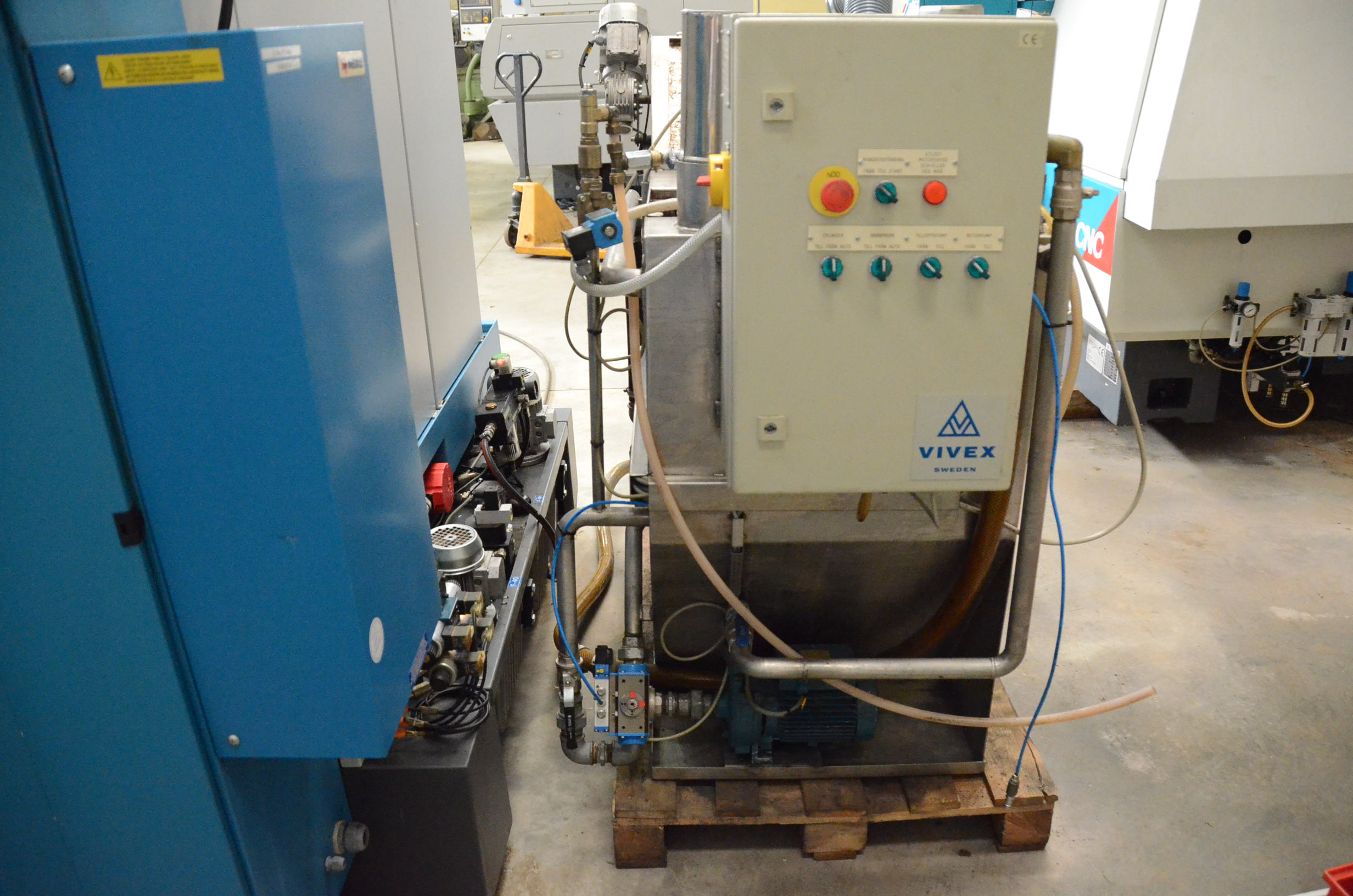

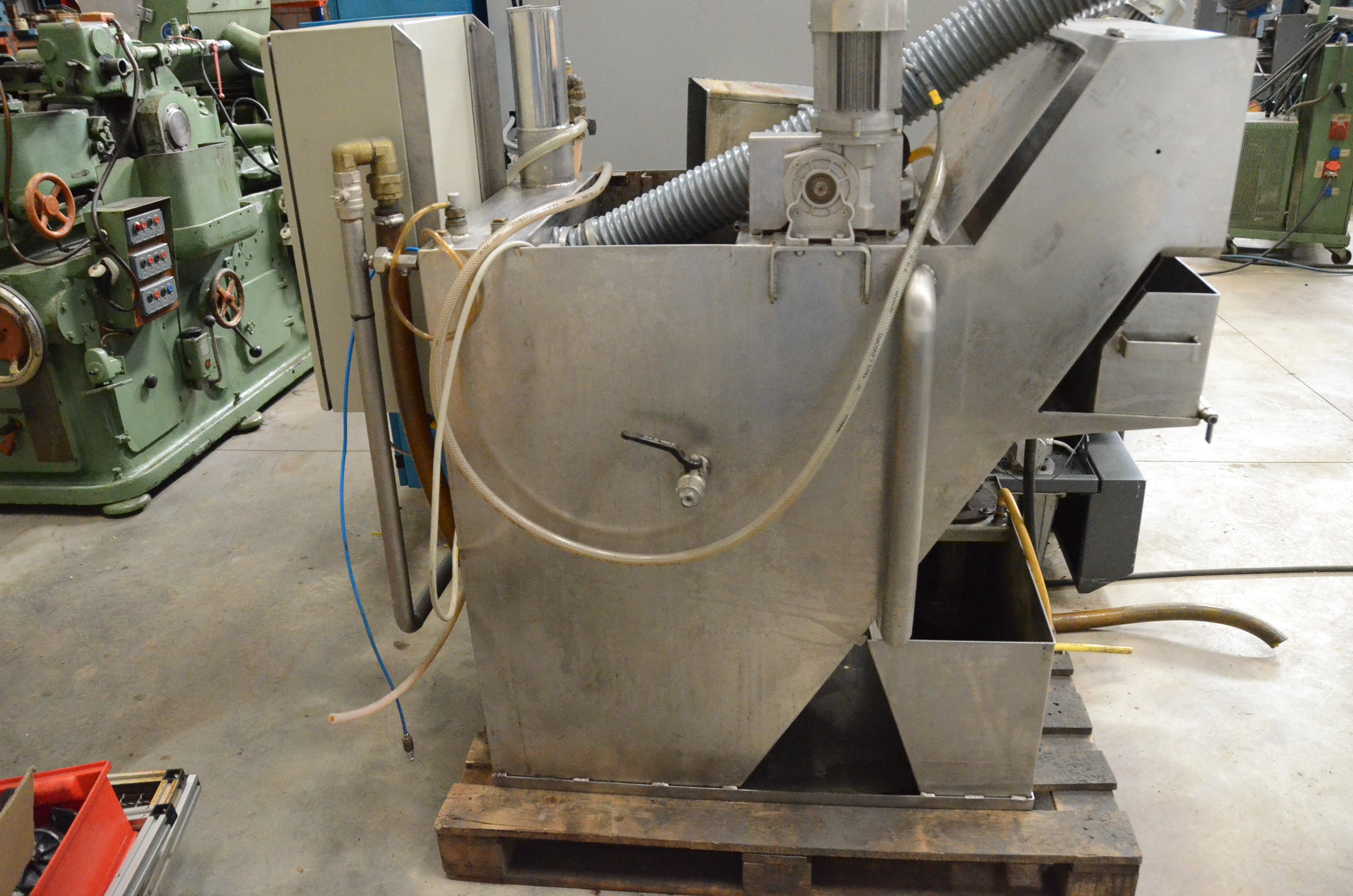

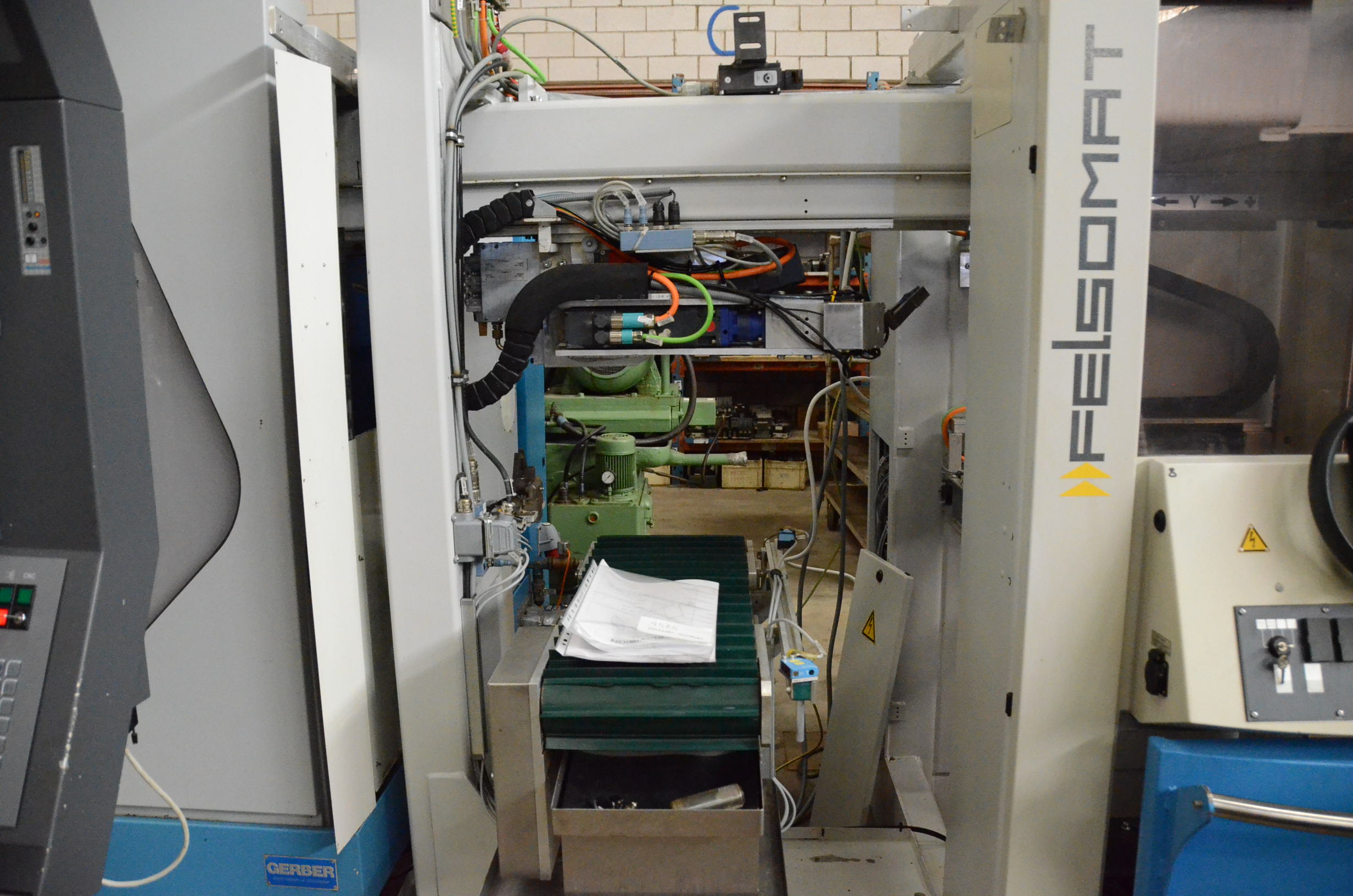

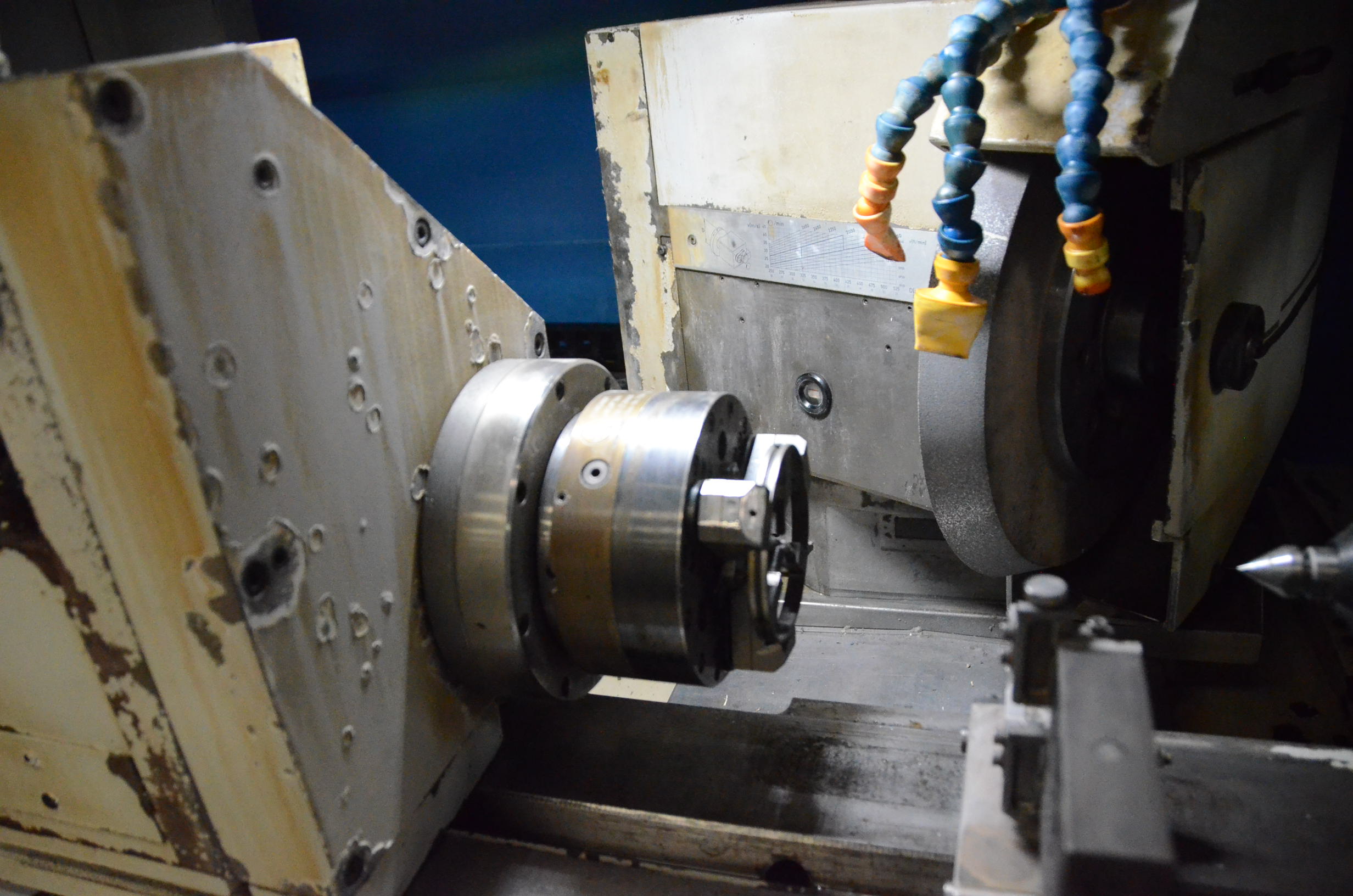

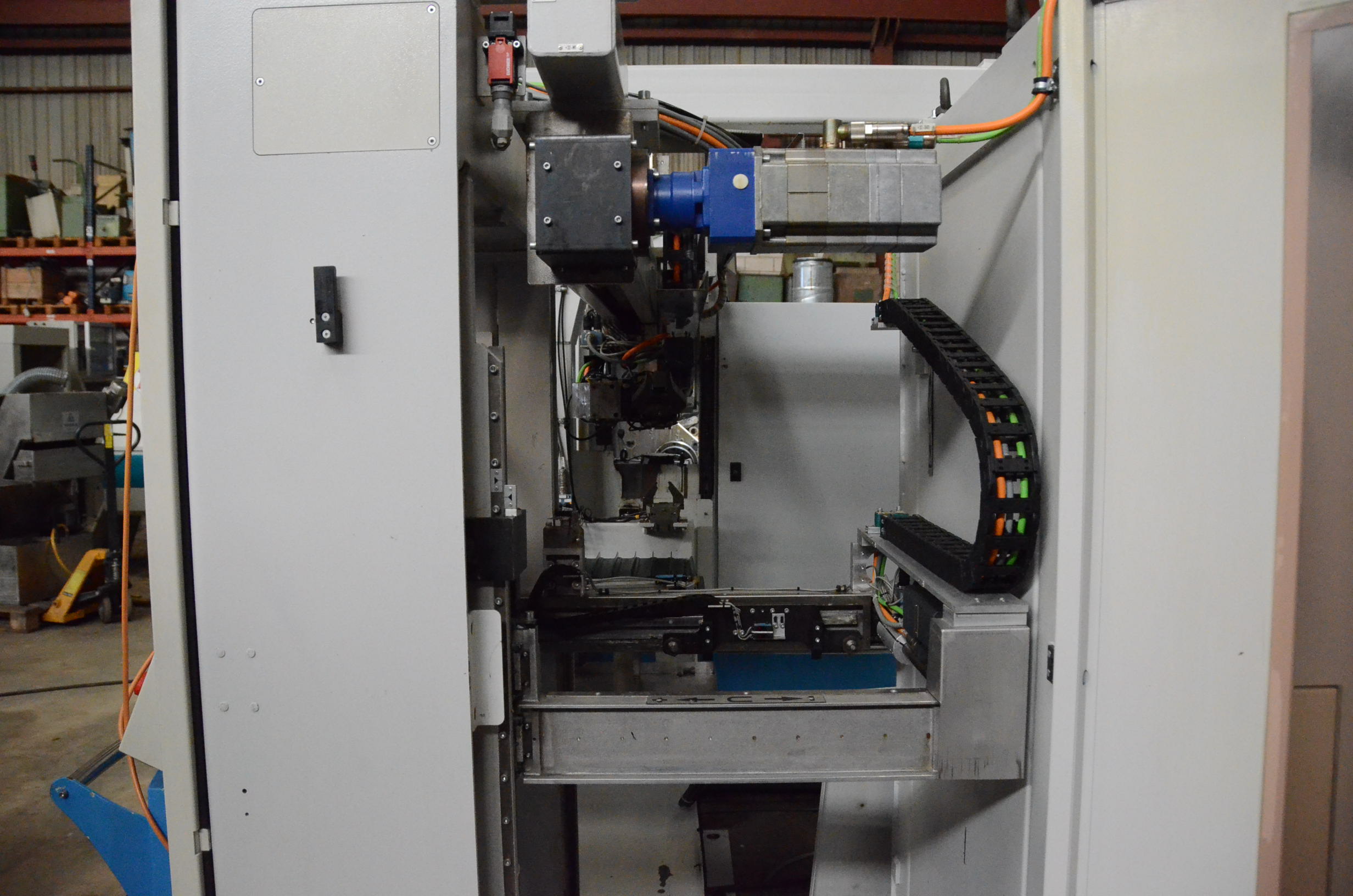

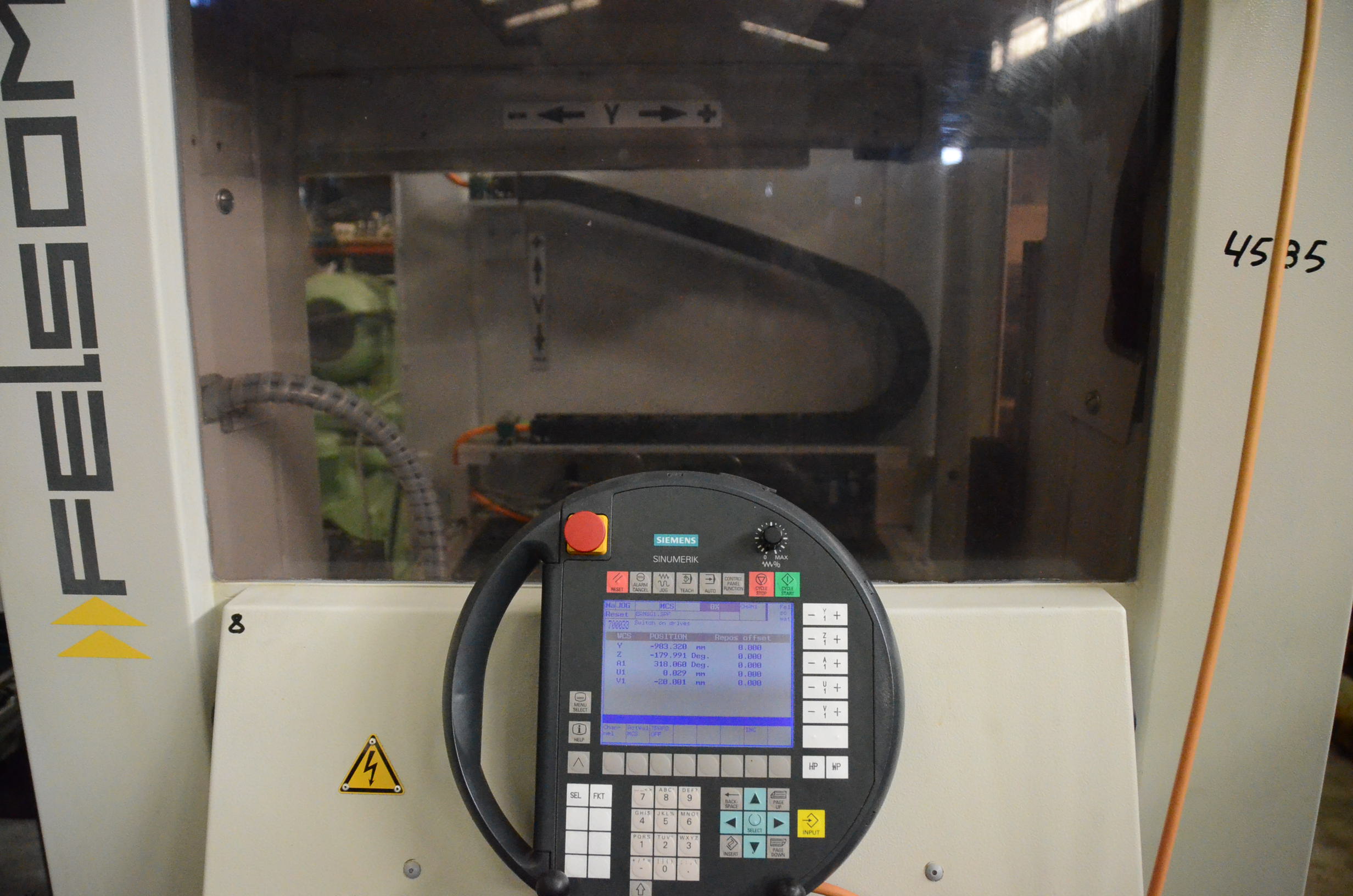

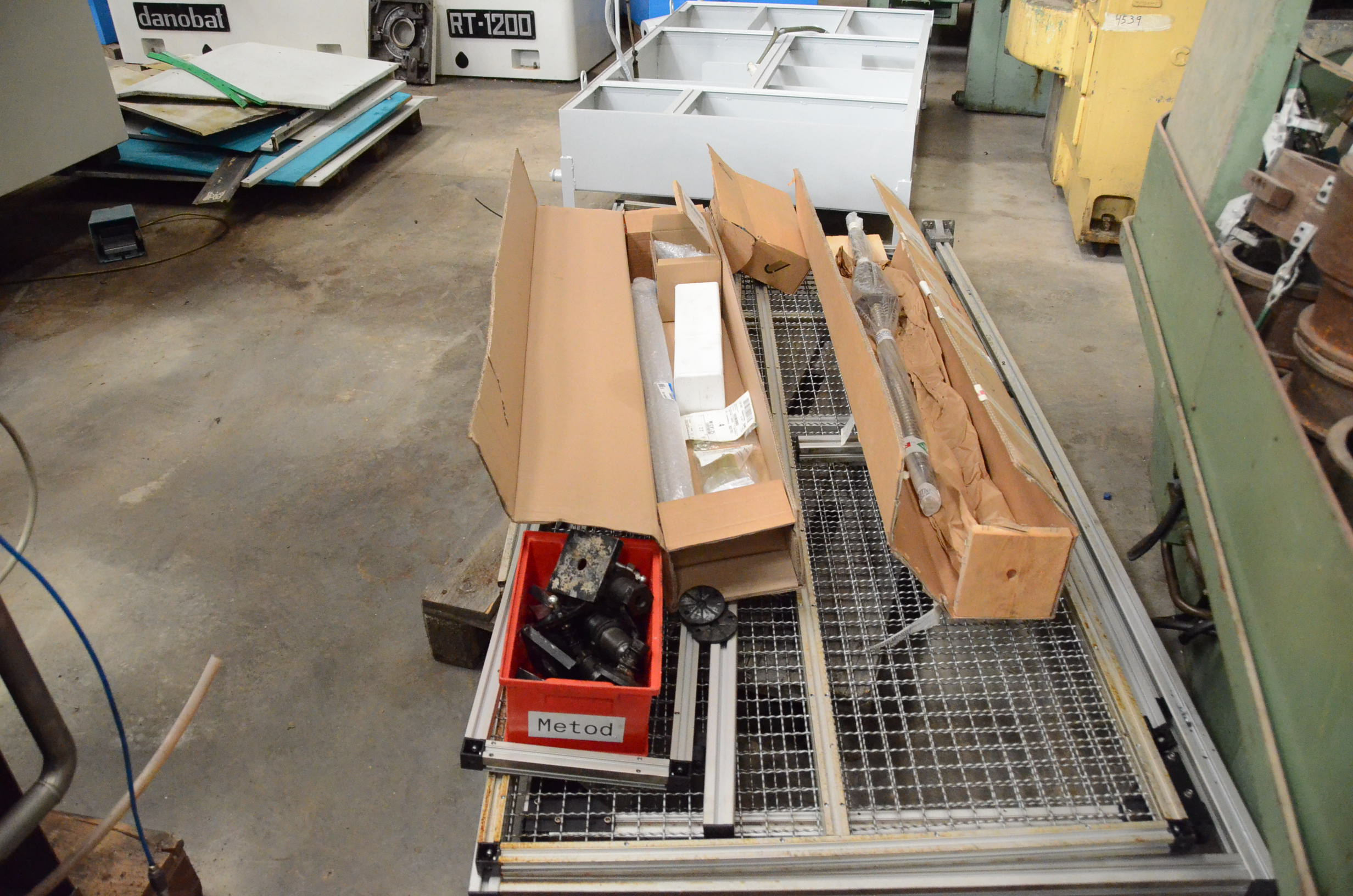

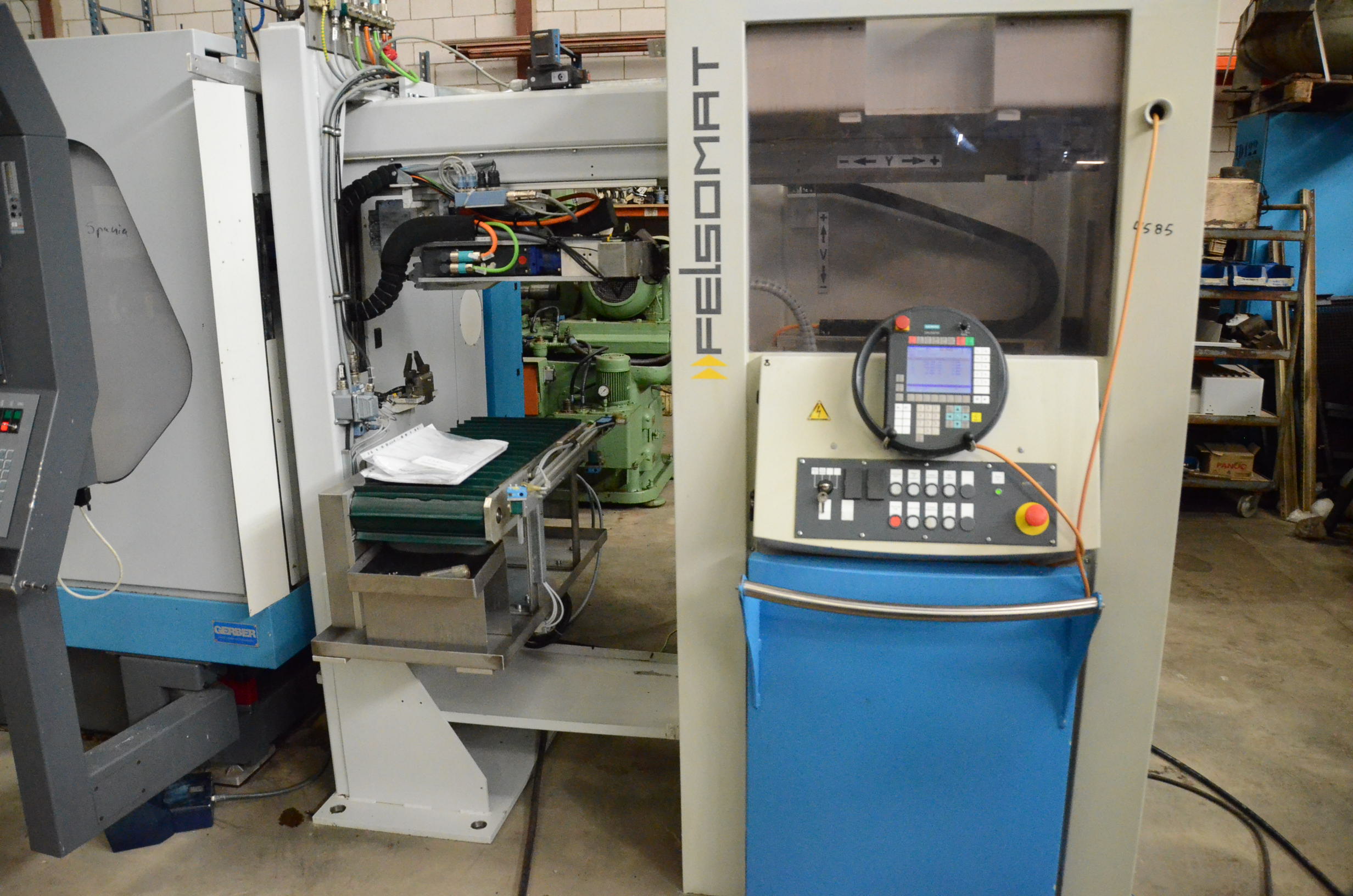

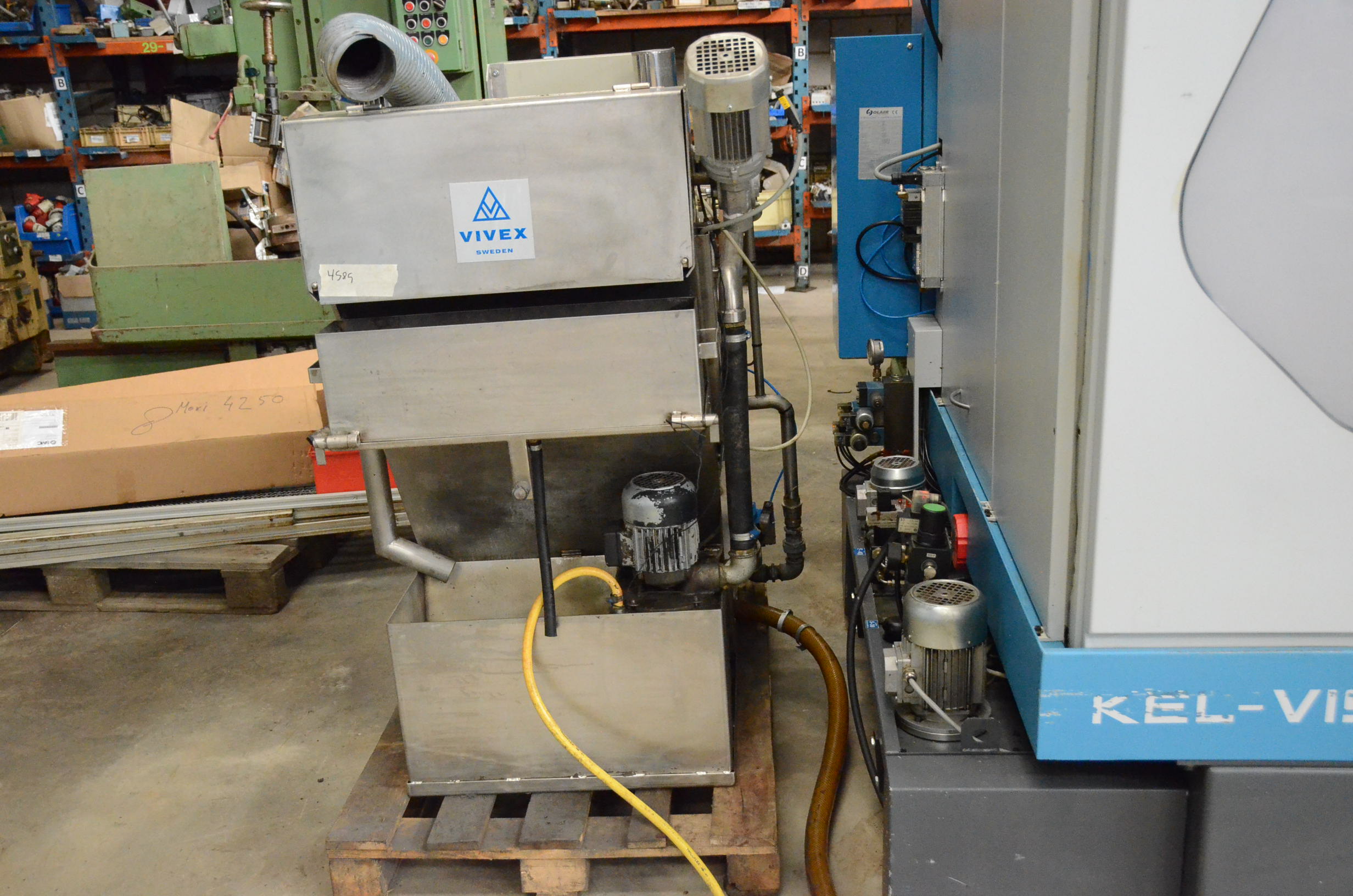

| Accessories | FELSOMAT gantry loader with SIEMENS CNC; Coolant system with paper filter; Forkardt automatic chuck; Automatic tailstock; Cooled grinding wheel spindle; Spare ball screw; Automatic grinding wheel balancer and MARPOSS measuring device |
| Dimensions (length x width) | 2500x2000 mm |
| Weight | 4700 Kg |
