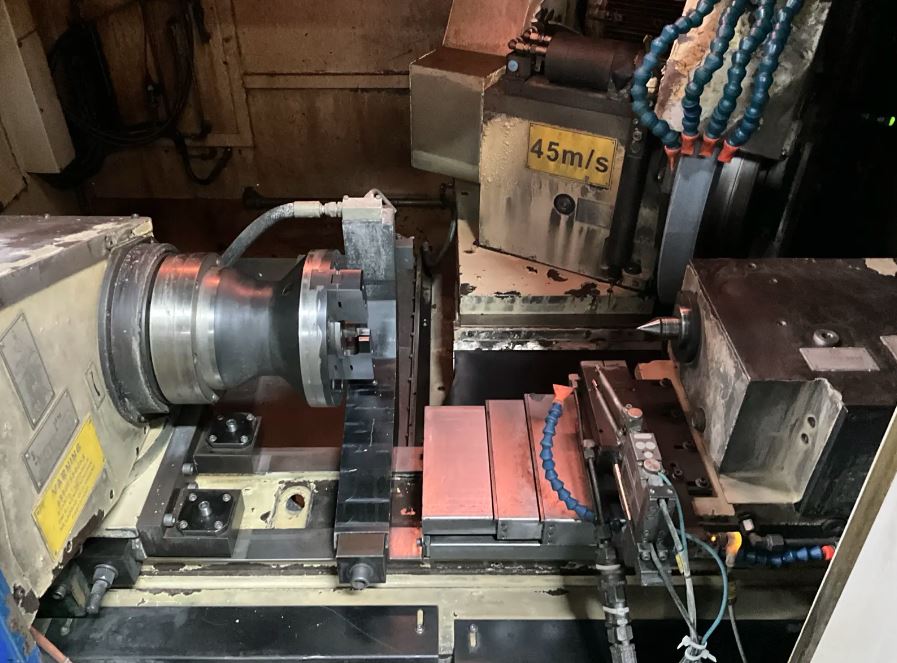

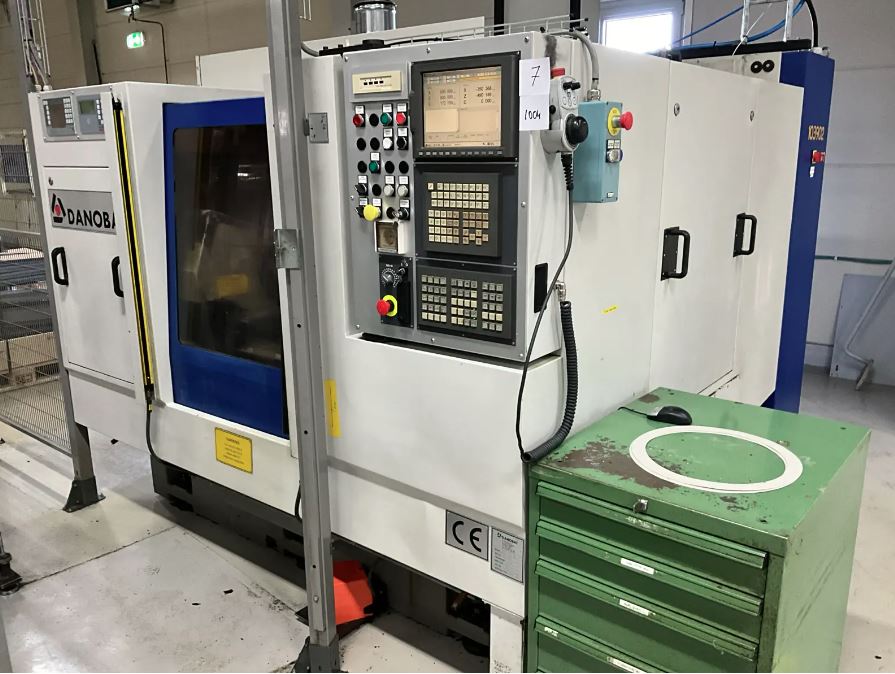

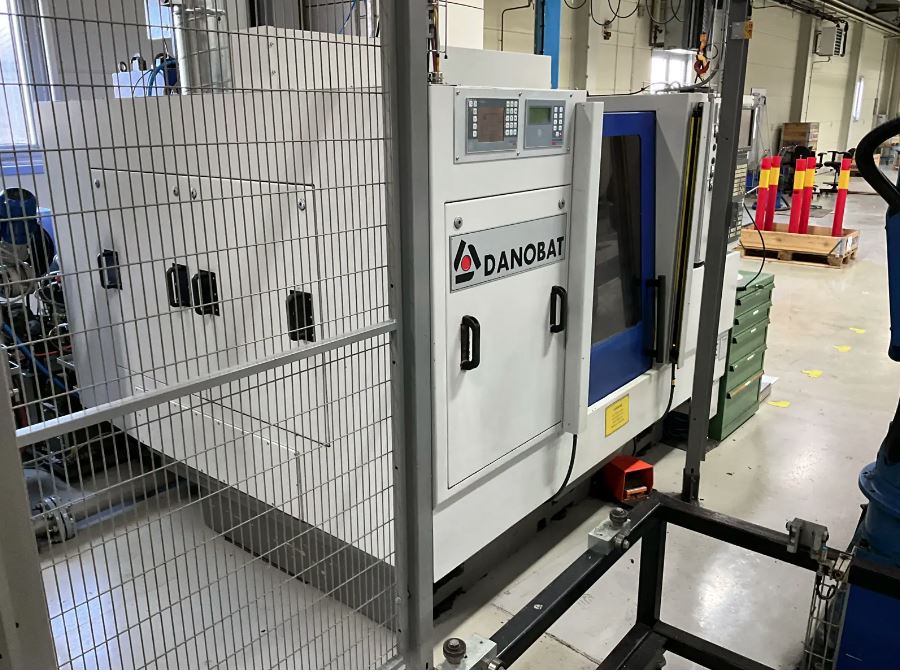

Cylindrical Grinding Machine DANOBAT CG 51 600 CNC #4584

Cylindrical Grinding Machine DANOBAT CG 51 600 CNC #4584

Location:Badajoz, Spain

Specifications

ManufacturerDANOBAT
ModelCG 51 600 CNC
ConditionUsed
Stock Number4584
Working wheel dimensions (od x id x width)Ø610x80xØ304.8 mm

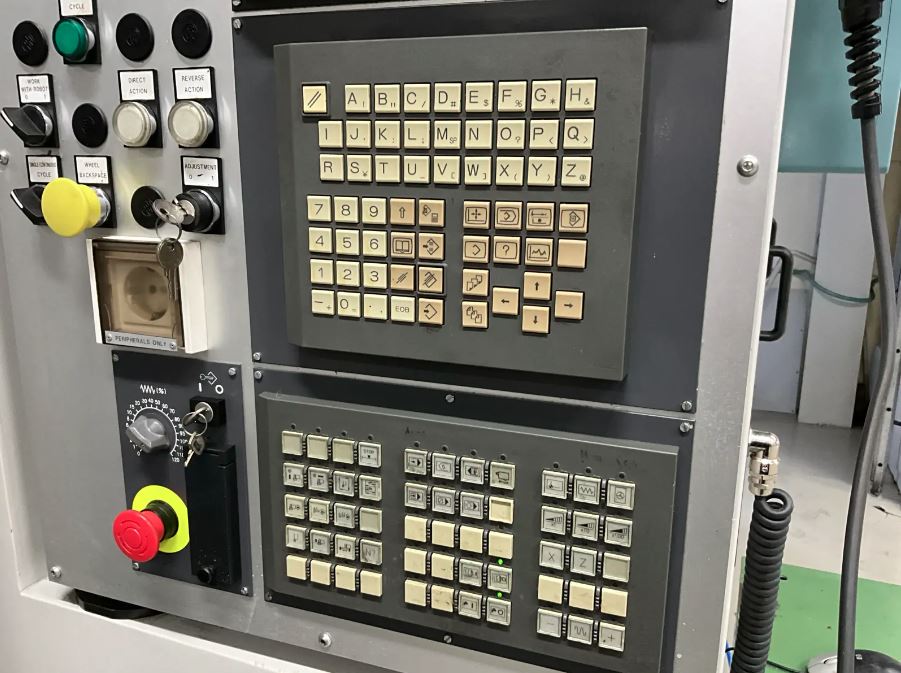

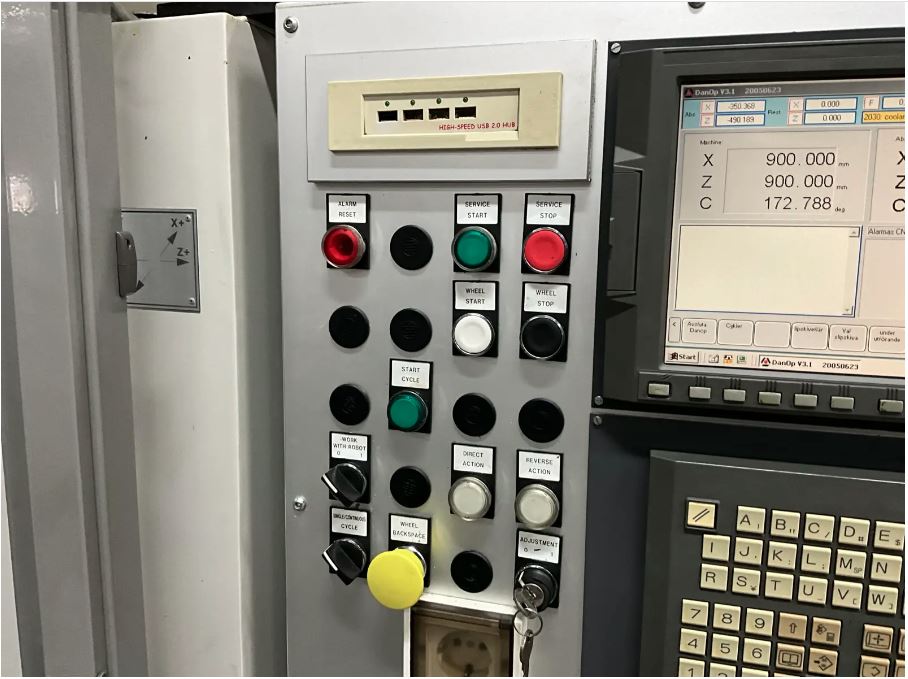

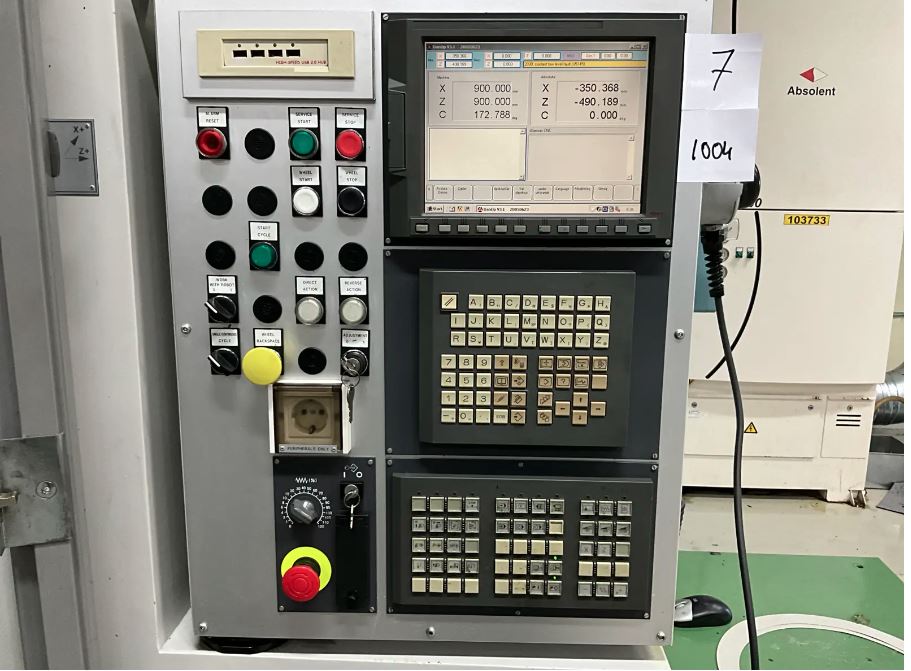

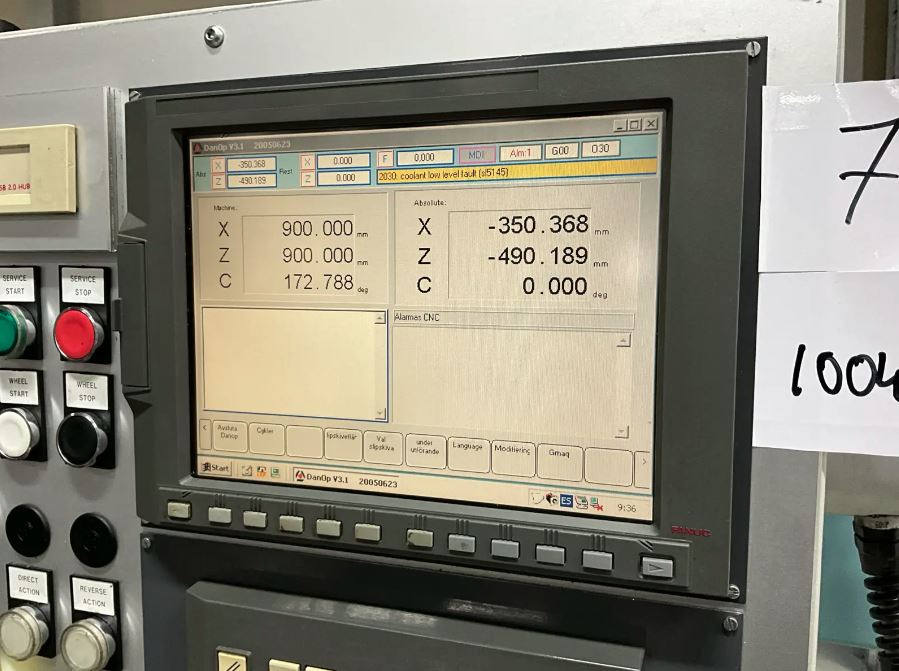

cnc brandFANUC
CNC brandFANUC
CNC model21 Oi TB
Maximum length between points1060 mm
Max travel Z axis750 mm
Maximum length to be rectified600 mm
Height of points225 mm
Ø min/max to be rectified10 - 300 mm
Max. piece weight125 Kg
Max travel X axis325 mm

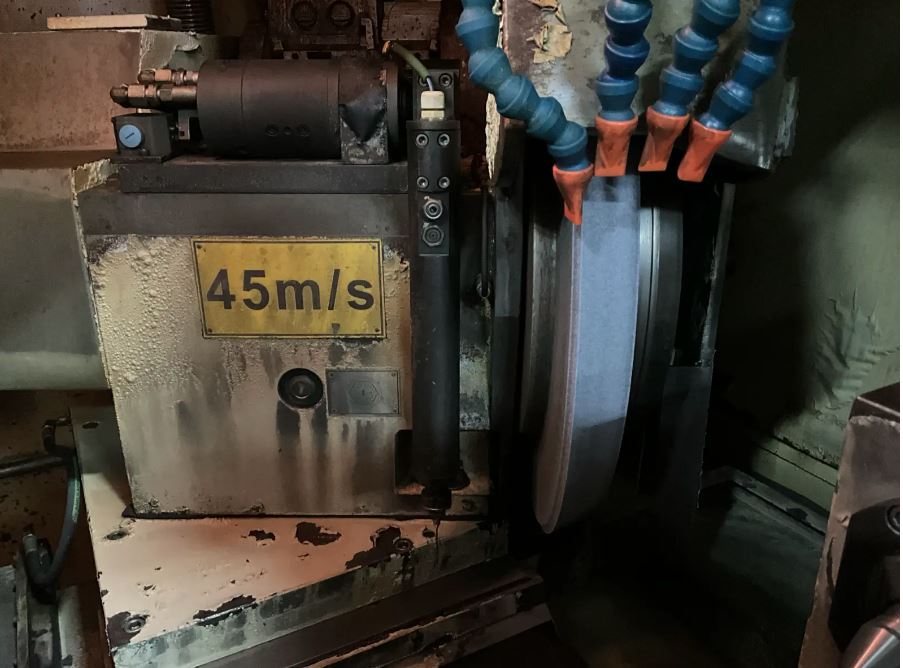

Grinding wheel speed45 m/s
Main engine power11 Kw
Workpiece head speedfrom 30 to 1000 rpm

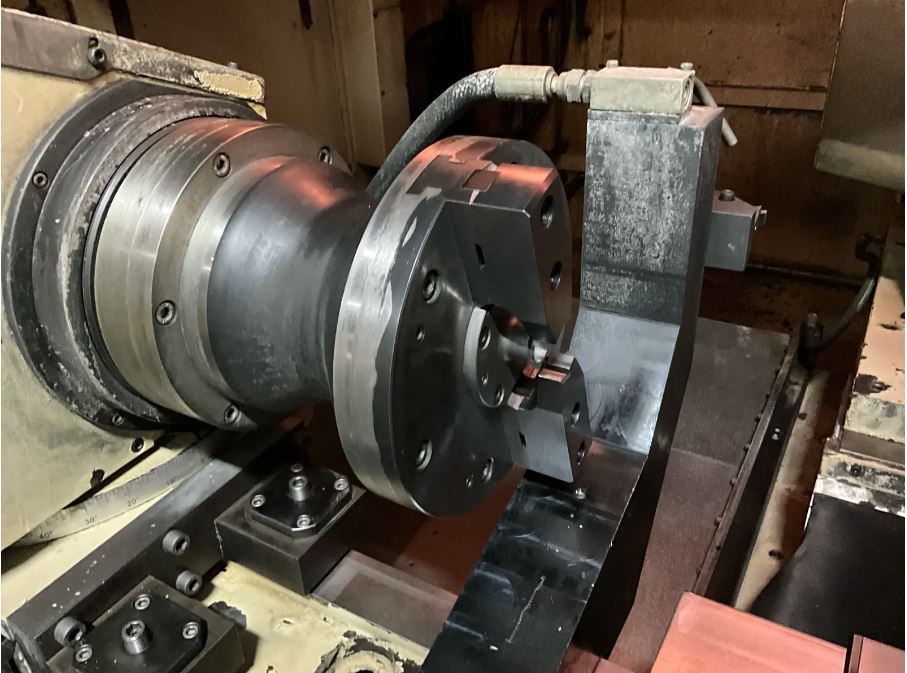

Workpiece holder head coneMORSE 5
Power of workpiece head motor12 Nm

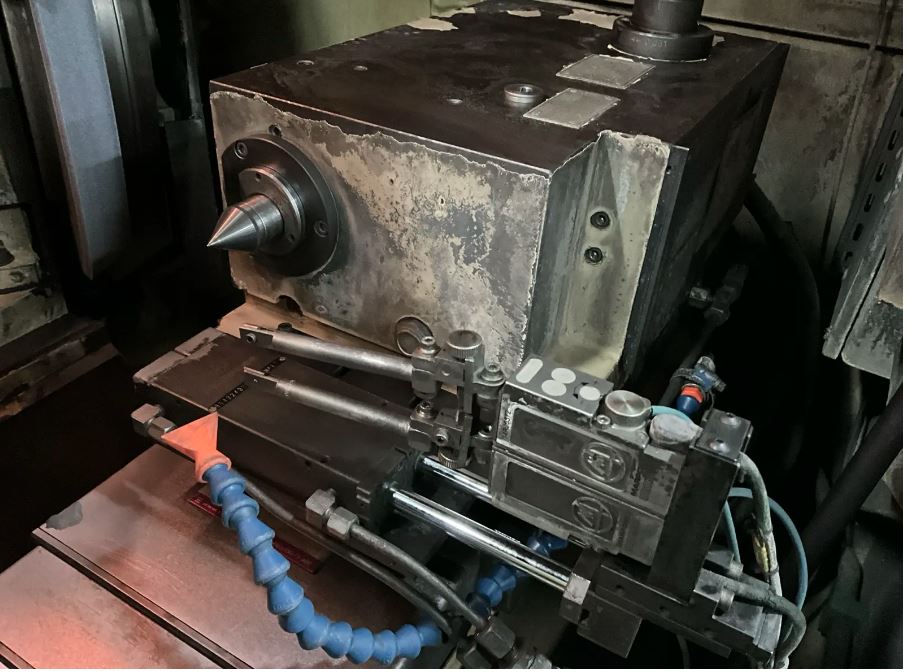

tailstock coneMORSE 4
Travel of the tailstock quill70 mm
Hydraulic movement of the tailstock150 mm
Total power22 Kw
Long2300 mm
Tall1900 mm
Width2634 mm
Weight7750 Kg

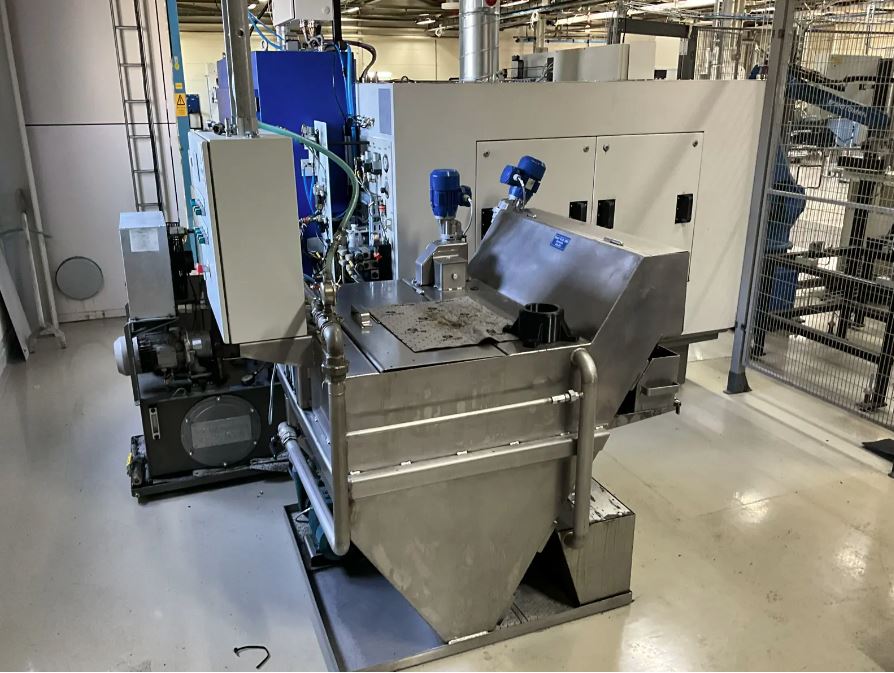

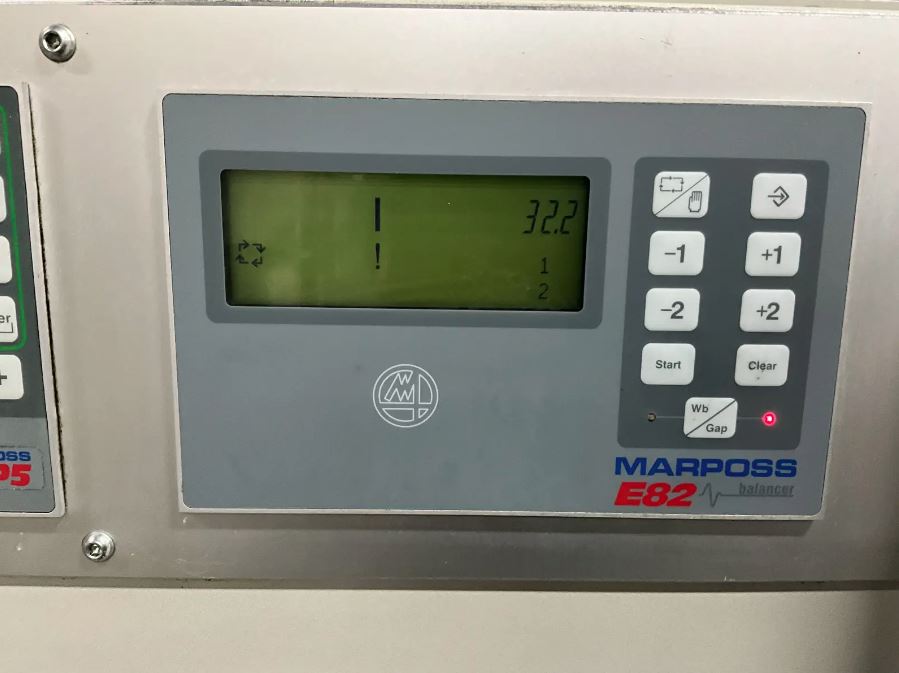

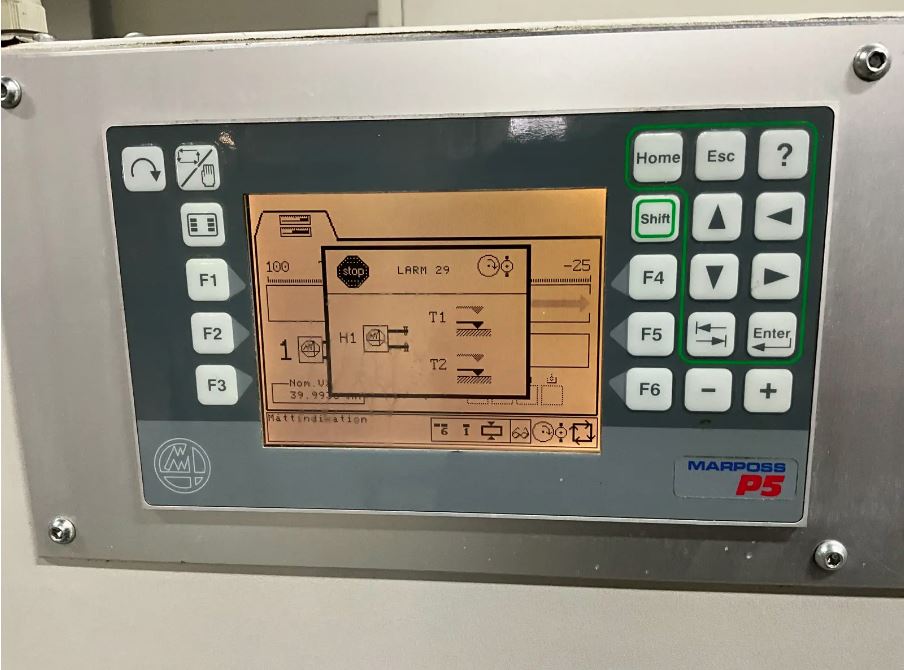

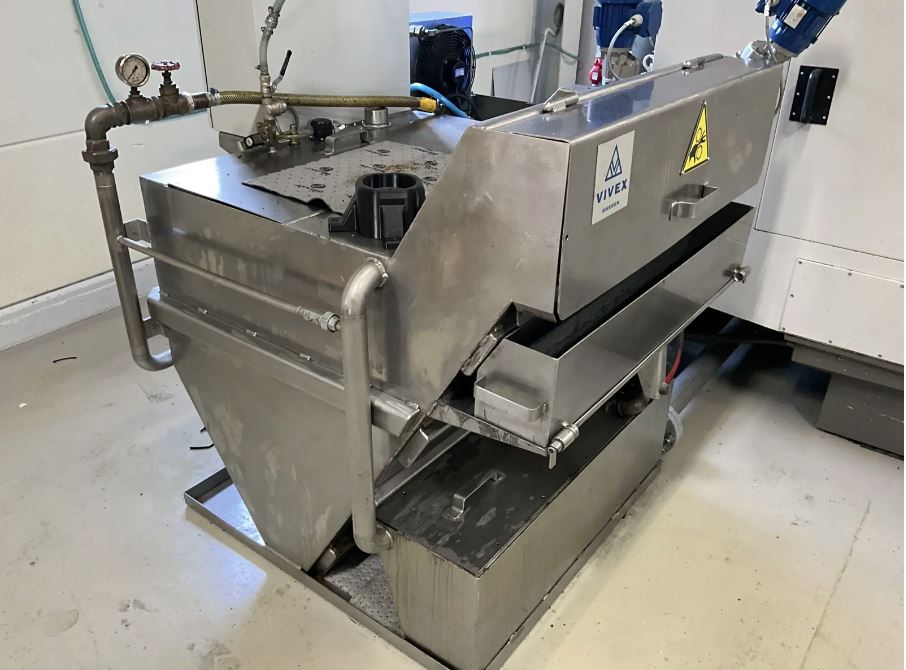

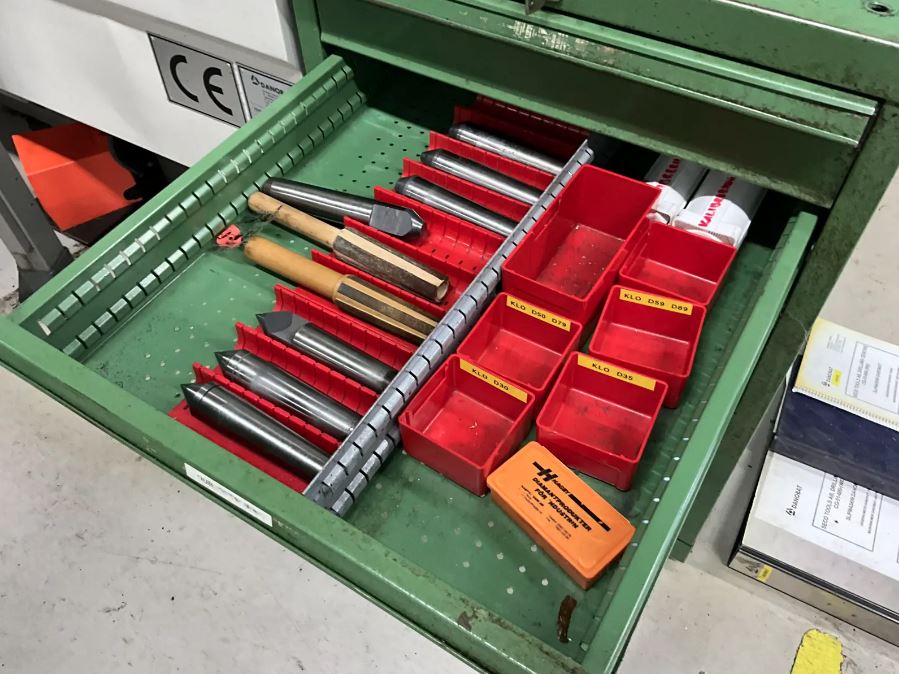

AccessoriesCooling equipment with paper filter; MARPOSS meter, positioner and balancer;
