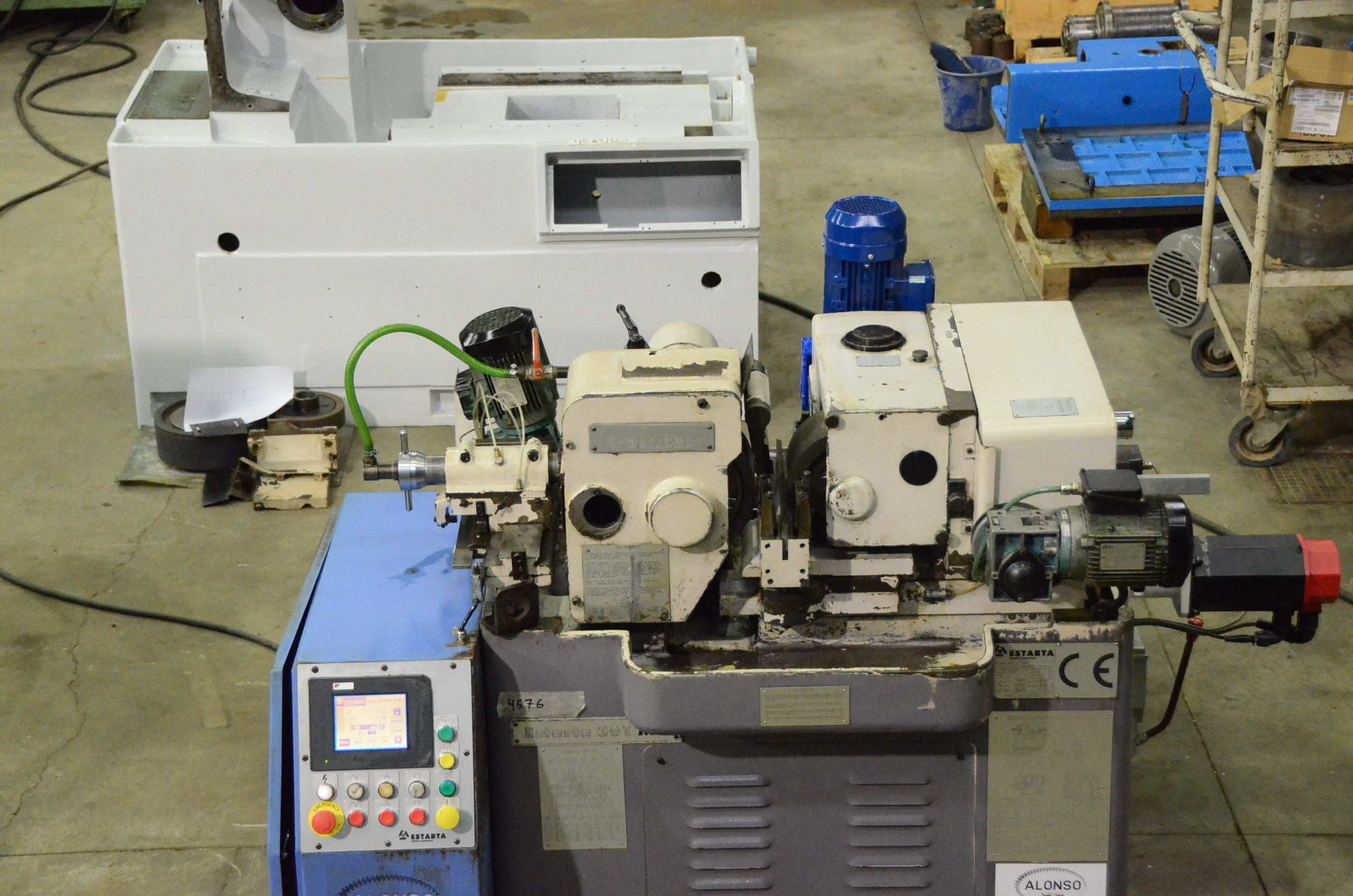

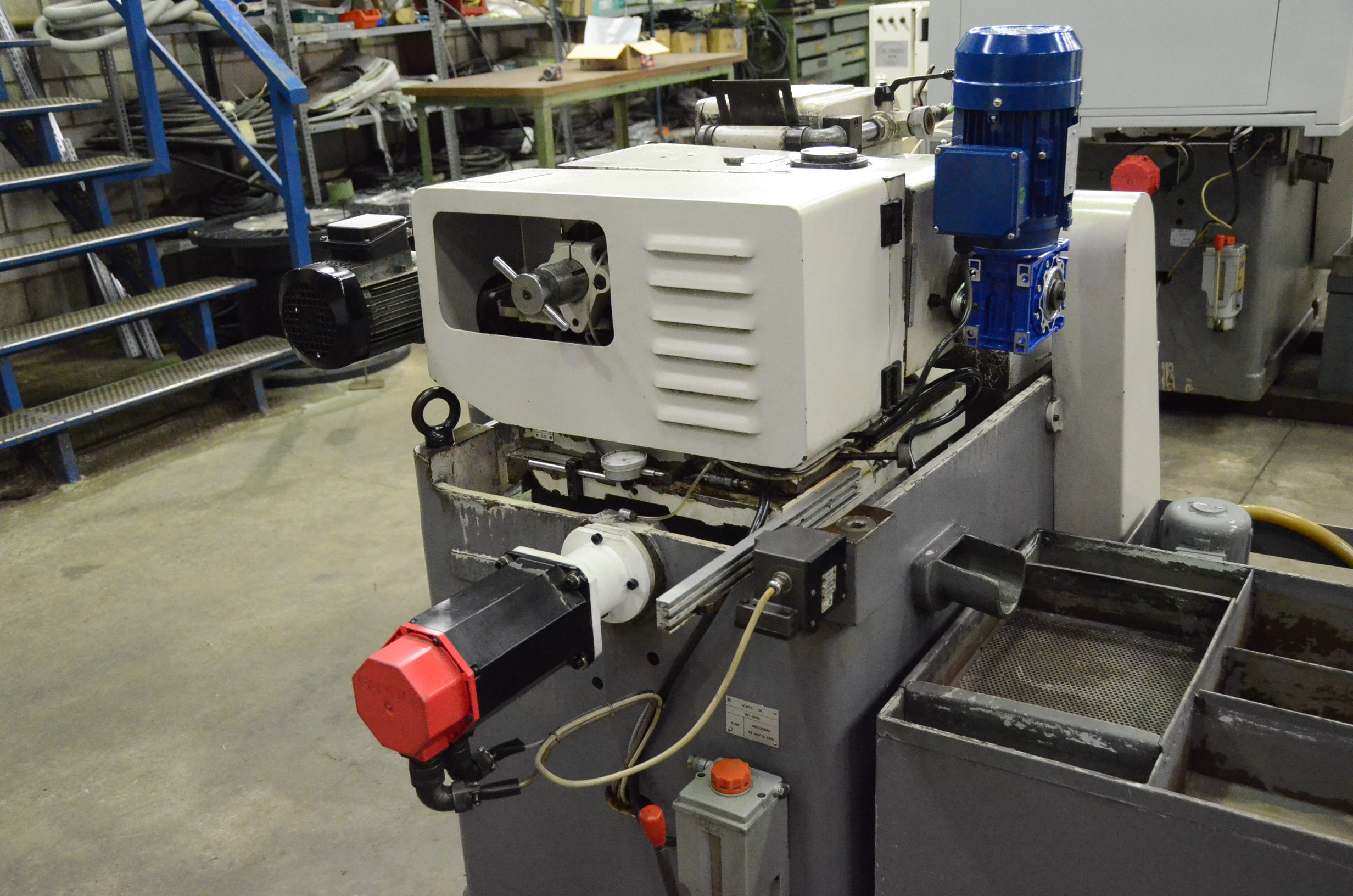

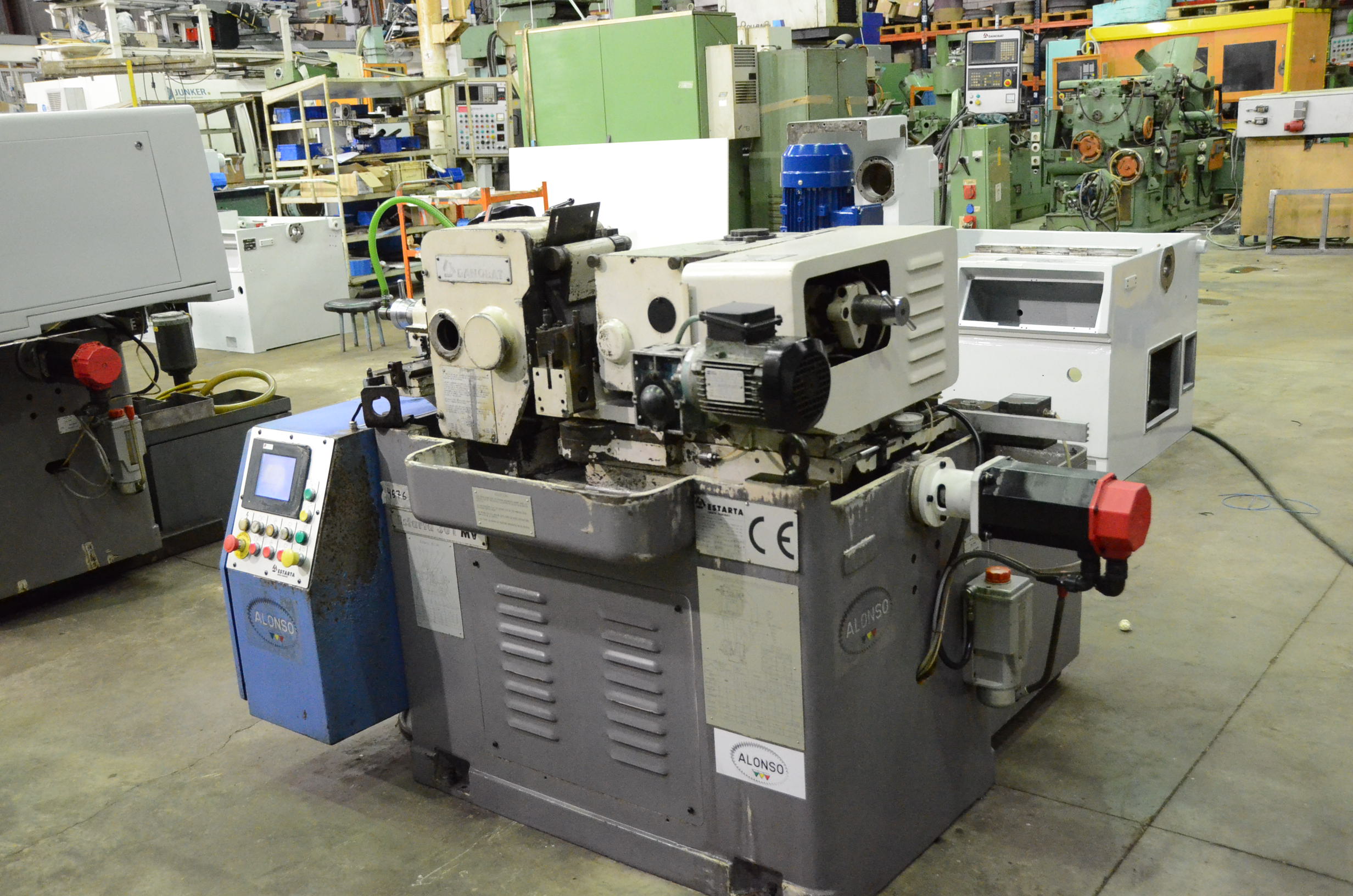

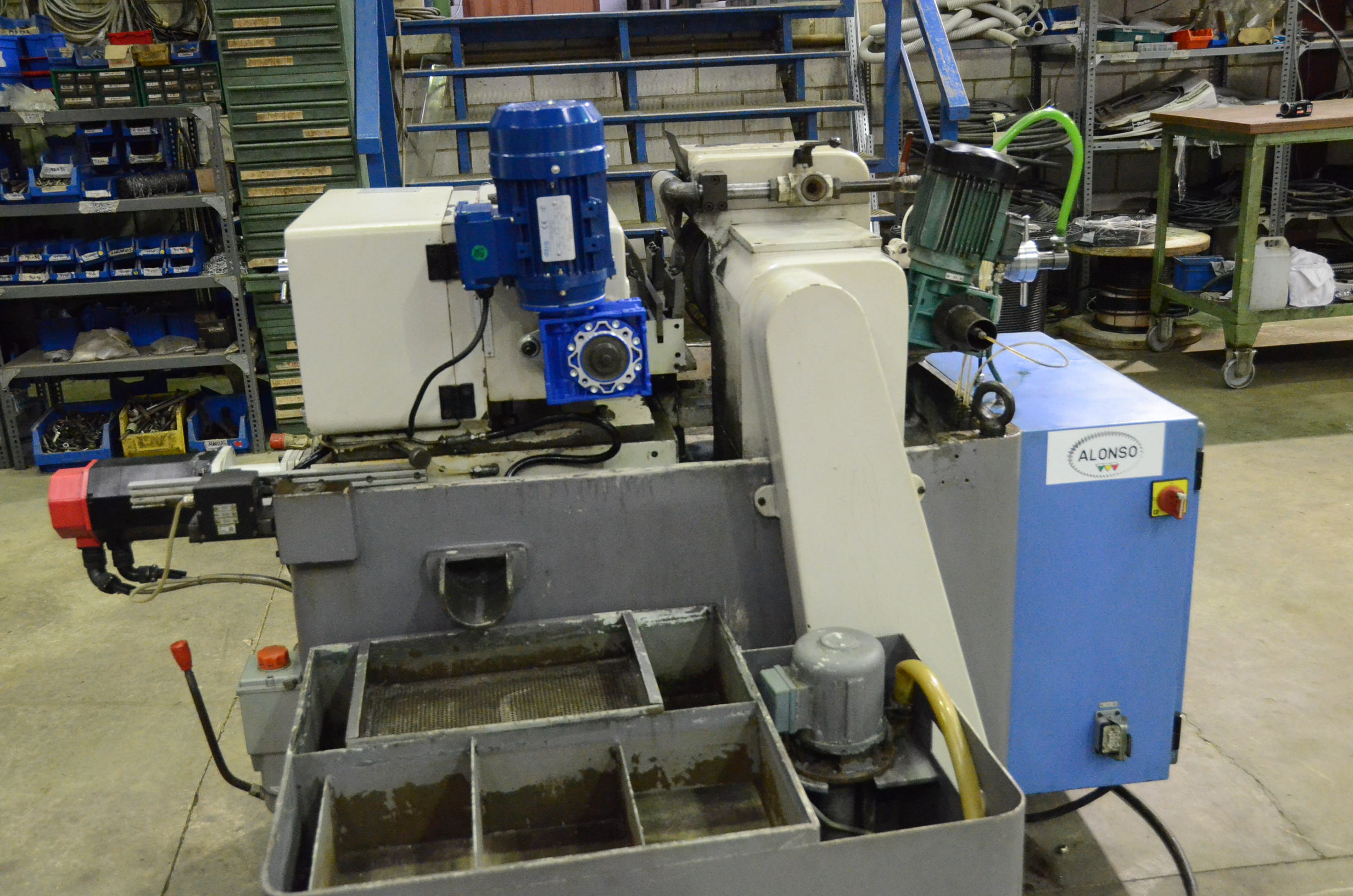

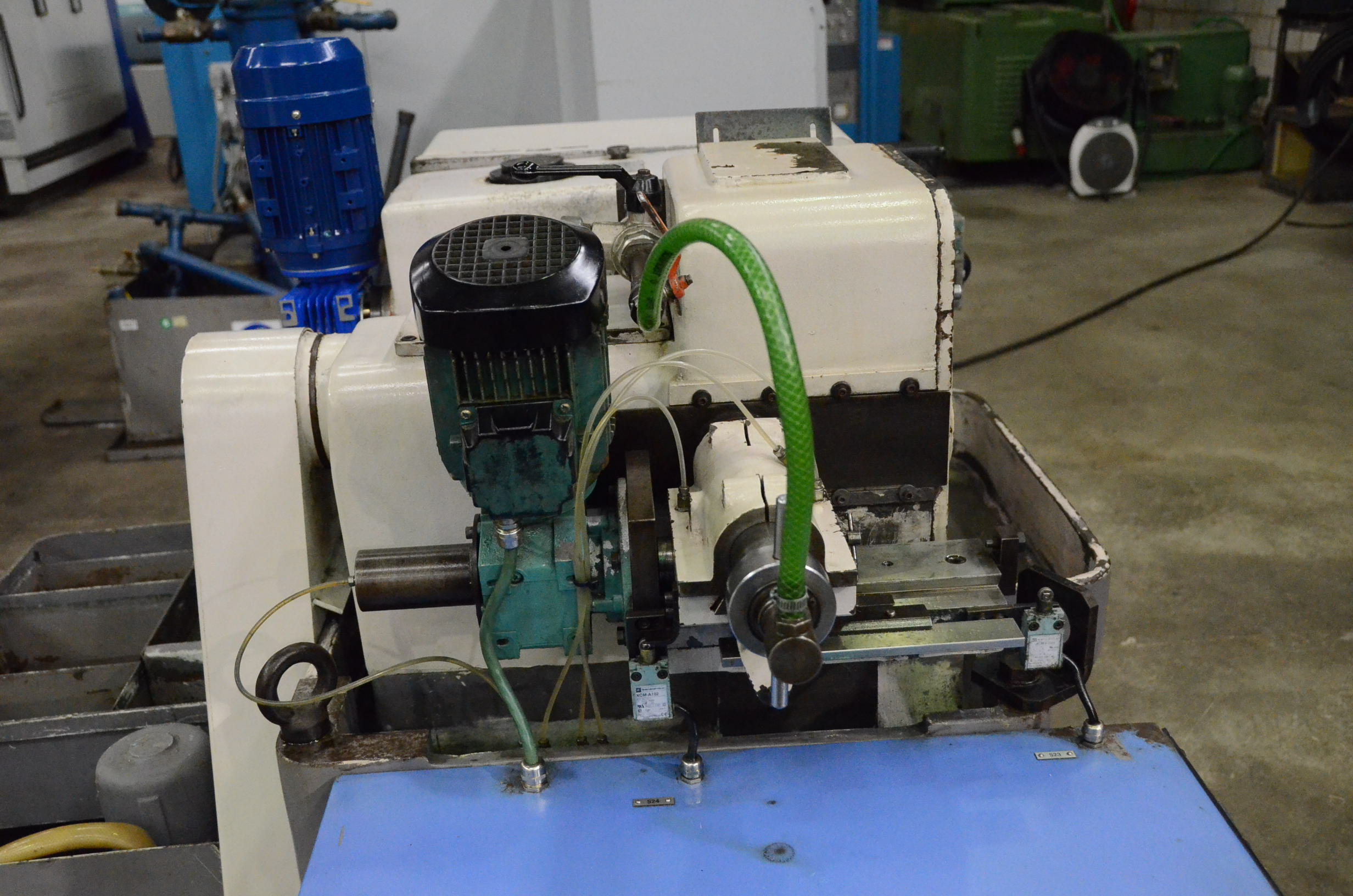

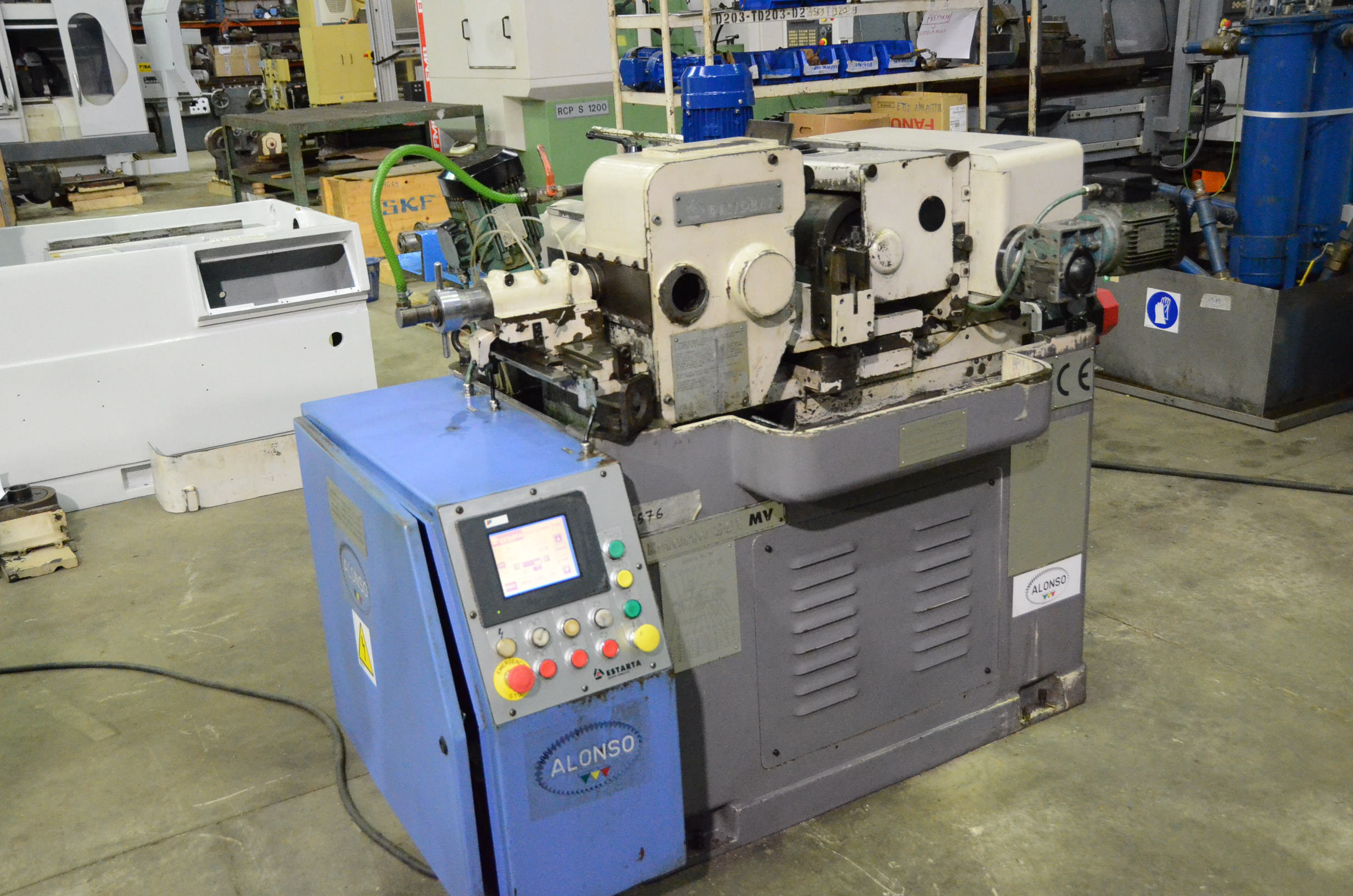

Centerless grinding machine ESTARTA 301 MV #4576
Centerless grinding machine ESTARTA 301 MV #4576
Location:Badajoz, Spain
or
Call +34 924 500 336
Specifications
| Manufacturer | ESTARTA |
| Model | 301 MV |
| Condition | Used |
| Stock Number | 4576 |
| Dimensions | 1520x1020x1260mm |
| Weight | 1550 kg |
| Grinding wheel gap | 1.5/50mm |
| Ø min / max to be rectified | 1.5/50mm |
| Max.width of wheel in feed grinding | 125mm |
| Max. width of grinding wheel in plunge grinding | 125mm |
| Working wheel dimensions (od x id x width) | 300x125x175mm |
| Øext.min. working wheel | 220mm |
| Min. ext. Ø of the working wheel | 220mm |
| Max. profile depth of the working wheel | 8mm |
| Max. depth of working wheel profile | 8mm |
| Driving wheel dimensions (od x id x width) | 220x125x125mm |
| Drive wheel dimensions (OD x ID x W) | 220x125x125mm |
| Min. ext. Ø of the drive wheel | 165mm |
| Øext.min. driving wheel | 165mm |
| Max. depth of the drag wheel profile | 8mm |
| Driving wheel motor power | 0,75Kw |
| Working wheel motor power | 7,5Kw |
| Drive wheel motor power | 0,75Kw |
| Angle of inclination of the working grinding head | +/- 5º |
| Angle of inclination of the drive wheel head | -2/+5º |
| Angle of inclination of the work wheel head | +/- 5º |
| Angle of inclination of the drag wheel head | -2/+5º |
