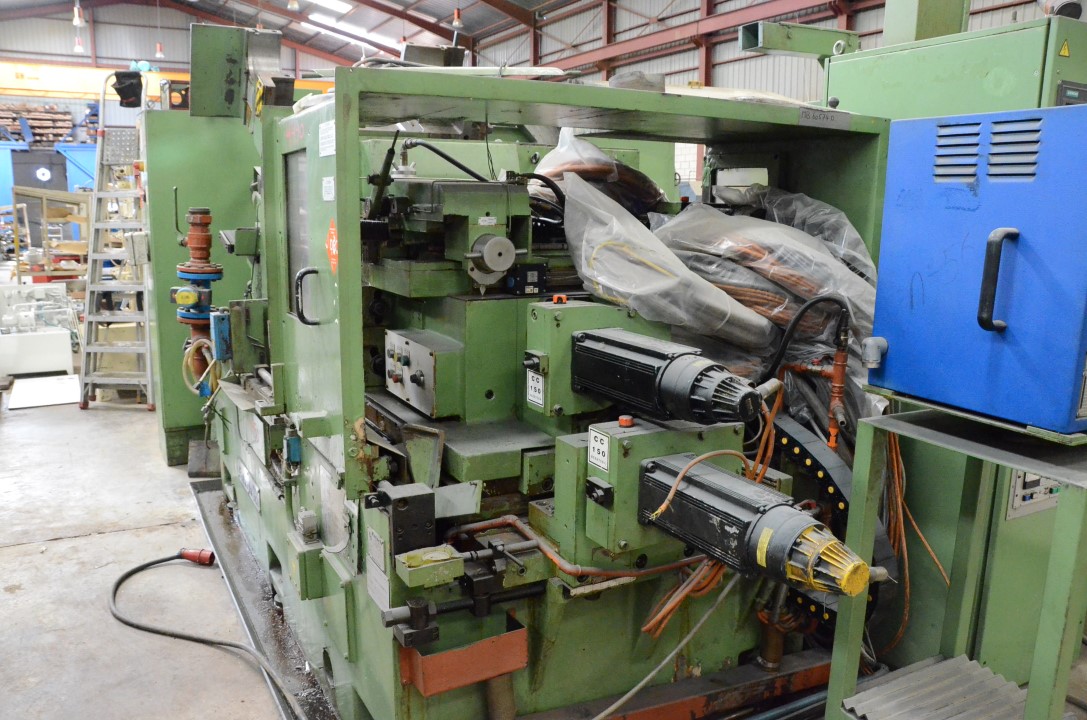

Centerless Grinder ESTARTA 327 CNC # 4450
Centerless Grinder ESTARTA 327 CNC # 4450
Location:Badajoz, Spain
or
Call +34 924 500 336
Specifications
| Manufacturer | ESTARTA |
| Model | 327 |
| Condition | Used |
| Serial Number | 721138 |
| Stock Number | 4450 |
| Ø grinding wheel dimensions (od x id x width) | Ø 650 x Ø 304,8 x 500mm |
| Ø min / max to grinding | 3/200 mm |
| Peripheral grinding wheel speed (m / s) | Variable with regulator |
| Regulating wheel width | 500 mm |
| Regulating wheel speed nº | Infinite |
| Dressing (auto / manual) | Automatic CNC the 2 grinding wheels |
| Min / max regulating wheel speed (r.p.m.) | 10/255 r.p.m. |
| Lubrication (auto / manual) | Automatic |
| Control type ((cnc / manual) | CNC |
| Cnc axes nº | 8 |
| Infeed (auto / manual) | Automatic |
| Diamond dressing speed | 255 r.p.m. |
| Regulating wheel dimensions (od x id x width) | Ø 350 x Ø 203,2 x 500mm |
| Grinding wheel width | 500 mm |
| Maximum infeed grinding length | 500 mm |
| Motor power grinding wheelhead | 75 Kw |
| Power hydraulic motor | 3 Kw |
| Accessories included | Fairing, rule holder and plongeé, MARPOSS E50 meter, speed regulator. grinding wheel work |
| Total power | 90 Kw |
| Voltage | 220 / 380V |
| Long | 2.300 mm |
| Width | 2.800 mm |
| High | 2.100 mm |
| Weight | 15.000 Kg |
