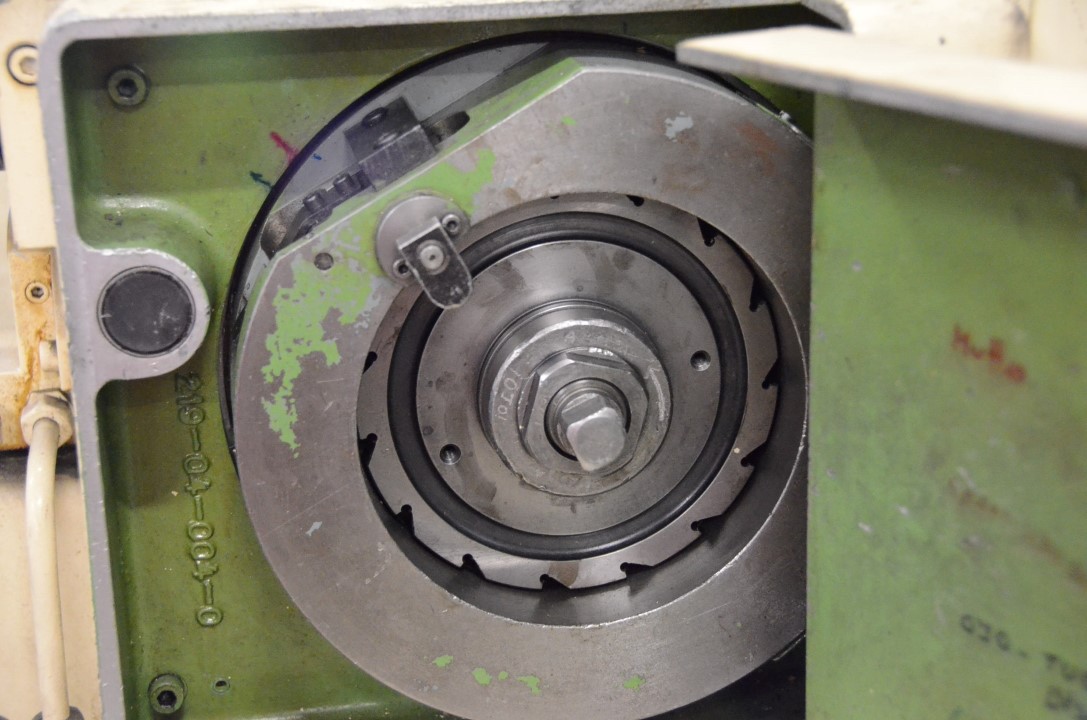

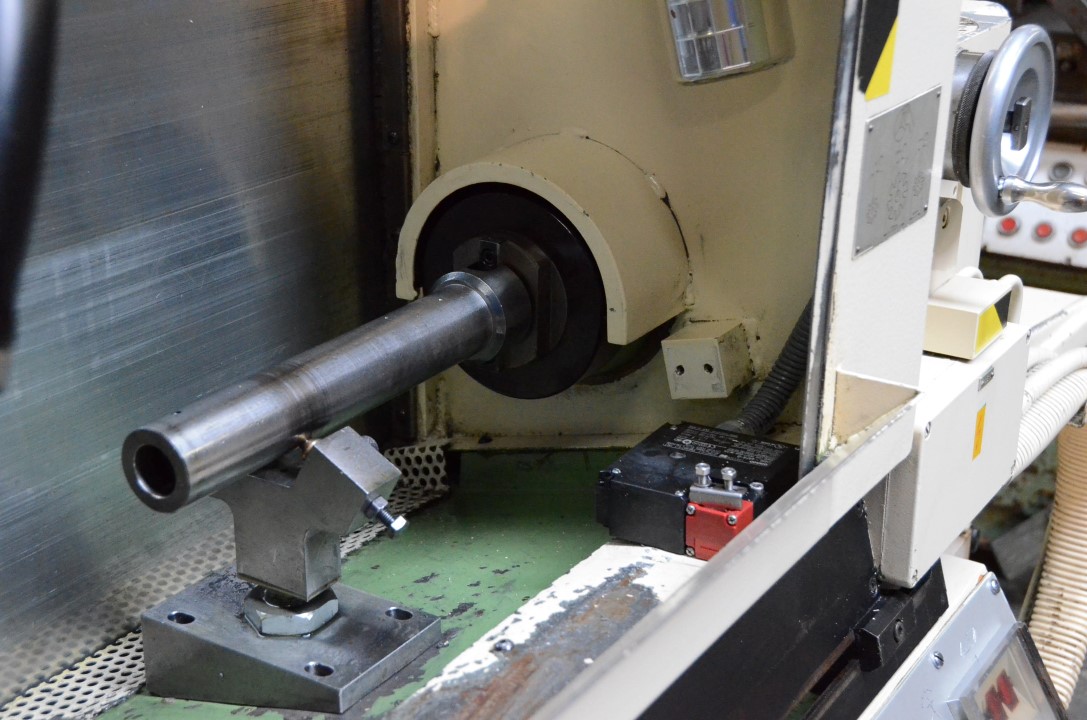

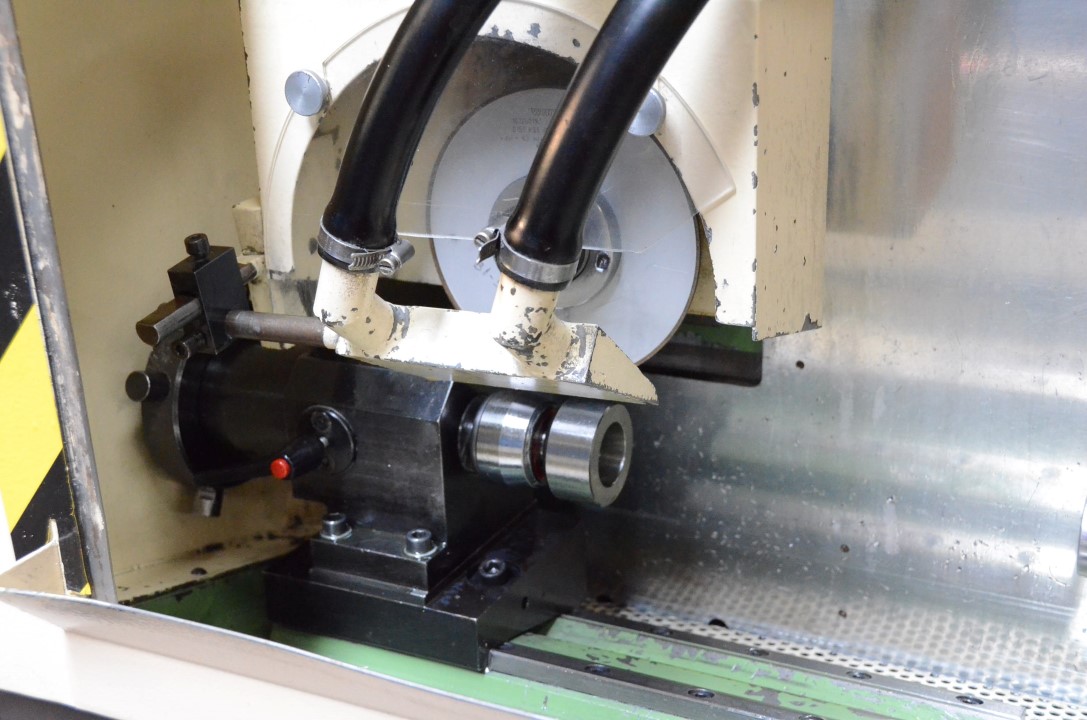

Gear sharpener KAPP AS 204 GT #4359
Gear sharpener KAPP AS 204 GT #4359
Location:Badajoz, Spain
or
Call +34 924 500 336
Description

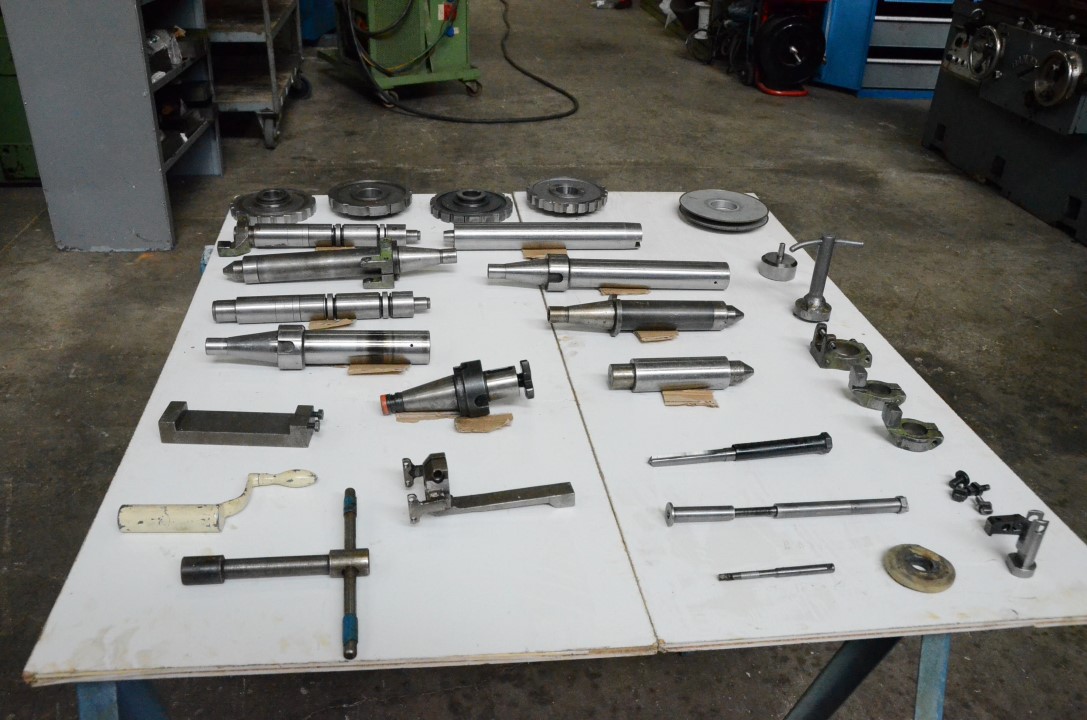

Milling axes, dividers, grinding wheels
Specifications
| Manufacturer | KAPP |
| Model | AS 204 GT |
| Condition | Used |
| Stock Number | 4359 |
| High | 1765 mm |
| Tall | 1765 mm |
| Weight | 2500 Kg |
| Width | 1100 mm |
| Long | 2570 mm |
| Ø tool | 250 mm |
| Total power | 7.5 kva. |
| Ø of the grinding wheel | 250 mm |
| Travel of table | 400 mm |
| Height of points | 125 mm |
| Height of centers | 125 mm |
| Max. Ø to be sharpened | 250 mm |
| Power wheel motor | 3 Kv. |
| Manufacturing number | 1905.04 |
| Ø max to sharpen | 250 mm |
| Grinding wheel motor power | 3 Kv. |
| Distance between points | 635 mm |
| Table tour | 400 mm |
| Revolutions of the wheel | 1750/2150/2850 mm |
| Length between points | 635 mm |
| Maximum length to sharpen | 400 mm |
| Revolutions of the grinding wheel | 1750 / 2150 / 2850 mm |
| Radial travel axis wheelhead | +35 / -65 mm |
| Maximum length to be sharpened | 400 mm |
| Vertical travel of the wheel | 175 mm |
| Vertical travel of the grinding wheel | 175 mm |
| Radial travel of the grinding wheel shaft | +35 / -65 mm |
| Cone holder shaft clamping pieces | ISO 40 |
| Min/max propeller pitch angle | 0-45º |
| Cone for holding the workpiece shaft | ISO 40 |
| Speed continuous longitudinal table | From 30 to 1000 mm / min. |
| Longitudinal speed of the continuous table | From 30 to 1000 mm/min. |
| Specification | From mother strawberry |
