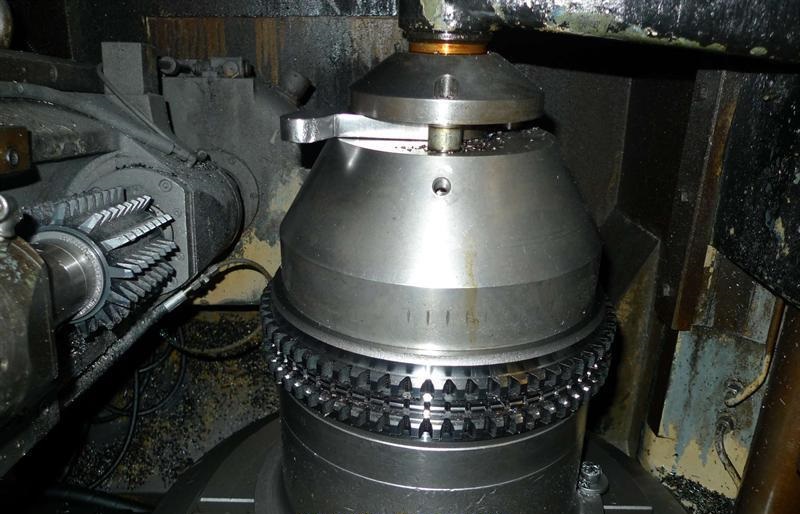

1966 LIEBHERR L 650 Gear Hobbing Machines # 4314
No longer available
1966 LIEBHERR L 650 Gear Hobbing Machines # 4314
Location:Badajoz, Spain
Description

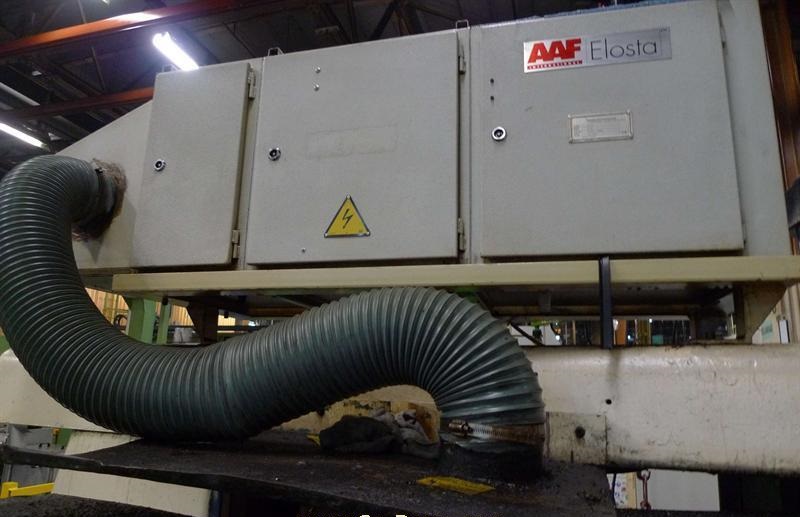

Chip extractor, Oil mist extractor (AAF Elosta BF2000) / Chips Conveyor, Extractor fog oil (AAF Elosta BF2000)
Specifications
| Manufacturer | LIEBHERR |
| Model | L 650 |
| Year | 1966 |
| Condition | Used |
| Stock Number | 4314 |
| High | 3000 mm |
| Long | 3104 mm |
| Width | 2000 mm |
| Module | 10 |
| Weight | 8,000 Kg. |
| Voltage | 380 V. |
| Ø table | 560 mm |
| Total power | 18.5 Kw. |
| Ø max. gear | 650 mm |
| Ø hole table | 140 mm |
| Hobbing length | 370 mm |
| Tangential tour | 135 mm |
| Main motor power | 12 Kw. |
| Hob spindle speeds | 60 - 420 rpm. |
| Maximum ø of tool | 192 mm |
| Maximum length tool | 200 mm |
| Engine cooling power | 0.55 Kw. |
| Power forward engine | 2.2 Kw. |
| Power hydraulic motor | 3 Kw. |
