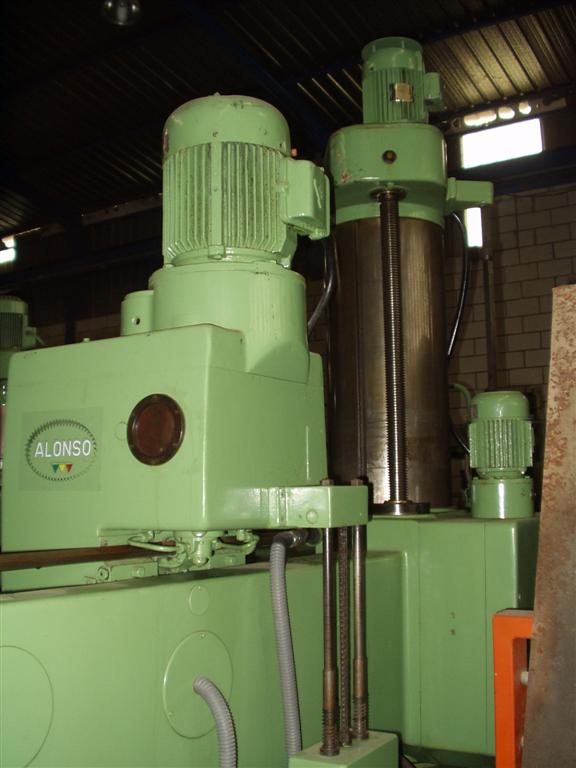

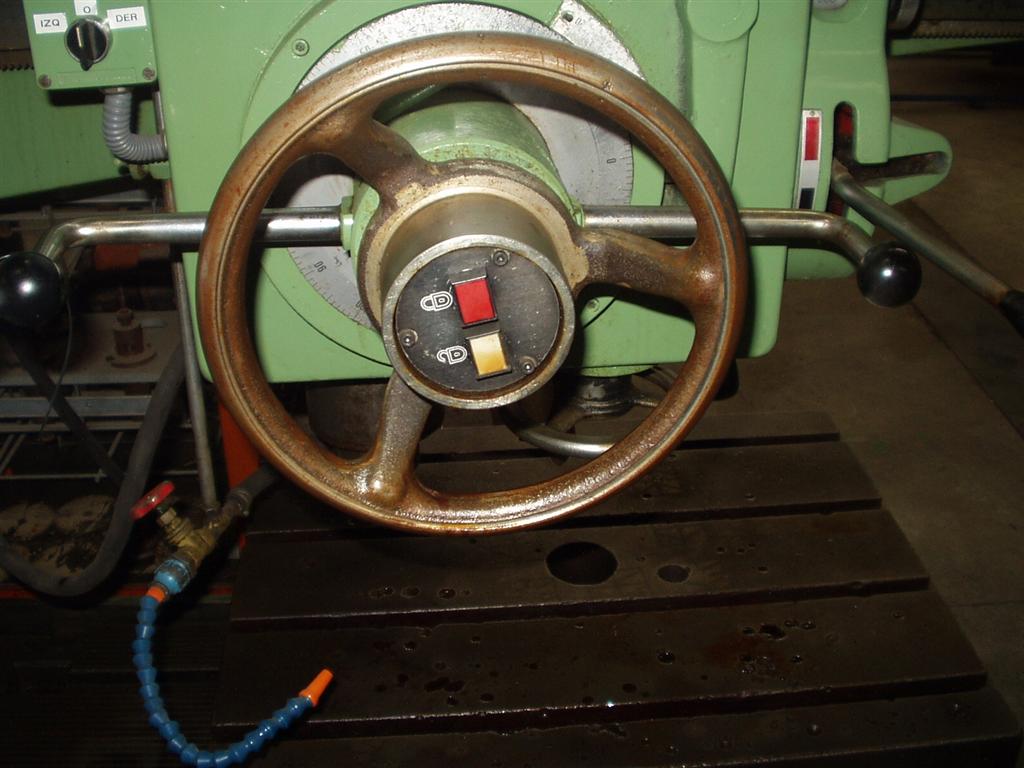

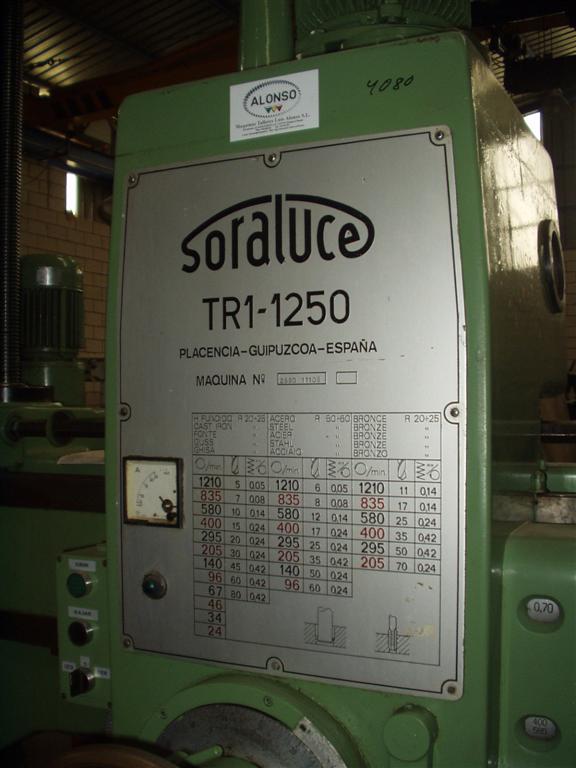

1978 SORALUCE TR1-1250 Drills # 4080
Sold
1978 SORALUCE TR1-1250 Drills # 4080
Location:Badajoz, Spain
Specifications
| Manufacturer | SORALUCE |
| Model | TR1-1250 |
| Year | 1978 |
| Condition | Used |
| Stock Number | 4080 |
| Advances min / max spindle chuck | 0.05-0.70 |
| Max. distance spindle axis column | 1.200 mm |
| Do not. drill spindle speeds | 12 |
| Number of drill spindle advances | 6 |
| Speed | 24/1210 r.p.m. |
| Ø column | 350 mm |
| Spindle column neckline | 1.250 mm |
| Ø spindle | 80 mm |
| Spindle displacement | 310 mm |
| Maximum distance table to spindle | 1.320 mm |
| Minimum distance table to spindle | 350 mm |
| High | 2.700 mm |
| Voltage | 220/380 V |
| Long | 2.250 mm |
| Surface of the table | 1,300 x 800 mm |
| Width | 1.000 mm |
| Weight | 2.800 kg |
| Cone spindle | MORSE 5 |
| Total power | 8 kW |
| Ø max. drill steel | 50 mm |
| Specification | Flag |
