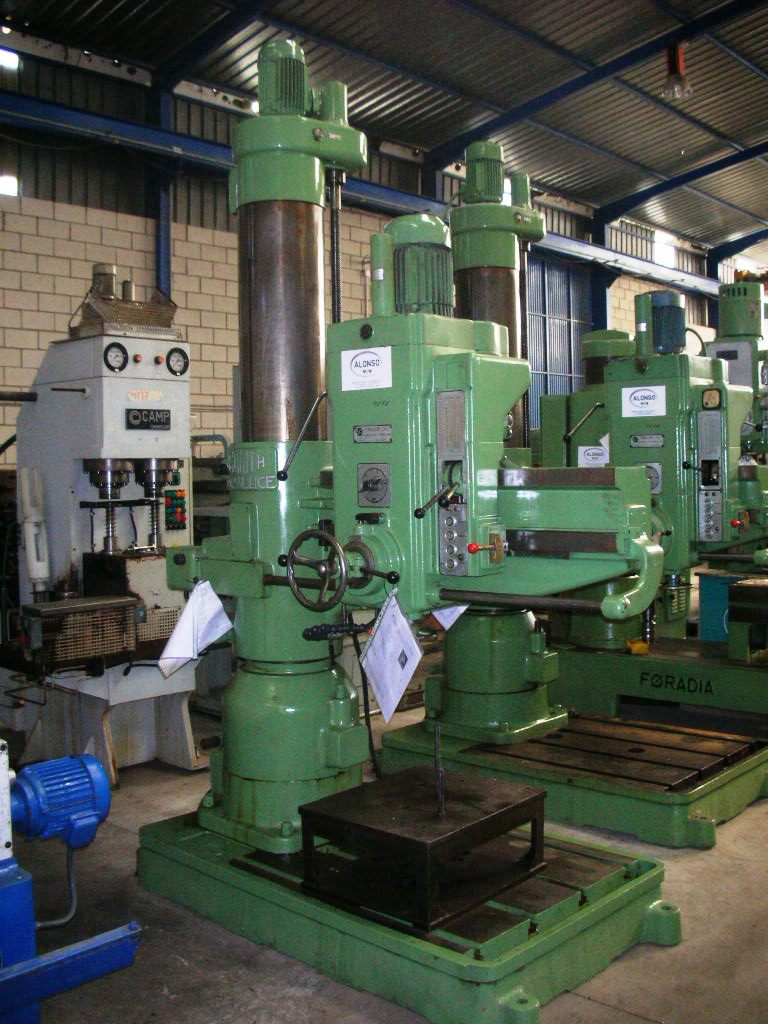

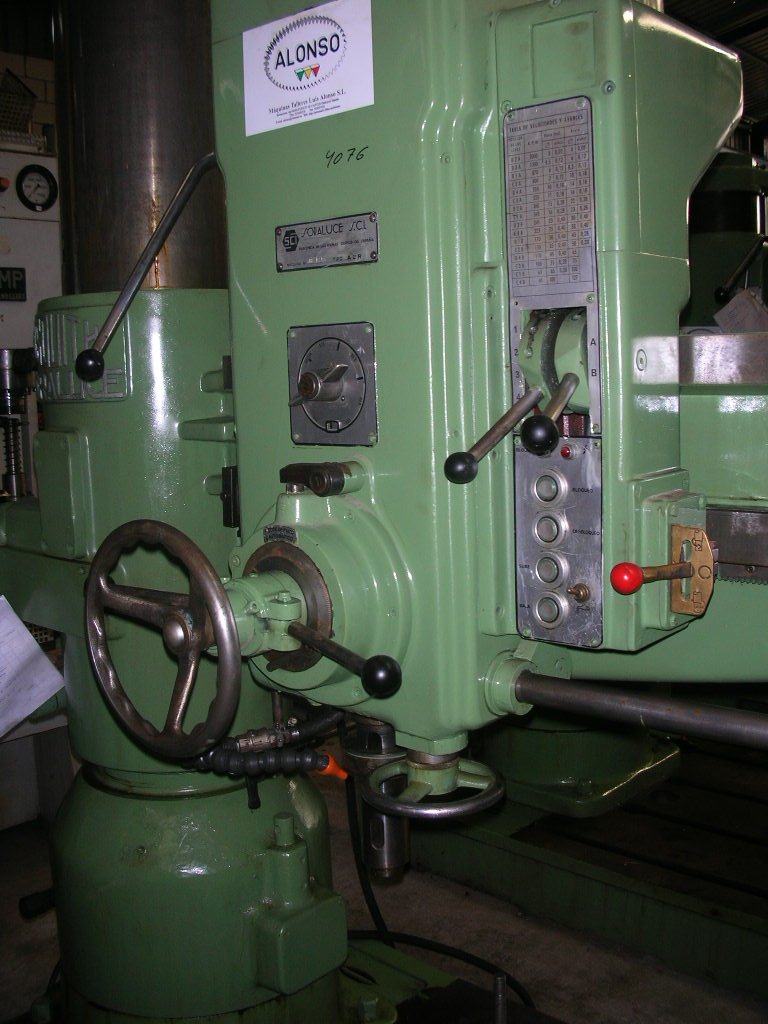

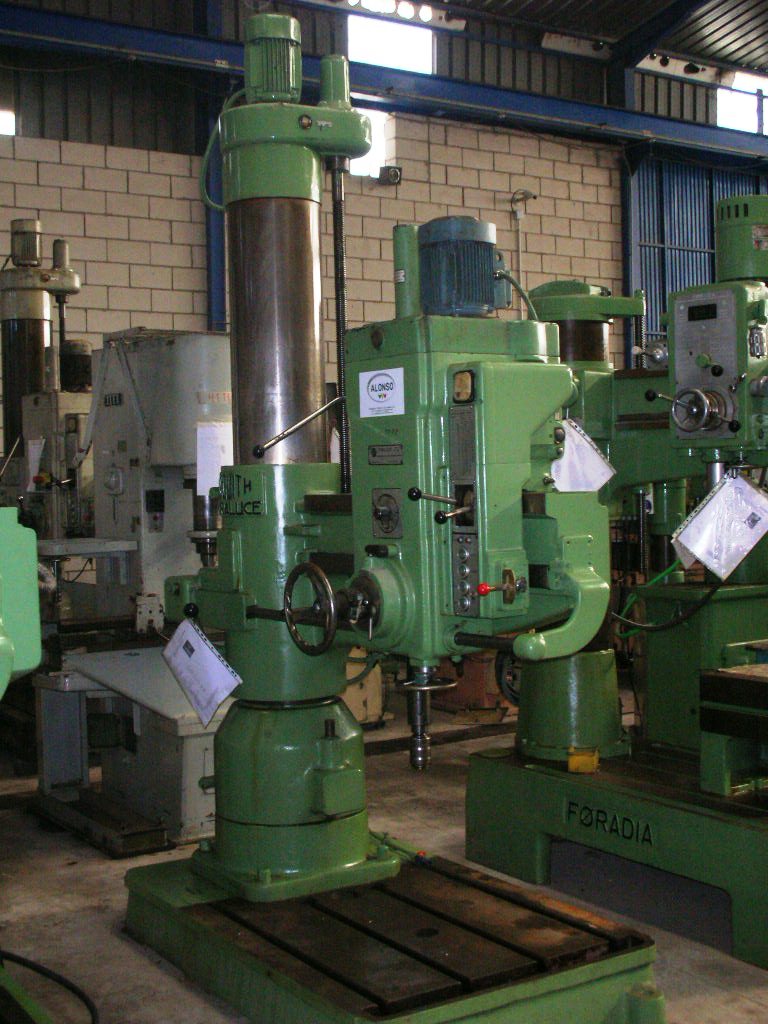

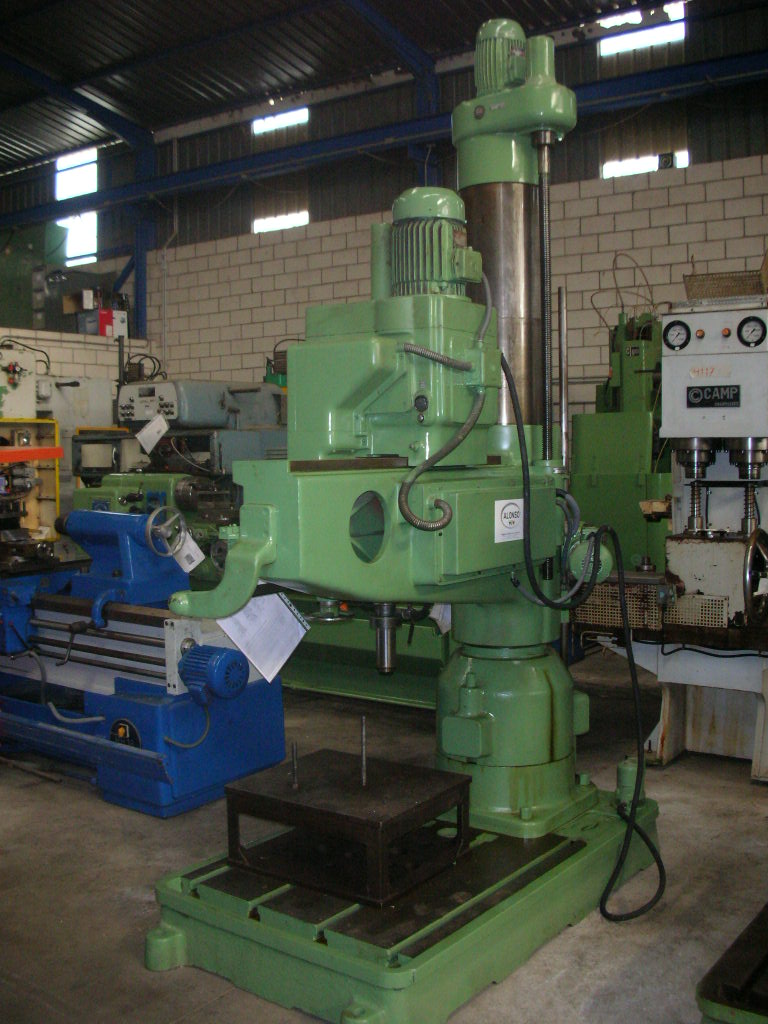

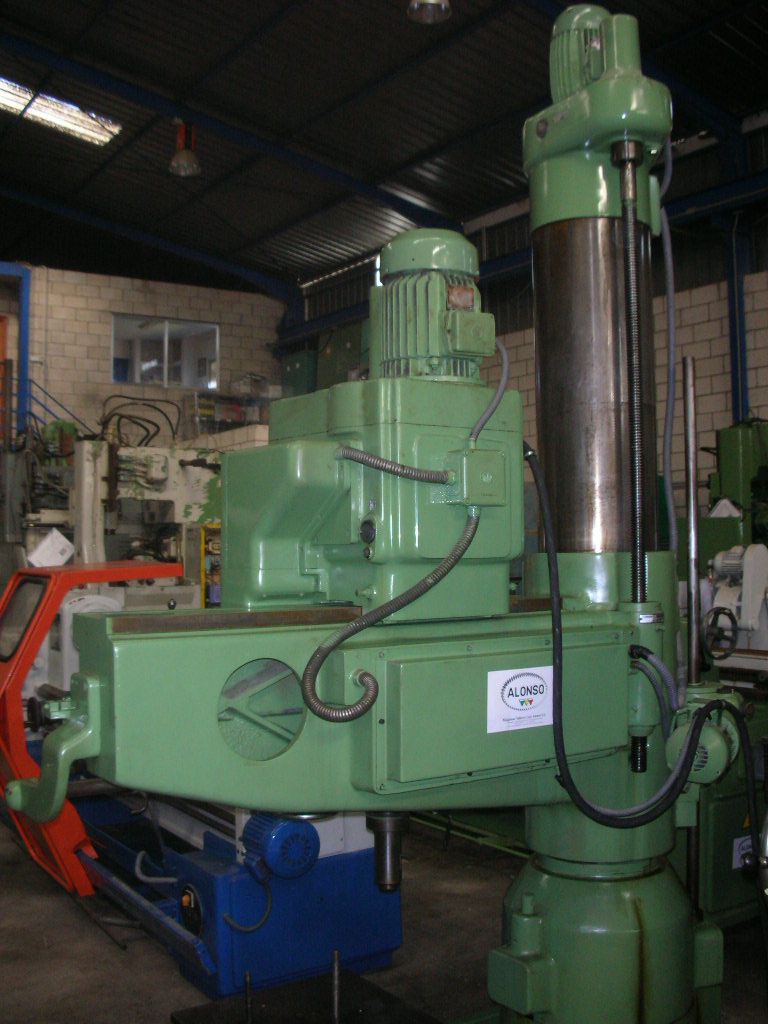

SORALUCE A2R Drills #4076
SORALUCE A2R Drills #4076
Location:Badajoz, Spain
or
Call +34 924 500 336
Specifications
| Manufacturer | SORALUCE |
| Model | A2R |
| Condition | Used |
| Stock Number | 4076 |
| Tall | 3.000 mm |
| Weight | 2690 kg |
| Width | 915 mm |
| Long | 1.800 mm |
| Voltage | 220/380V |
| Spindle cone | MORSE 5 |
| Total power | 7 CV |
| Ø of the spindle | 63 mm |
| Base width | 915 mm |
| Base length | 970 mm |
| Serial number | 7181319 |
| Ø max. drill steel | 26 mm |
| Spindle travel | 355 mm |
| Max spindle column axis distance | 1030 mm |
| Maximum distance from table to spindle | 1500 mm |
| Minimum distance from the table to the spindle | 260 mm |
| Spindle speed range | 16 |
| Maximum/minimum travel of the drill chuck spindle | 0,05/0,5 |
| Spindle nose stock advance | 6 |
| Minimum/maximum spindle speed | 40/2000r.p.m. |
| Specification | Flagged |
