ESTARTA 320 Centerless Grinder # 4343
Sold

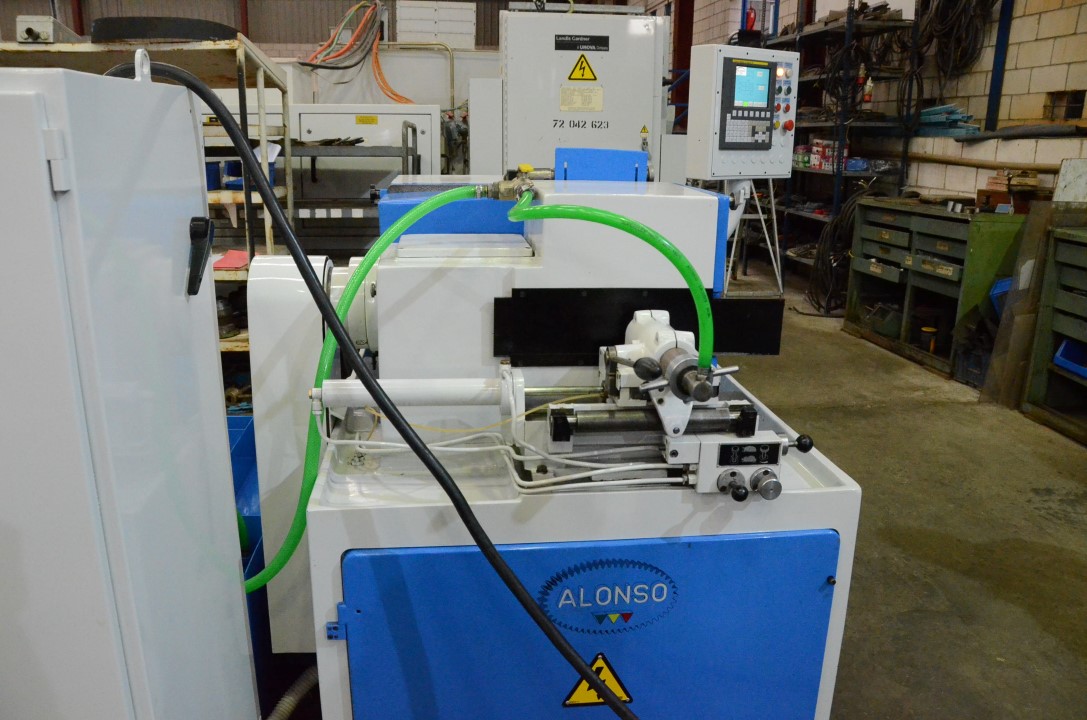

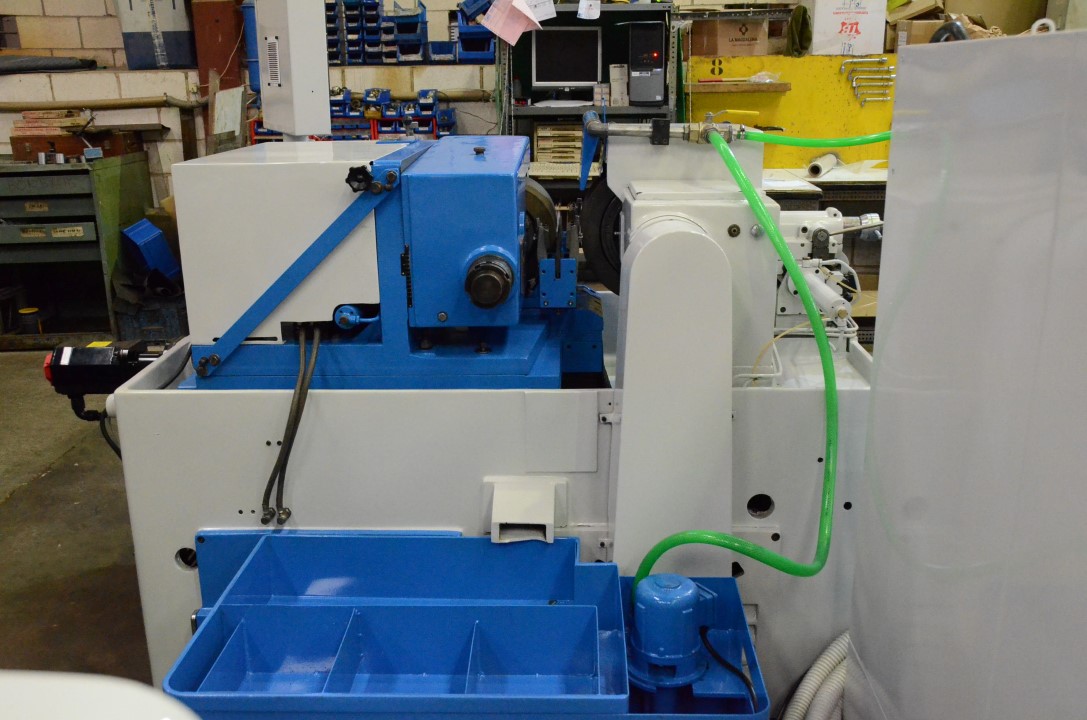

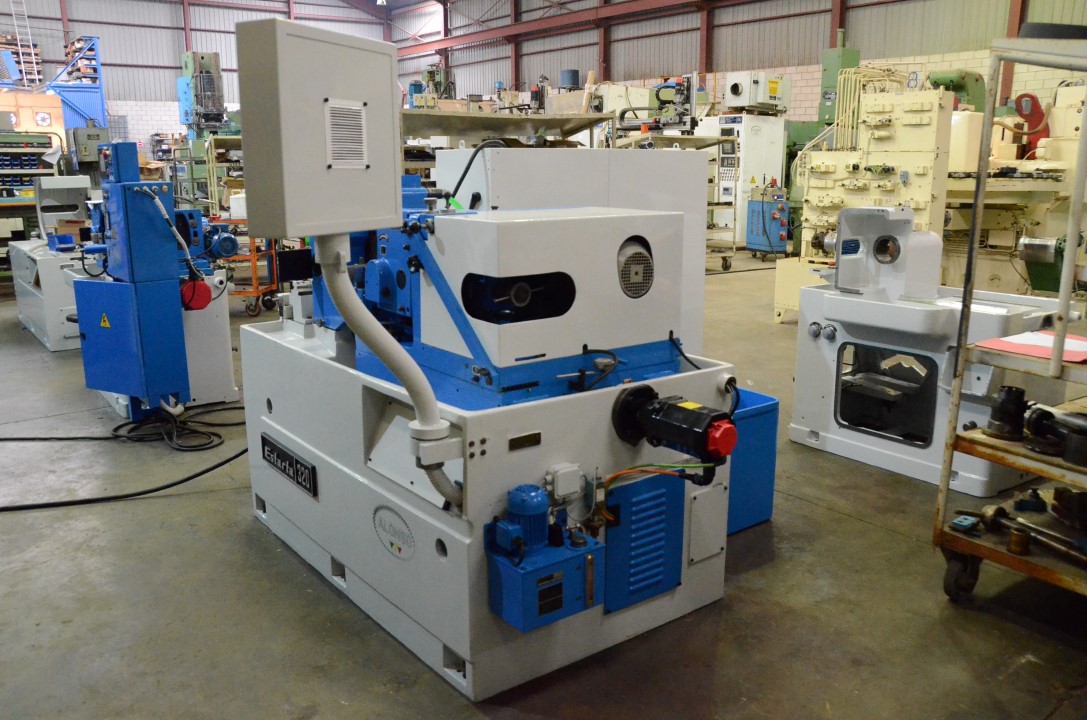

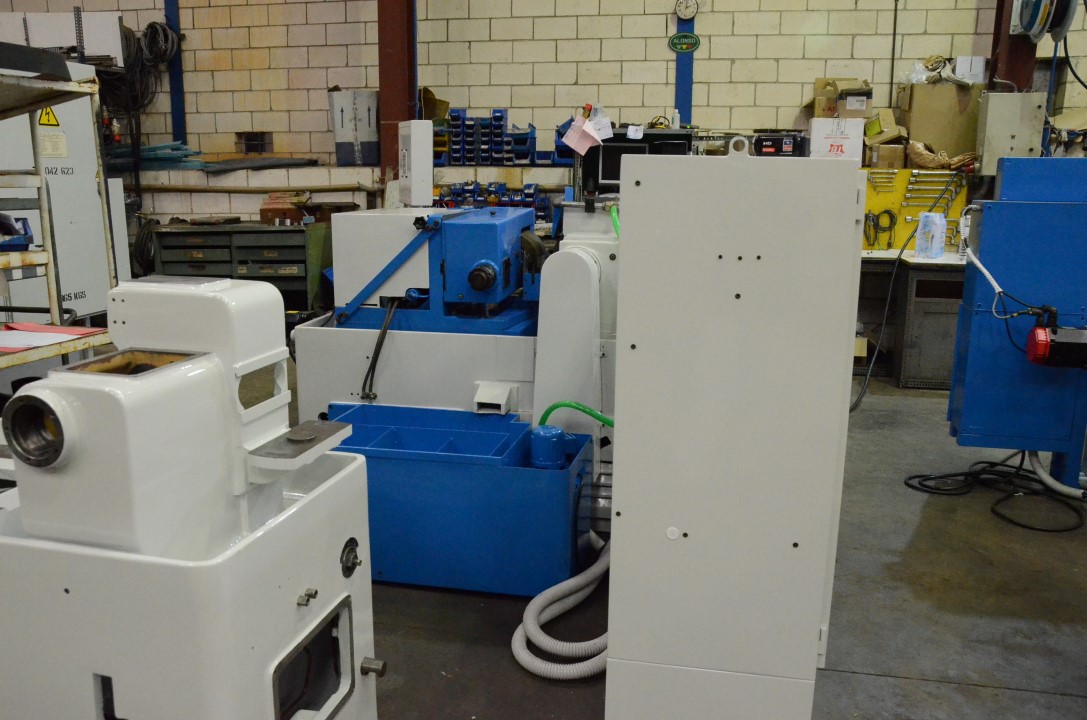

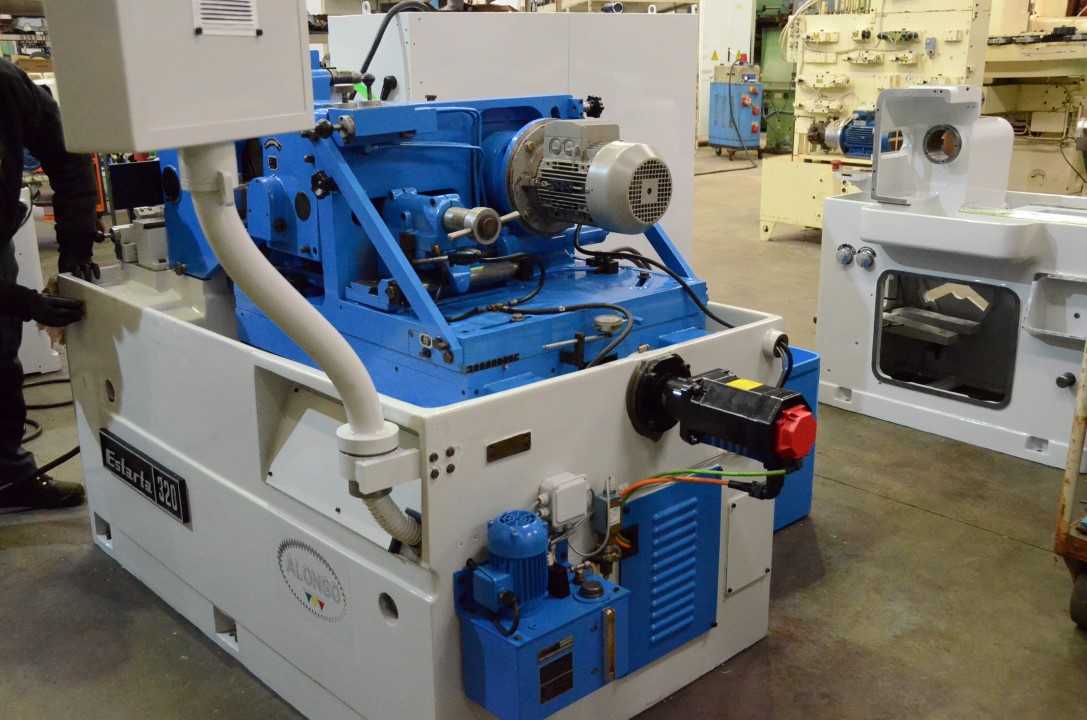

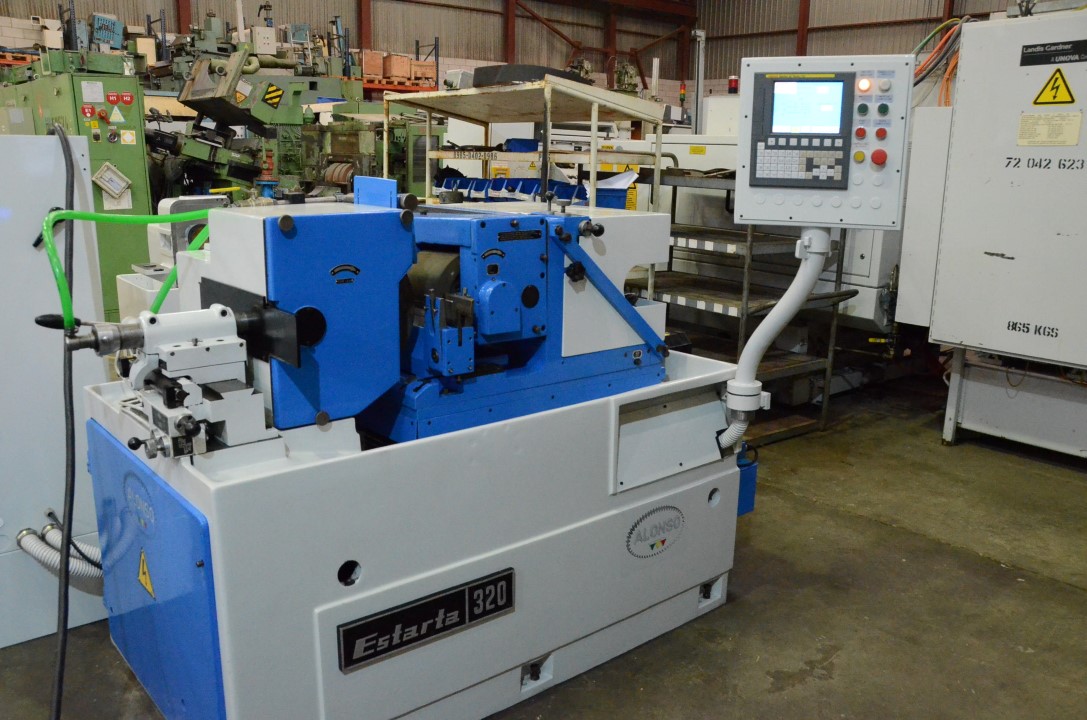

ESTARTA 320 Centerless Grinder # 4343
Location:Badajoz, Spain
or
Call +34 924 500 336
Description
Plongee Portfolio, Cymbal Ports, Speed variator for the traction wheel OPTIONAL: Lead-in slide, CNC, Fairing, Automatic centralized greasing, 1 Year Warranty / Porta plongee rules, Saucers wheel holder, OPTION: Porta rules enfilade, cnc, protection,, automatic lubrication system, 1 year warranty
Specifications
| Manufacturer | ESTARTA |
| Model | 320 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 4343 |
| Ø grinding wheel dimensions (od x id x width) | Ø 406 x Ø 203 x 200 mm |
| Ø min / max to grinding | 1.5 / 100 mm |
| Regulating wheel width | 200 mm |
| Regulating wheel speed nº | infinite |
| Min / max regulating wheel speed (r.p.m.) | 0/450 rpm |
| Lubrication (auto / manual) | Automatic |
| Control type ((cnc / manual) | CNC |

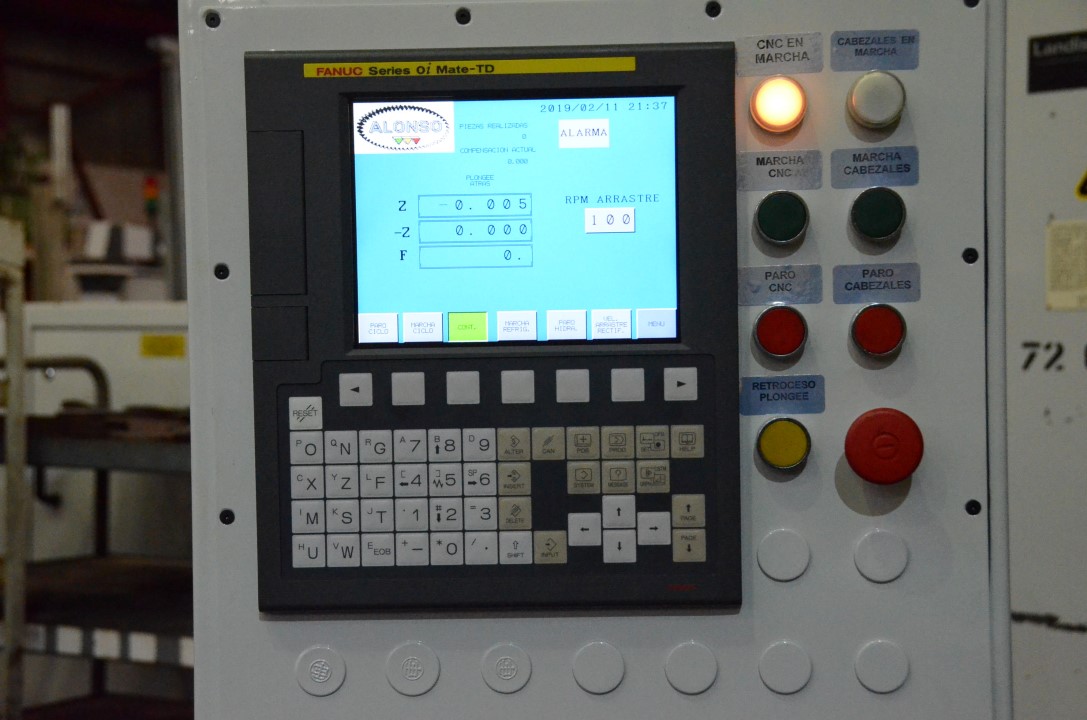

| Cnc brand | FANUC |
| Cnc model | Oi Mate - TF |
| Infeed (auto / manual) | Automatic |
| Regulating wheel dimensions (od x id x width) | Ø 270 x Ø 140 x 200 mm |
| Grinding wheel width | 200 mm |
| Maximum infeed grinding length | 200 mm |
| Motor power grinding wheelhead | 15 kW |
| Long | 2020 mm |
| Width | 1300 mm |
| High | 1420 mm |
| Weight | 4200 Kg |
| Accessories included | Roll holder, Cradle carrier, Drive wheel speed variator, Automatic centralized greasing OPTIONAL: Fairing, 1 Year Warranty / Roll holder, Cradle holder, Drive wheel speed variator, Automatic centralized greasing OPTIONAL: Fairing, 1 Year Warranty |
