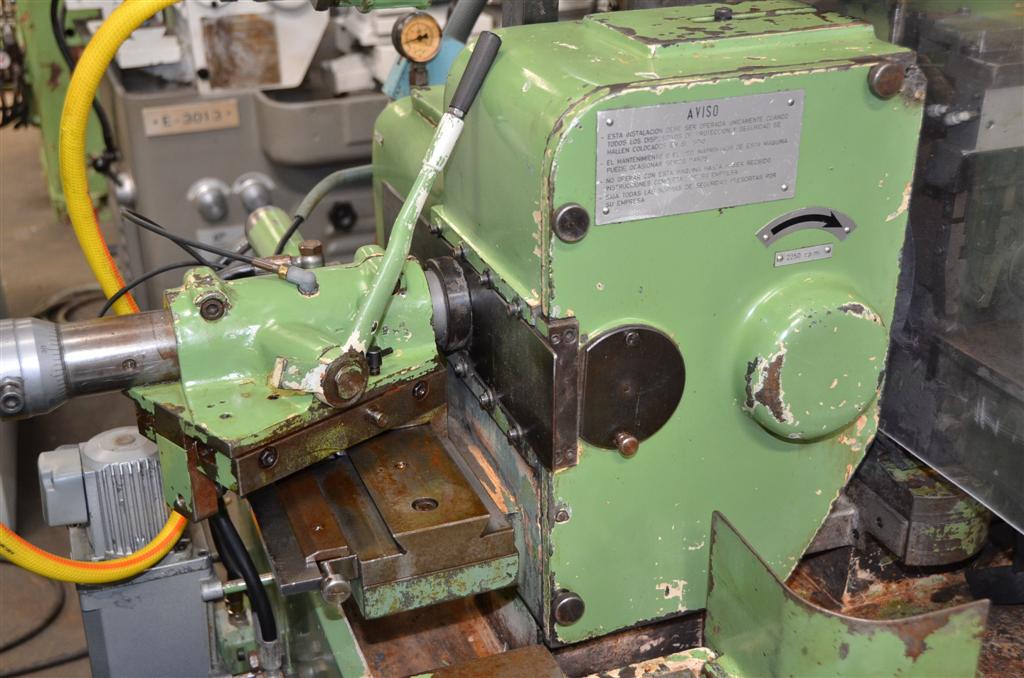

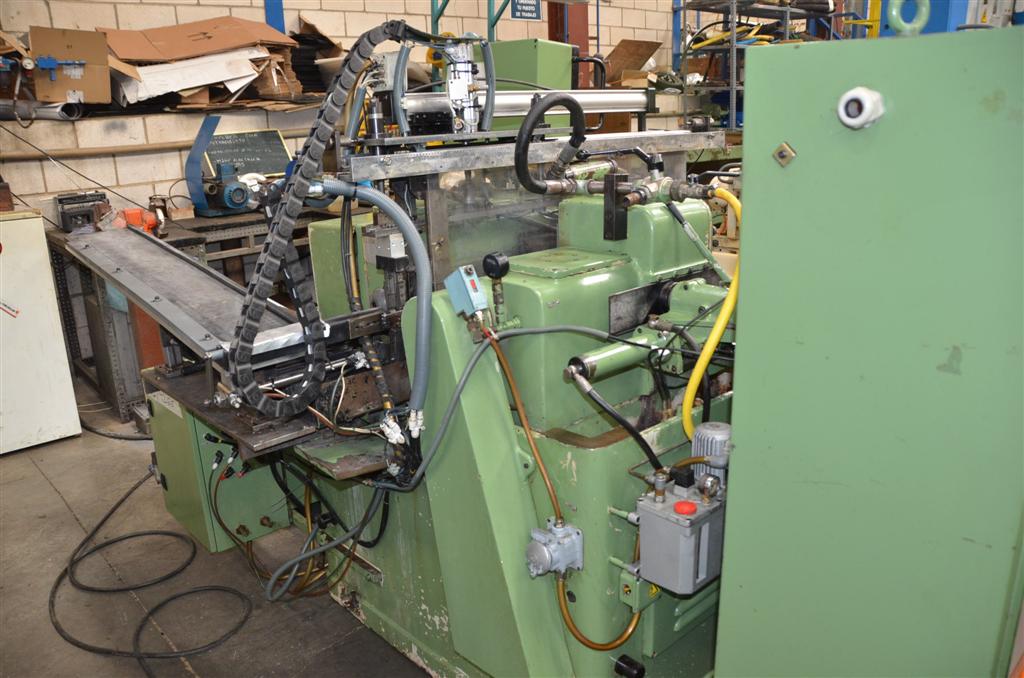

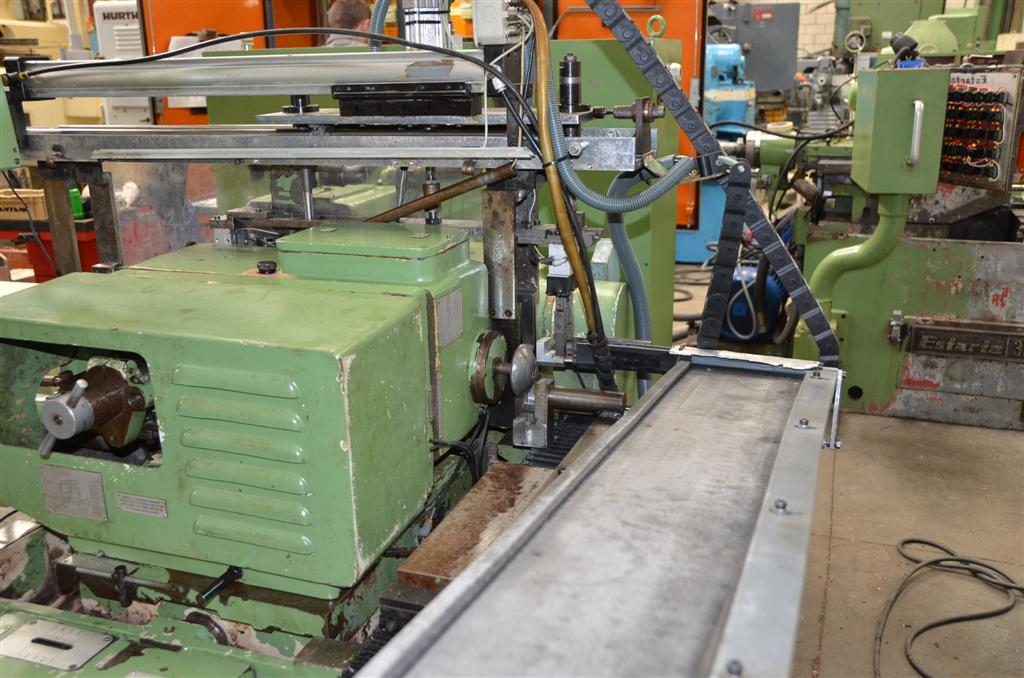

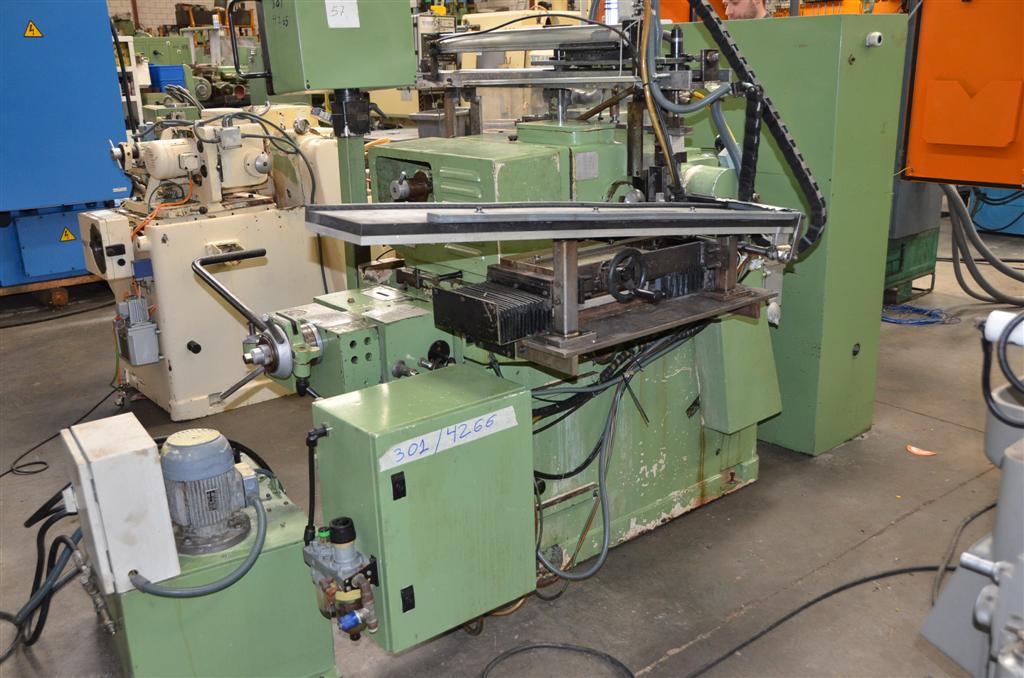

Centerless Grinder ESTARTA 301 # 4265
Centerless Grinder ESTARTA 301 # 4265
Badajoz, Spain
Description

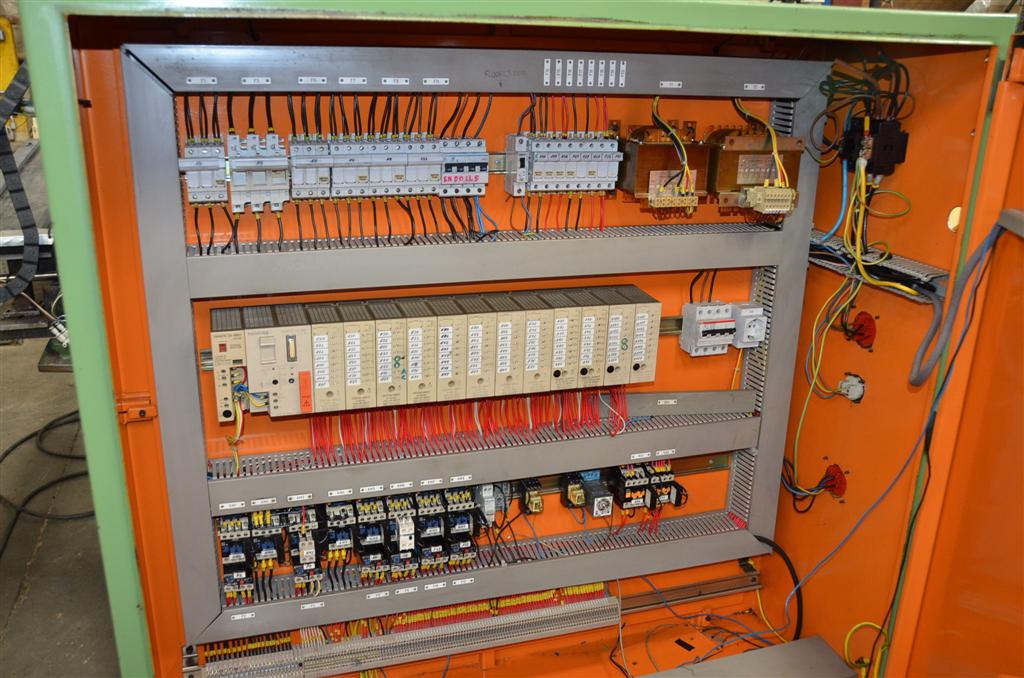

Plongee charger parts, hydraulic Plongee, diamond compensator, SIEMENS PLC, automatic lubrication system,
Specifications
| Manufacturer | ESTARTA |
| Model | 301 |
| Year | 1992 |
| Condition | Used |
| Serial Number | 801858 |
| Stock Number | 4265 |
| Grinding wheel gap | 1.5 / 50 mm |
| Max.width of wheel in feed grinding | 125 mm |
| Working wheel dimensions (od x id x width) | 325 x 175 x 125 mm |
| Øext.min. working wheel | 220 mm |
| Max. profile depth of the working wheel | 8 mm |
| Lubrication (auto / manual) | Automatic / Automatic |
| Infeed (auto / manual) | Automatic / Automatic |
| Driving wheel dimensions (od x id x width) | 220 x 125 x 125 mm |
| Øext.min. driving wheel | 165 mm |
| Working wheel motor power | 7,5 Kw |
| Long | 1.520 mm |
| Width | 1.020 mm |
| High | 1.260 mm |
| Weight | 1.550 Kg. |
| Accessories included | Charger for plongee parts, hydraulic Plongee, Diamond Compensator, PLC SIEMENS, | Infeed workpiece feeder, hydraulic Infeed, diamond dressing compensator, SIEMENS PLC |
| Driving wheel motor power | 0,75Kw |
| Angle of inclination of the working grinding head | +/- 5º |
| Angle of inclination of the drive wheel head | -2/+5º |
