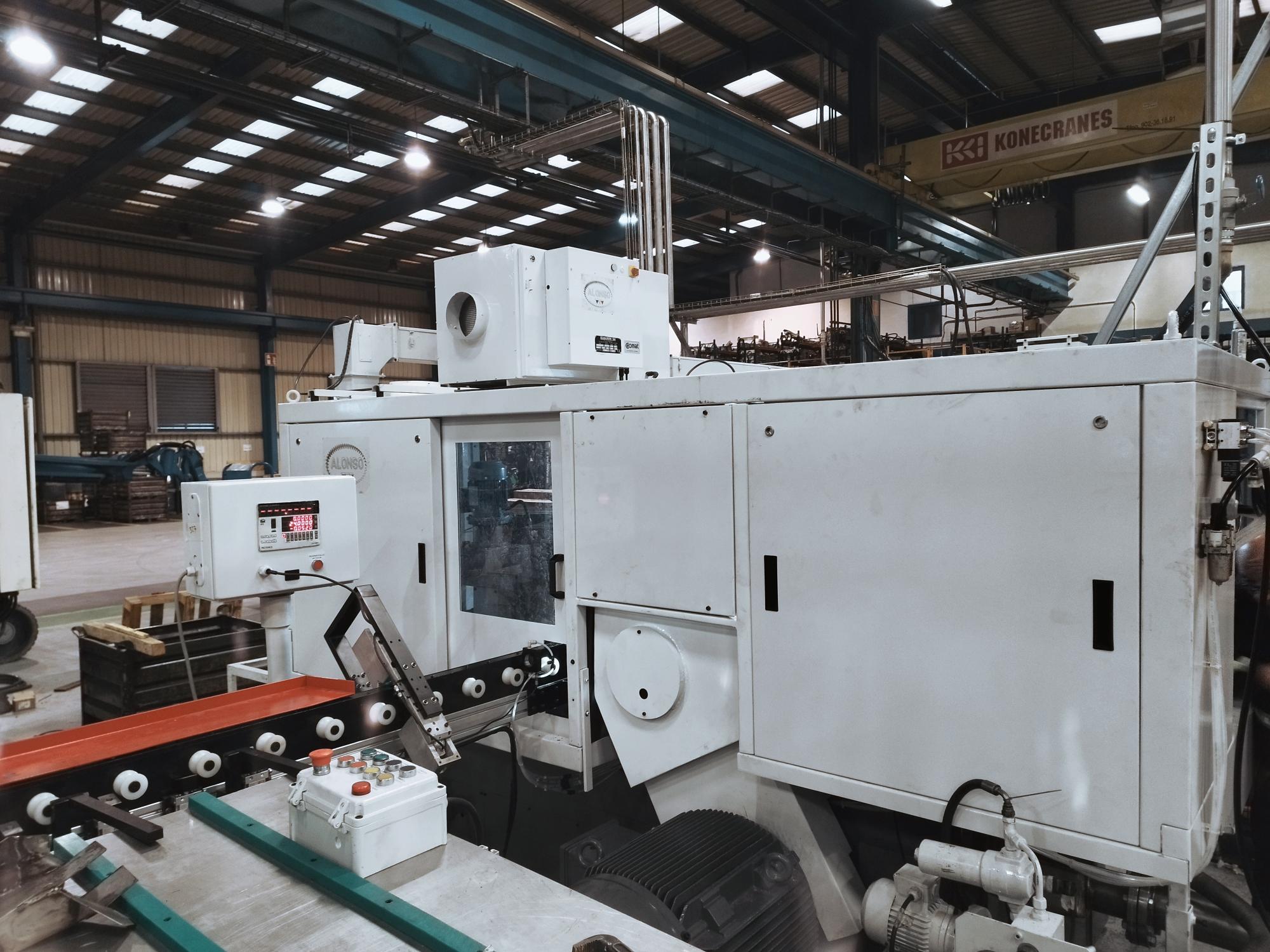

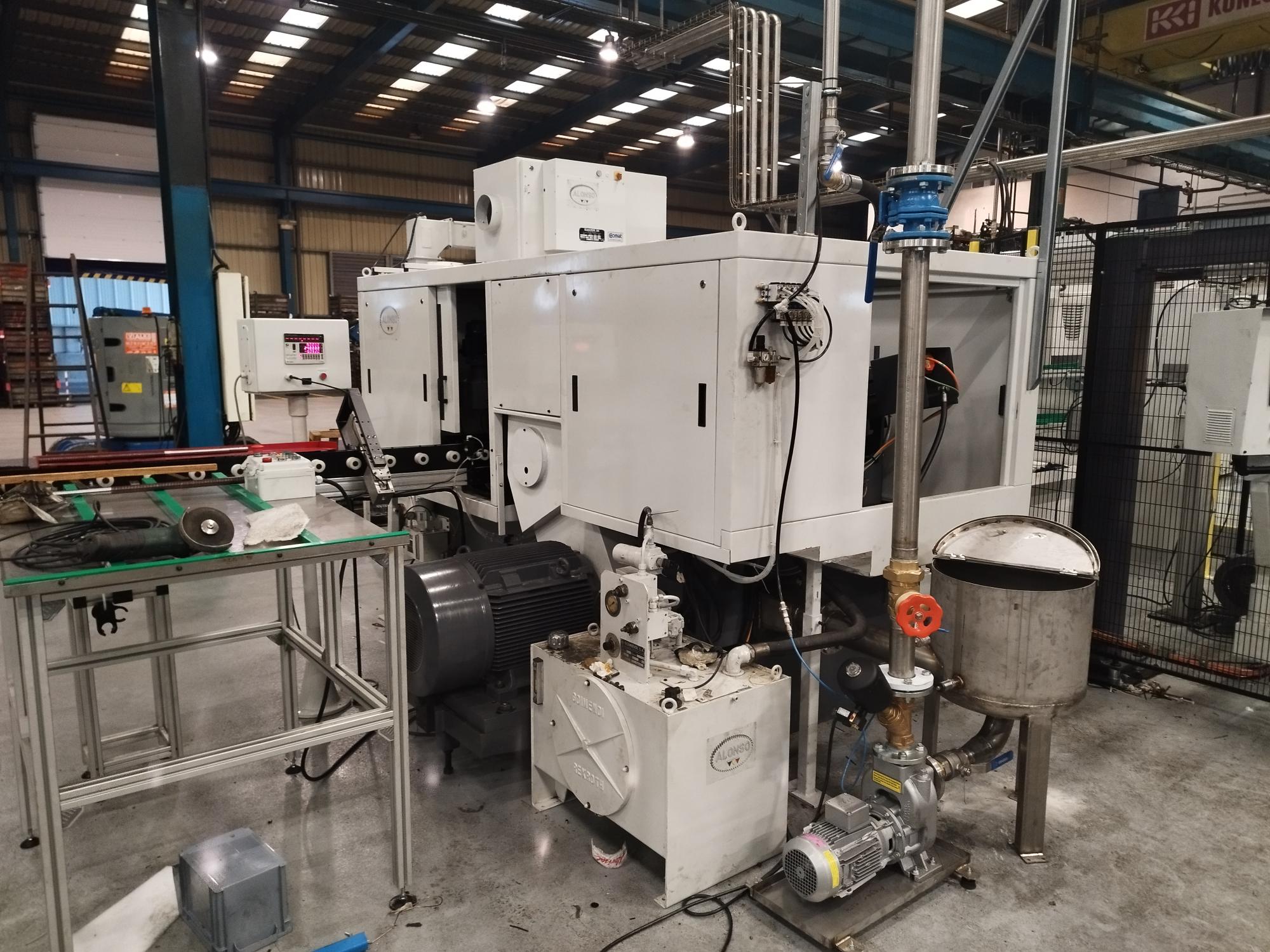

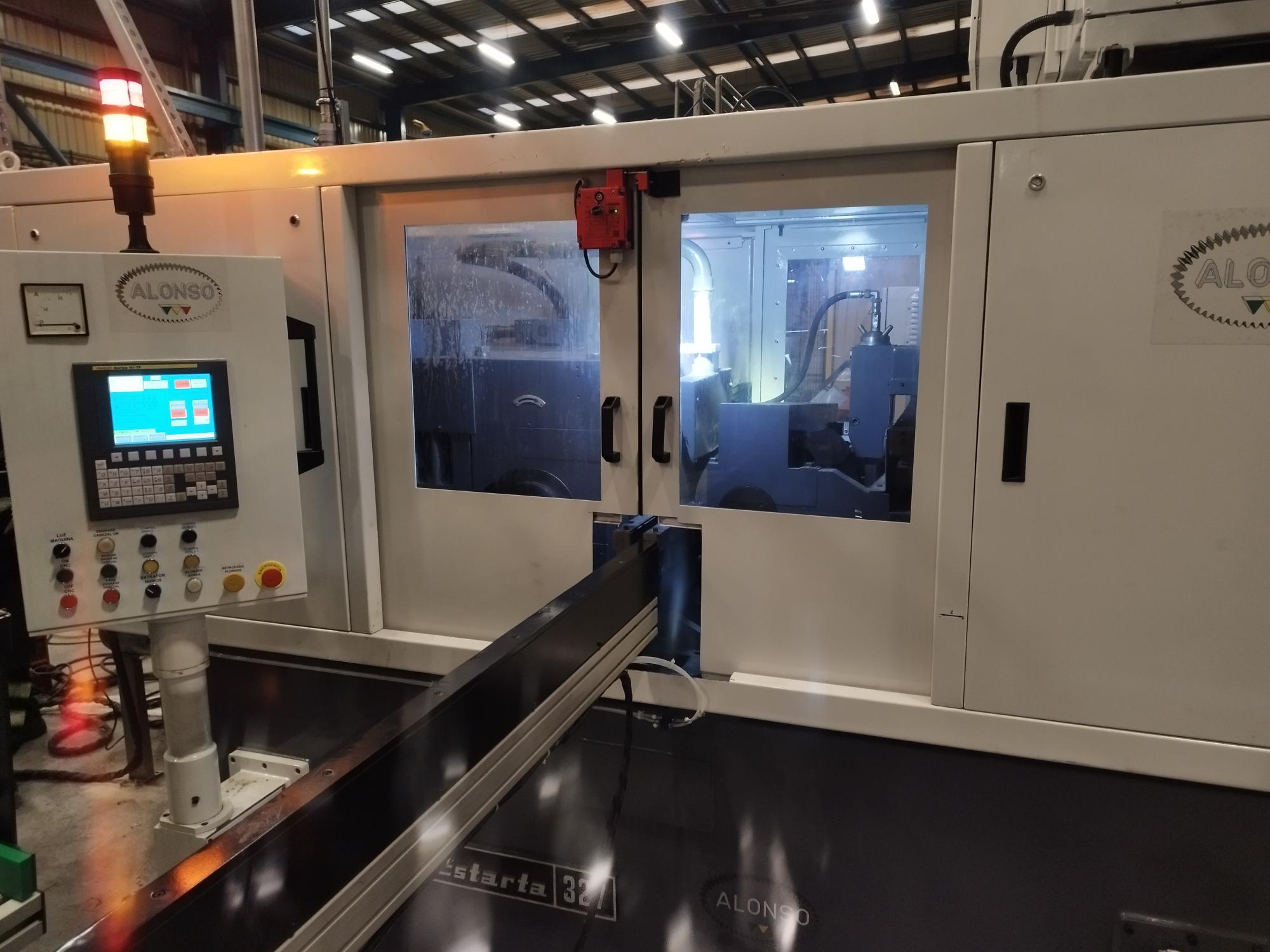

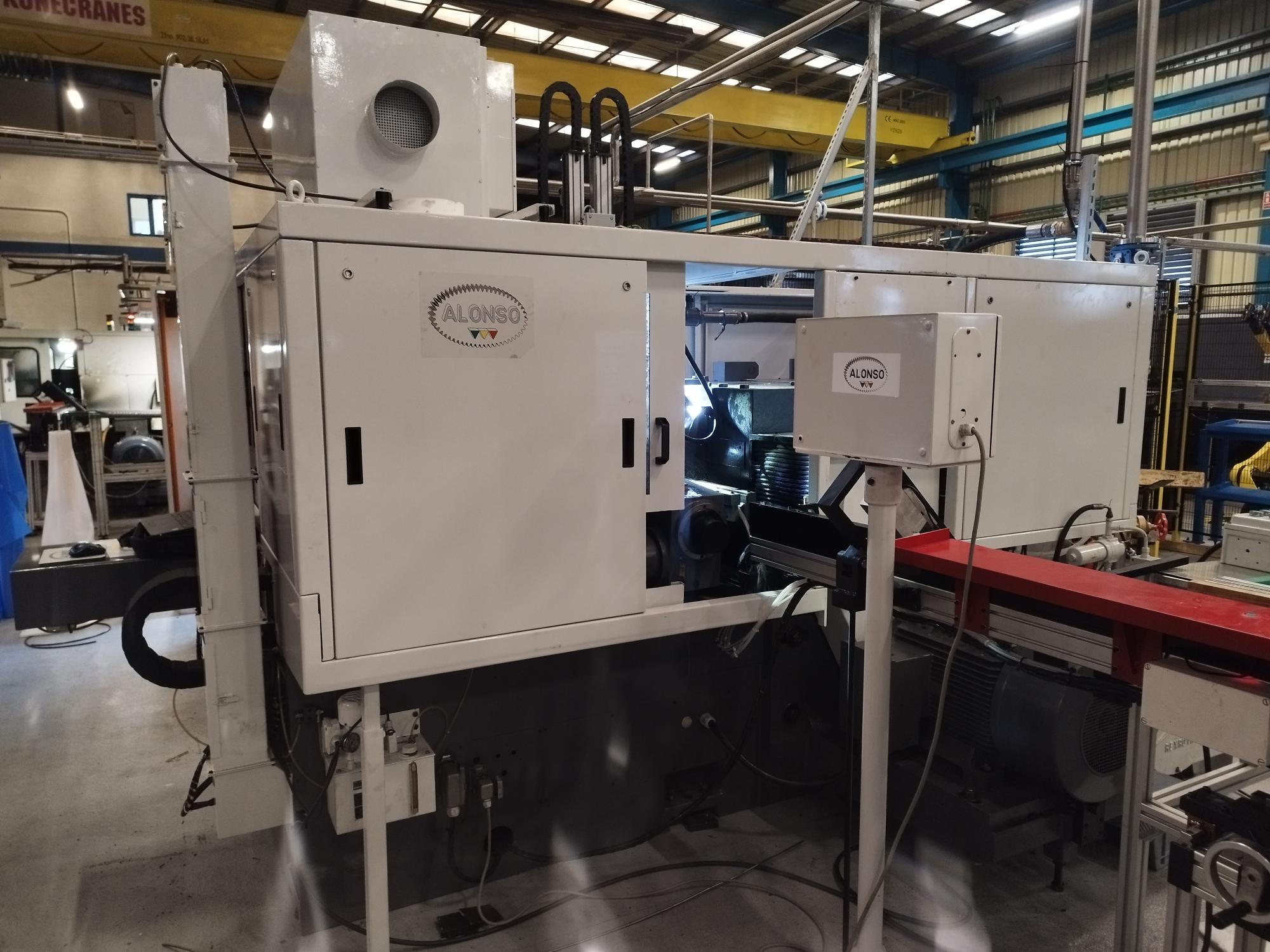

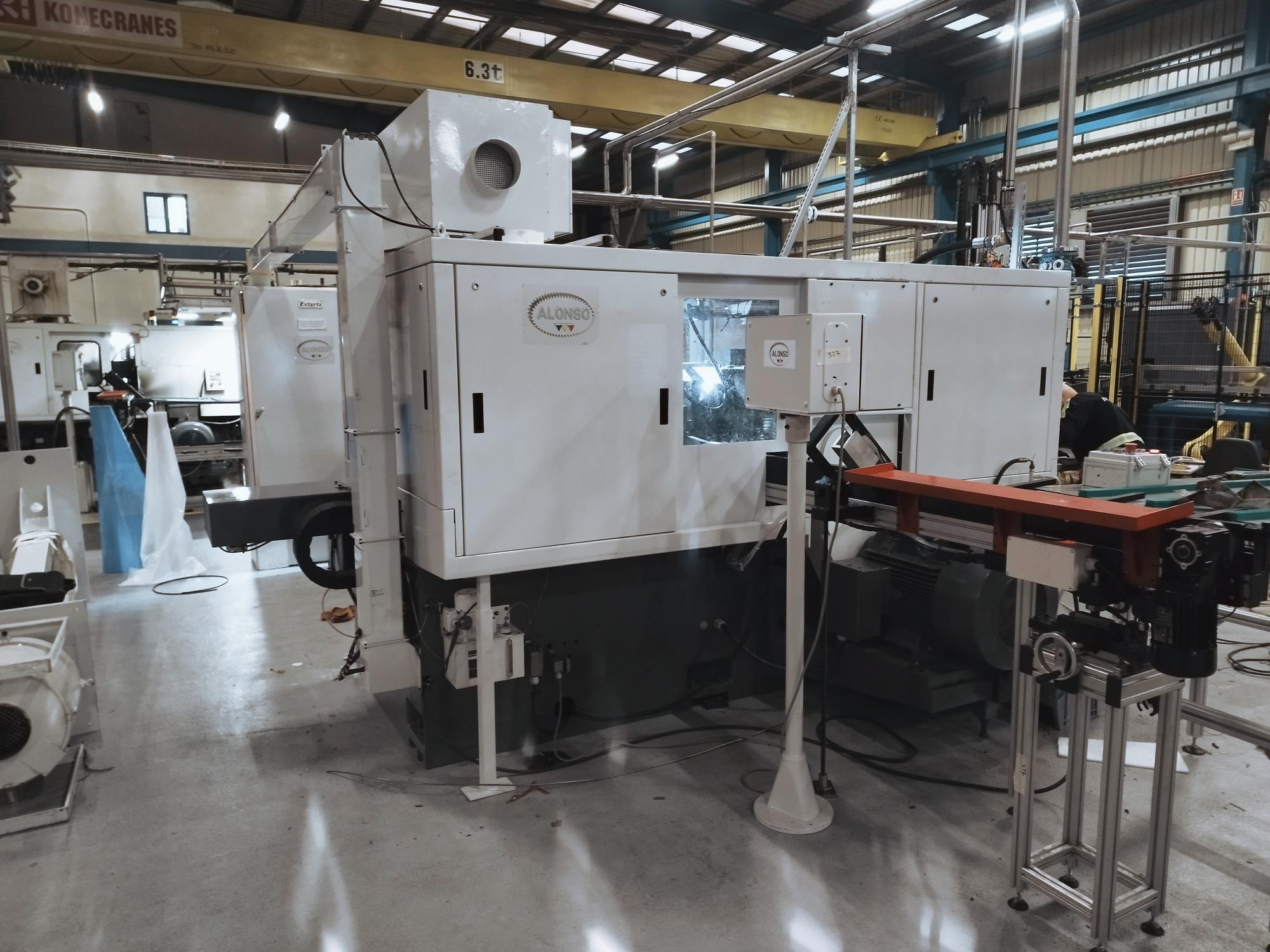

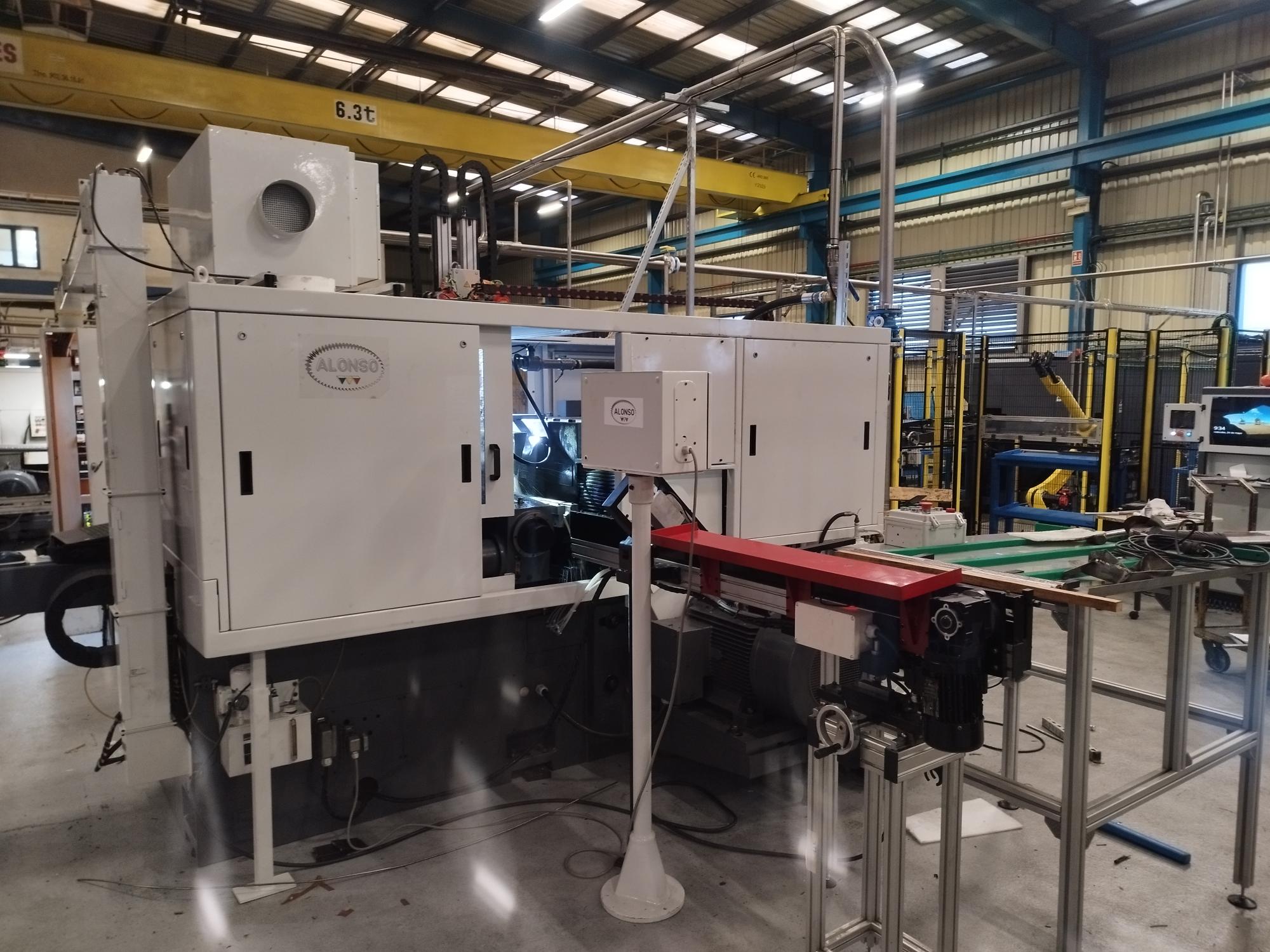

Centerless Grinding Machine ESTARTA 327 #4505
Sold
Centerless Grinding Machine ESTARTA 327 #4505
Location:Badajoz, Spain
or
Call +34 924 500 336
Specifications
| Manufacturer | ESTARTA |
| Model | 327 |
| Condition | Used |
| Stock Number | 4505 |
| Grinding wheel dimensions (od x id x width) | Ø 650 x Ø 304.8 x 500mm |
| Ø min/max to be ground | 3 / 200 mm |
| Ø min/max to be rectified | 3/200mm |
| Grinding wheel peripheral speed (m/s) | Variable with regulator |
| Peripheral speed of grinding wheel (m/s) | Variable with regulator |
| Width of regulating grinding wheel | 500 mm |
| Regulating wheel width | 500 mm |
| Number of regulating wheel speeds | Infinite |
| No. of regulating wheel speeds | Infinitas |
| Min/max. speed of regulating wheel (r.p.m.) | 10 / 255 rpm |
| Min/max speed of regulating wheel (r.p.m.) | 10 / 255 rpm |
| Diamond dressing (auto/manual) | CNC automatic on 2 grinding wheels |
| Diamond cutting (auto/manual) | Automatic CNC 2 grinding wheels |
| Diamond speed | 255 r.p.m. |
| Diamond cutting speed | 255 rpm |
| Lubrication (auto/manual) | Automatic |
| Greasing (auto/manual) | Automatic |
| Control type (cnc/manual) | CNC |
| No. of cnc axes | 8 |
| Plongée (auto/manual) | Automatic |
| Dimensions of regulating wheel (od x id x width) | Ø 350 x Ø 203,2 x 500mm |
| Regulating wheel dimensions (od x id x width) | Ø 350 x Ø 203.2 x 500mm |
| Grinding wheel width | 500 mm |
| Maximum length to be ground in plongeé | 500 mm |
| Maximum length to be rectified in plongeé | 500 mm |
| Grinding wheel head motor power | 75 Kw |
| Hydraulic motor power | 3 Kw |
| Total power | 90 Kw |
| Voltage | 220/380V |
| Length | 2.300 mm |
| Long | 2.300 mm |
| Width | 2.800 mm |
| Height | 2.100 mm |
| Tall | 2.100 mm |
| Weight | 15.000 Kg |
